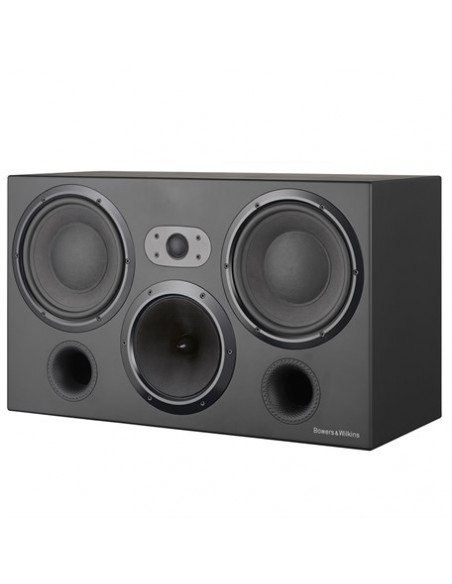

CT7.3 LCRS
BW057
1 750,00 €
1 750,00 € gb./шт.
AR PVN
Akustika mājas kinozāles
| Technical features | Nautilus™ tube loaded tweeter Kevlar® brand fibre cone FST™ midrange Paper/Kevlar®cone bass driver Flowport™ Magnetically attached grille |
| Description | 3-way vented-box system |
| Drive units | 1 x ø25mm (1 in) cloth dome high-frequency 1 x ø150mm (6 in) woven Kevlar®FST™ mid-range 2 x ø200mm (8 in) Paper/Kevlar™ bass units |
| Frequency range | -6dB at 36Hz and 28kHz |
| Frequency response | 42Hz – 22kHz ±3dB on reference axis |
| Dispersion | Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc |
| Sensitivity | 92dB spl (2.83V, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 50Hz – 20kHz |
| Crossover frequencies | 350Hz, 4kHz |
| Recommended amplifier power | 50W – 200W into 8ohm on unclipped programme |
| Max. recommended cable impedance | 0.1ohm |
| Dimensions | Height: 360mm (14.2 in) Width: 606mm (23.9 in) Depth: 265mm (10.5 in) Depth with grille: 288mm (11.3 in) |
| Net weight | 22.5kg (49.6lb) |
| Finishes | Cabinet Black painted Grille Black cloth |
- Serija:
- CT-700 Series
