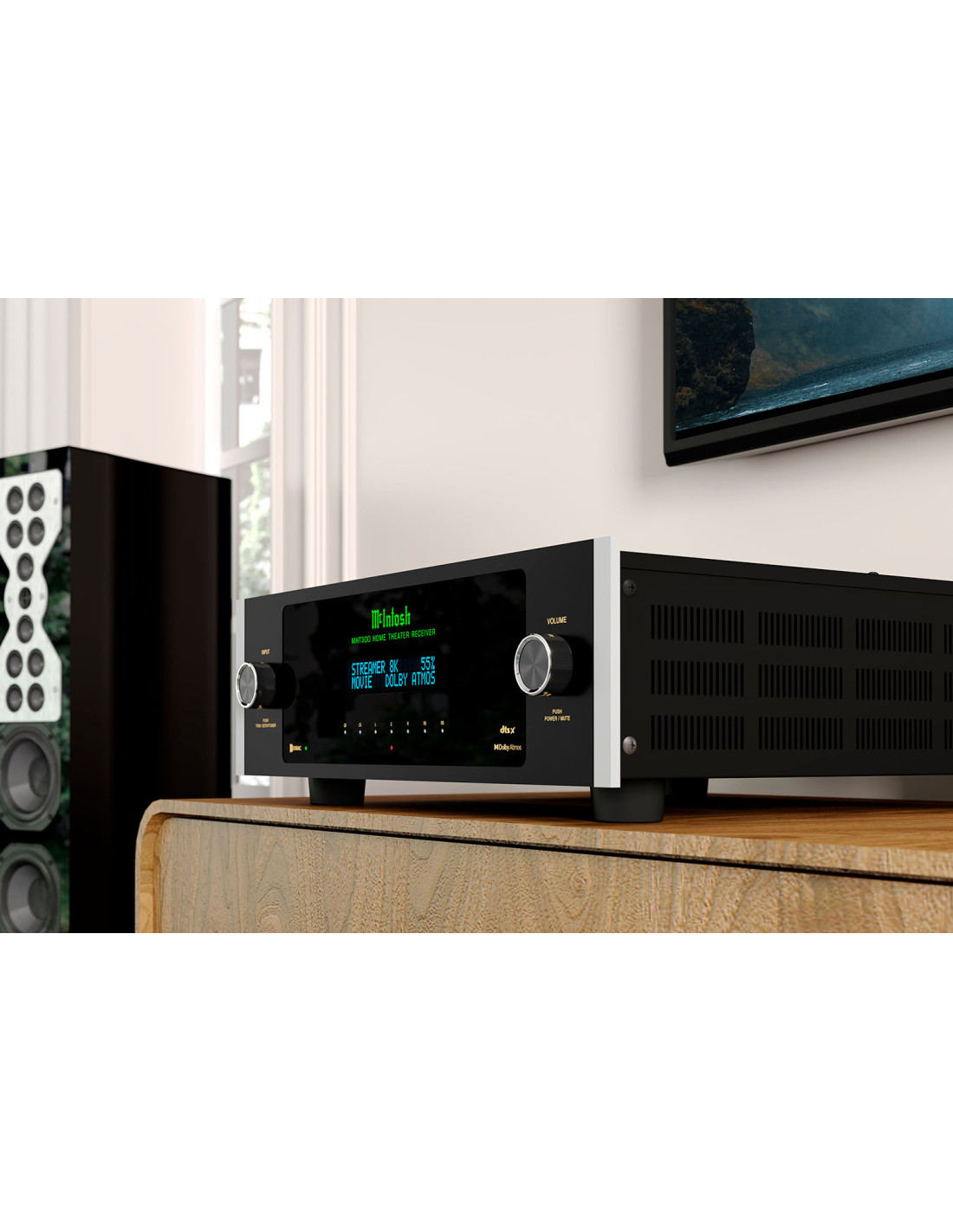

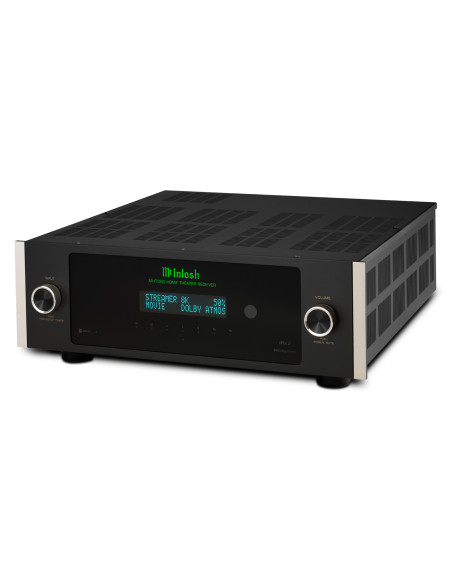

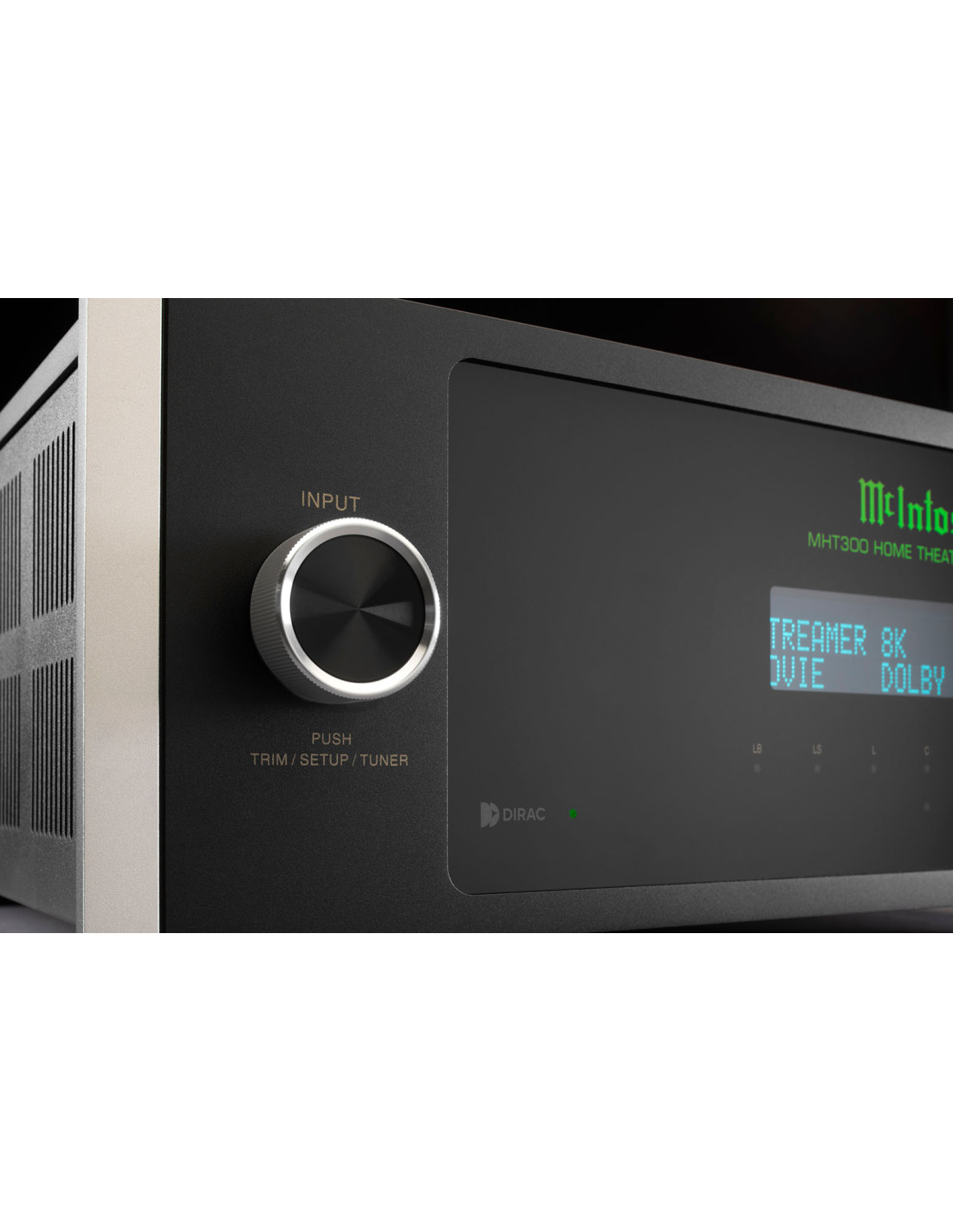

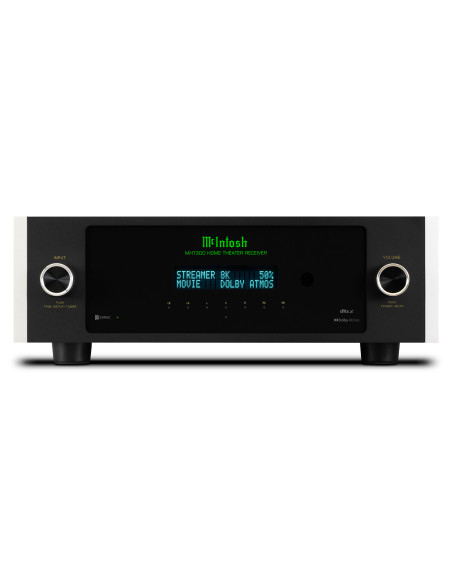

McIntosh MHT300

• 7.2-канальный AVR (с возможностью расширения до 7.2.4)
• 150 Вт на канал до 4 Ом/120 Вт на канал до 8 Ом (ВСЕ 7 каналов подключены)
• 4 входа HDMI и 1 выход HDMI: 8K/60 Гц и 4K/120 Гц; HDCP 2.3; 40 Гбит / с; Rec. 2020; Цвет 4:4:4; arc/ДУГА
• Dolby Atmos; DTS:X
• Коррекция Dirac Live Room
• Технология Dolby Vision; HDR 10+; HLG
• Можно монтировать в стойку 3U
• Поддерживается сертификация Control4; Работает с сертификацией Crestron Home
• Идеально подходит для систем, установленных на заказ, или для размещения на витрине

Connectivity

Multi-Channel Outputs Balanced

0

Multi-Channel Inputs Unbalanced

0

Multi-Channel Outputs Unbalanced

11.2

Stereo Inputs Balanced

0

Stereo Inputs Unbalanced

0

Stereo Outputs Unbalanced

0

Digital Coaxial Input

2

Digital Coaxial Output

0

Digital Optical Input

2

AES/EBU Balanced Input

0

HDMI Input

4

HDMI Output

1

USB

1 Type A

Component Input

0

Component Output

0

Composite Input

0

Composite Output

0

Subwoofer 2 Output

Yes

(discrete signal from subwoofer 1)

Network Connection

1

Max # of audio channels in Zone A

11.2

Additional Zone Outputs

0

Advanced Connections

Ethernet Web interface and firmware update, IP-based control

HDMI Features

Resolution and Refresh Rates

8K/60Hz and 4K/120Hz

HDCP

2.3

4:4:4 Color

Yes

Rec. 2020 (BT.2020)

Yes

3D video pass-through

Yes

Dynamic Lip-sync

No

ARC

Yes

eARC

Yes

Video Scaling

No

High Dynamic Range (HDR)

Dolby Vision, HDR10+ and HLG

Quick Media Switching (QMS)

No

Auto Low Latency Mode (ALLM)

No

Quick Frame Transport (QFT)

No

Variable Refresh Rate (VRR)

No

Processing

Total Harmonic Distortion (DSP Bypass)

0.05%

Dolby Processing

Dolby Atmos, Dolby Surround Upmixer

DTS Processing

DTS-X, Neural:X Surround Upmixer

Auro Processing

No

Pure Stereo DSP Bypass Mode

No

MPEG-H Audio

No

360 Reality Audio

No

IMAX Enhanced

No

Room Correction

Dirac Live

Electronic Specifications

FTC Power Output Rating

120 W

Power Output per Channel

150 W into 4 ohms with ALL Channels Driven

120 W into 8 ohms with ALL Channels Driven

Number of Channels

7.2 (expandable to 7.2.4)

Total Harmonic Distortion

0.05%

S/N below rated output

85dB (95dB below rated output)

Dynamic Headroom

4dB

Damping Factor

8 ohms: >100

4 ohms: >50

Rated Power Band

20Hz to 20kHz

Frequency Response

+0, -0.5dB from 20Hz to 20kHz

Control

Third Party Control

RS232, Web IP, IR Input, Connects with Control4, Works with Crestron Home

Tone Controls

Bass and Treble

OSD Overlay on HDMI Output

Volume Only

Input-Output Format Indicators

0

Control of McIntosh Sources

Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks

General Specifications

Channel Formats

7.2 (5.2.2), 7.1, 5.1, Stereo (expandable to 7.2.4)

Microphone and stand included

Yes

Network Features

Ethernet Setup

Unique Crossover Frequency, Each Speaker

Yes

Special Features

FM Tuner

Rear panel USB for firmware updating

Circuit Configuration

Closed loop digital switching

Circuit Design

Digital

Output Type

Direct Coupled

BTU Rating

1000 BTU/h

Weights & Dimensions

Unit Dimensions (W x H x D)

17-1/2" (44.45cm) x 6-3/16" (15.7cm) x 18-5/8" (47.31cm)

Unit Weight

27 lbs (12.2 kg)

Shipping Weight

53 lbs (24 kg)
