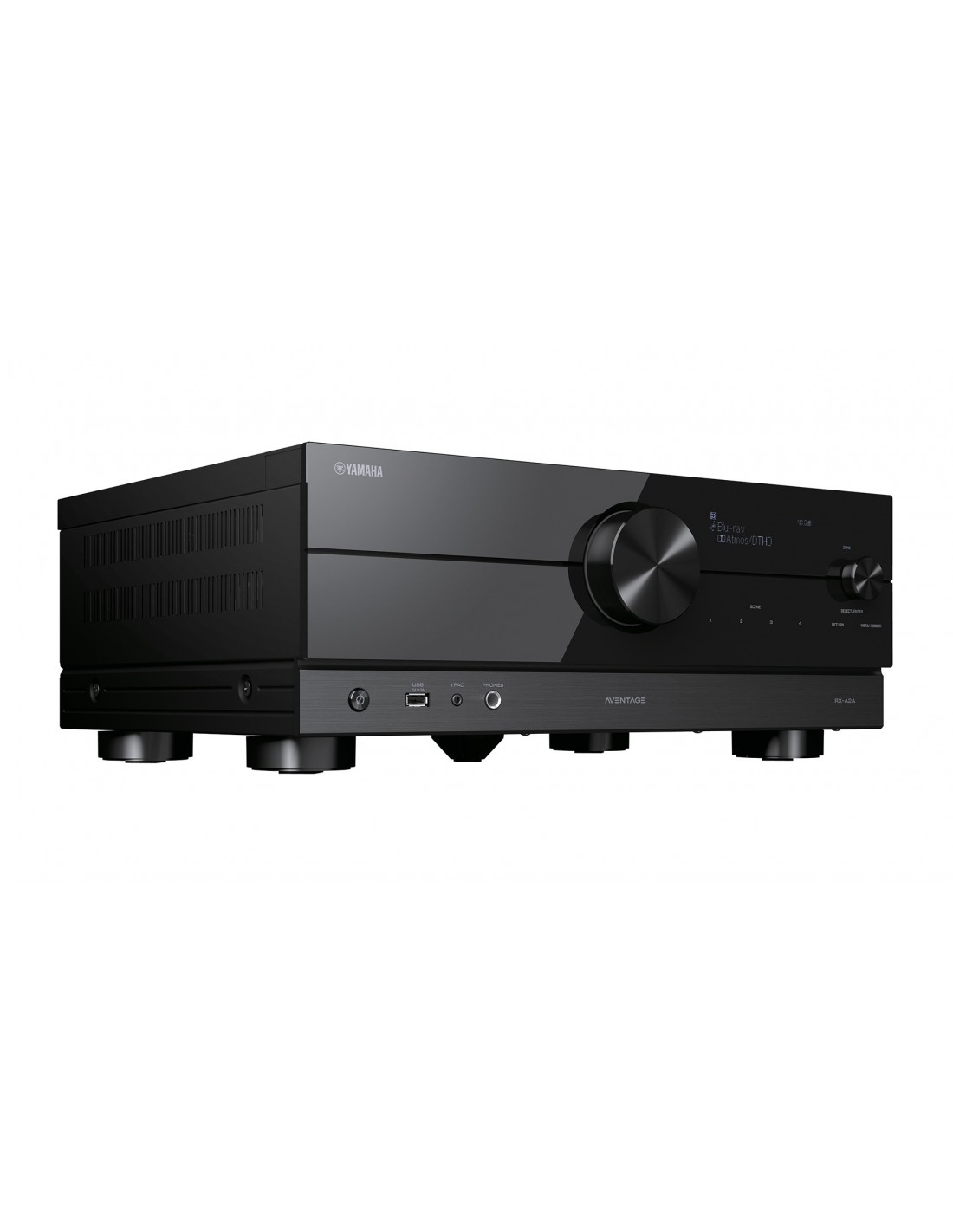

RX-A4A
YAM-0005
1 799,00 €
AR PVN
7.2 MusicCast AV receiver Net/USB/8K HDMI
| RX-A6A | RX-A8A | RX-A4A | ||
|---|---|---|---|---|
| AV Receiver | ||||
| Amplifier Section | Channel | 9.2 | 11.2 | 7.2 |
| Rated Output Power (1kHz, 1ch driven) | 185 W (8 ohms, 0.9% THD) | 185 W (8 ohms, 0.9% THD) | 135 W (8 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 150 W (8 ohms, 0.06% THD) | 150 W (8 ohms, 0.06% THD) | 110 W (8 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 220 W (8 ohms, 10% THD) | 220 W (8 ohms, 10% THD) | 165 W (8 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | Yes | Yes | |
| Surround Sound Processing | Surround:AI | Yes | Yes | Yes |
| CINEMA DSP | Yes (HD3) | Yes (HD3) | Yes (HD3) | |
| DSP Programs | 24 | 24 | 24 | |
| Dialog Level Adjustment | Yes | Yes | Yes | |
| Virtual Presence Speaker | Yes | Yes | Yes | |
| Virtual Surround Back Speaker | Yes | Yes | Yes | |
| Dialogue Lift | Yes | Yes | Yes | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | Yes | Yes | |
| Dolby Atmos | Yes | Yes | Yes | |
| Dolby Atmos Height Virtualizer | Yes | Yes | Yes | |
| Dolby TrueHD | Yes | Yes | Yes | |
| Dolby Digital Plus | Yes | Yes | Yes | |
| Dolby Surround | Yes | Yes | Yes | |
| DTS:X | Yes | Yes | Yes | |
| DTS-HD Master Audio | Yes | Yes | Yes | |
| Auro 3D | Yes | Yes | N/A | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | Yes | Yes | |
| Compressed Music Enhancer | Yes | Yes | Yes | |
| High-resolution Music Enhancer | Yes | Yes | Yes | |
| YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement | |
| YPAO Volume | Yes | Yes | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | Yes | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | Yes | Yes | |
| A.R.T. Wedge | Yes | Yes | Yes | |
| Bi-amp capability | Yes | Yes | Yes | |
| Audio Delay | Yes (0-500 ms) | Yes (0-500 ms) | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x1 ES9007S x1 | 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x2 | 384 kHz / 32-bit ESS Hyperstream DAC ES9007S | |
| Video Features | HDMI eARC | Yes | Yes | Yes |
| HDMI Audio Return Channel | Yes | Yes | Yes | |
| HDMI Pass-through | 8K60AB, 4K120AB, 40GBPS (via future update) | 8K60AB, 4K120AB, 40GBPS (via future update) | 8K60AB, 4K120AB, 40GBPS (via future update) | |
| HDMI Up-scaling | Yes, up to 8K (via firmware update) | Yes, up to 8K (via firmware update) | Yes, up to 8K (via firmware update) | |
| HDMI Up-conversion | Yes (Analog to HDMI) | Yes (Analog to HDMI) | N/A | |
| Dolby Vision | Yes | Yes | Yes | |
| HDR 10+ | Yes (via firmware update) | Yes (via firmware update) | Yes (via firmware update) | |
| VRR/ALLM/QMS/QFT | Yes (via firmware update) | Yes (via firmware update) | Yes (via firmware update) | |
| Video adjustment | Yes | Yes | N/A | |
| Connectivity | MusicCast Surround | Yes | Yes | Yes |
| HDMI Input/Output | 7 / 3 (HDMI2.1 / HDCP2.3) | 7 / 3 (HDMI2.1 / HDCP2.3) | 7 / 3 (HDMI2.1 / HDCP2.3) | |
| HDMI CEC | Yes | Yes | Yes | |
| USB Input | Yes | Yes | Yes | |
| Network Port | Yes | Yes | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | Yes (2.4 / 5 GHz) | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | Yes | Yes | |
| Bluetooth | Yes (SBC / AAC) | Yes (SBC / AAC) | Yes (SBC / AAC) | |
| Front AV Input | USB | USB | USB | |
| Digital Audio Input/Output: Optical | 3 / 0 | 3 / 0 | 2 / 0 | |
| Digital Audio Input/Output: Coaxial | 2 / 0 | 2 / 0 | 1 / 0 | |
| Analog Audio Input/Output | 6 / 0 | 6 / 0 | 4 / 0 | |
| Phono Input | Yes | Yes | Yes | |
| XLR Terminal | Yes | Yes | N/A | |
| Component Video Input/Output | 1 / 0 | 1 / 0 | N/A | |
| Composite Video Input/Output | 2 / 0 | 2 / 0 | N/A | |
| Preout | 11.2-ch | 11.2-ch | 7.2-ch | |
| Headphone Output | 1 | 1 | 1 | |
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) | Yes (Availability varies by region.) | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | Yes (Availability varies by region.) | Yes (Availability varies by region.) | |
| User Interface | On-screen display | Graphical User Interface | Graphical User Interface | Graphical User Interface |
| SCENE | SCENE PLUS (8 sets) | SCENE PLUS (8 sets) | SCENE PLUS (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | Yes (iPhone / iPad / Android phone / tablet) | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | Yes | Yes | |
| Remote Control Unit | Yes | Yes | Yes | |
| Zone Control | Zone 2 Audio Output | Preout / HDMI | Preout / HDMI | Preout / HDMI |
| Zone 3 Audio Output | Preout | Preout | N/A | |
| Zone 4 Audio Output | HDMI | HDMI | N/A | |
| Powered Zone | Zone 2 / 3 | Zone 2 / 3 | Zone 2 | |
| Zone Video Output | HDMI | HDMI | HDMI | |
| Zone B Output | HDMI | HDMI | N/A | |
| Zone GUI | Yes | Yes | N/A | |
| RS-232C Interface | N/A | N/A | N/A | |
| +12V Trigger Output | 2 | 2 | 2 | |
| Remote (IR) Input/Output | 1 / 1 | 1 / 1 | 1 / 1 | |
| Party Mode | Yes | Yes | Yes | |
| General | Standby Power Consumption (IR only) | <0.4 W | <0.4 W | <0.4 W |
| Auto Power Standby | Yes | Yes | Yes | |
| ECO mode | Yes | Yes | Yes | |
| Dimensions (W x H x D) | 435 W x 192 H x 442 D mm (with antenna up:435W x 271H x 442D mm); 17-1/8"W x 7-1/2"H x 17-3/8"D (with antenna up:17-1/8"W x 10-5/8"H x 17-3/8"D) | 435 W x 192 H x 477 D mm (with antenna up:435 W x 271 H x 477 D mm);17-1/8"W x 7-1/2"H x 18-3/4"D (with antenna up:17-1/8"W x 10-5/8"H x 18-3/4"D) | 435 W x 191 H x 442 D mm (with antenna up:435 W x 270 H x 442 D mm);17-1/8"W x 7-1/2"H x 17-3/8"D (with antenna up:17-1/8"W x 10-5/8"H x 17-3/8"D) | |
| Weight | 20.3 kg; 44.8 lbs. (Varies by region) | 21.4 kg; 47.2 lbs. | 16.2 kg; 35.7 lbs. | |
