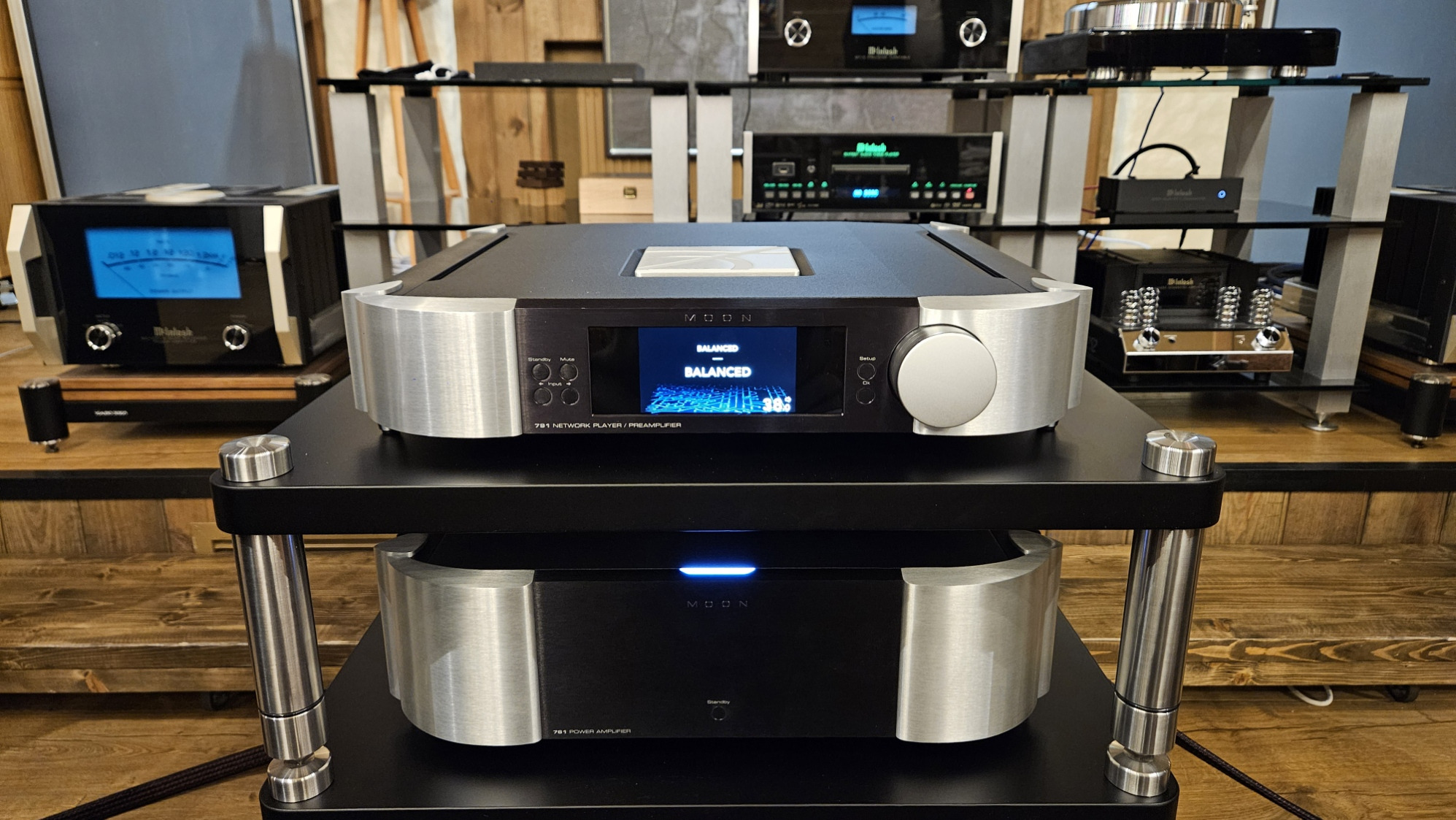

- 791 Network Player, 761 Power Amplifier
Technical specifications
MOON 791
- Type Digital Streaming preamplifier
- Digital Inputs 6+1 HDMI with ARC
- Analogue Inputs 3 including MM/MC Phono Stage
- Analogue Input Impedance 22kΩ
- Maximum Gain (Line Level) 10 dB
- Phono Input Gain 40 dB / 54 dB / 60 dB / 66 dB
- Phono Input Capacitance 0 / 100 pF / 470 pF
- Phono Input Resistance 10 Ω / 100 Ω / 1 kΩ / 47 kΩ
- Output Impedance 50 Ω
- Crosstalk -125 dB
- Frequency Response 2 Hz–200 kHz (+0 dB / –3 dB)
- Signal-to-Noise Ratio (Analog Preamplifier) 120 dB
- Dynamic Range (Digital Input, Fixed Output) 125 dB
- Total Harmonic Distortion + Noise 0.0004%
- Intermodulation Distortion 0.0003%
- Dimensions (W×H×D) 48.1 × 10.2 × 44.9 cm
- Weight 19 kg
MOON 761
- Type Stereo power amplifier
- Inputs 2× phono, 2× XLR, MOON Link network connections
- Output Power (Stereo 8 Ω) 200 W
- Output Power (Stereo 4 Ω) 400 W
- Output Power (Mono 8 Ω) 600 W
- Input Sensitivity 1.1 V
- Input Impedance 47 kΩ
- Gain 31 dB
- Frequency Response 2 Hz–100 kHz (+0 dB / -3 dB)
- Crosstalk -116 dB
- Signal-to-Noise Ratio 117 dB
- Total Harmonic Distortion + Noise (@ 1 W) 0.002%
- Total Harmonic Distortion + Noise (@ 200 W) 0.001%
- Intermodulation Distortion 0.002%
- Damping Factor 800
- Dimensions (W×H×D) 48.1 × 14 × 44.5 cm
- Weight 36 kg
