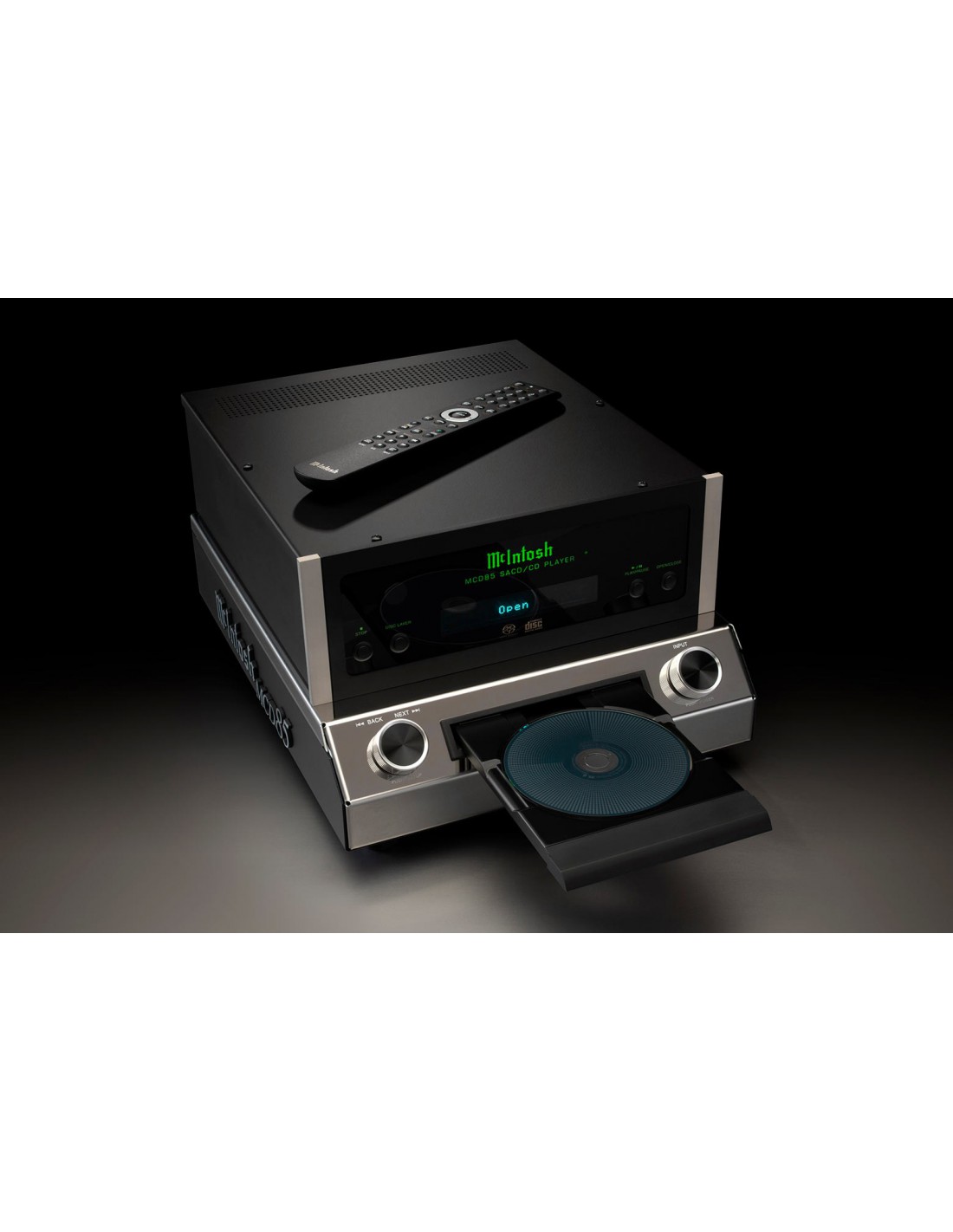

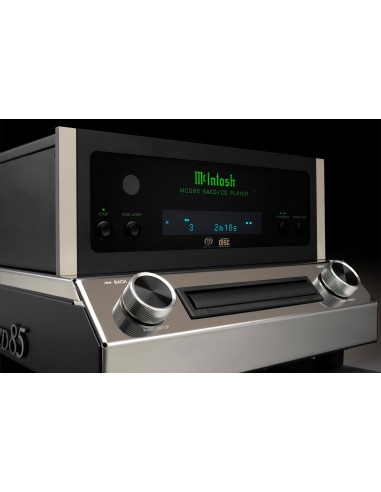

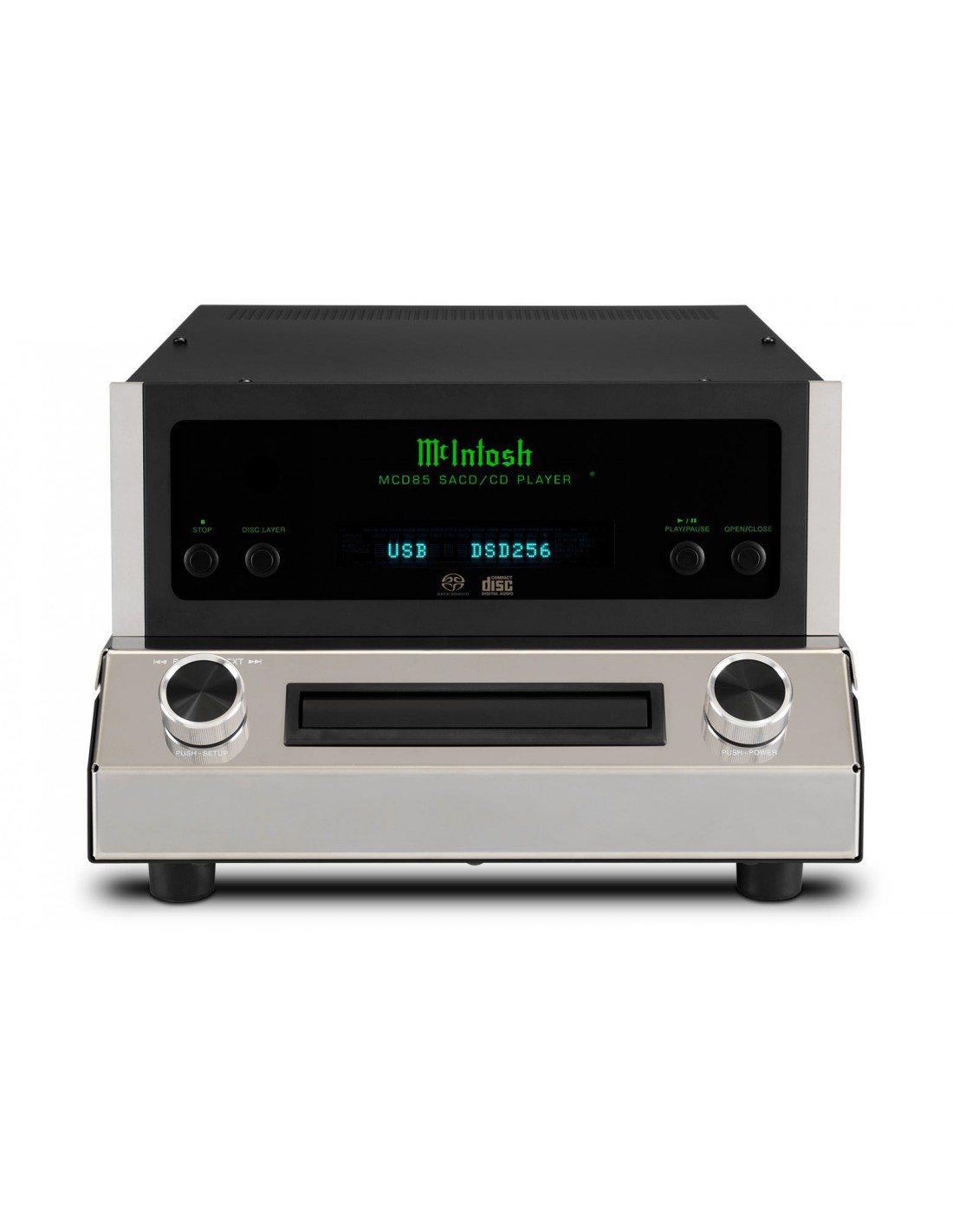

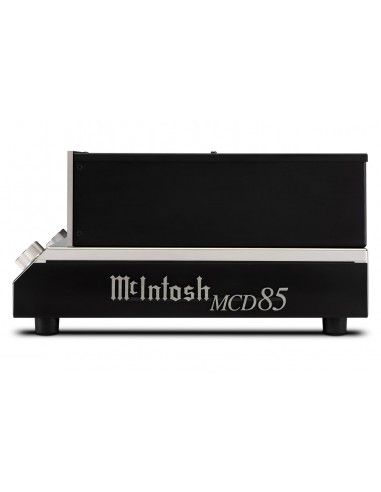

MCD85

AUDIO SPECIFICATIONS

• Number of Channels

  2

• Fixed Output Level

  2.0Vrms Unbalanced
  4.0Vrms Balanced

• Variable Output Level

  N/A

• Output Impedance

  100 ohms Unbalanced and Balanced

• Frequency Response

  ±0.5dB from 20Hz-20kHz

• Signal To Noise Ratio

  Better than 100dB (A-weighted)

• Dynamic Range

  Better than 96dB

• Total Harmonic Distortion

  0.02% @ 1000Hz

• Channel Separation

  Better than 85dB (1,000Hz)

• Headphone Output Impedance

  N/A

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type

  8-channel, 32-bit PCM/DSD, Quad Balanced

• Coaxial Sample Rate

  16, 24-bit/192kHz

• Optical Sample Rate

  16, 24-bit/192kHz

• USB Sample Rate

  16, 24-bit/192kHz
  Native DSD and DoP DSD Up to DSD256, DXD384

• Digital Coaxial Input

  0.5V p-p/75 ohms

• Digital Optical Input

  -15dbm to -21dbm

• Digital Output Sample Rate

  N/A

• Digital Optical Output

  N/A

• Digital Coaxial Output

  N/A

• Digital Output Jitter

  N/A

• Digital XLR Output

  N/A

• Digital MCT (DIN) Output

  N/A

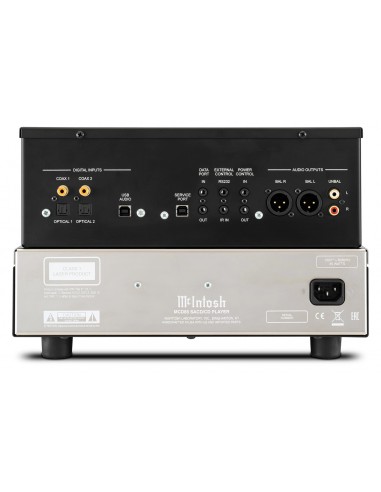

CONNECTIVITY

• Balanced Fixed Output

  1

• Unbalanced Fixed Output

  1

• Balanced Variable Output

  0

• Unbalanced Variable Output

  0

• Digital Coaxial Input

  2

• Digital Optical Input

  2

• Digital USB Input

  1

• Digital USB Input Type

  Type B

• Digital Coaxial Output

  0

• Digital Optical Output

  0

• Digital XLR Output

  0

• Digital MCT (DIN) Output

  0

• Headphone Output

  0

CONTROL

• Rear Panel IR Sensor Input

  1

• Rear Panel Data Input

  1

• Power Control Input

  1

• Power Control Output

  1

GENERAL SPECIFICATIONS

• Disc Formats

  SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

• Disc Capacity

  1

• Laser Type

  Twin Beam

• Laser Beam Wavelength

  650nm (SACD)
  790nm (CD)

• Laser Power

  CLASS IIa/CLASS I

• Standby Power Requirement

  <0.5 watt

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  12-5/32" (30.9cm) x 7-3/4" (19.7cm) x 16-1/4" (41.3cm)

• Unit Weight

  20.5 lbs (9.3 kg)

• Shipping Weight

  27.5 lbs (12.5 kg)
