MCT500
7 050,00 €
7 050,00 € gb./шт.
AR PVN
2-Channel SACD/CD Transport
AUDIO SPECIFICATIONS
- Number of Channels
- 2
- Fixed Output Level
- N/A
- Variable Output Level
- N/A
- Output Impedance
- N/A
- Frequency Response
- N/A
- Signal To Noise Ratio
- N/A
- Dynamic Range
- N/A
- Total Harmonic Distortion
- N/A
- Channel Separation
- N/A
- Headphone Output Impedance
- N/A
DIGITAL AUDIO SPECIFICATIONS
- Digital-to-Analog Converter (DAC) Type
- N/A
- Coaxial Sample Rate
- N/A
- Optical Sample Rate
- N/A
- USB Sample Rate
- N/A
- Digital Coaxial Input
- N/A
- Digital Optical Input
- N/A
- Digital Output Sample Rate
- Coaxial: Up to 24-Bit/192kHz
Optical: Up to 24-Bit/192kHz
XLR: Up to 24-Bit/192kHz
MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)
- Digital Optical Output
- -15dbm to -21dbm
- Digital Coaxial Output
- 0.5V p-p/75 ohms
- Digital XLR Output
- 5V p-p/150 ohms
- Digital MCT (DIN) Output
- 3V @110 ohms

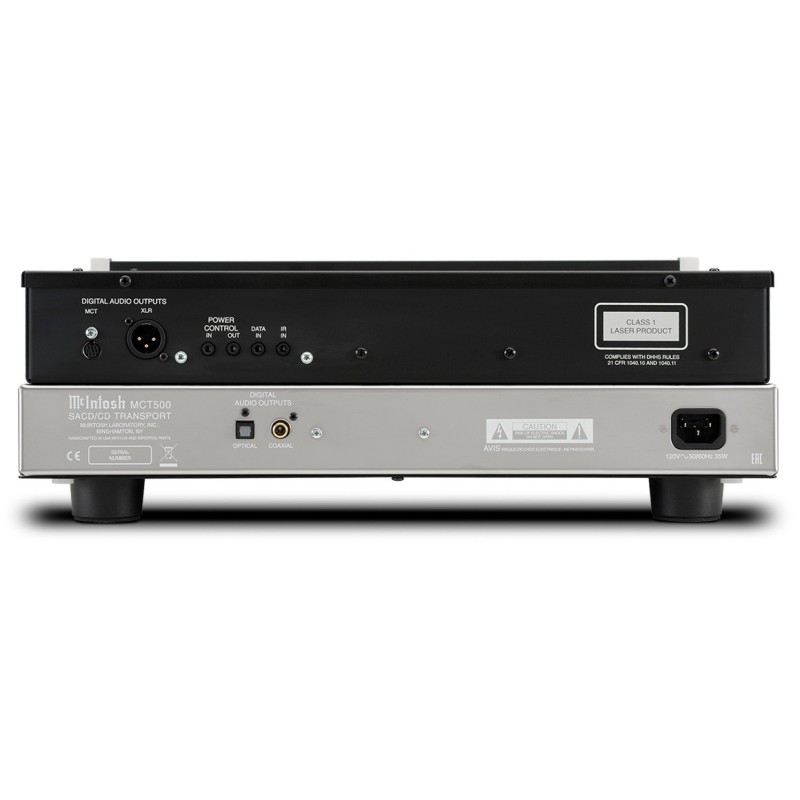

CONNECTIVITY
- Balanced Fixed Output
- 0
- Unbalanced Fixed Output
- 0
- Balanced Variable Output
- 0
- Unbalanced Variable Output
- 0
- Digital Coaxial Input
- 0
- Digital Optical Input
- 0
- Digital USB Input
- 1 (front)
- Digital USB Input Type
- Type A
- Digital Coaxial Output
- 1
- Digital Optical Output
- 1
- Digital XLR Output
- 1
- Digital MCT (DIN) Output
- 1
- Headphone Output
- 0
CONTROL
- Rear Panel IR Sensor Input
- 1
- Rear Panel Data Input
- 1
- Power Control Input
- 1
- Power Control Output
- 1
GENERAL SPECIFICATIONS
- Disc Formats
- SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
- Disc Capacity
- 1
- Laser Type
- Twin Beam
- Laser Beam Wavelength
- 650nm (SACD)
790nm (CD)
- Laser Power
- CLASS IIa/CLASS I
- Standby Power Requirement
- <0.5 watt
WEIGHTS & DIMENSIONS
- Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
- Weight
- 26 lbs (11.8 kg)
- Shipping Weight
- 40.5 lbs (18.4 kg)
