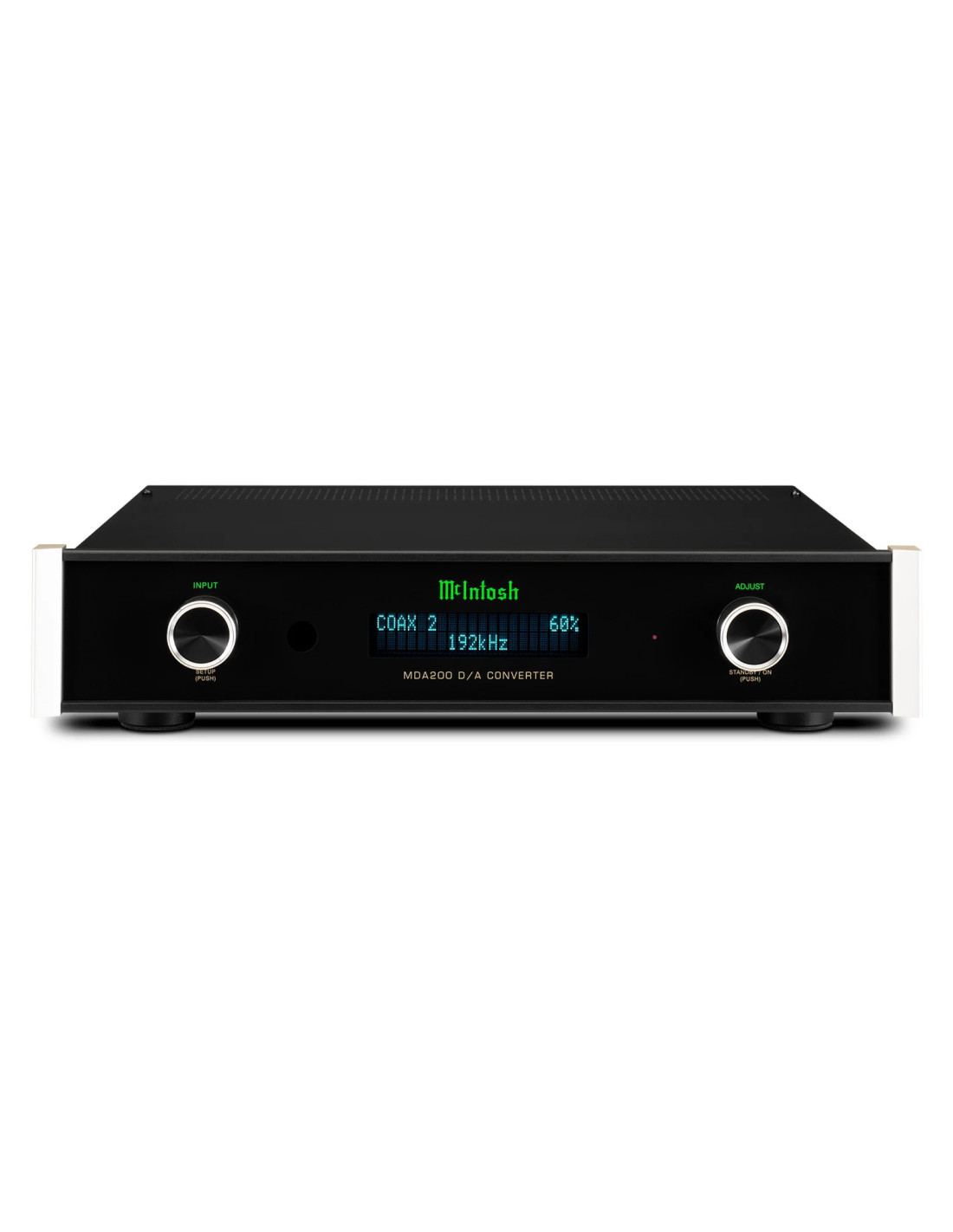

MDA200 D/A Converter

• Premium Digital Performance
• Add digital music playback to an all analog system or replace an older, outdated converter
• Comes with DA2 Digital Audio Module installed
• Supports up to DSD512 and 24-bit/192kHz
• 7 digital inputs: 2 coax, 2 optical, 1 USB, 1 MCT, 1 HDMI (ARC)
• Balanced and unbalanced analog outputs

ELECTRONIC SPECIFICATIONS

Number of Channels

2

Total Harmonic Distortion

0.005%

Frequency Response

+0, -0.5dB from 20Hz to 20kHz

+0, -3dB from 5Hz to 60kHz (Source dependent)

Maximum Volts Out (Balanced / Unbalanced)

4.0V RMS / 2V RMS (Fixed Output)

0-16V RMS / 0-8V RMS (Adjustable Output)

Signal To Noise Ratio

100dB

Dynamic Range

100dB

Output Impedance

100 Ohms (Balanced and Unbalanced)

CONNECTIVITY

Digital Coaxial Input

2

Digital Optical Input

2

Digital MCT Input

1

Digital USB Input

1

HDMI (ARC) Input

1

Balanced Output

1

Unbalanced Output

1

CONTROL

Data Input

1

Data Output

1

Power Control Input

1

Power Control Output

1

Rear Panel IR Sensor Input

Yes

RS232 Control Input

Yes

GENERAL SPECIFICATIONS

Output Meters

No

Vacuum Tube or Solid State

Solid State

Power Consumption (On)

35 Watts

WEIGHTS & DIMENSIONS

Unit Dimensions (W x H x D)

17-1/2" (44.45cm) x 3-7/8" (9.8cm) x 15-11/16" (39.95cm)

Unit Weight

13.5 lbs (6.1 kg)

Shipping Weight

28 lbs (12.7 kg)
