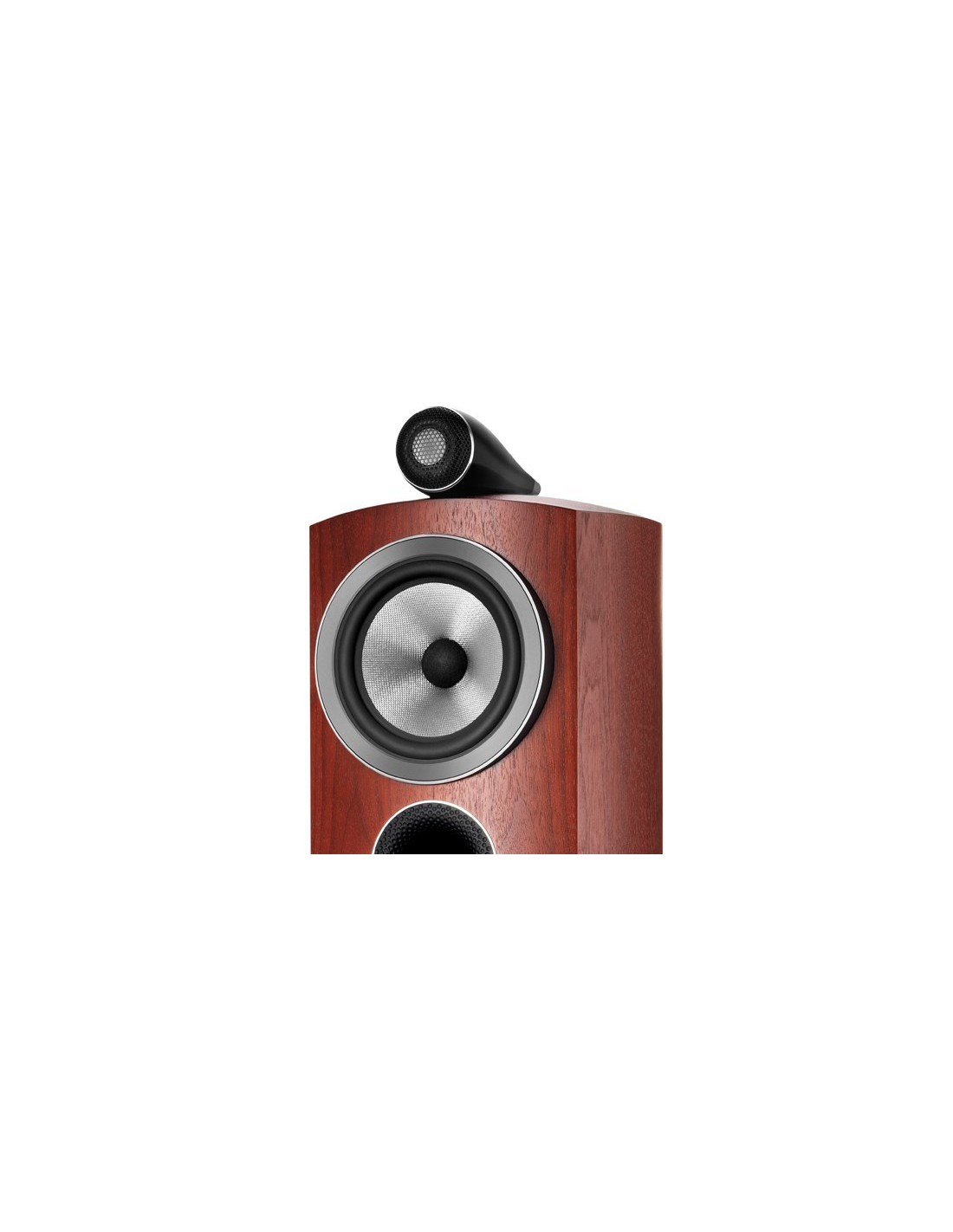

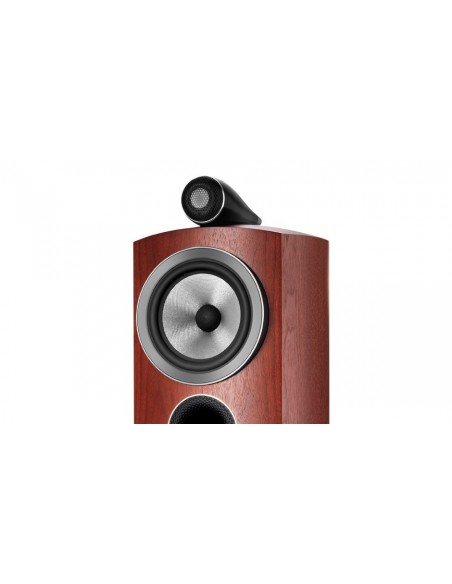

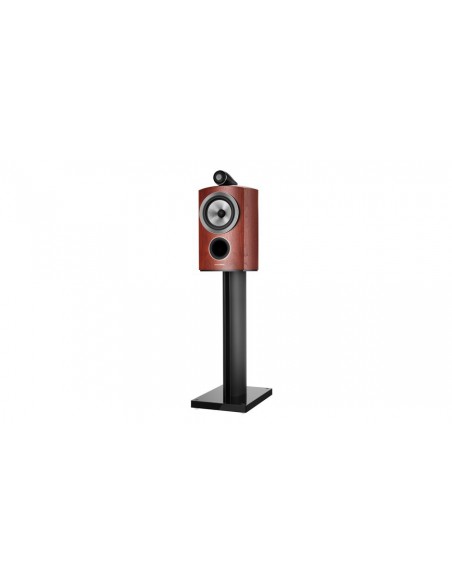

805D4
BW005
€4,400.00
€4,400.00 gb./шт.
Tax included
Shelf acoustic
Technical specifications
Technical features

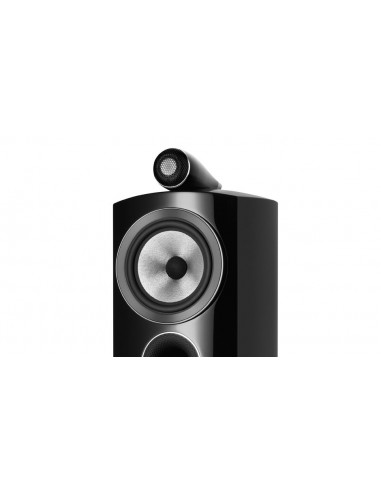

Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone bass/mid
Anti-Resonance plug
Matrix™
Flowport
Description
2-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø165mm (6.5in) Continuum cone bass midrange
Frequency range
34Hz to 35kHz
Frequency response
42Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
88dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 4.6Ω)
Recommended amplifier power
50W – 120W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 440mm
Width: 240mm
Depth: 373mm
Net weight
15.55kg
Finishes
Cabinet:

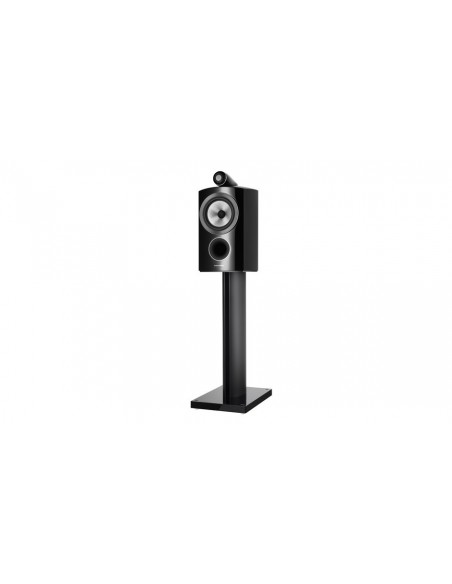

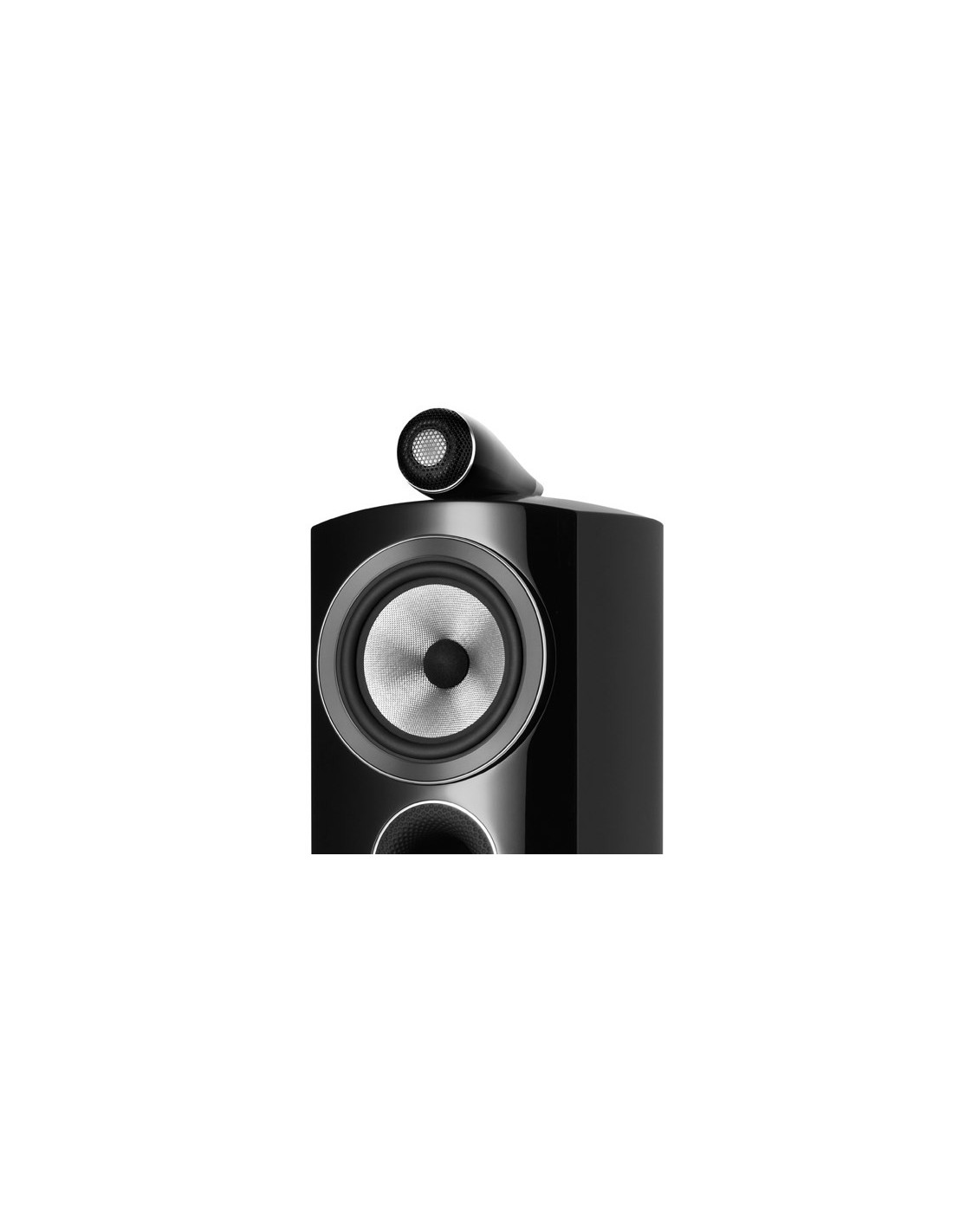

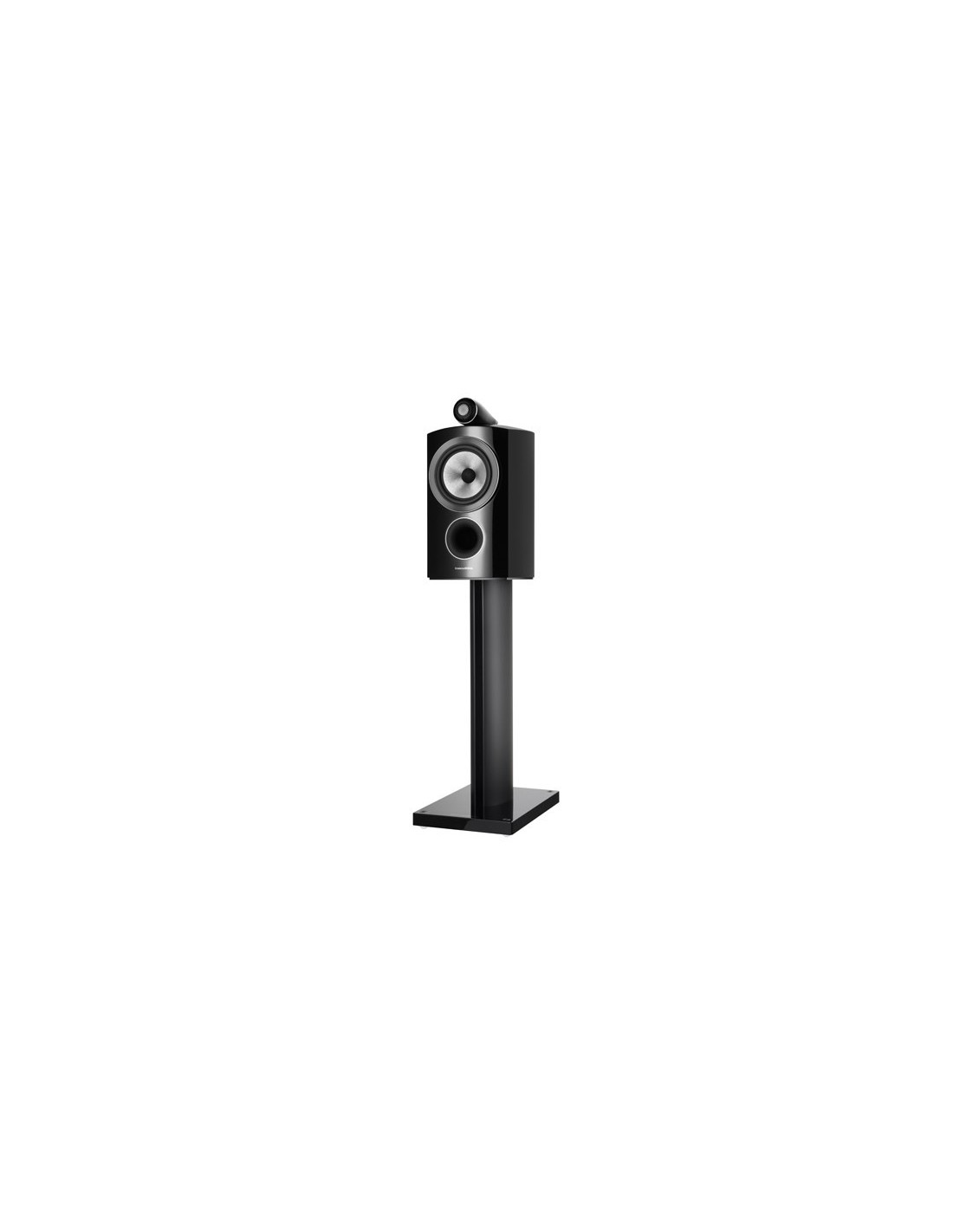

Gloss Black

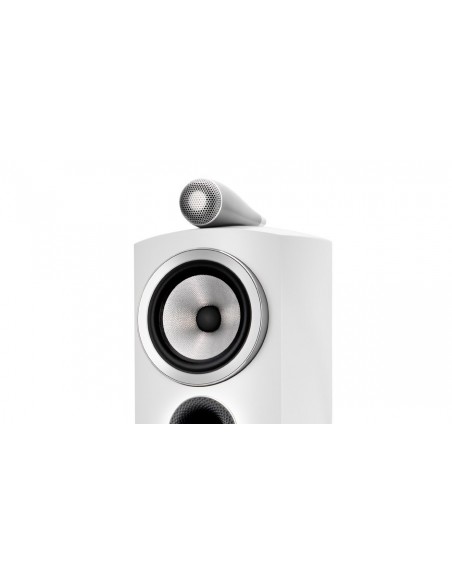

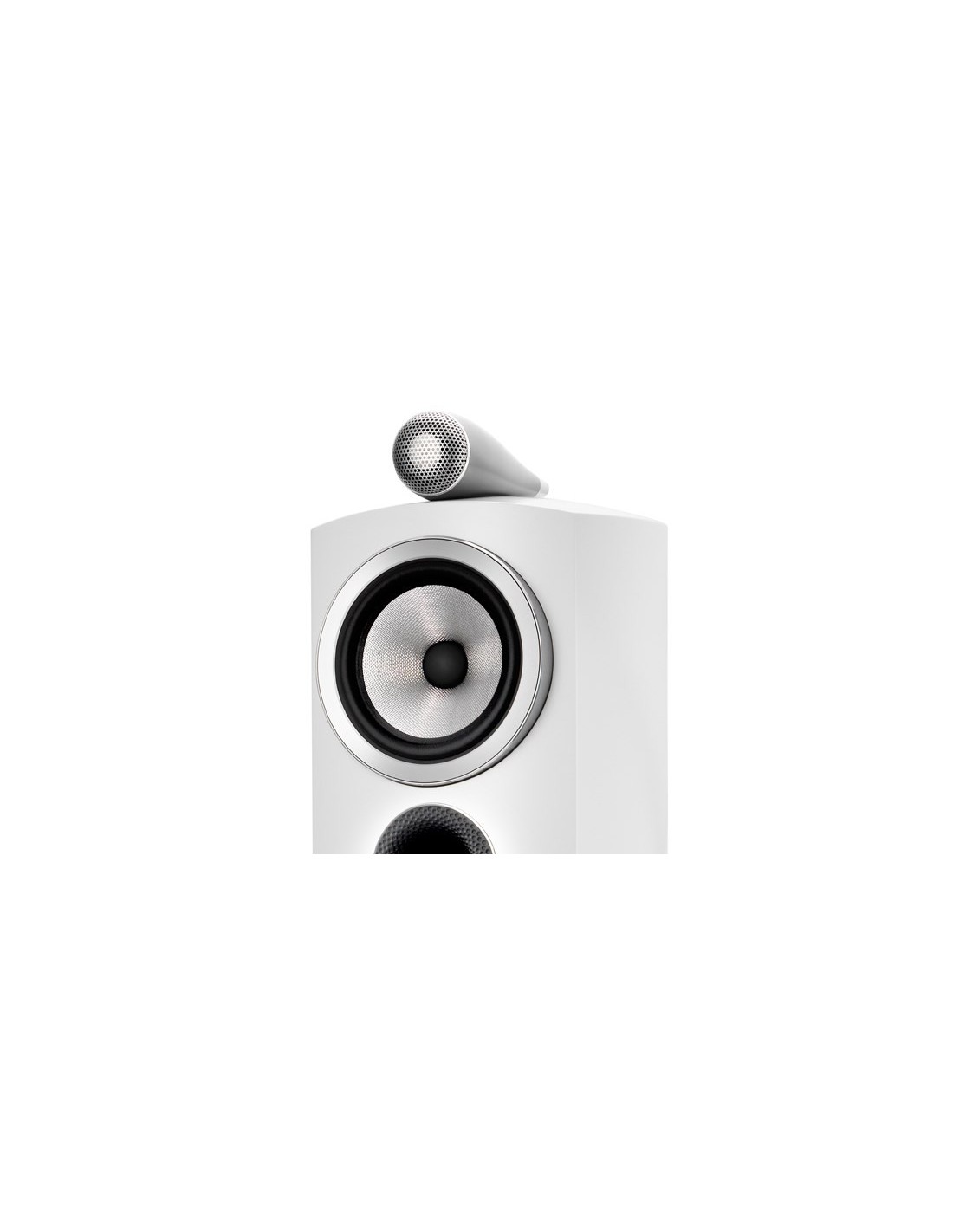

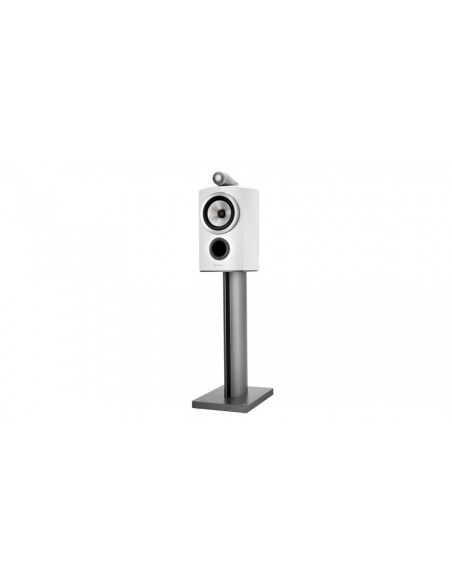

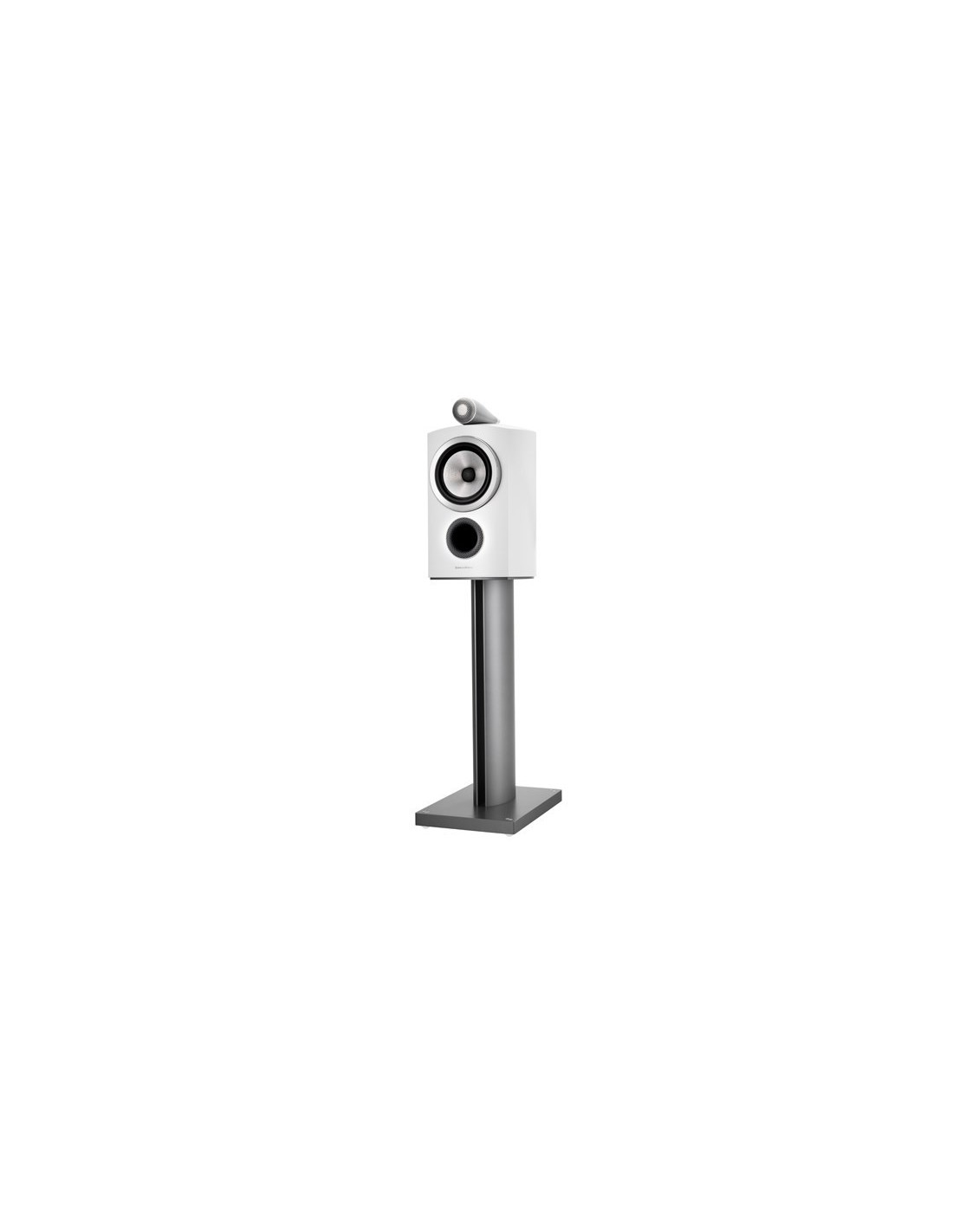

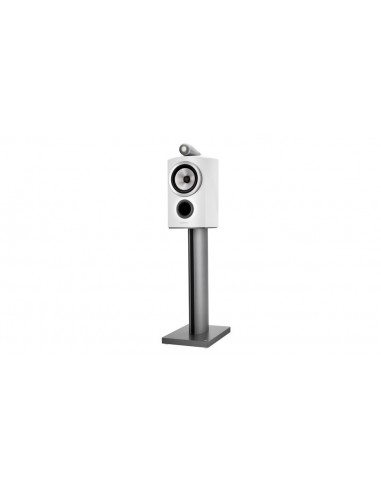

White

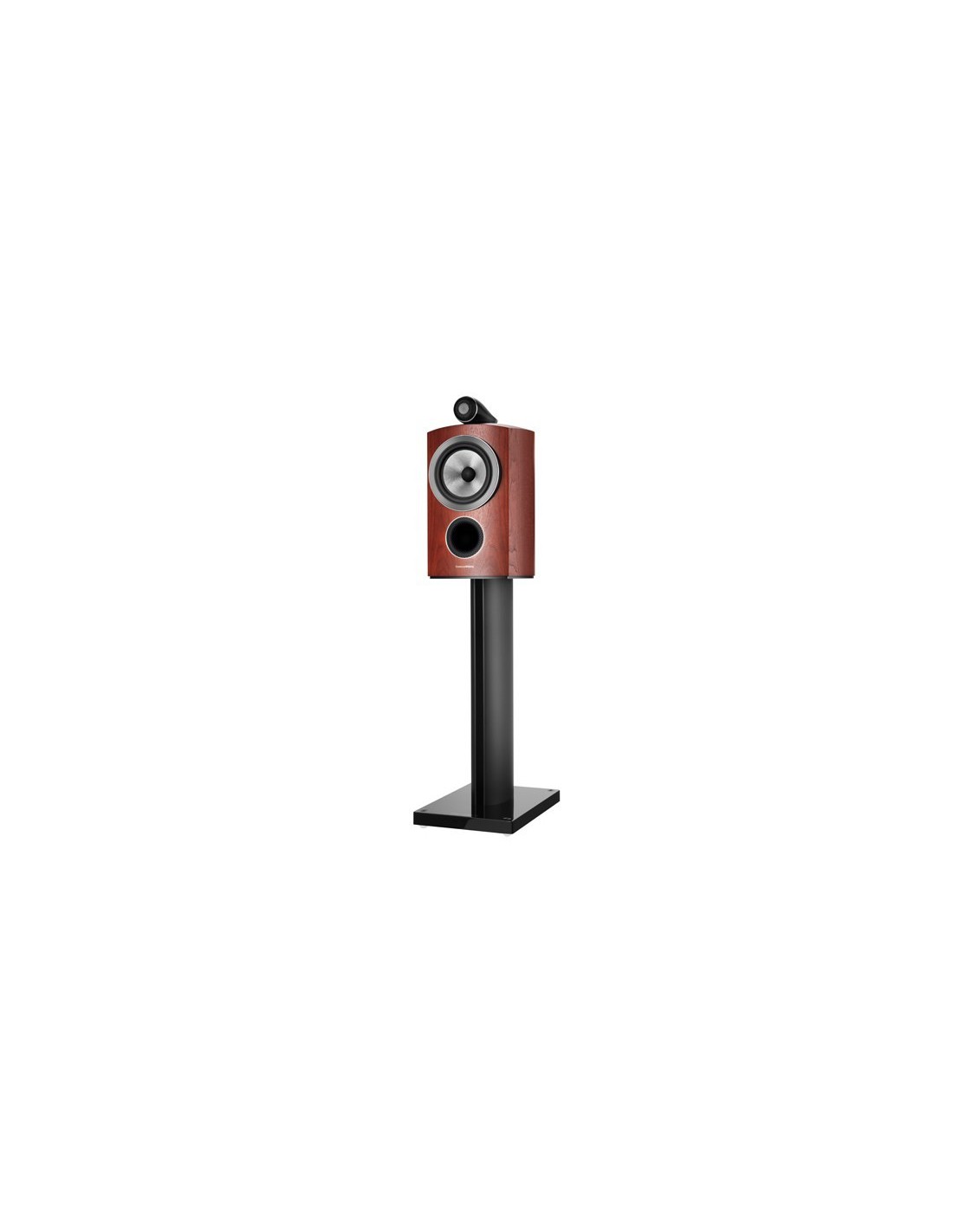

Satin Rosenut
Satin Walnut
Grille:
Black
Grey
Black
Grey
- Series:
- 800 Series
- Sensitivity:
- 88 dB/2,83 V/ 1m
- Frequency:
- 42Hz to 28kHz (+/-3dB from reference axis)
- Power:
- 120 W
- Number of Ways:
- 2
- NOMINAL IMPEDANCE:
- 8 Om
- Type:
- pasīvs
