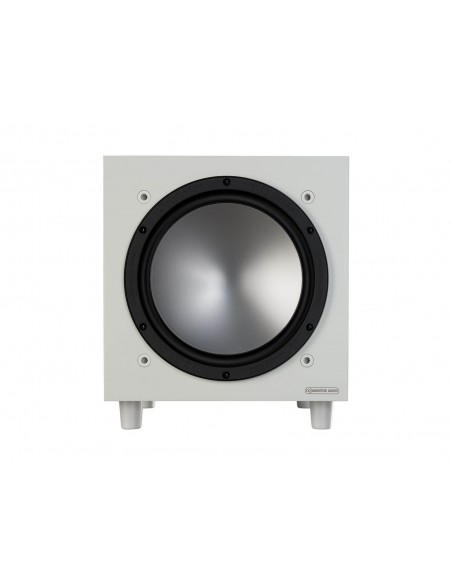

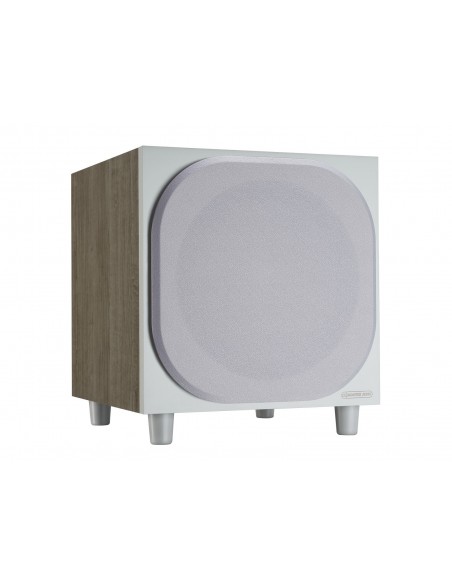

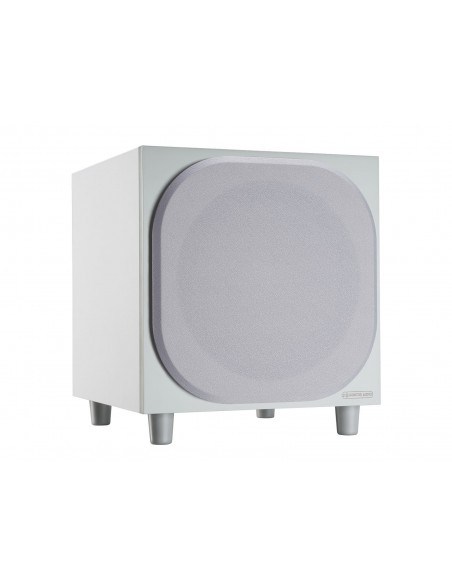

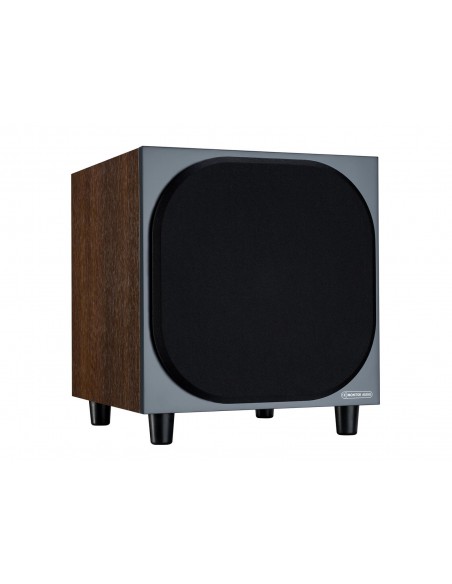

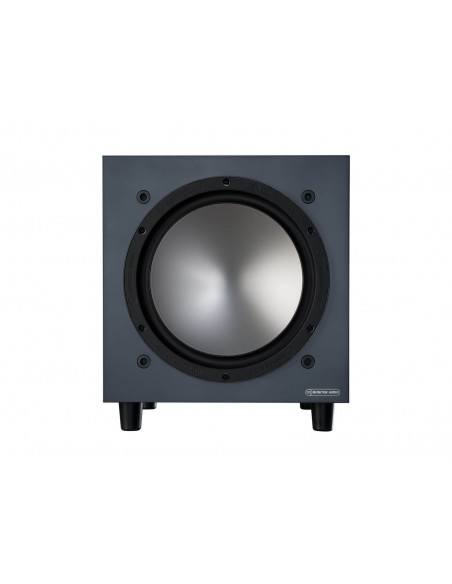

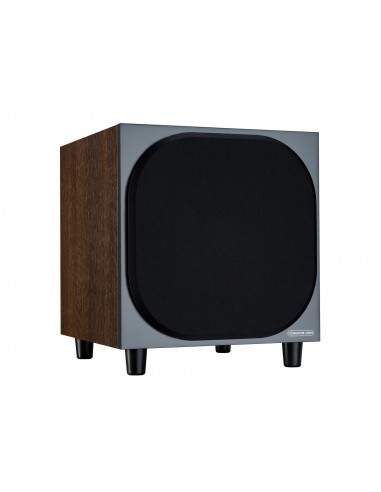

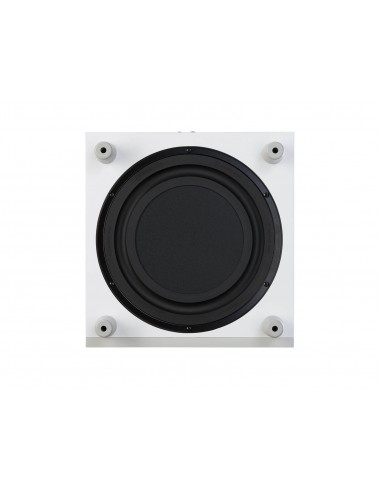

Bronze W10
MA-056
€650.00
Tax included
Active subwoofer
System Format

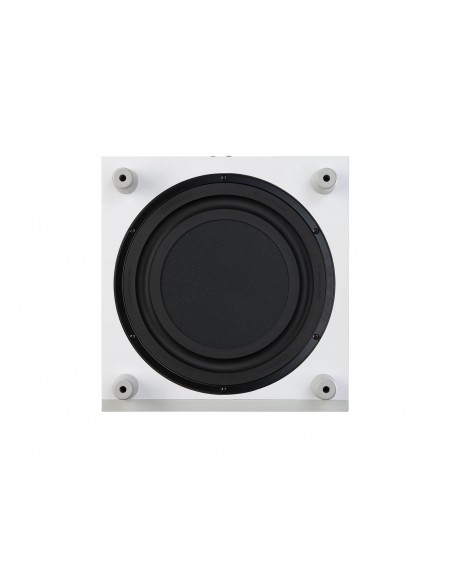

Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction
Lower Frequency Limit
34 Hz (-6 dB)
Upper Frequency Limit
50 – 120 Hz with 24 dB/Octave
Drive Unit Complement
1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil
Linear Driver Excursion
17 mm peak to peak
Amplifier Output
220 W
Amplifier Classification
Class D with high current Switch mode power supply (SMPSU)
Phase Control
0 Degrees & 180 Degree pure Invert
Low Pass Filter Alignment
2nd order (12 dB/Octave), from 40 Hz to 120 Hz
Equalisation DSP
3 pre-set modes: Music, Movie, Impact
Auto Sensing
Line Level >3mV. Auto Standby feature after 20 mins

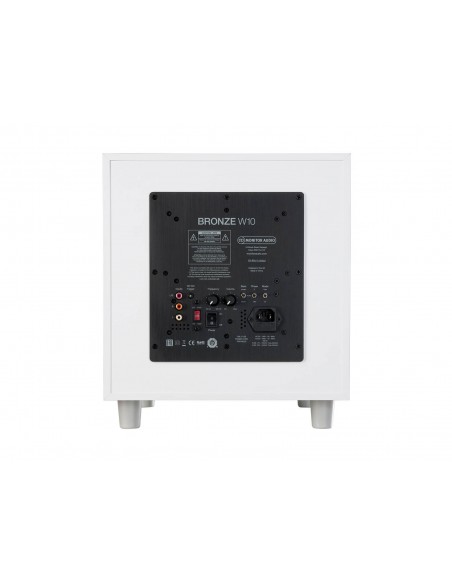

Audio Input/Outputs
LFE unbalanced input RCA
Stereo unbalanced inputs RCA
Input Impedance
20 kOhms input impedance
12 V Trigger
3.5 mm mono mini-jack. 6 V threshold
Electrical Certifications
CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)
Mains Input Voltage
100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)
Power Consumption
Maximum 300 W, Standby <0.5 W (ErP compliance)
Fuse Type
20 mm T4AL 250 VAC
External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
321 x 321 x 364 mm (125/8 x 125/8 x 145/16")
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")
Weight (unpacked)
13.4 kg (29 lb 9 oz)
Sold As
Single Unit
- Series:
- Bronze Series
