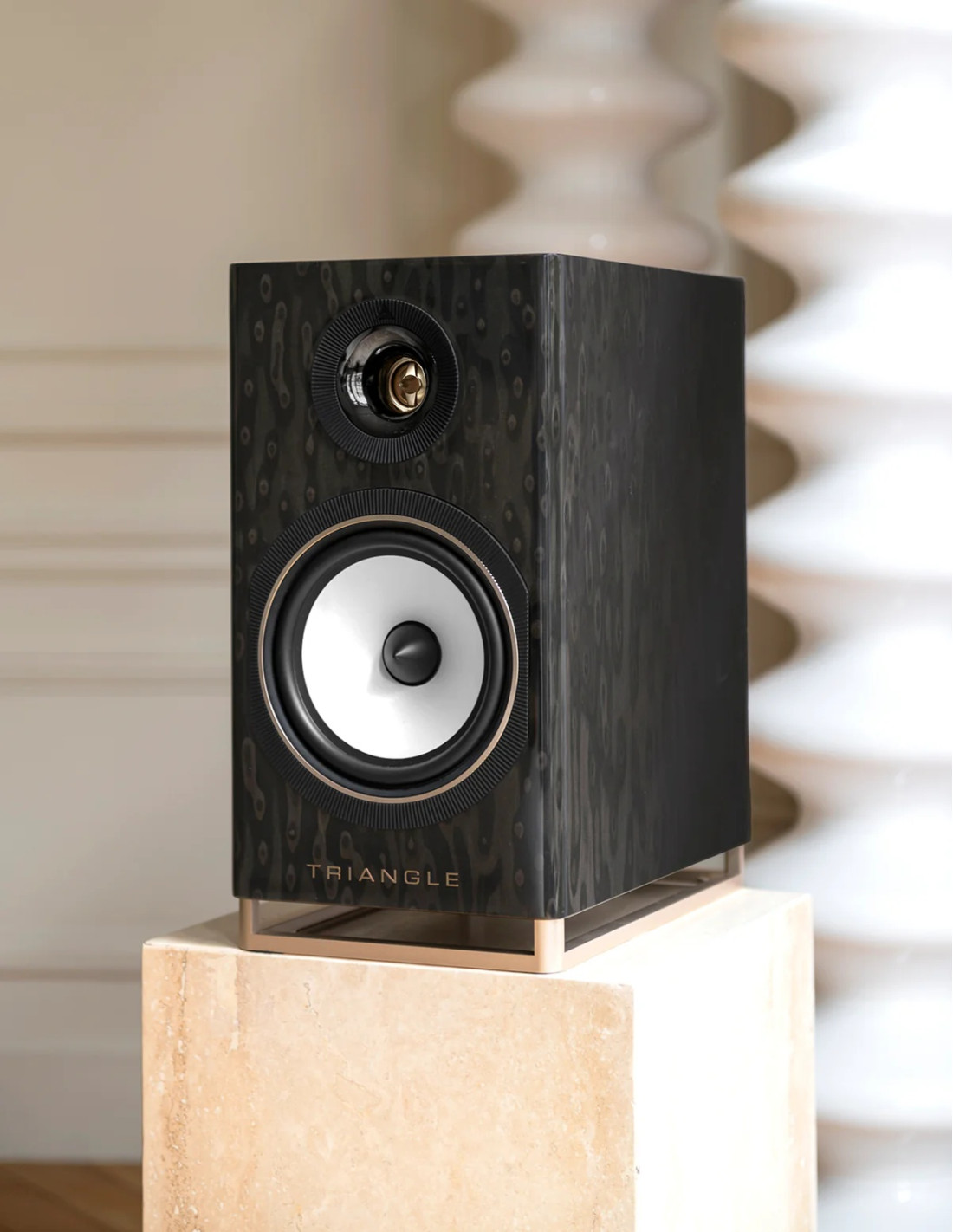

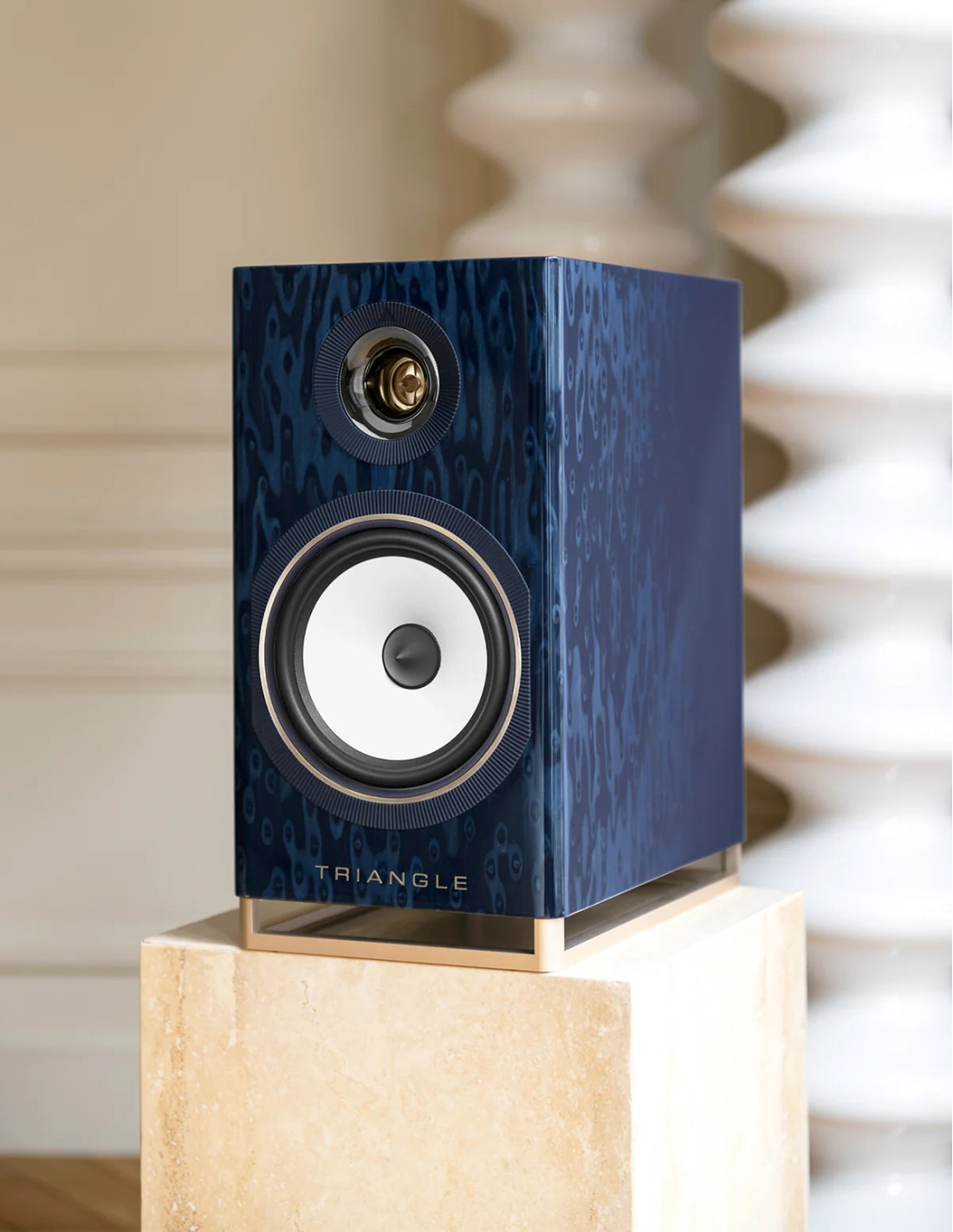

Capella

Speaker use

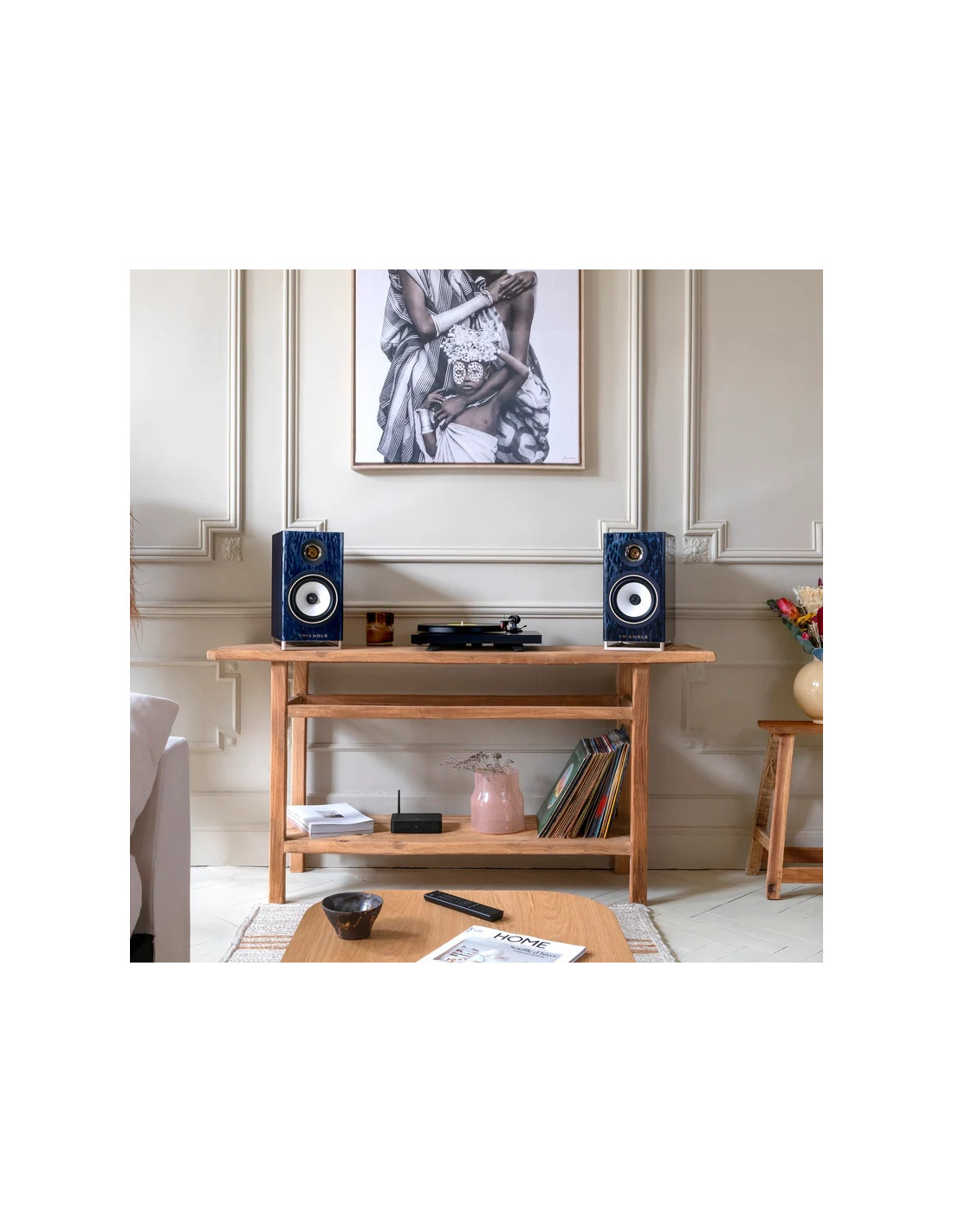

Recommended room size

The Capella system is recommended* for listening rooms between 15 and 40 m2.

* A suitable listening area ensures a balanced reproduction of the entire sound message. Low frequencies are the most sensitive to the room, as they tend to resonate in small rooms and become diluted in large rooms.

Amplifier and Connectors

Loudspeaker

Input: Mono RCA line input - WiSA wireless technology

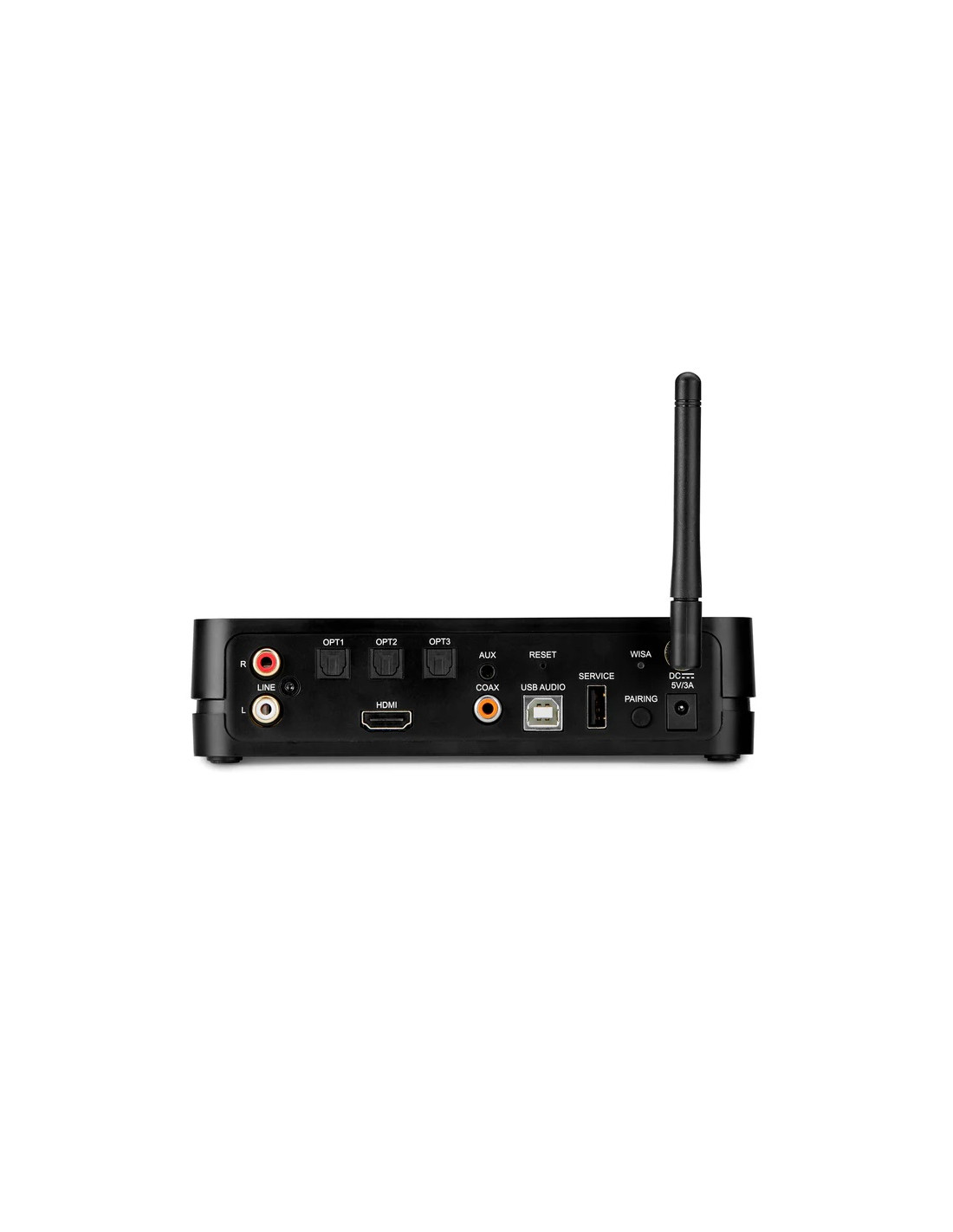

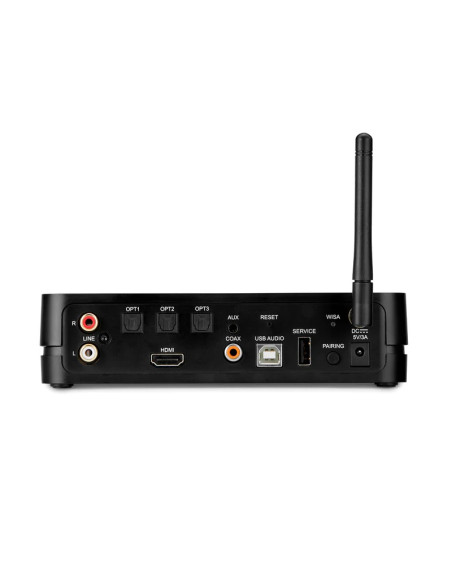

Stereo Hub

Type: WiSA wireless transmitter / Preamplifier / Streamer

• Wi-Fi

• WiSA

• Bluetooth

• 3 x Optical / SPDIF

•. 1 x Coaxial

• 1 x USB-B

• 1 x RCA Stereo

• 1 x Aux / Optical 3.5mm

Auto sleep after 20 minutes

Features

Speaker Specifications

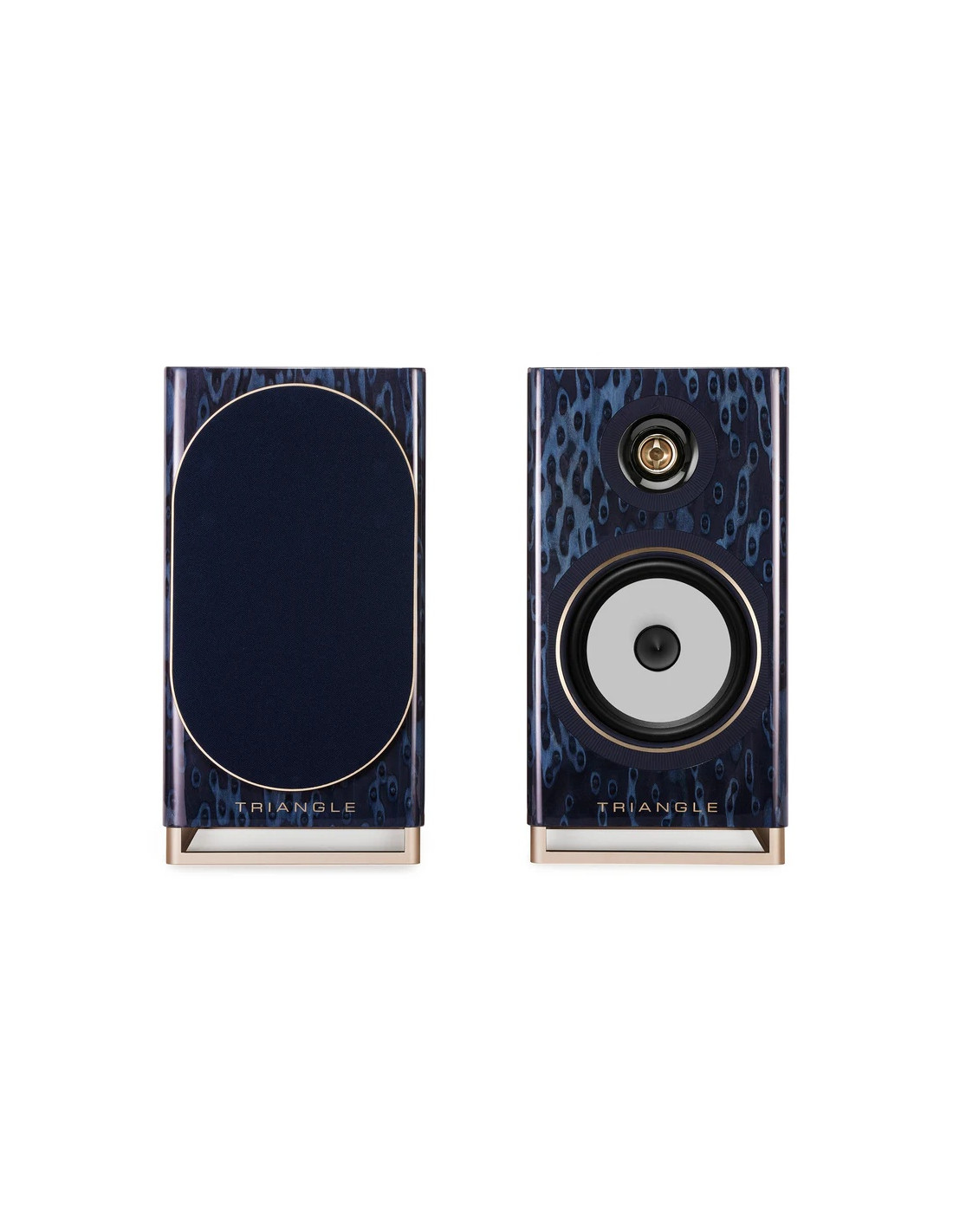

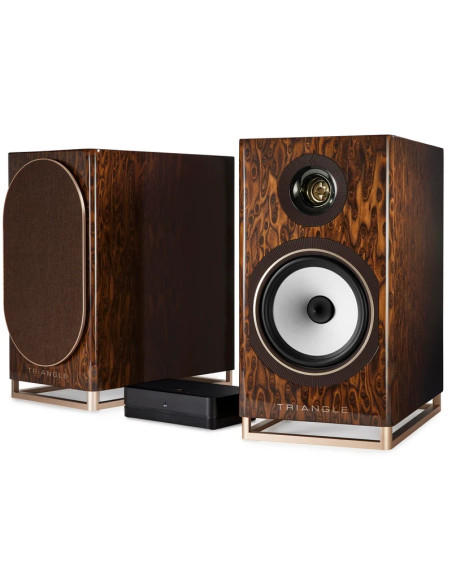

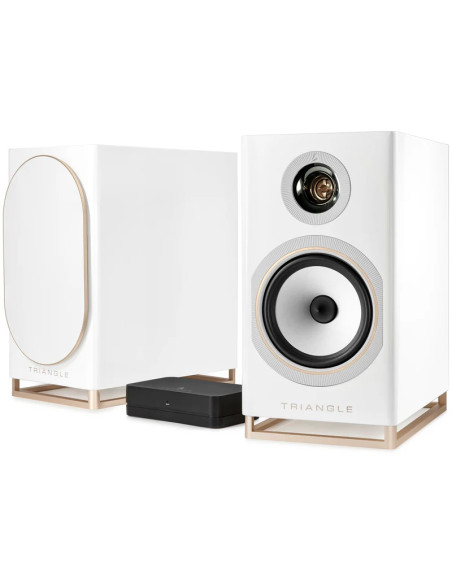

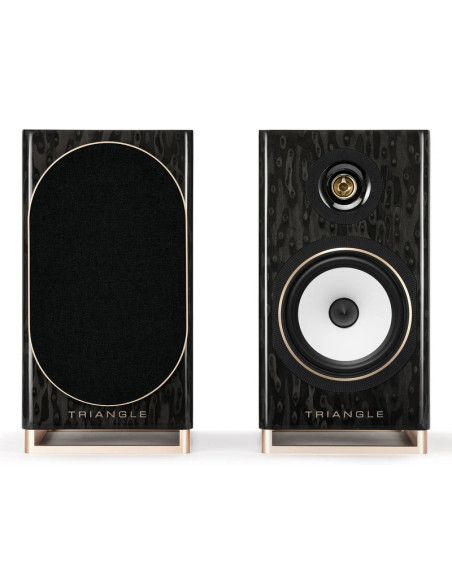

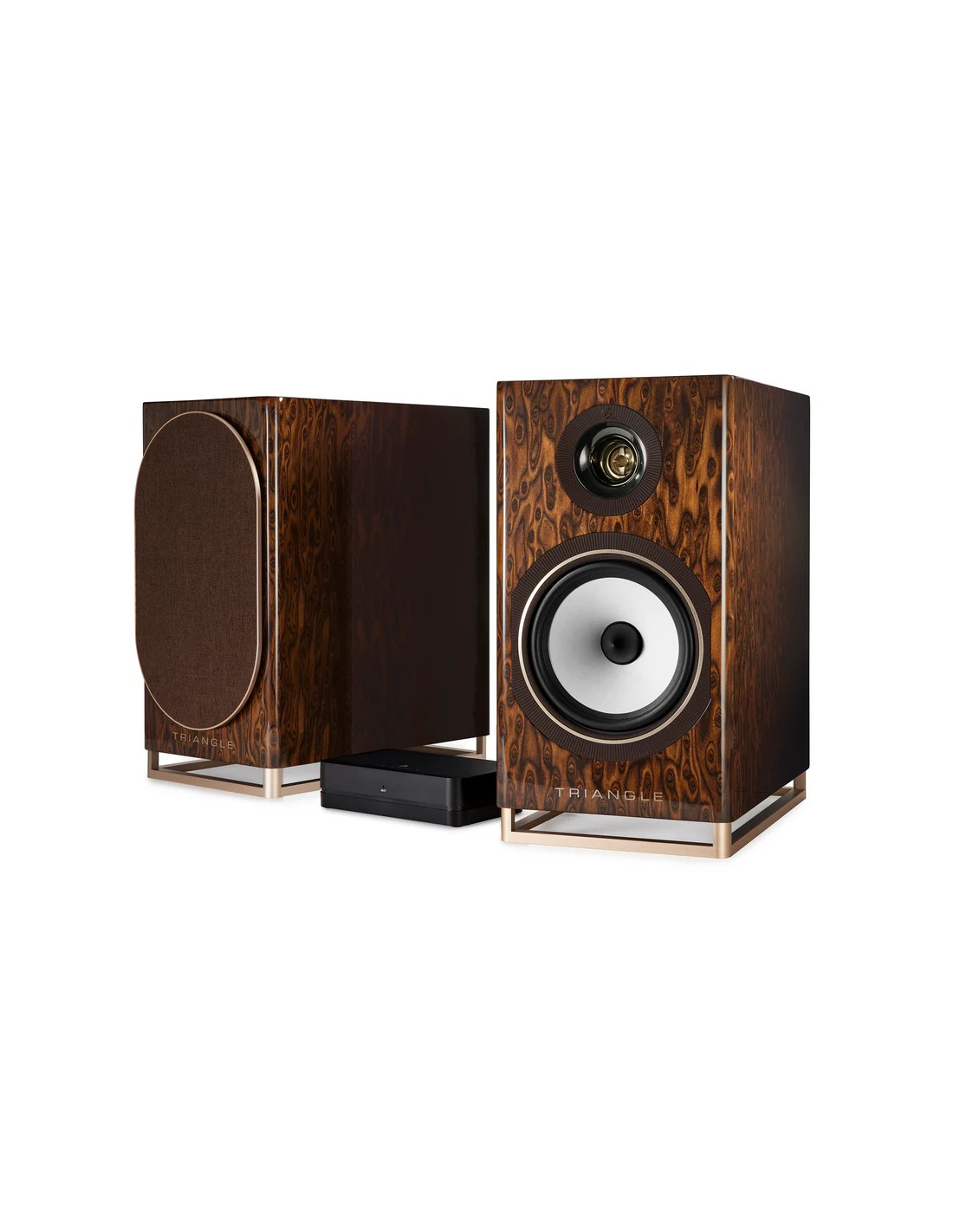

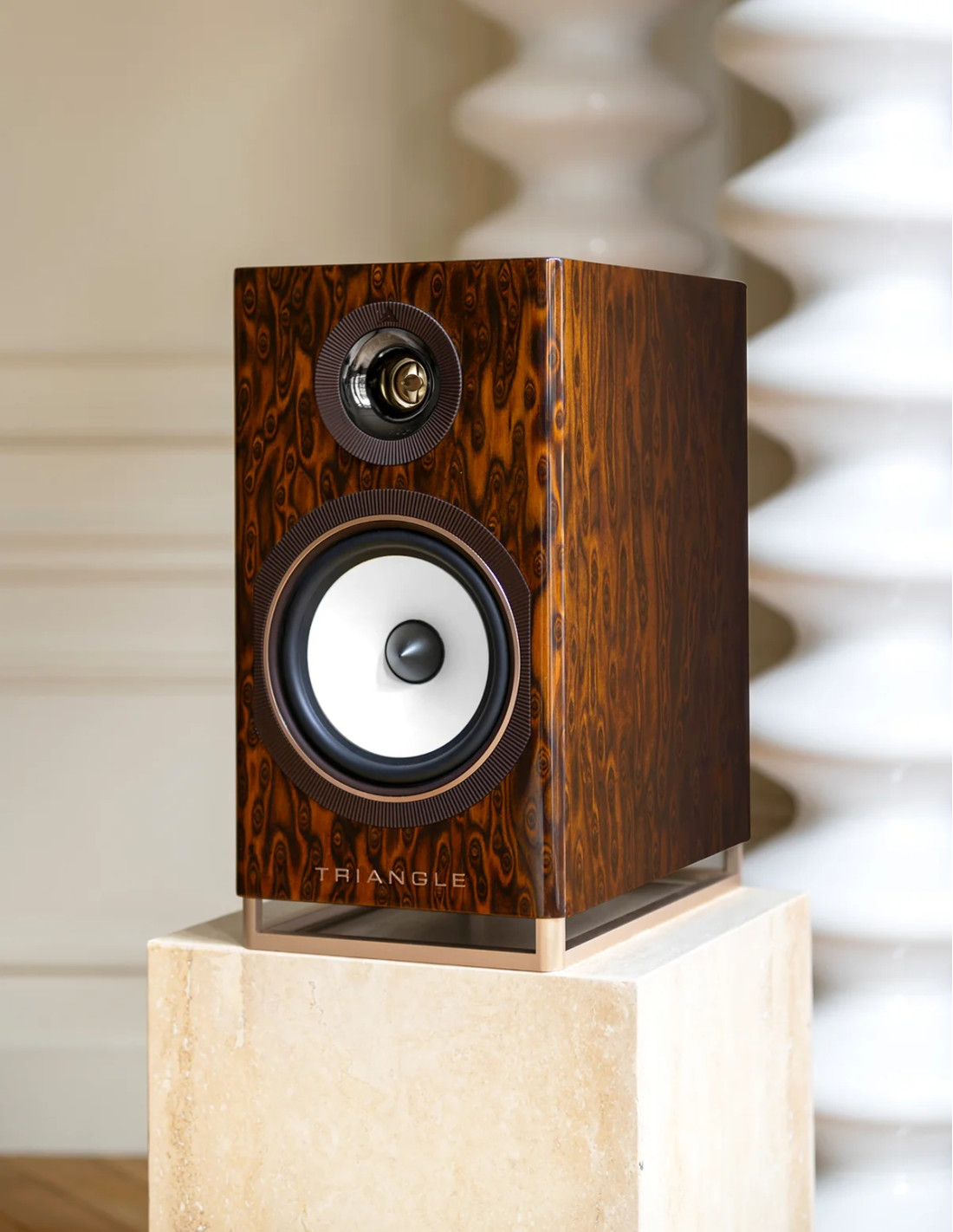

Pair of active stereo speakers*

Type: Active Bass Reflex speakers with integrated digital signal processor

Power: Bi-amplification of 2*50W per speaker (2x100W total)

• Frequency Responses : 42 Hz - 22 kHz (+/- 3db )

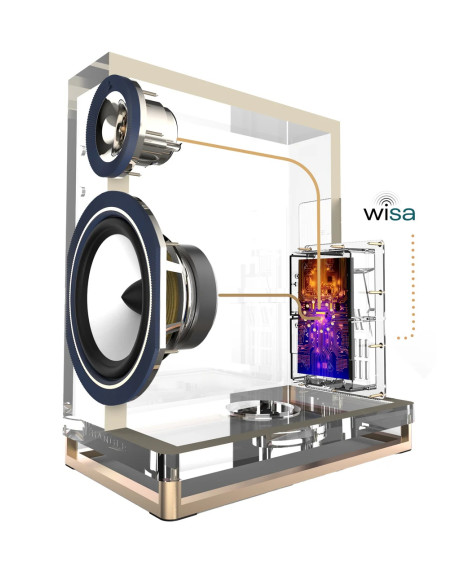

* Complete system ready for listening. Each speaker has its own amplifier and communicates wirelessly with the Stereo Hub.

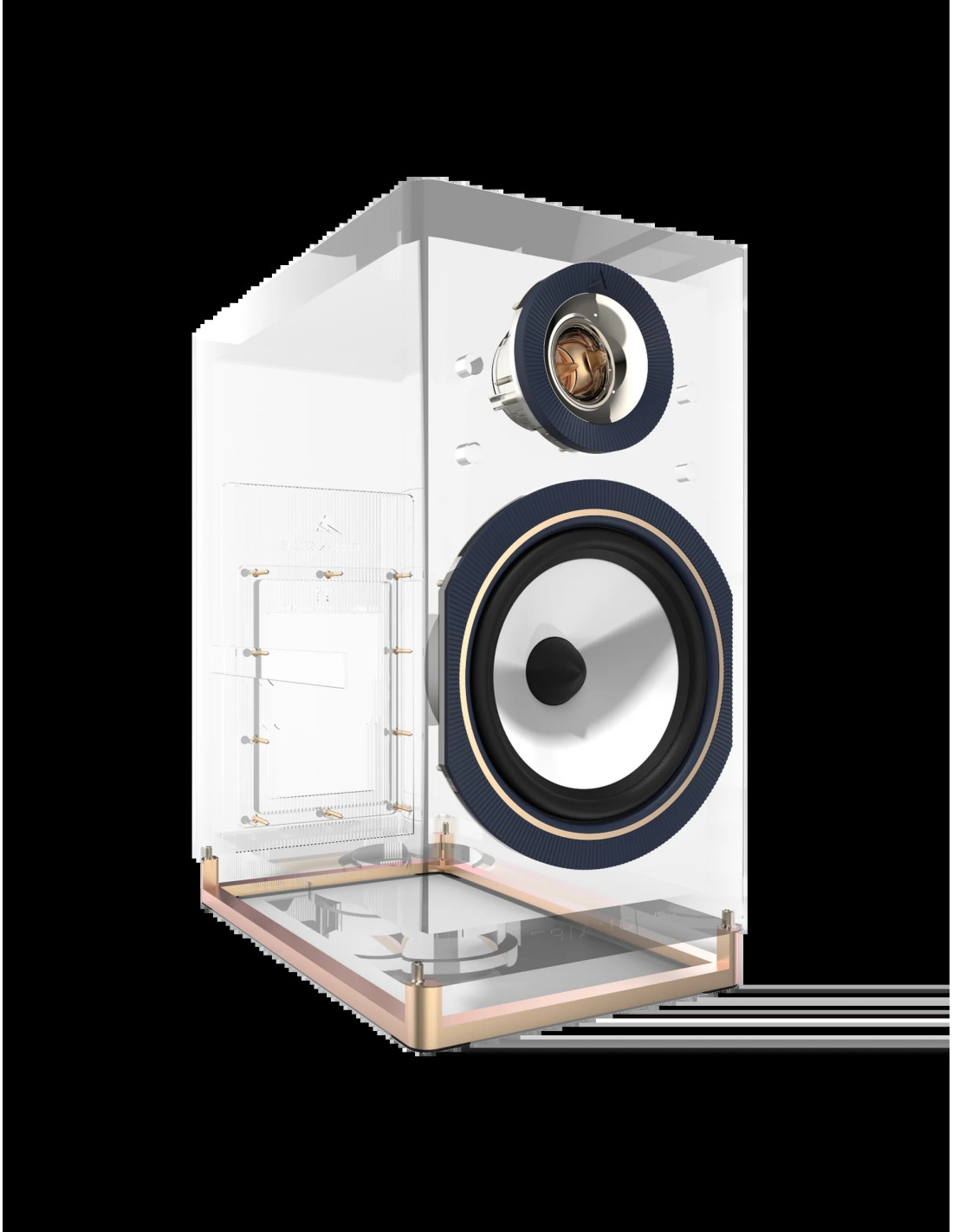

Driver Specifications

2 Drivers :

• 1 x Horn tweeter with 25mm magnesium alloy dome

• 1 x 16 cm Mid-woofer half-roll suspension with natural cellulose pulp membrane

Crossover

Active via DSP

This digital signal processor (DSP) linearises the frequency response of the loudspeaker, while providing permanent control of the driver.

Sampling and Audio Formats

Sampling frequency

Analogue sources: up to 24bit/96kHz

Digital sources: up to 24bit/192kHz

Bluetooth: up to 16 bits/48 kHz

WiSA: 24bits/96kHz, latency 2.6 ms

Audio formats

• APE

• FLAC

• WMA

• WAV

• Apple Lossless (ALAC)

• AAC, AAC-LC, HE- AAC, HE-AAC v2

• MP3

More Informations

Weight & Dimensions

Dimensions Speaker (unit)

• Width: 200mm

• Height: 380 mm

• Depth: 315 mm

Packaging dimensions W x H x D: 590 x 510 x 440 mm

Speaker weight

• Unit weight: 8.5 kg

• Weight pair with packaging: 23 kg

Dimensions Stereo Hub

• Width: 70mm

• Height: 45 mm

• Depth: 100 mm

Weight Stereo Hub

• Unit weight: 0.5 kg

Accessories

• 2 x CAPELLA speakers.

• 1 x Stereo Hub.

• 1 x Wi-Fi antenna for Stereo Hub

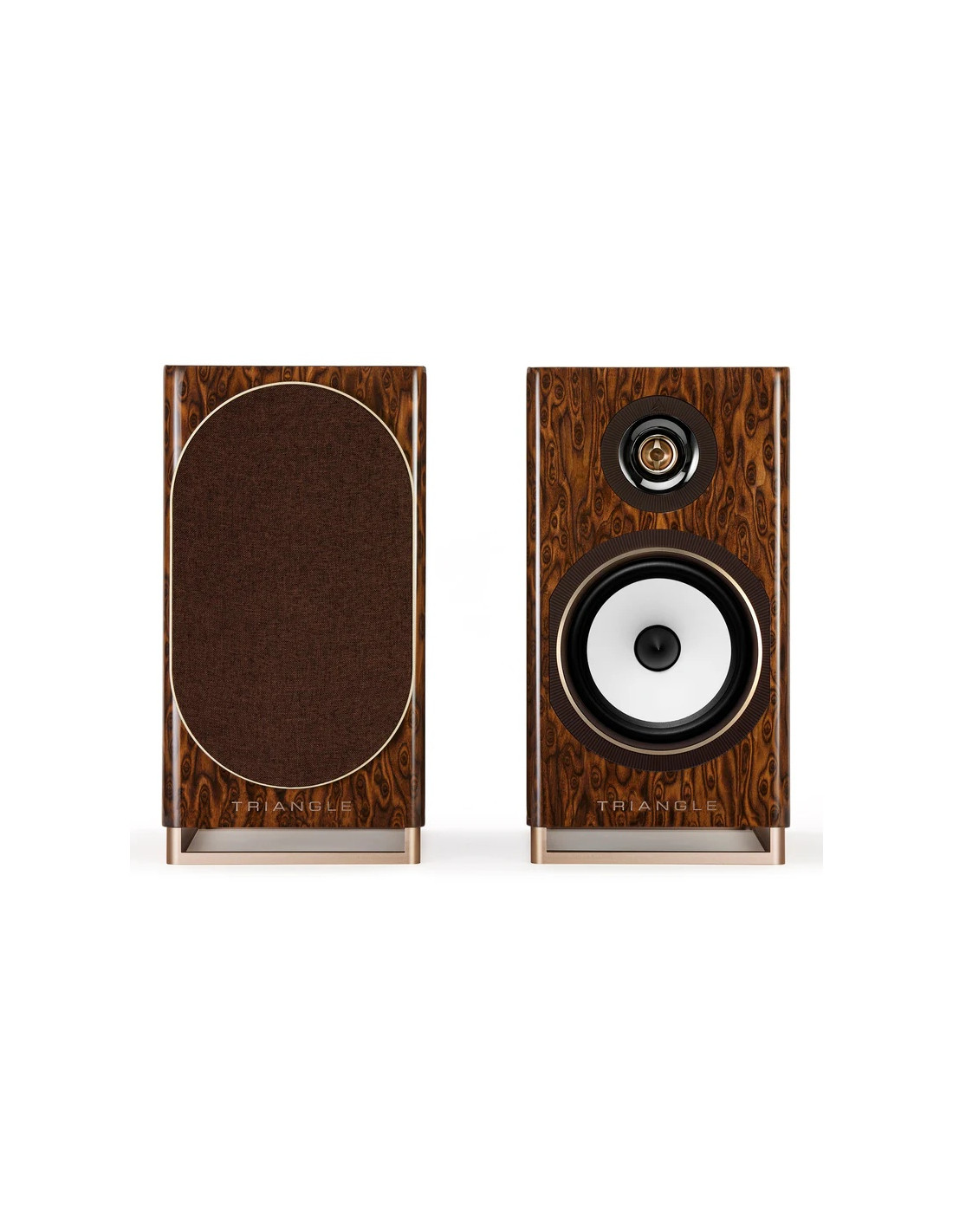

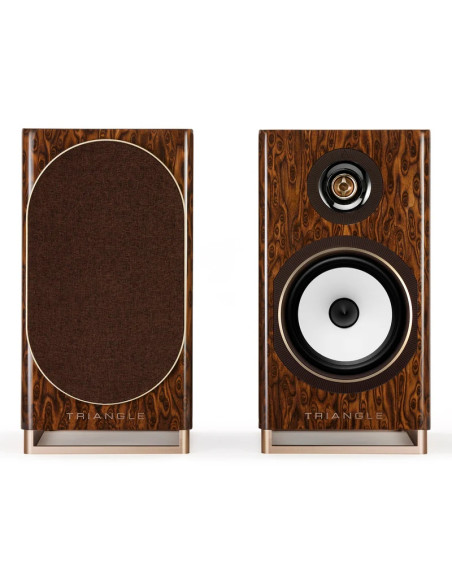

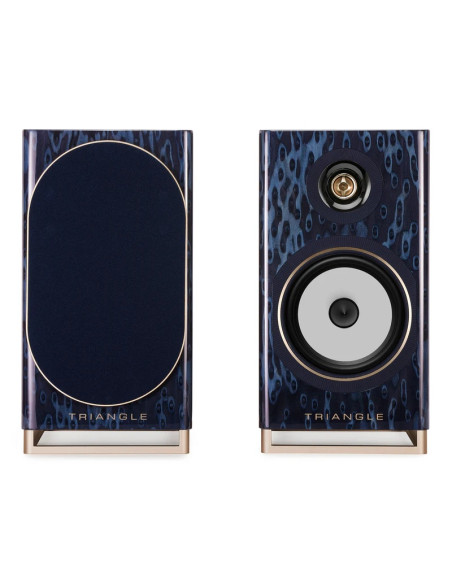

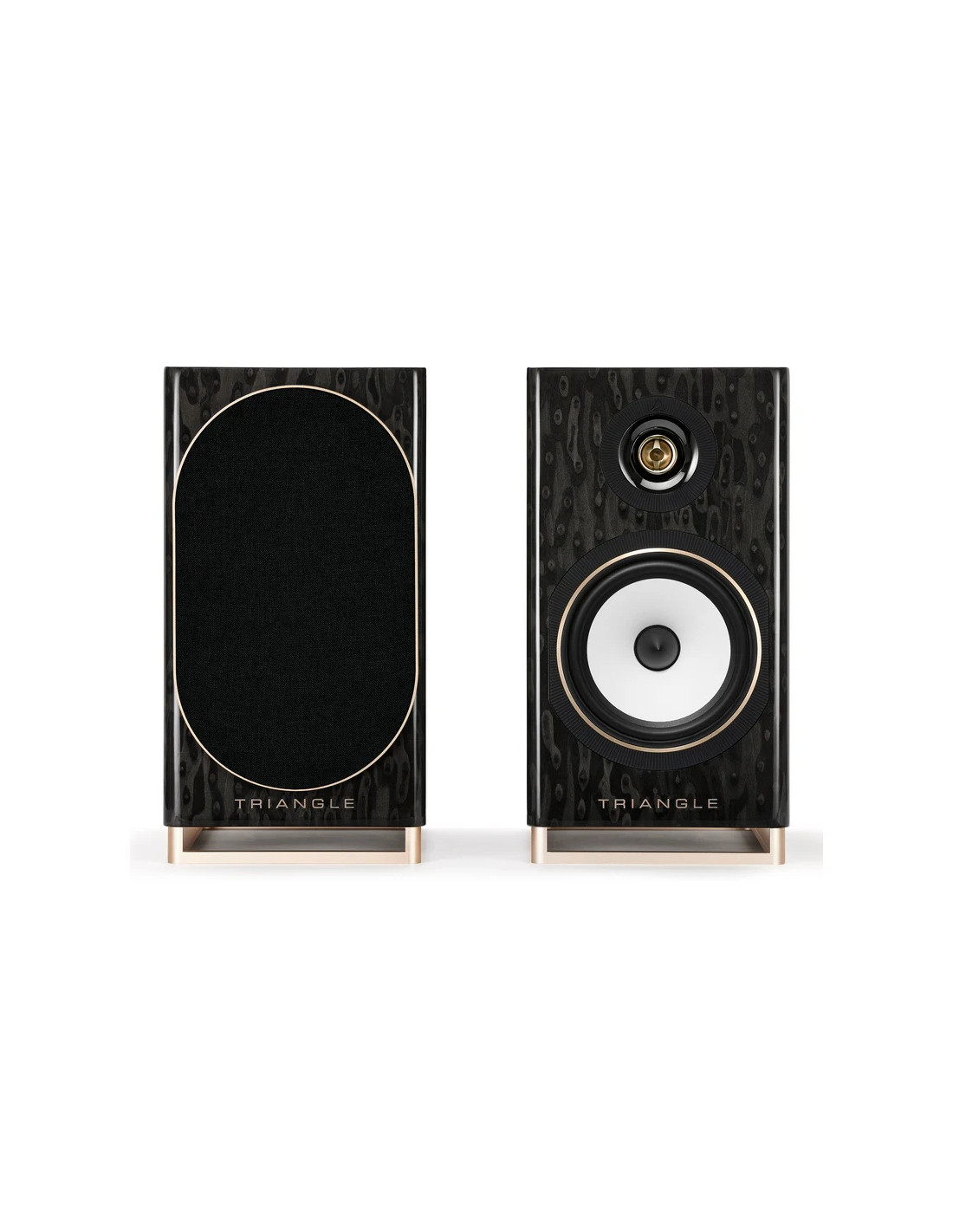

• 2 x Magnetic protective grilles.

• 1 x Power cable for Stereo Hub (3 adapters supplied EU, UK, USA).

• 2 x Power cables for speakers.

• 1 x Aluminium radio frequency remote control

• 2 x AAA batteries for the remote control.

• 1 x Allen key for remote control battery change.

• 1 x Registration coupon.

• 1 x Cleaning cloth for your speakers.
