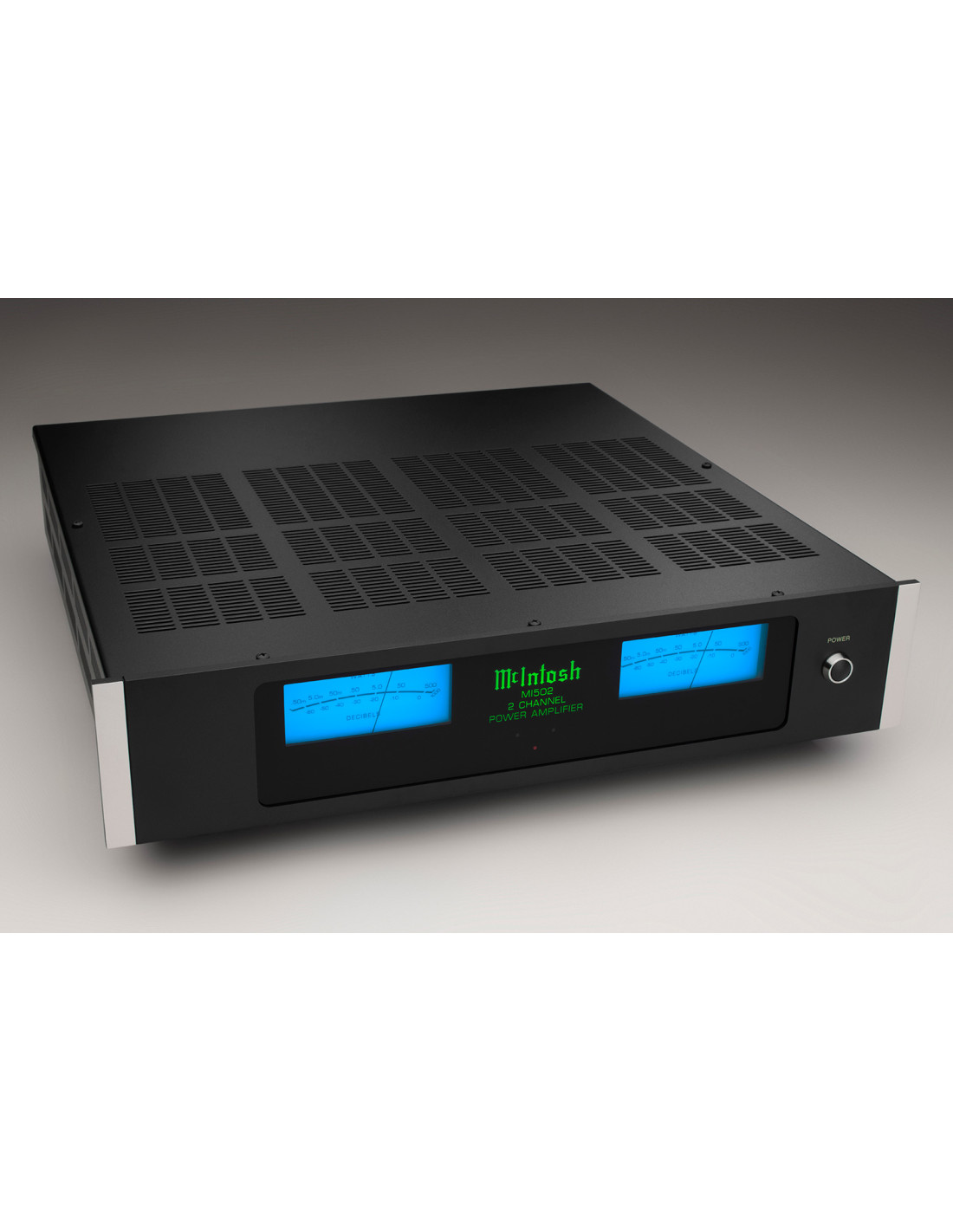

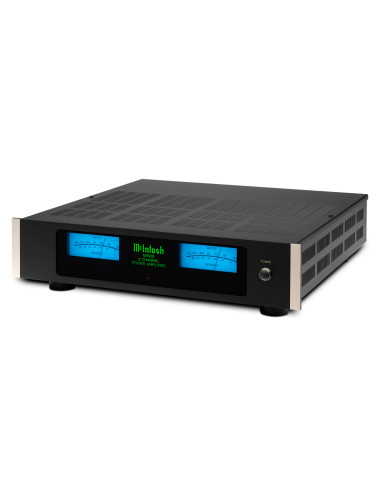

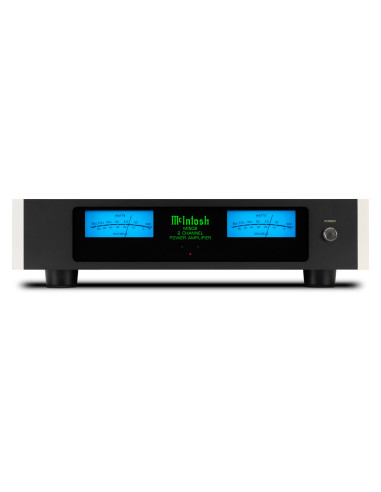

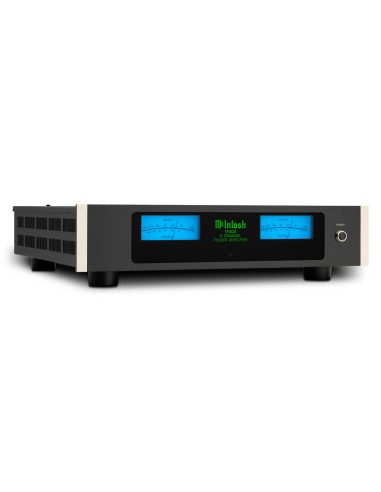

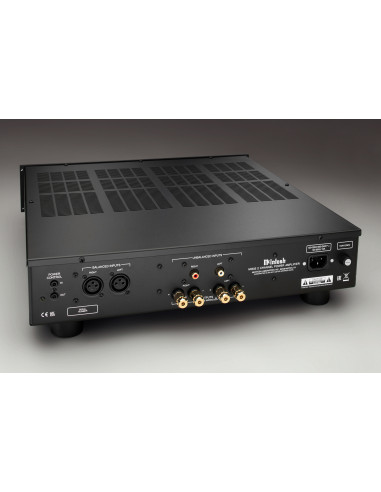

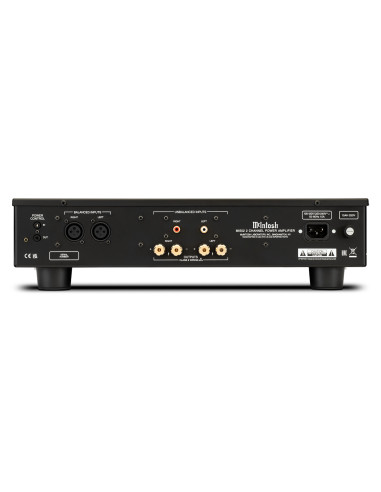

McIntosh MI502

• Versatile audio amplifier for custom install applications
• 500 Watts into 8 Ohms
• 800 Watts into 4 Ohms
• 2U rack mountable
• Signal sensing
• Power Guard® and Sentry Monitor™

Electronic Specifications

• FTC Power Output Rating

  500 W

• Power Output per Channel

  500 W into 8 ohms
  800 W into 4 ohms

• Number of Channels

  2

• Total Harmonic Distortion

  0.05%

• S/N below rated output

  98dB

• Dynamic Headroom

  8 ohms: 2.7dB
  4 ohms: 3.7dB

• Damping Factor

  8 ohms: >85
  4 ohms: >45

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.9dB from 20Hz to 20kHz

Control

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

Connectivity

• Speaker Binding Post Type

  Standard

General Specifications

• Circuit Configuration

  Closed loop digital switching

• Circuit Design

  Digital

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Output Type

  Direct Coupled

• Meters

  Yes

• Meter Light Switch

  No

• Balanced Input

  1

• Front Panel

  Glass with removable rack mounting ears

• Illumination

  Direct LED

• Chassis Style

  Black painted steel

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)

• Unit Weight

  21.5 lbs (9.8 kg)

• Shipping Weight

  37.9 lbs (17.2 kg)
