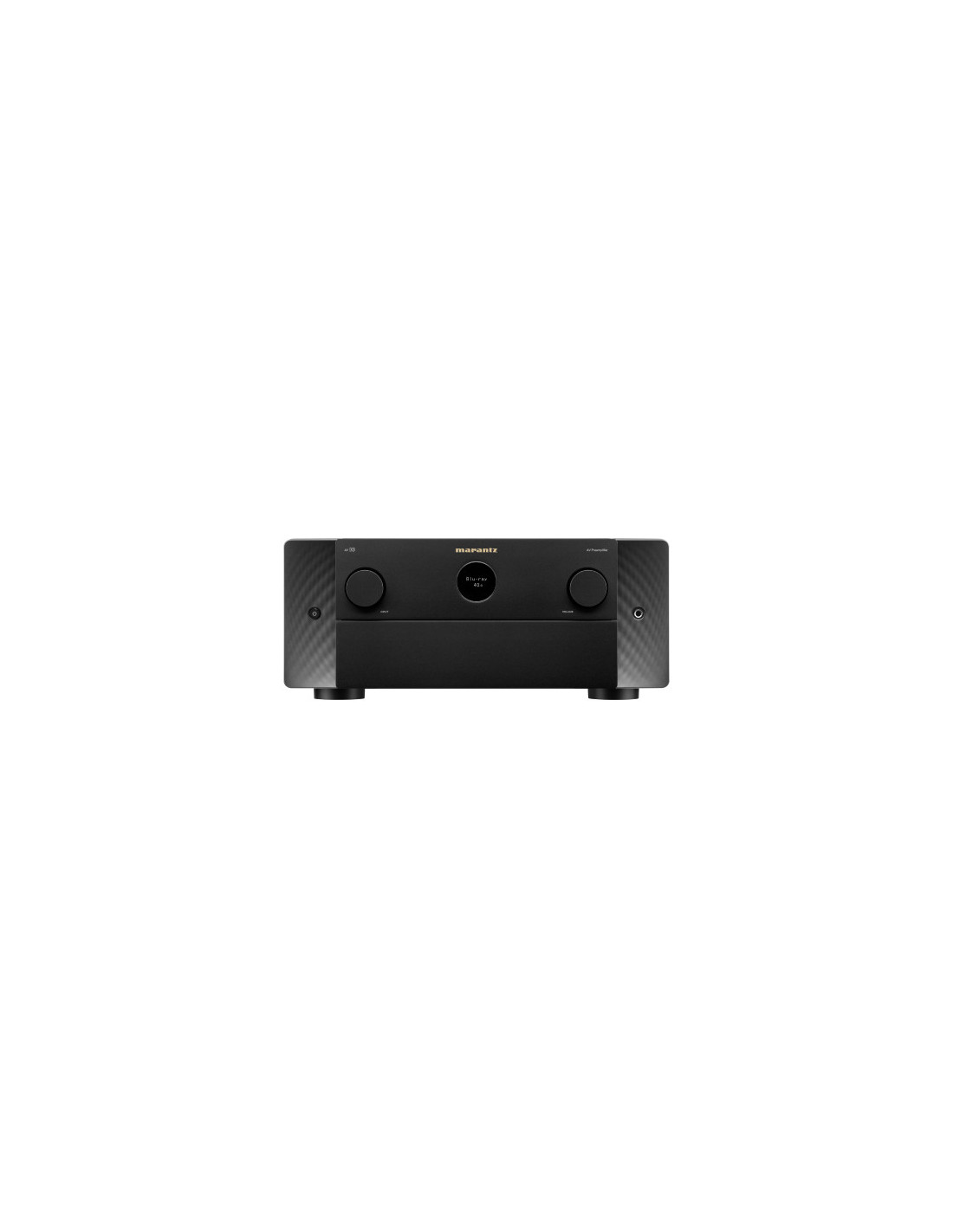

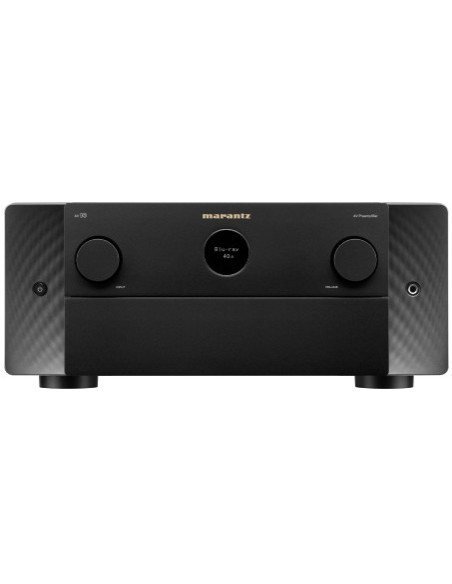

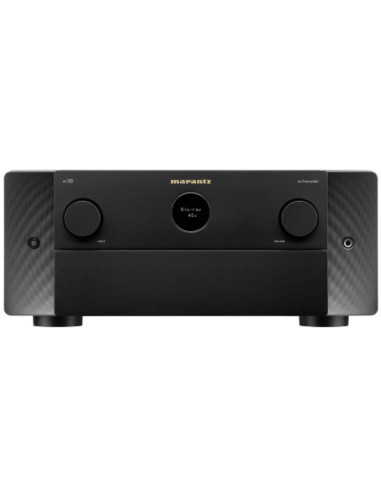

Marantz AV10

Technical Specifications

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes

DTS Neo:X / DTS Neural:X No / Yes (15ch)

DTS Virtual:X Yes

IMAX Enhanced Yes

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes

Dolby ProLogic Ilz / Dolby Surround No / Yes

Auro 3D Yes

360 Reality Audio / MPEG H Yes / Yes

Multichannel Stereo Yes

Max Number of Processing (Preamp) Channels 15.4

Sound Enhancements

Copper Plated Chassis Yes

Power Transformer: Toroidal / EI Yes / No

Current Feedback Topology Yes

Hyper Dynamic Amplifier Modules (HDAM) Yes

Pure Direct Yes

Gold plated RCA terminals Yes

Clock Jitter Reducer Yes

Audyssey MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume Yes / Yes

Audyssey LFC Yes

Dirac Live upgradability Yes

Compressed Audio Enhancer: MDAX2 Yes

Network

HEOS Multi-room and Streaming Yes

Bluetooth Re-transmit for Bluetooth headphones Yes

Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes

Network Audio Sharing Yes

Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes

Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes

Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes

DSD Audio Streaming Yes (2.8/5.6MHz)

FLAC HD 192/24 Yes

WAV 192/24 Yes

ALAC 192/24 Yes

Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)

AirPlay Audio Streaming Yes (AirPlay2)

Internet radio Yes (TuneIn)

Spotify* Yes (connect)

Pandora Yes

SiriusXM Yes

Other Streaming Services * Amazon Music HD/

Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix

Roon Tested Yes

Compatible with Remote APP for Smart Phones Marantz AVR Remote

Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle

Ethernet Ports Yes

Wi-Fi Yes

Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 7 / No

HDCP2.3 support Yes

HDMI Outputs: Main / Zone 2 / 1

HDMI to HDMI Scaling 1080P/4K to 8K

GUI Overlay on HDMI Yes

HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes

8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)

HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes

Enhanced ARC Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming Yes

Variable Refresh Rate / Quick Frame Transport Yes / Yes

3D Signal Pass-Through Yes

8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes

4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes

HDMI pass-though in standby mode Yes

Picture Adjust / Noise Reduction No / No

CEC Yes

DSD Audio Capability Yes

Audio Return Channel Yes

Auto LipSync Yes

Multi-Room / CI

HEOS Multi-Room Integrated Yes

HEOS Link Compatibility: IR/ IP Yes / Yes

Multi-Room Zones 3

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes

Zone Audio Output: Speaker / Preout No / Yes

Zone HDMI Output from HDMI Source Yes

IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes

IR Flasher In Yes

Marantz Remote Bus Yes

DC Trigger Output 2

HDMI Diagnostics Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32

Dirac Live (upgrade)

Front Display 2 line FLD + port hole OLED

Graphic User Interface - GUI Modern HD GUI

GUI Languages 3

Setup Assistent Yes

Smart Select Yes

Firmware Update by Network / USB Yes / Yes

Variable Cross Over Yes

Optimized Bass Redirection Yes

Bass Sync Yes

Auto Power off Yes

Sleep Timer Yes

Inputs/Outputs

Composite In / Out No / No

Component In / Out No / No

HDMI In / Out 7 / 3

Multi-Room Video Out: Video / HDMI No / Yes

Analogue In / Out 5 (1x XLR) / No

Phono (MM) In Yes

Digital In: Optical / Coaxial 2 / 2

Multi-Room Out: analog / digital 2 / No

Multichannel Pre Out Yes (17.4 RCA & 17.4 XLR)

Subwoofer Out 4 (independent)

Speaker A / B assignable pre out

Bi-amp drive assignable pre out

Multi-Room Speaker Terminal pre out

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes

USB Audio / Made for iPod / Made for iPhone Yes / No / No

AM/FM Tuner Yes

General

Metal Front Panel Yes

System Remote Control RC047SR

Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes

Power Consumption in W 100

Standby Consumption in W 0.2

CEC Standby Consumption in W 0.5

Network Standby Consumption in W Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in inches 【 17.4 x 19.0 x 7.4 】

Antenna:Vertical :(W x D x H) in inches ( 17.4 x 19.8 x 9.9 )

W/o Antenna:(W x D x H) in inches 17.4 x 19.8 x 7.4

Weight in lbs. 37.0
