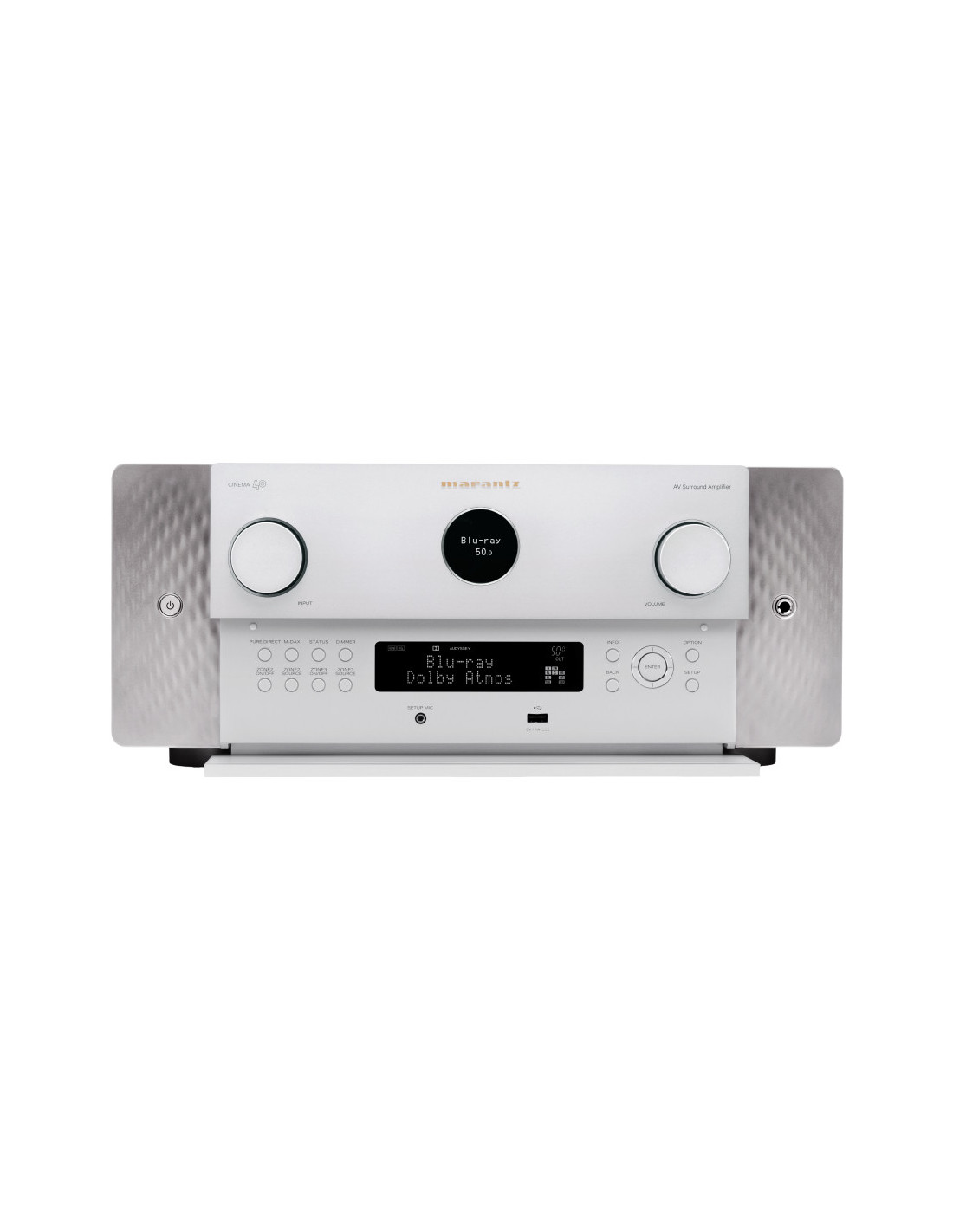

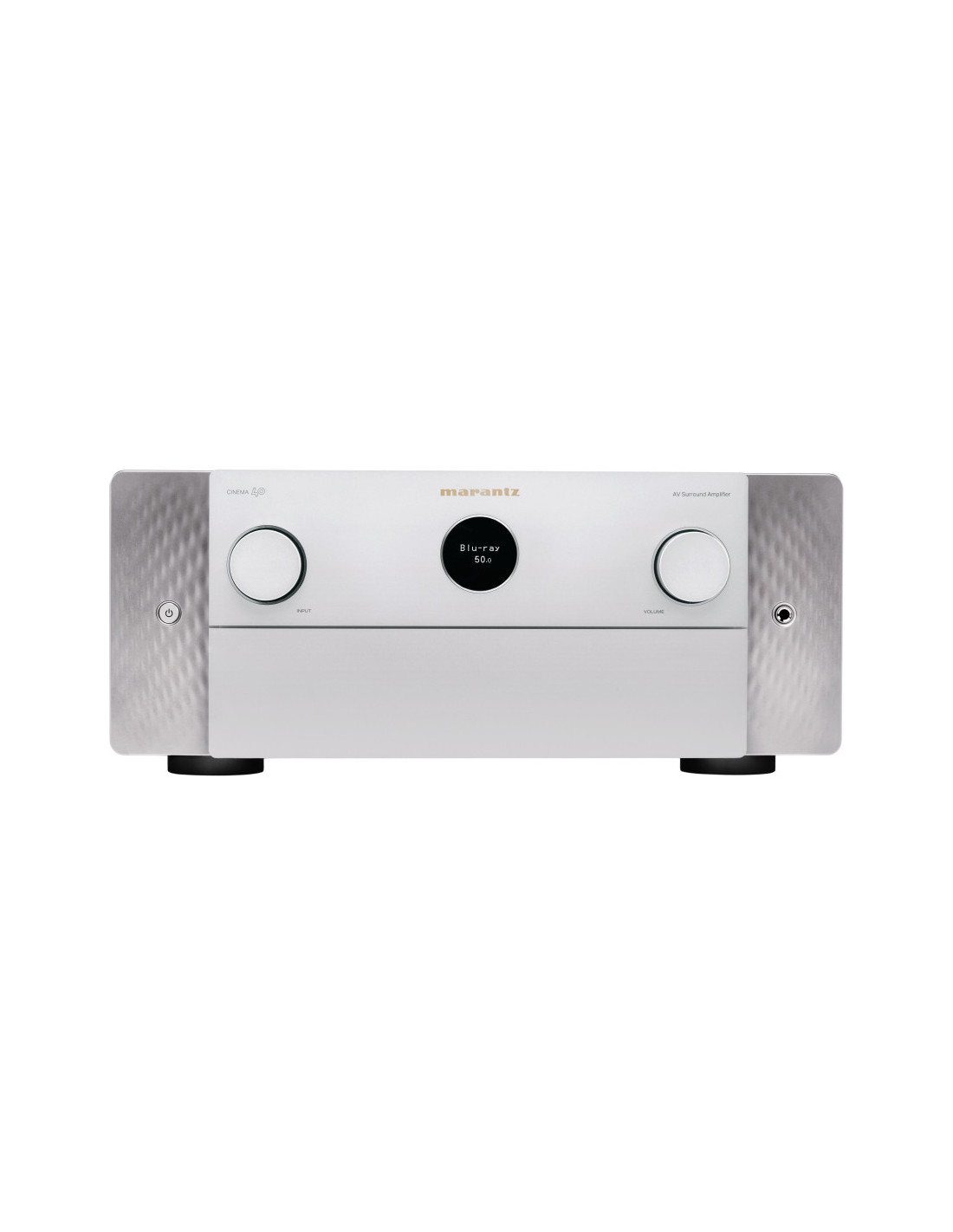

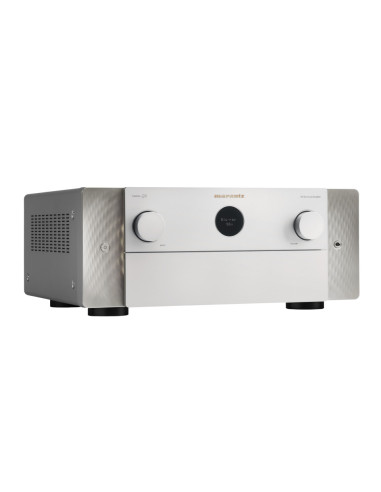

Cinema 40

Technical Specifications

Power Amplifier

Number of Powered Channels  9

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)

Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)  125 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)     165 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)       235 W

70% Guarantee Yes

Discrete Power Amplifier             Yes

Amplifier Topology          Class A/B

Current Feedback Topology        Yes

Bi-Amp Drive     assignable

Multichannel Surround Technologies

DTS        DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby    Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround

Other    IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2

Max Number of Processing (Preamp) Channels 11.4

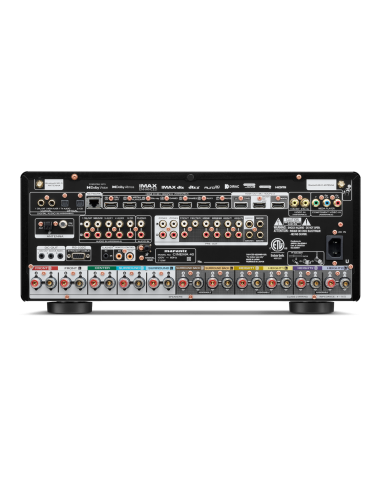

Inputs/Outputs

Composite In / Out         2 / 0

Component In / Out       1 / 0

HDMI In / Out    7 / 3

Multi-Room Video Out via HDMI               Yes

Analog In / Fixed Level Out          5 in / 0 out

Phono (MM) In Yes

Digital In: Optical / Coaxial            2 / 2

Multi-Room Out: analog / digital               2 / 0

Multichannel Preamp Out            11.4

Subwoofer Out 4 (independent)

7.1 multichannel input   No

Number of Speaker Terminals   11

Speaker A / B     assignable

Multi-Room Speaker Terminal   assignable

Front Inputs       USB-A

USB Audio / Made for iPod / Made for iPhone   Yes / No / No

AM/FM Tuner   Yes

HDMI

Total HDMI Inputs / No. Support 8K         7 / 7

HDCP2.3 support              Yes

HDMI Outputs: Main / Zone        2 / 1

Analog to HDMI Video Conversion           Yes

HDMI Upscaling                1080P/4K to 8K

Max resolution @ framerate      8K @ 60Hz, 4K @ 120Hz

Audio Return Channel   ARC, eARC

Video Dynamic Range    HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming            Yes

Variable Refresh Rate / Quick Frame Transport  Yes / Yes

HDMI Pass-Through in Standby Mode    Yes

CEC        Yes

DSD Audio over HDMI    Yes

Auto LipSync      Yes

Performance Technologies

Copper Plated Chassis   No

Toroidal Power Supply Transformer        No

Hyper Dynamic Amplifier Modules (HDAM) (List version)              Yes

Pure Direct Mode            Yes

Gold Plated RCA Terminals          Yes

Clock Jitter Reducer        Yes

Acoustic / Room Correction

Audyssey            MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume             Yes / Yes

Audyssey LFC    Yes / Yes

Dirac Live Upgradability Yes

Variable Cross Over        Yes

Optimized Bass Redirection         Yes

Bass Sync             Yes

Music File Support

Lossy Formats   MP3 / WMA / AAC

Lossless formats               FLAC HD 192/24 / WAV 192/24 / ALAC 192/24

DSD Audio           2.8MHz / 5.6MHz

Gapless Playback             FLAC, WAV ,ALAC ,DSD

Compressed Audio Enhancer: MDAX2    Yes

Network Audio Sharing Yes

Streaming Services

HEOS Multi-room and Streaming              Yes

AirPlay Audio Streaming               Airplay 2

Internet Radio   TuneIn

Spotify*               Spotify Connect

Pandora               Yes

SiriusXM              Yes

Other Streaming Services *         Amazon Music HD/

Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix

Roon tested       Yes

Network Connectivity

Ethernet Ports  Yes

Wi-Fi (include version / band)    Yes

Bluetooth (Include version)        Yes

Bluetooth Re-transmit for Bluetooth headphones            Yes

Smart Home Integration And Control

Voice Assistant Compatibility      Alexa / Google Voice Assistant / Apple HomePod

App for Smart Phones & Tablets (iOS & Android)               Marantz AVR Remote App, HEOS

HEOS Multi-Room Integrated     Yes

HEOS Link Compatibility: IR/ IP   Yes / Yes

Multi-Room zones           3

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes

Zone Audio Output: Speaker / Preout    Yes / Yes

Zone HDMI Output from HDMI Source   Yes

Control Connectivity       IP Control / RS232 Control / Web Control / App Control

IR Flasher In       Yes

Marantz Remote Bus     Yes

DC Trigger Output            3

HDMI Diagnostics             Yes

Others

Front Display      2 line FLD + port hole OLED

GUI Languages  9

Setup Assistant Yes

Smart Select on Remote               Yes

Firmware Update by Network / USB       Yes / Yes

ECO Mode          Yes

Auto Power off Yes

Sleep Timer        Yes

General

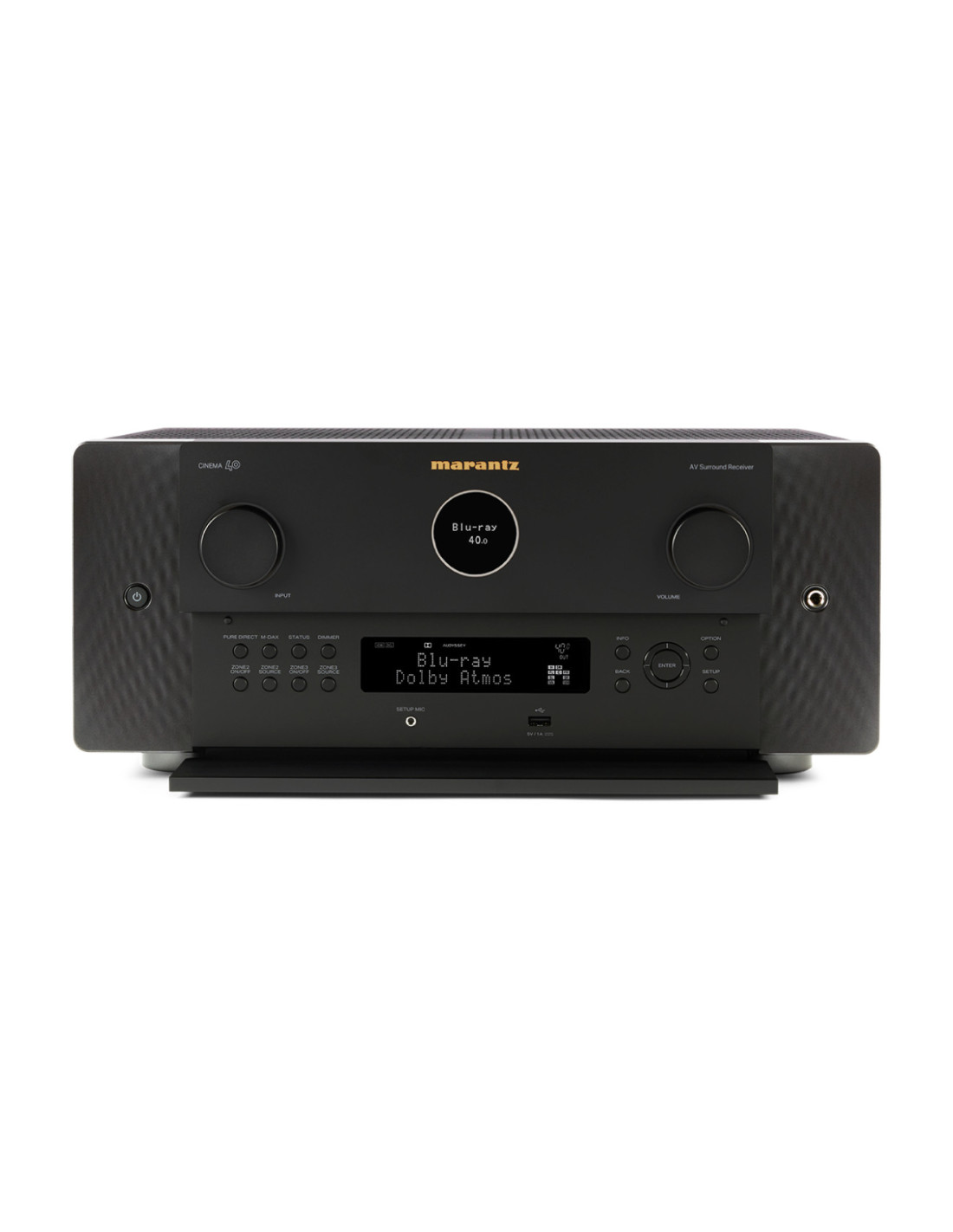

Available Colors                Black/Silver-Gold

Metal Front Panel            Yes

System Remote Control                RC048SR

Power Consumption in W            710

Power Consumption No-Sound (ECO on/off) in W            65 / 110

Standby Consumption in W         0.2

CEC Standby Consumption in W 0.5

Network Standby Consumption in W      Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in inches

Antenna:Vertical :(W x D x H) in inches

W/o Antenna:(W x D x H) in inches          17.3 x 16.2 x 7.3

17.3 x 16.2 x 10

17.3 x 15.8 x 7.3

Weight in lbs.     33.3

What's in the box             Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
