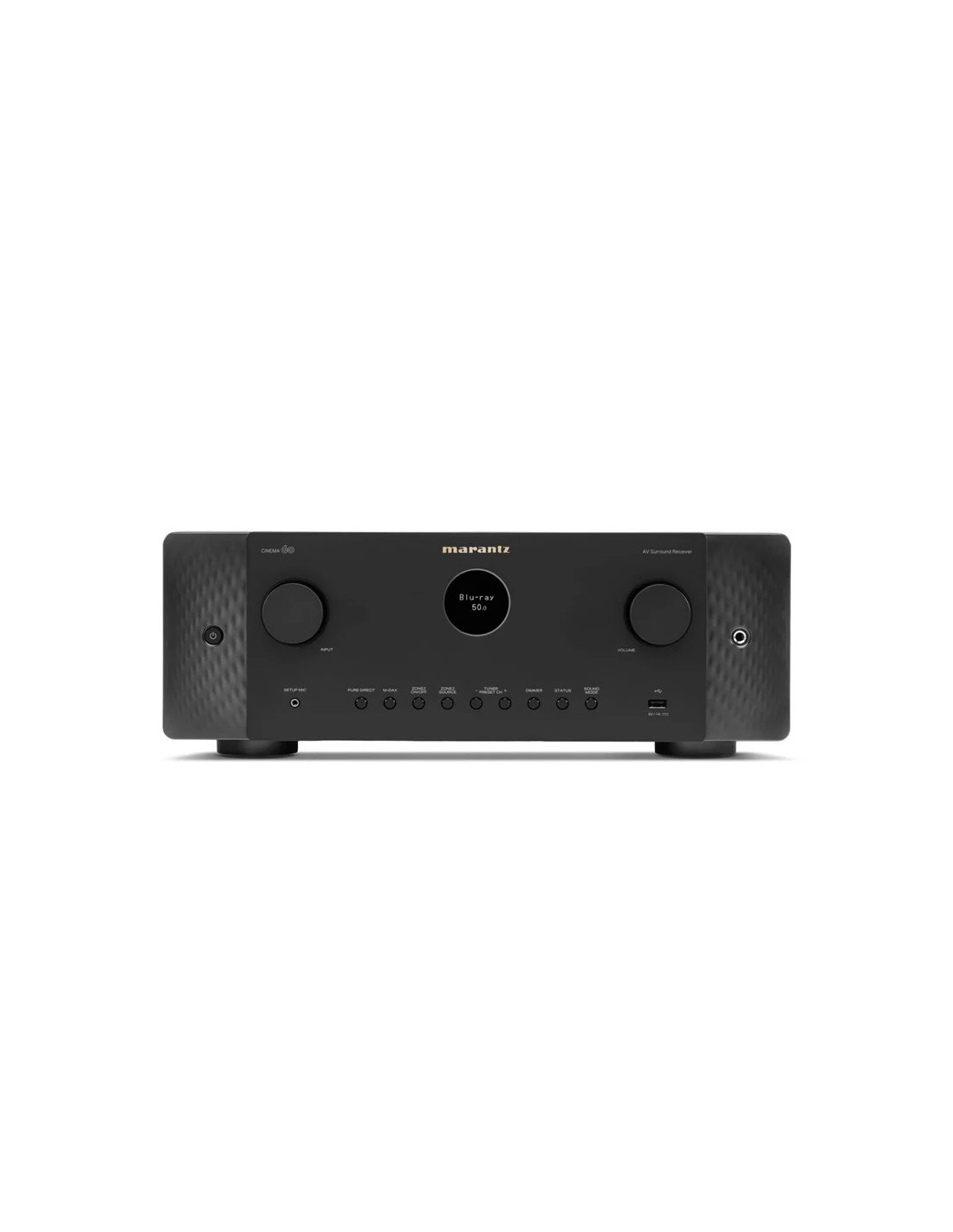

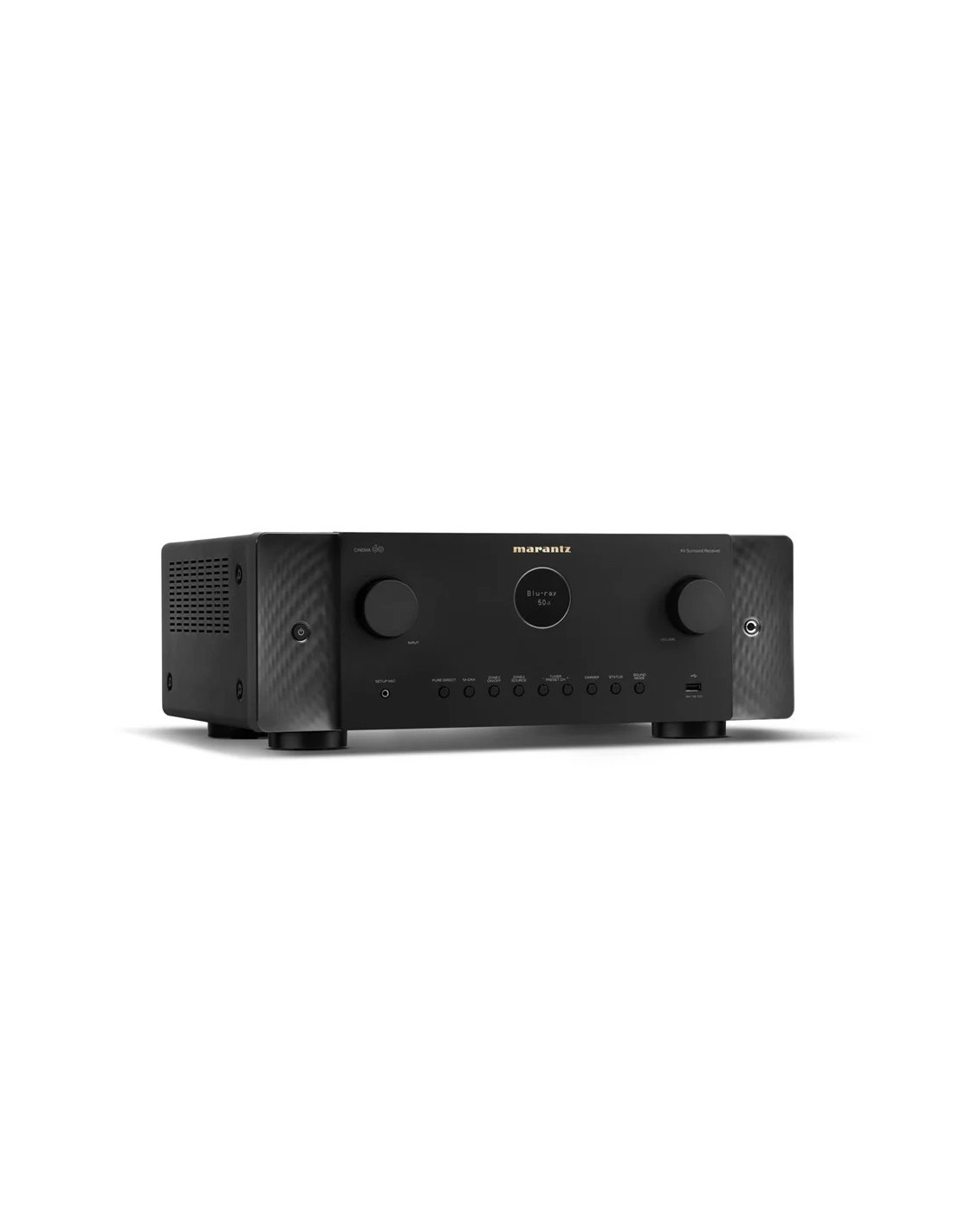

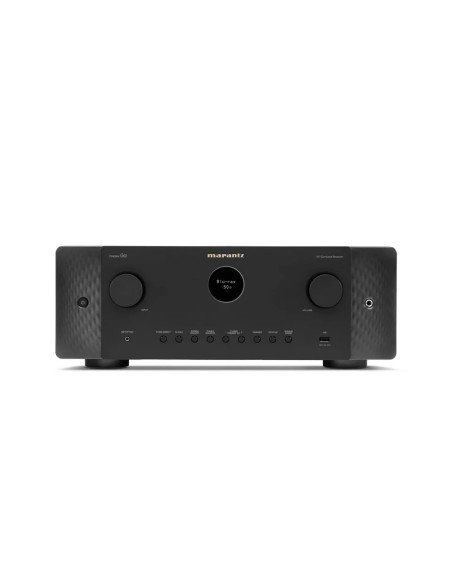

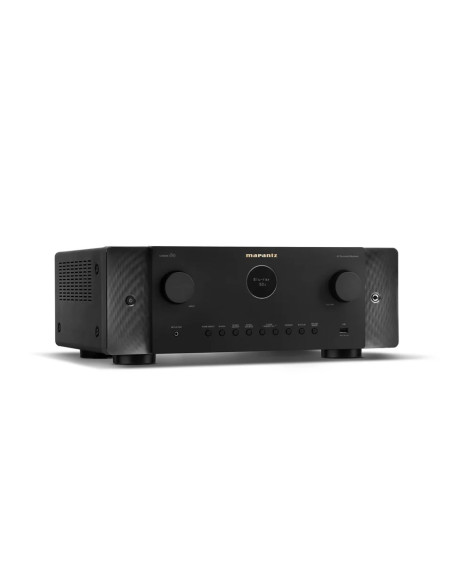

Cinema 60

Technical Specifications

Power Amplifier

Number of Powered Channels 7

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W

Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200 W

70% Guarantee Yes

Discrete Power Amplifier Yes

Amplifier Topology Class A/B

Current Feedback Topology Yes

Bi-Amp Drive assignable

Multichannel Surround Technologies

DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround

Other

Max Number of Processing (Preamp) Channels 7.1

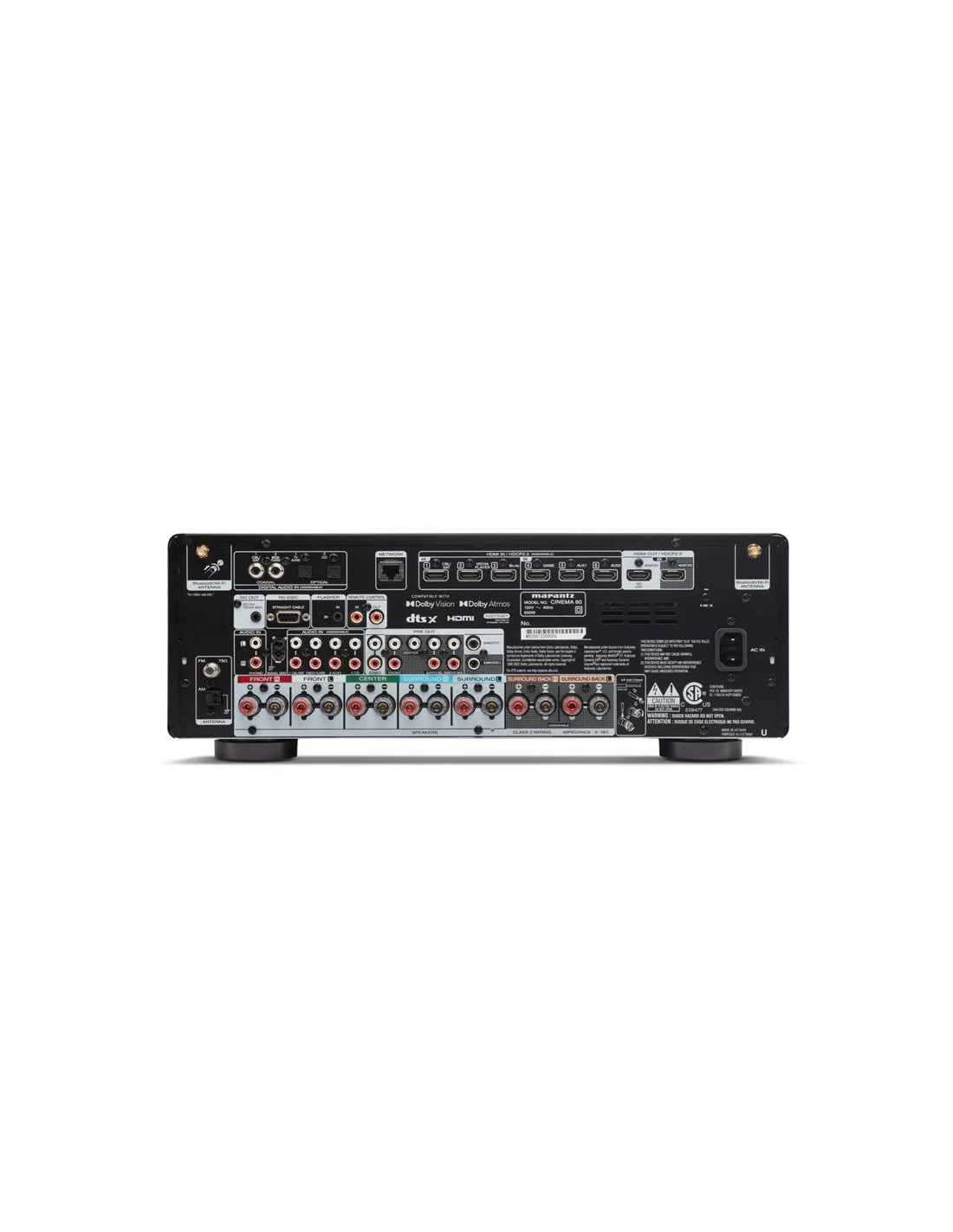

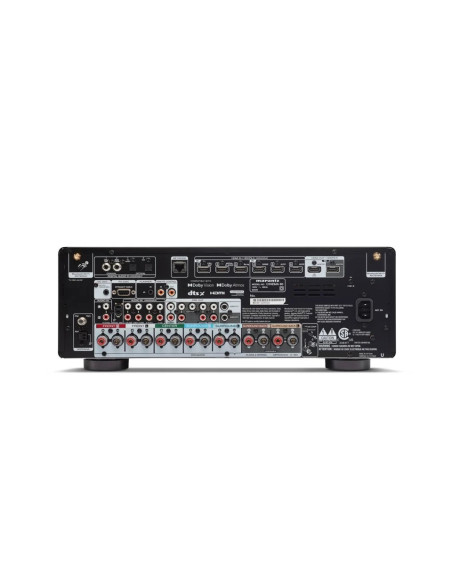

Inputs/Outputs

Composite In / Out 0/0

Component In / Out 0/0

HDMI In / Out 6 / 2

Multi-Room Video Out via HDMI No

Analog In / Fixed Level Out 4 in / 0 out

Phono (MM) In Yes

Digital In: Optical / Coaxial 2 / 2

Multi-Room Out: analog / digital 1 / 0

Multichannel Preamp Out 7.2

Subwoofer Out 2

7.1 multichannel input No

Number of Speaker Terminals 7

Speaker A / B assignable

Multi-Room Speaker Terminal assignable

Front Inputs USB-A

USB Audio / Made for iPod / Made for iPhone Yes / No / No

AM/FM Tuner Yes

HDMI

Total HDMI Inputs / No. Support 8K 6 / 3

HDCP2.3 support Yes

HDMI Outputs: Main / Zone 2 / 0

Analog to HDMI Video Conversion No

HDMI Upscaling 1080P/4K to 8K

Max resolution @ framerate 8K/60Hz, 4K/120Hz

Audio Return Channel ARC, eARC

Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming Yes

Variable Refresh Rate / Quick Frame Transport Yes / Yes

HDMI Pass-Through in Standby Mode Yes

CEC Yes

DSD Audio over HDMI No

Auto LipSync Yes

Performance Technologies

Copper Plated Chassis No

Toroidal Power Supply Transformer No

Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes

Pure Direct Mode Yes

Gold Plated RCA Terminals No

Clock Jitter Reducer No

Acoustic / Room Correction

Audyssey MultEQ XT

Audyssey Dynamic EQ / Dynamic Volume Yes / Yes

Audyssey LFC No

Dirac Live Support No

Variable Cross Over Yes

Optimized Bass Redirection Yes

Bass Sync No

Music File Support

Lossy Formats MP3 / WMA / AAC

Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24

DSD Audio 2.8 MHz / 5.6MHz

Gapless Playback FLAC, WAV ,ALAC ,DSD

Compressed Audio Enhancer: MDAX2 Yes

Network Audio Sharing Yes

Streaming Services

HEOS Multi-room and Streaming Yes

AirPlay Audio Streaming AirPlay 2

Internet Radio TuneIn

Spotify* Spotify Connect

Pandora Yes

SiriusXM Yes

Other Streaming Services * Amazon Music HD/

Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix

Roon tested Yes

Network Connectivity

Ethernet Ports Yes

Wi-Fi (include version / band) Yes

Bluetooth (Include version) Yes

Bluetooth Re-transmit for Bluetooth headphones Yes

Smart Home Integration And Control

Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod

App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS

HEOS Multi-Room Integrated Yes

HEOS Link Compatibility: IR/ IP Yes / Yes

Multi-Room zones 2

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2Ch / Yes / Yes

Zone Audio Output: Speaker / Preout Yes / Yes

Zone HDMI Output from HDMI Source No

Control Connectivity IP Control / RS232 Control / Web Control / App Control

IR Flasher In Yes

Marantz Remote Bus Yes

DC Trigger Output 1

HDMI Diagnostics Yes

Others

Front Display port hole OLED

GUI Languages 3

Setup Assistant Yes

Smart Select on Remote Yes

Firmware Update by Network / USB Yes / Yes

ECO Mode Yes

Auto Power off Yes

Sleep Timer Yes

General

Available Colors Black

Metal Front Panel No

System Remote Control RC049SR

Power Consumption in W 650

Power Consumption No-Sound (ECO on/off) in W 45 / 75

Standby Consumption in W 0.2

CEC Standby Consumption in W 0.5

Network Standby Consumption in W Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in inches 17.4 x 13.9 x 9.3

Antenna:Vertical :(W x D x H) in inches 17.4 x 13.5 x 6.5

W/o Antenna:(W x D x H) in inches 17.4 x 13.9 x 6.5

Weight in lbs. 24
