Pulse 2i

AUDIO

Supported File Formats

MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats - FLAC, MQA, WAV, AIFF

Native Sampling Rates

32 - 192 kHz

Bit Depths

16 - 24

Performance

Frequency Response: 40Hz - 20kHz ±1.5dB, -10dB @ 33Hz

Distortion

THD+N, 0.030%

Power Output

150W total system power, bi-amplified
65W x 2 Woofer; 10W x 2 Tweeter

Speakers

2 x 5.25” (133mm) Woofers
2 x 1” (25mm) Tweeters

Supported Operating Systems

iOS, Android, Windows Vista, 7, 8, 10, macOS X 7-10

Free Internet Radio

TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive, Radio.com

Supported Cloud Services

Spotify, Amazon Music HD, TIDAL, Deezer , Qobuz, HighResAudio (VAULT Required), Napster, KKBox, Bugs, Taihe Music ZONE, SoundMachine, IDAGIO, OraStream

Voice Control Integrations

Amazon Alexa & Google Assistant Skills

Integration Partners

Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron, roon, Airplay 2

Album Art

JPG

CONNECTIVITY

Network

Ethernet RJ45, GigE
Wi-Fi 5 (802.11ac, dual-band)

USB

1 x Type-A port for connection to USB memory sticks (Fat32 or NTFS formatted) and supported peripherals
1 x Type-B (mini) for product servicing

Audio Input

Combo - Toslink/3.5mm

Audio Output

Headphone output - 3.5 Stereo

Bluetooth Quality

Bluetooth 5.0 aptX HD wireless built-in

Bluetooth Connectivity

Two-Way (transmit & receive)

Power

Universal tri-pin AC Cord input (100 - 240AC)

USER INTERFACE

Mobile Operating System

BluOS - Free Android and iOS App Available Online at Google Play and Apple App Store

Pushbuttons

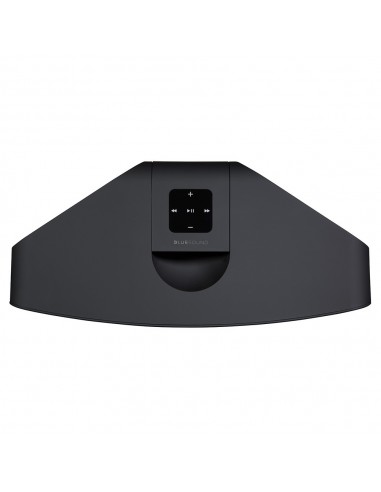

Simple top-panel touch controls.

Control

IR Sensor built in - Front panel

GENERAL

Processor

ARM® CORTEX™ A9, 1 GHz

Unit Weight

5.05kg/11.11lbs

Gross Dimensions

420 x 198 x 192 mm
16.5 x 7.8 x 7.55 in

Power Consumption (Idle)

14 Watts

Accessories

2x AC power cords (Europe & North America)
Toslink Optical to 3.5mm Mini Adaptor
Ethernet Cable
Safety/Warranty Guide
Quick Setup Guide

Storage Environment

-10° C to 50° C, 20% to 80% relative humidity

Operating Environment

0° C to 40° C

Finish

Available in White or Black Matte
