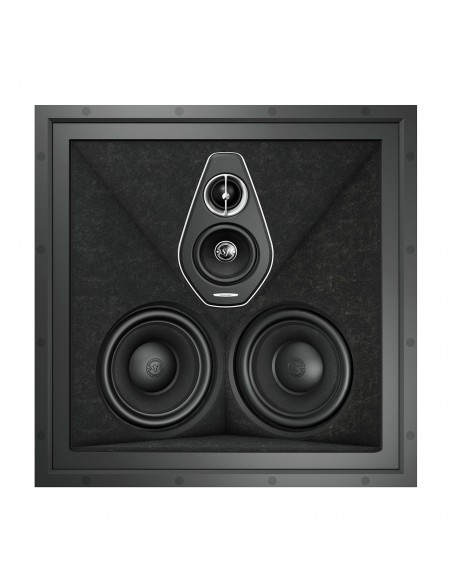

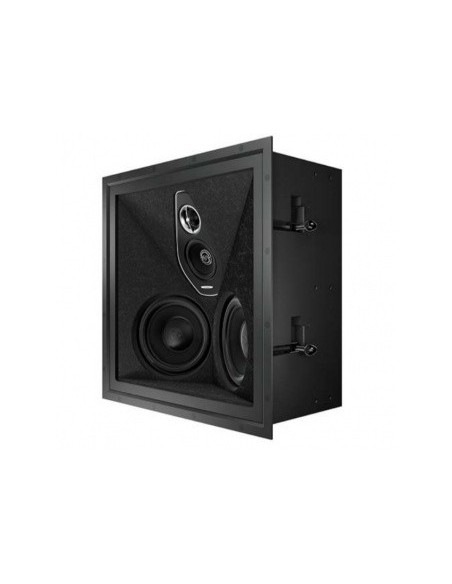

PC-664P
SF-PC-664P
€2,000.00
€2,000.00 gb./шт.
Tax included
Acoustics built into the suspended ceiling
| Loudspeaker system | 2 way in-ceiling loudspeaker system. Open design. |
| Tweeter DADTM driver | 29 mm / 1,1'' |
| Midwoofer | 200 mm / 7,8'' |
| Woofer | - |
| Crossover frequency Paracross TopologyTM | 2.500 Hz |
| Frequency response | 38 Hz -35.000 Hz |
| Sensitivity (2.83v/1m) | 87dB SPL |
| Nominal impedance | 4 |
| Suggested amplifier power output | 40W - 200W |
| Long-term max input voltage (IEC-268-5) | 20V rms |
| Frame outer | 283 mm / 11.1'' |
| Cut out | 257 mm / 10.1 '' |
| Depth behind surface | 142 mm / 5.7'' |
| Protrusion | 13 mm / 0.51'' |

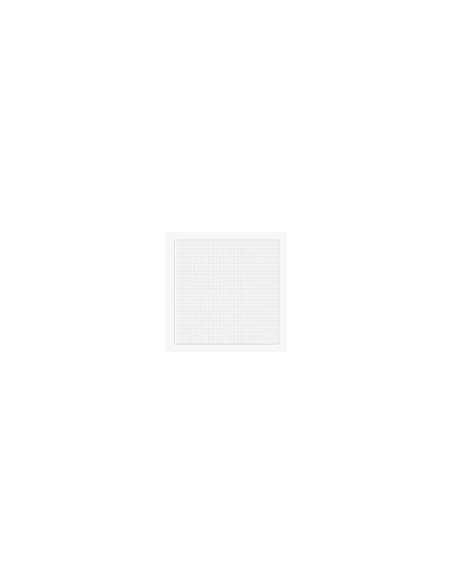

| Included in the box | Bezel-Free square and round magnetic grilles |
- Series:
- Palladio Level 6
- Sensitivity:
- 90 dB/2,83 V/ 1m
- Frequency:
- 58 - 25,000Hz(-6dB)
- Power:
- 200 W
- Number of Ways:
- 3
- NOMINAL IMPEDANCE:
- 4 Om
- Dimensions:
- Frame outer: 411 x 411 mm / 16.2 x 16.2”
Cut out: 388 x 388 mm / 15.2 x 15.2’’
Depth behind surface: 220 mm / 8.6’’
Protrusion: 9 mm / 0.35’’ - Weight:
- 10,4 Kg
- Type:
- pasīvs
