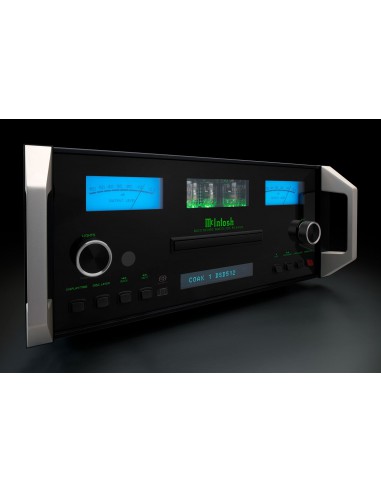

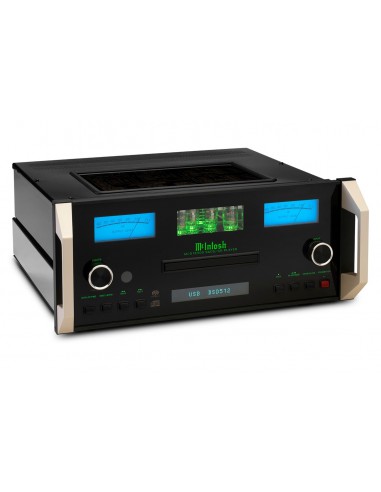

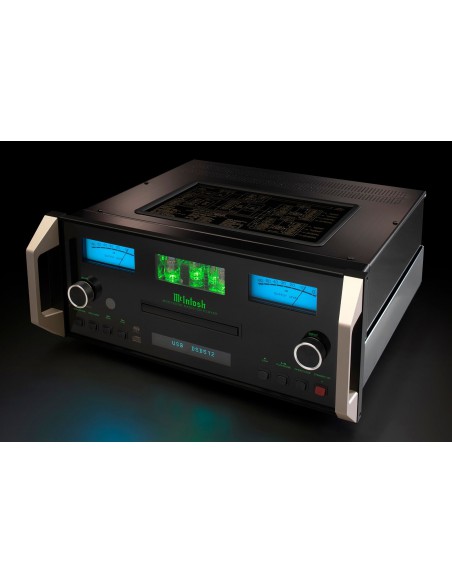

MCD12000

• Number of Channels

  2

• Fixed Output Level

  2.0Vrms Unbalanced
  4.0Vrms Balanced

• Variable Output Level

  N/A

• Output Impedance

  600 ohms Unbalanced and Balanced

• Frequency Response

  4Hz to 40kHz, +0.5, -2dB (SACD)
  4Hz to 20kHz, ±0.5dB (CD)

• Signal To Noise Ratio

  110dB (A-weighted)

• Dynamic Range

  Better than 100dB

• Total Harmonic Distortion

  0.003% @ 1000Hz

• Channel Separation

  Better than 98dB (1,000Hz)

• Headphone Output Impedance

  N/A

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type

  Professional Grade 8-channel, 32-bit PCM/DSD, Quad Balanced, 1 DAC per channel (2 DACs total)

• Coaxial Sample Rate

  16, 24-bit/192kHz

• Optical Sample Rate

  16, 24-bit/192kHz

• USB Sample Rate

  16, 24, 32-bit/384kHz
  DXD: DXD352.8kHz, DXD384kHz
  DSD: DSD64, DSD128, DSD256, DSD512

• Digital Coaxial Input

  0.5V p-p/75 ohms

• Digital Optical Input

  -15dbm to -21dbm

• Digital Output Sample Rate

  Up to 24-bit/192kHz

• Digital Optical Output

  -15dbm to -21dbm

• Digital Coaxial Output

  0.5V p-p/75 ohms

• Digital Output Jitter

  N/A

• Digital XLR Output

  N/A

• Digital MCT Output

  N/A

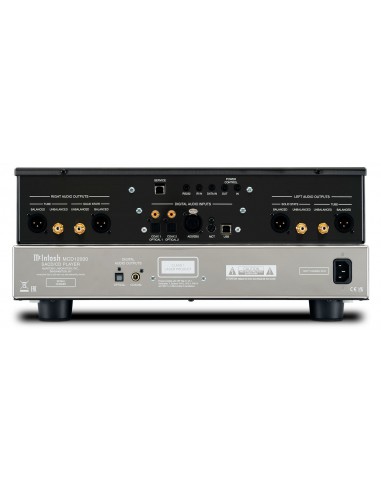

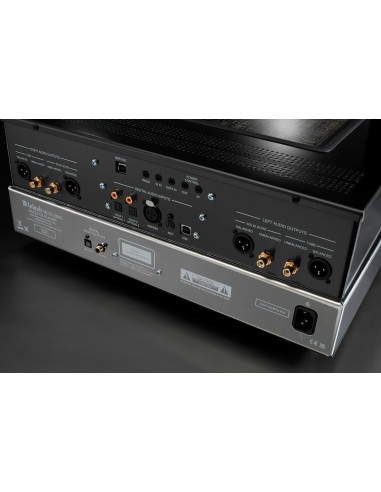

CONNECTIVITY

• Balanced Fixed Output

  2 (1 for Solid State, 1 for Vacuum Tube)

• Unbalanced Fixed Output

  2 (1 for Solid State, 1 for Vacuum Tube)

• Balanced Variable Output

  0

• Unbalanced Variable Output

  0

• Digital Coaxial Input

  2

• Digital MCT Input

  1

• Digital Optical Input

  2

• Digital USB Input

  1 (rear)

• Digital USB Input Type

  Type B

• Digital Coaxial Output

  1

• Digital MCT Output

  0

• Digital Optical Output

  1

• Digital XLR Output

  0

• Headphone Output

  0

CONTROL

• Power Control Input

  1

• Power Control Output

  1

• Rear Panel Data Input

  1

• Rear Panel IR Sensor Input

  1

• RS232 Control Input

  1

GENERAL SPECIFICATIONS

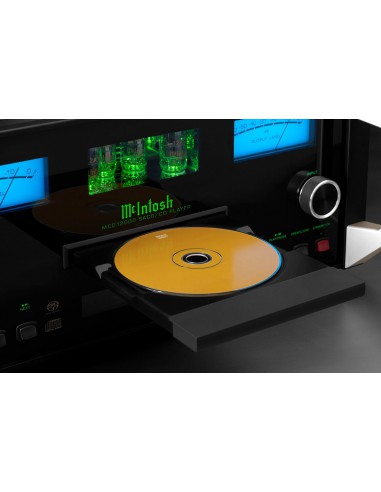

• Disc Formats

  SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

• Disc Capacity

  1

• Laser Type

  Twin Beam

• Laser Beam Wavelength

  650nm (SACD)
  790nm (CD)

• Laser Power

  CLASS IIa/CLASS I

• Standby Power Requirement

  <0.5 watt

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 7-5/8" (19.4cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4" (17.2cm).

• Unit Weight

  32.5 lbs (14.7 kg)

• Shipping Weight

  48 lbs (21.8 kg)
