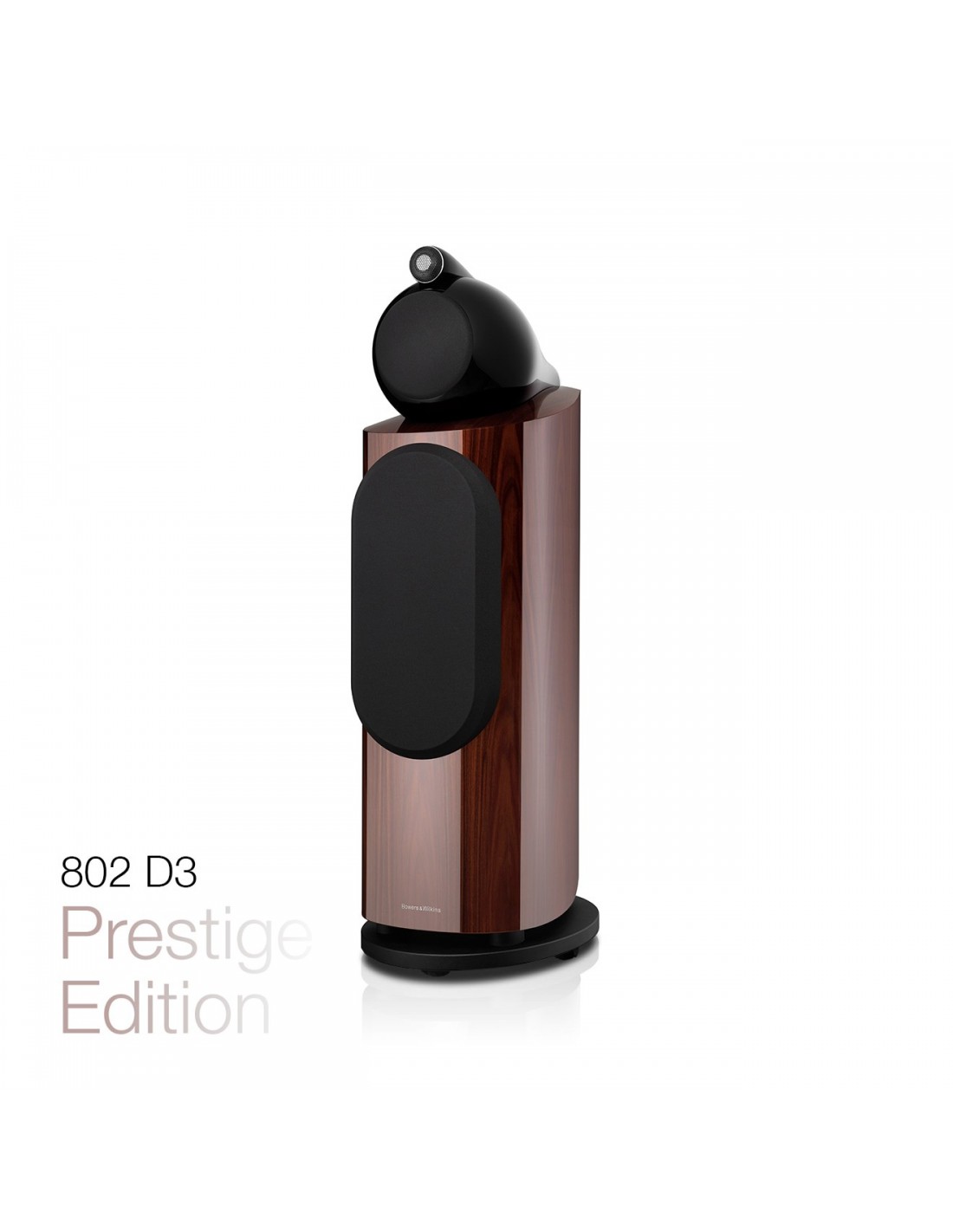

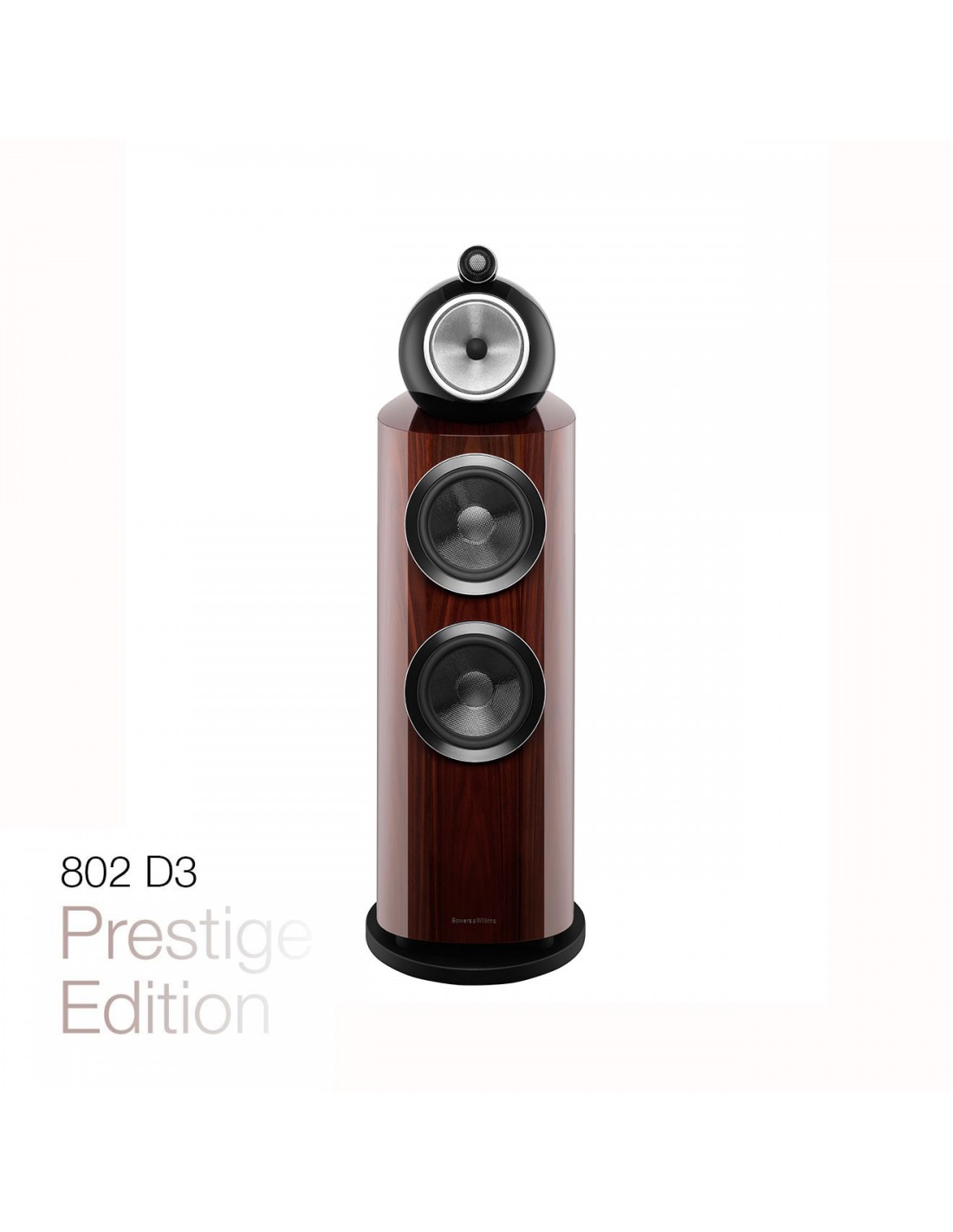

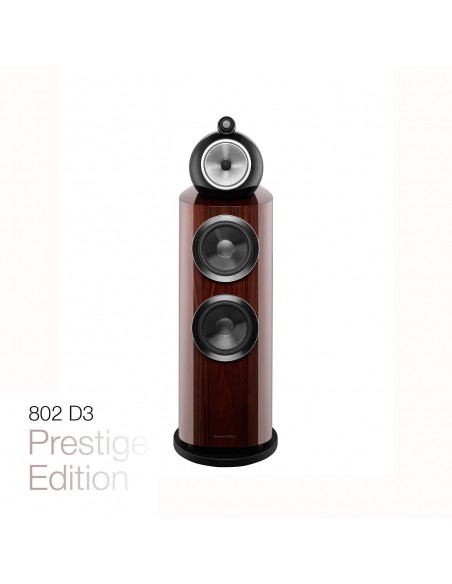

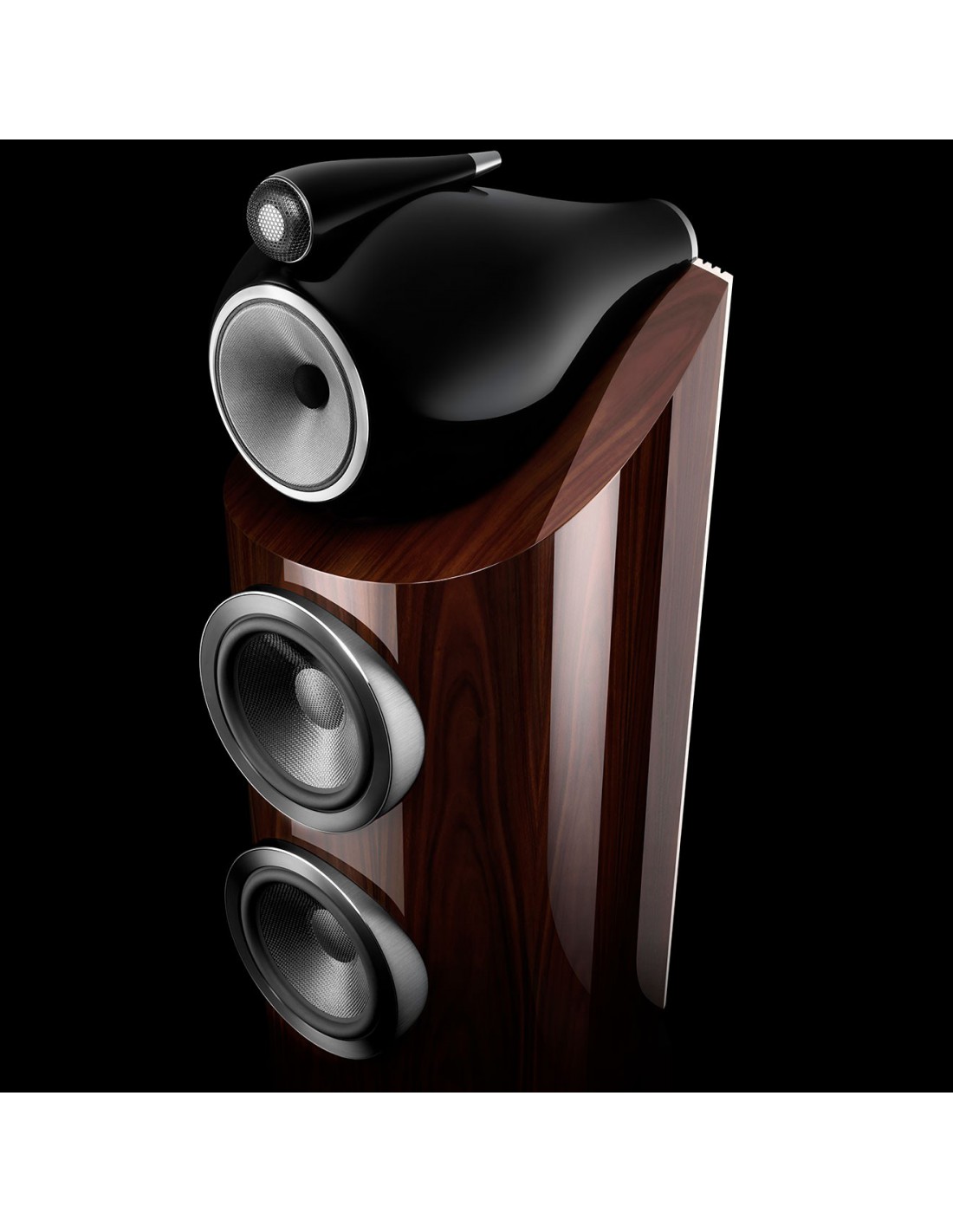

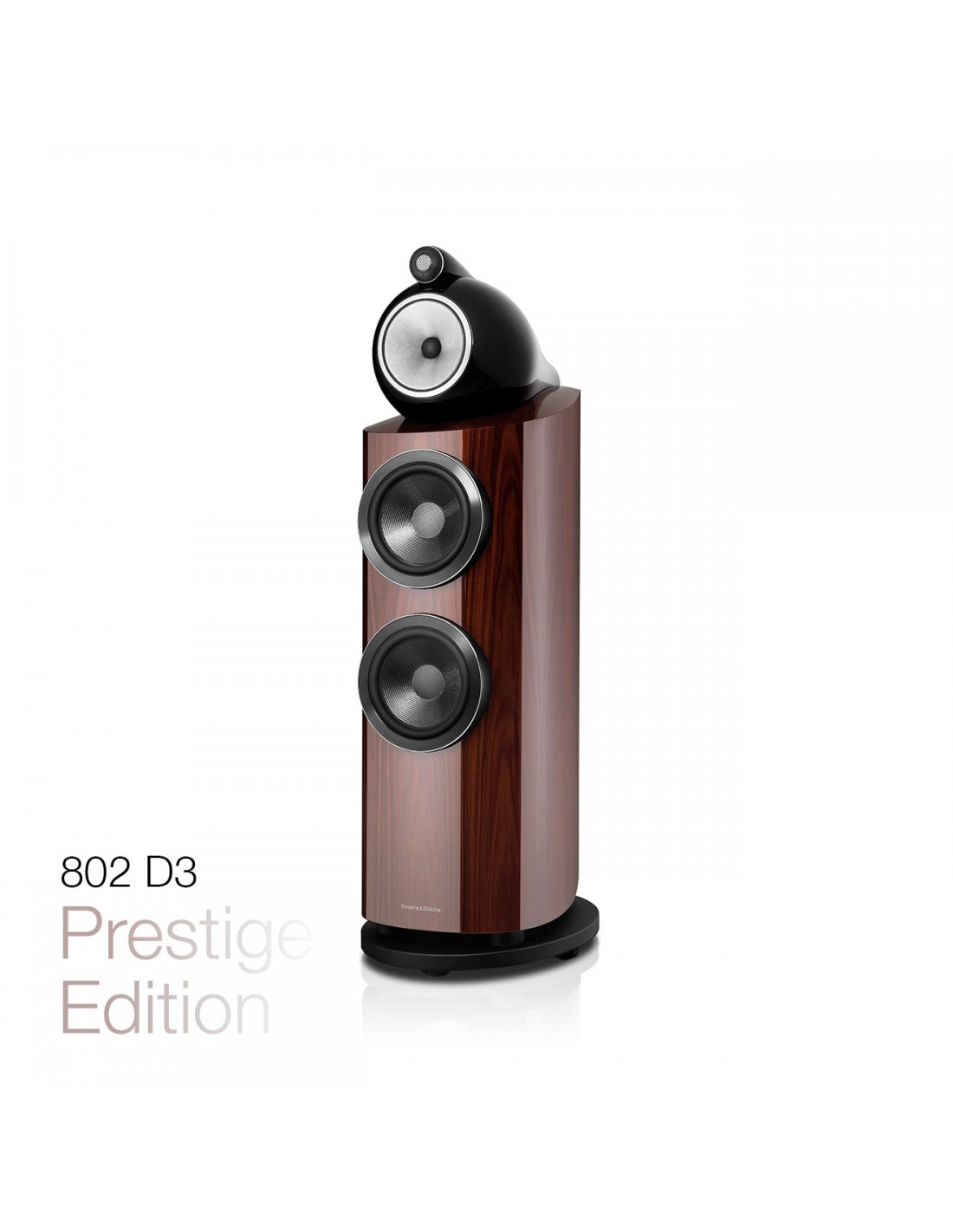

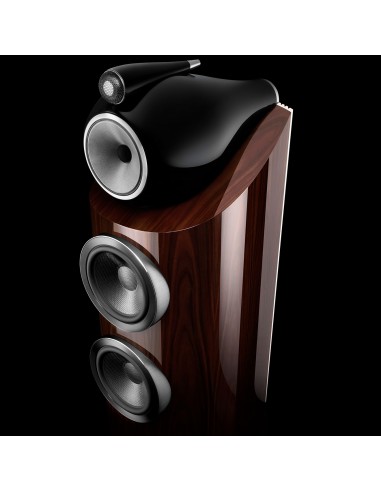

802D3 Prestige Edition

Technical features
Diamond tweeter
Continuum™ Cone FST™
Anti-Resonance plug
Turbine head
Aerofoil™ cone bass units
Flowport™
Optimised Matrix
Solid body tweeter
Tweeter-on-Top

Description
3-way vented-box system

Drive units
1x ø25mm (1 in) Diamond dome high-frequency
1x ø150mm (6 in) Continuum™ cone FST™ midrange
2x ø200mm (8 in) Aerofoil™ cone bass units

Frequency range
14Hz to 35kHz

Frequency response (+/-3dB from reference axis)
17Hz to 28kHz

Sensitivity (1m on axis at 2.83Vrms)
90dB

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 80Hz - 20kHz
<0.3% 100Hz - 20kHz

Nominal impedance (min)
8Ω (minimum 3.0Ω)

Recommended amplifier power
50W - 500W into 8Ω on unclipped programme

Max. recommended cable impedance
0.1Ω

Dimensions
Height: 1212mm (not including feet)
Width: 390mm
Depth: 583mm

Net weight
94.5kg (208lb)

Cabinet finishes
Prestige Edition

Grille finishes
Black
Gray
