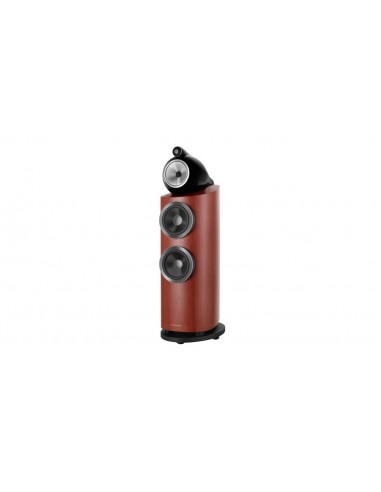

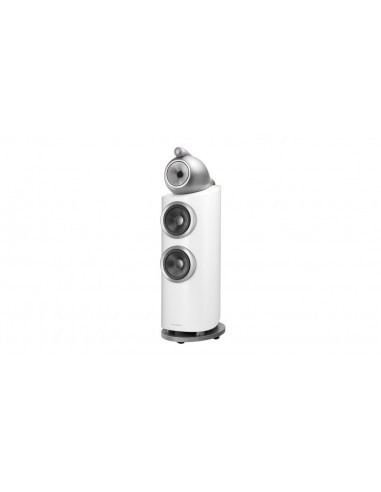

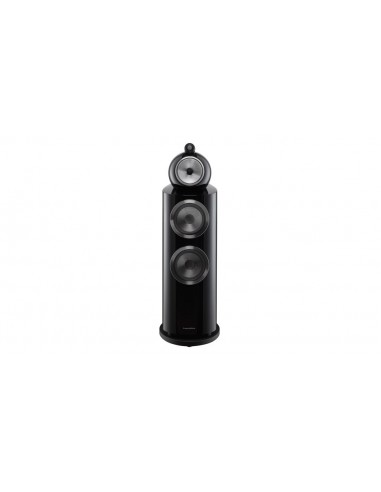

802D4
BW002
€14,000.00
€14,000.00 gb./шт.
Tax included
floor speaker
Technical specifications
Technical features

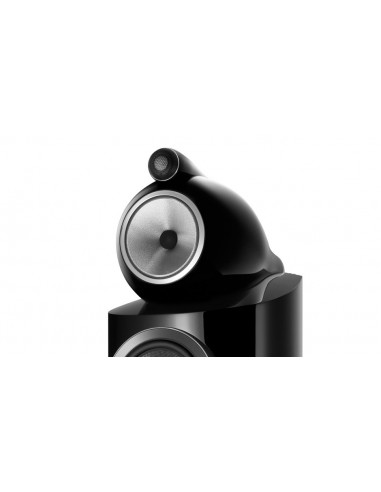

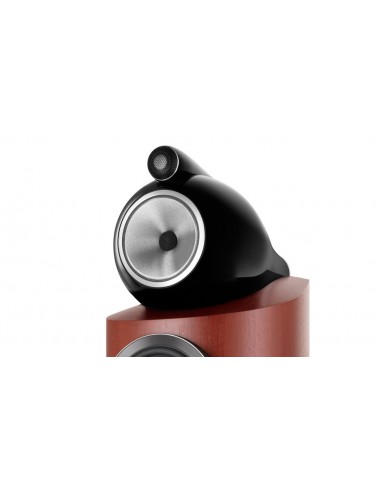

Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Turbine™ Head
Matrix™
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø200mm (8in) Aerofoil cone bass units
Frequency range
14Hz to 35kHz
Frequency response
17Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 70Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 500W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 1218mm
Width: 413mm
Depth: 602mm
Net weight
88.10kg
Finishes
Cabinet:
Gloss Black
White
Satin Rosenut
Satin Walnut
Grille:
Black
Grey
Black
Grey
- Series:
- 800 Series
- Sensitivity:
- 90 dB/2,83 V/ 1m
- Frequency:
- 17Hz to 28kHz (+/-3dB from reference axis)
- Power:
- 500 W
- Number of Ways:
- 3
- NOMINAL IMPEDANCE:
- 8 Om
- Type:
- pasīvs
