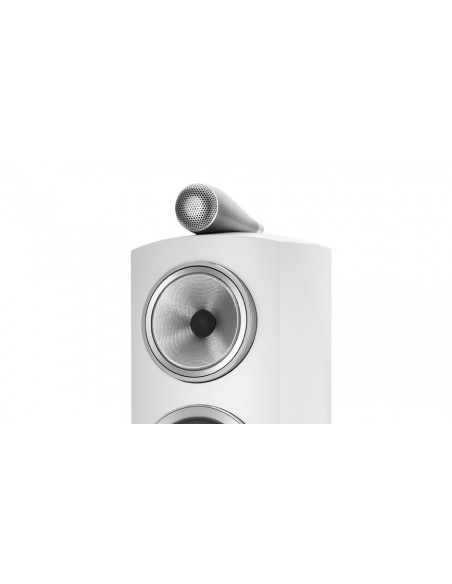

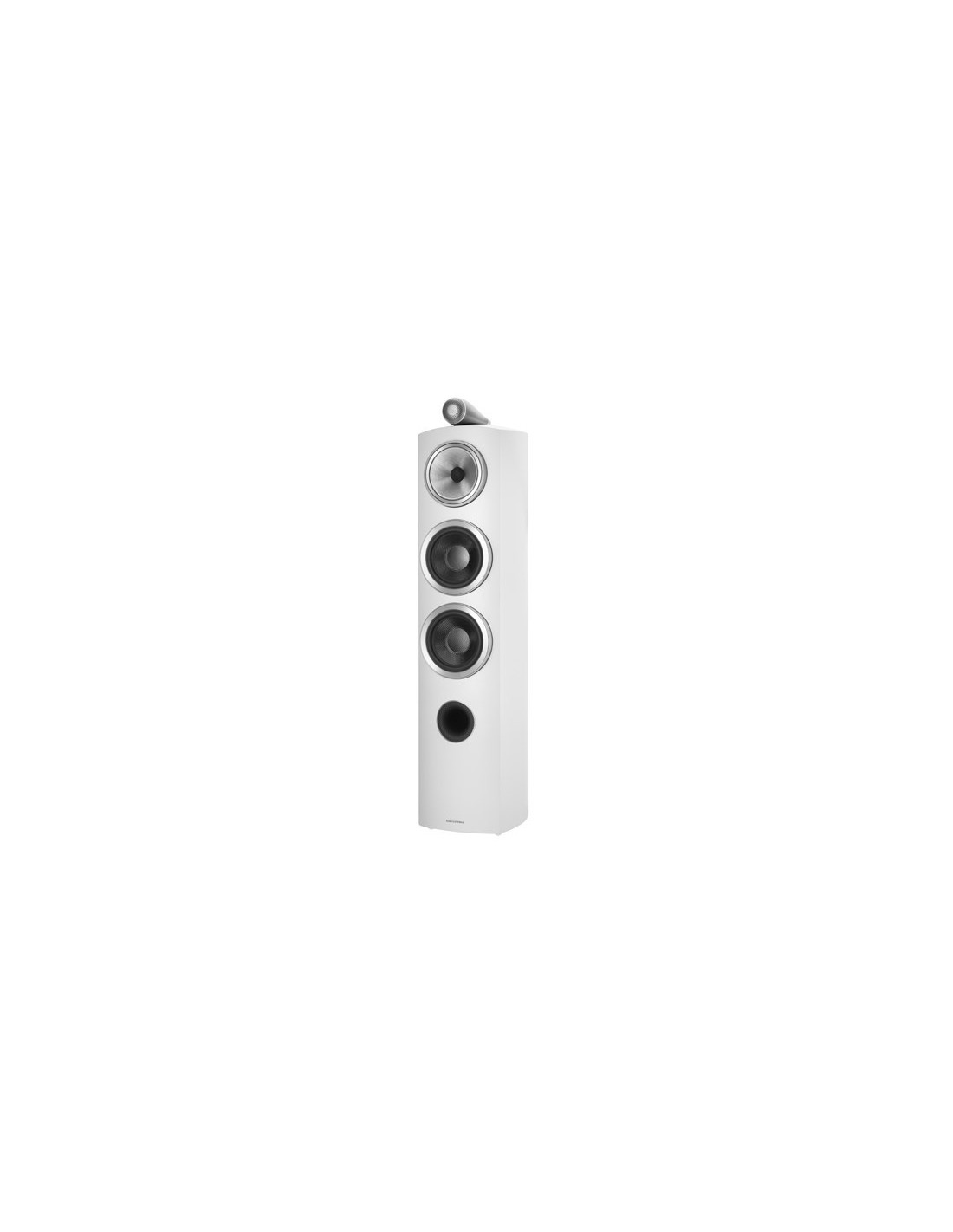

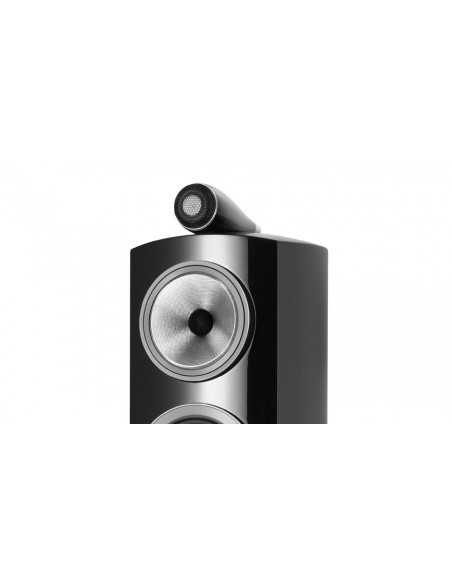

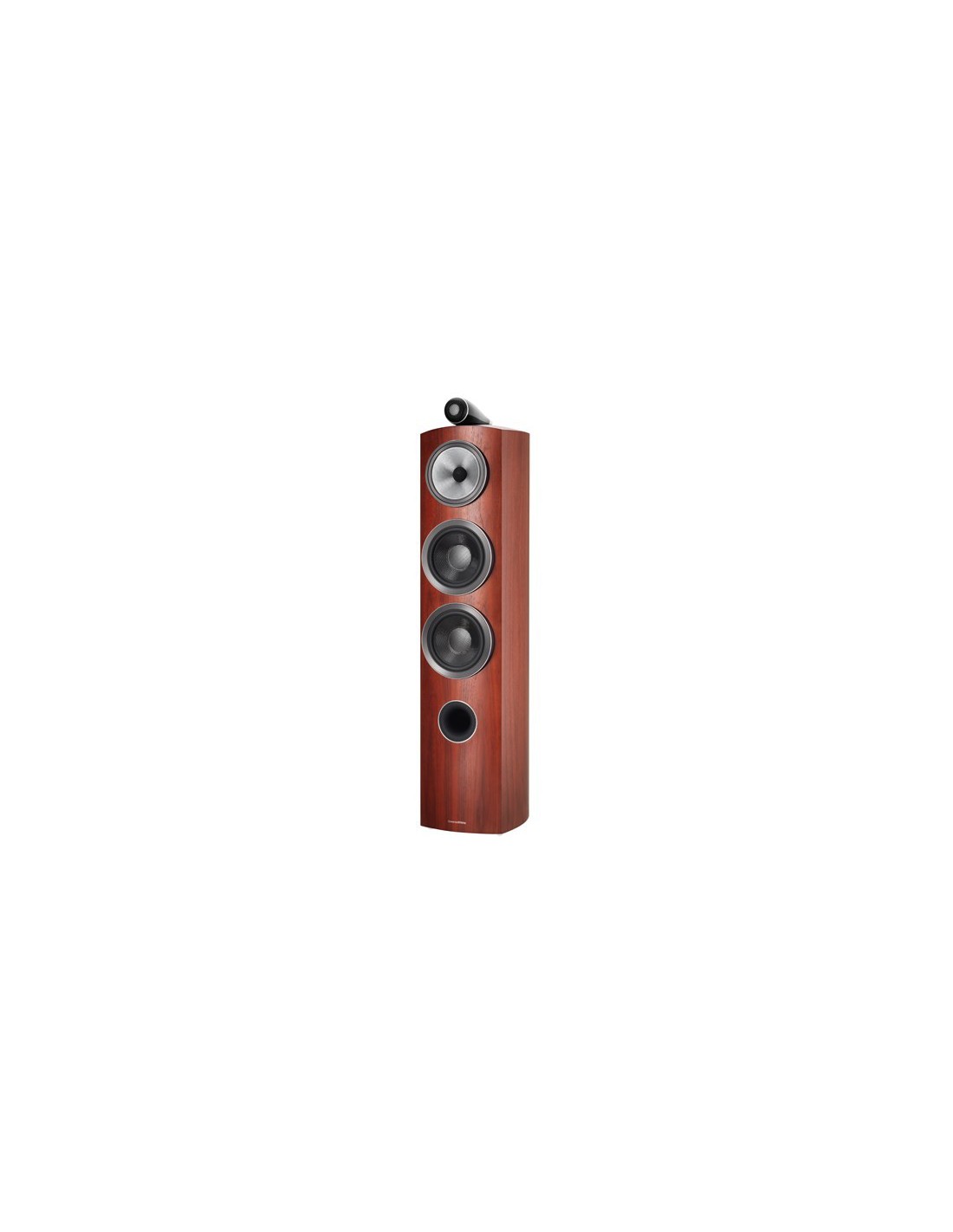

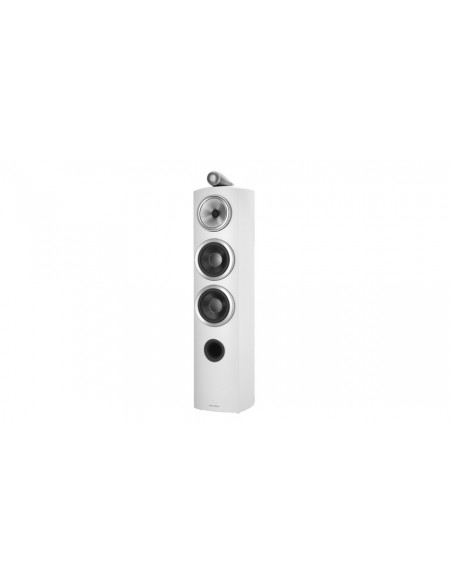

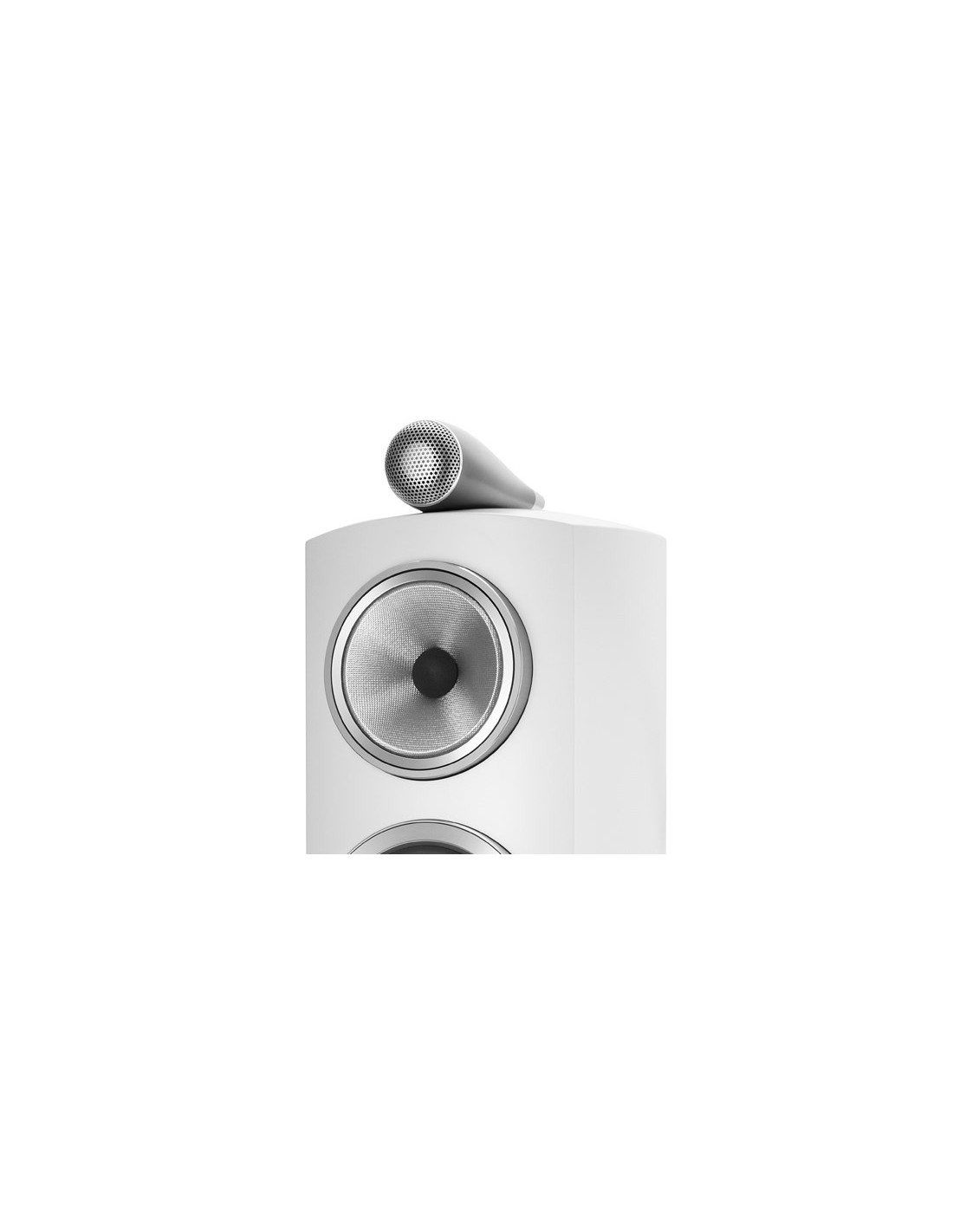

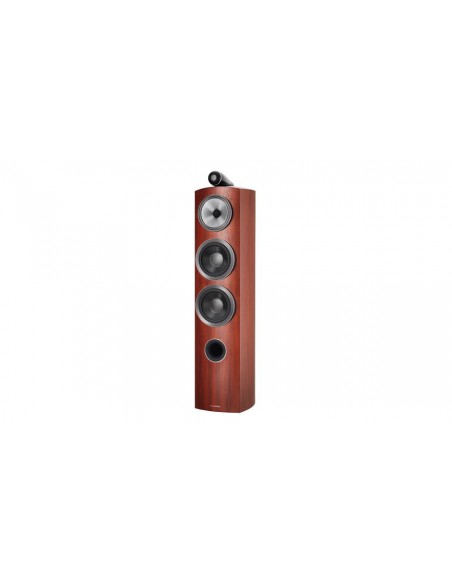

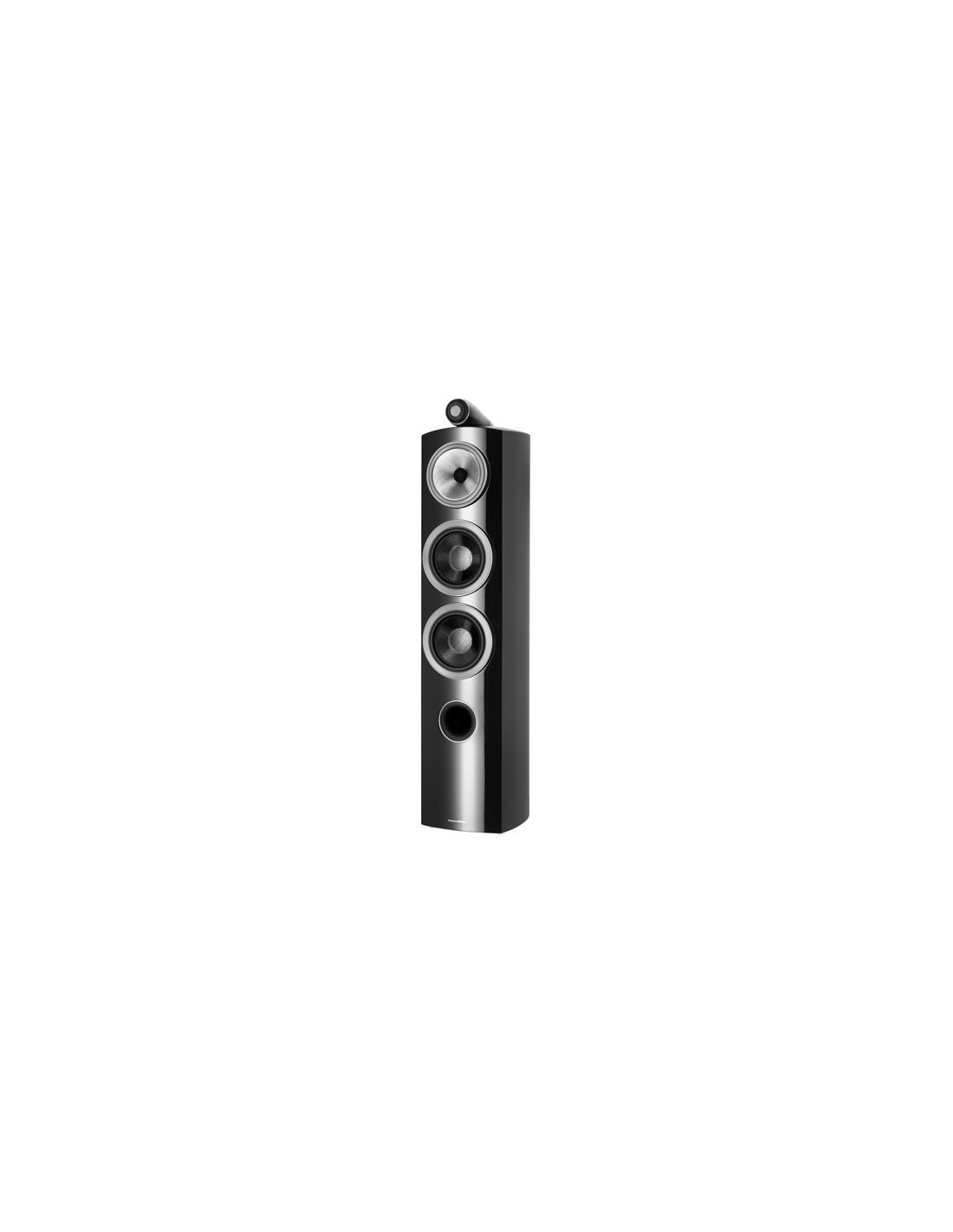

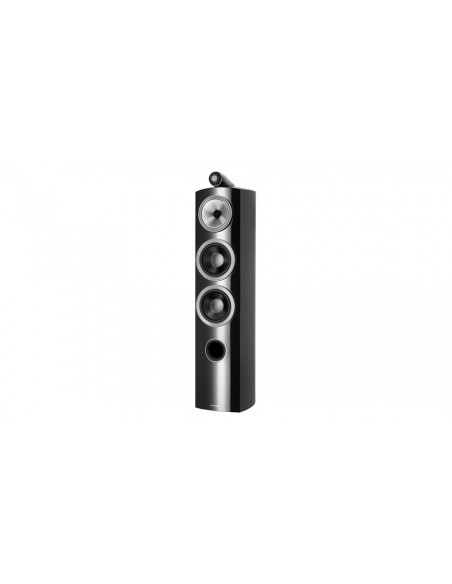

804D4
BW004
€7,000.00
€7,000.00 gb./шт.
Tax included
floor speaker
Technical specifications
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units
Frequency range
20Hz to 35kHz
Frequency response
24Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
89dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 1071mm
Width: 306mm
Depth: 391mm
Net weight
36.85kg
Finishes
Cabinet:
Gloss Black

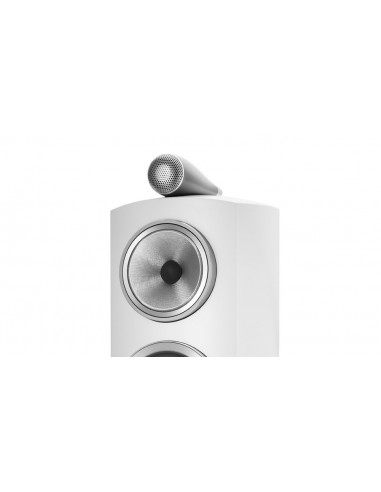

White

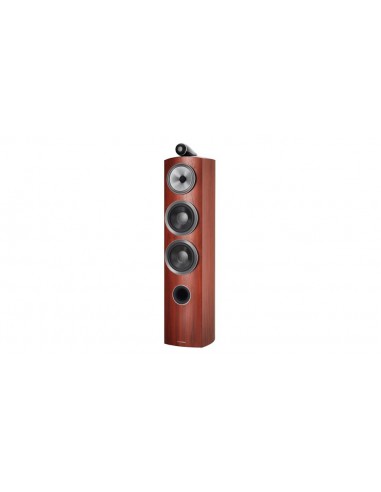

Satin Rosenut
Satin Walnut
Grille:
Black
Grey
Black
Grey
- Series:
- 800 Series
- Sensitivity:
- 89 dB/2,83 V/ 1m
- Frequency:
- 24Hz to 28kHz (+/-3dB from reference axis)
- Power:
- 200 W
- Number of Ways:
- 3
- NOMINAL IMPEDANCE:
- 8 Om
- Type:
- pasīvs
