CORE W380-IDC
MA-082
€480.00
€480.00 gb./шт.
Tax included
Iebūvējama sienā akustika
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
40 – 150 W
Drive Unit Complement
8" C-CAM cone bass driver featuring RST, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver

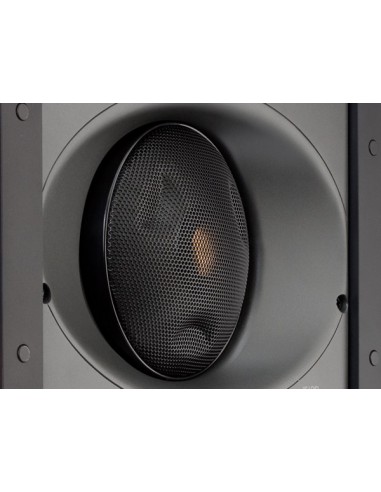

1" C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16")
Overall Depth (Including Grille)
104 mm (41/8")
Mounting Depth
100 mm (315/16")
Cut-Out Hole Diameter
387 x 234 mm (151/4 x 93/16")
Fixing Type
6 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
4.1 kg (9 lb)
Pre-Construction Bracket
Back Box
Sold As
Single Unit
- Series:
- Build-in - Core Series
