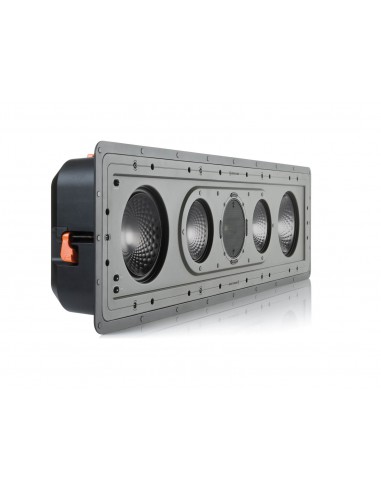

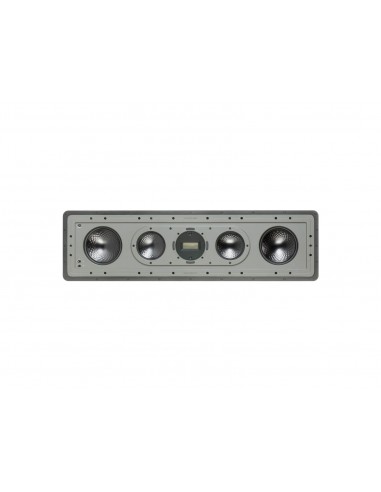

CP-IW460X
MA-102
€1,800.00
€1,800.00 gb./шт.
Tax included
Wall-mounted acoustics
Frequency Response
50 Hz – 60 kHz (-6 dB typical in room response)
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
113.8 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
60 – 150 W
Crossover Frequency
L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Drive Unit Complement

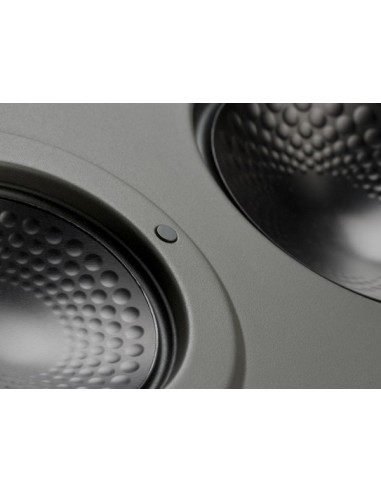

2 x 6.5” C-CAM Bass drivers with RST cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology

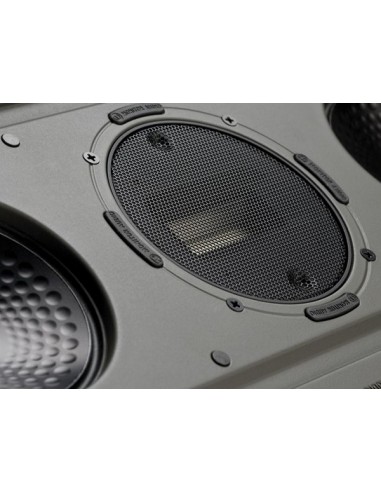

1 x C-CAM H.F ribbon transducer
Adjustment Controls
Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W x D)
907 x 257 mm (353/4 x 101/8")
Overall Depth (Including Grille)
102 mm (4")
Cut-Out Dimensions
880 x 230 mm (3421/32 x 9")
Mounting Depth
96 mm (33/4")

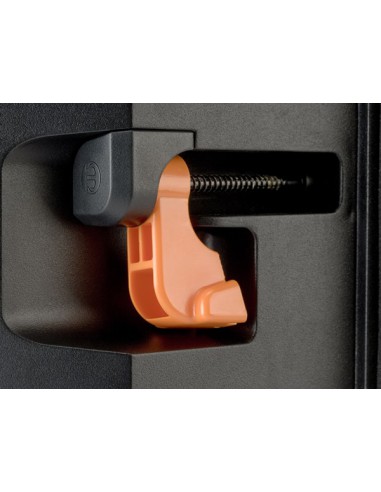

Fixing Type
10 x Tri-Grip Dog leg fixings
Construction Material
Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Weight
12.98 kg (28 lb 6 oz)
Pre-Construction Bracket
Sold As
Single Unit
- Series:
- Build-in - Controlled Performance Series
