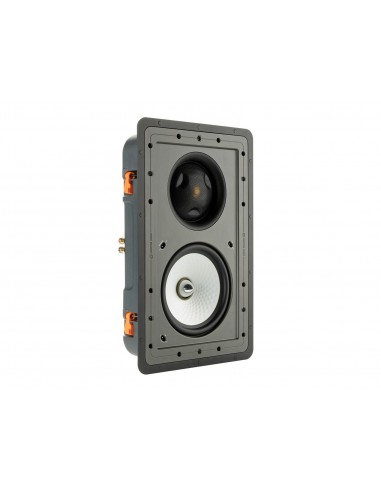

CP-WT380IDC
MA-100
€600.00
€600.00 gb./шт.
Tax included
Wall-mounted acoustics
Frequency Response
50 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
109.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Crossover Frequency
Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave
Drive Unit Complement
3-Way
8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB/ 0 dB/ -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D)
472.5 x 303.5 mm (185/8 x 1115/16")
Overall Depth (Including Grille)
106 mm (43/16")
Cut-Out Dimensions
438 x 269 mm (171/4 x 109/16")
Mounting Depth
99 mm (37/8")
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Weight
5.62 kg (12 lb 6 oz)
Pre-Construction Bracket
Sold As
Single Unit
- Series:
- Build-in - Controlled Performance Series
