AWC280
MA-108
€400.00
€400.00 gb./шт.
Tax included

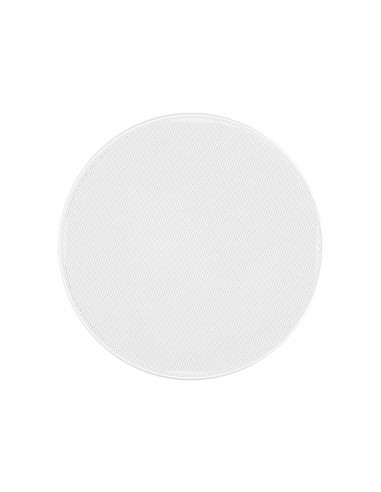

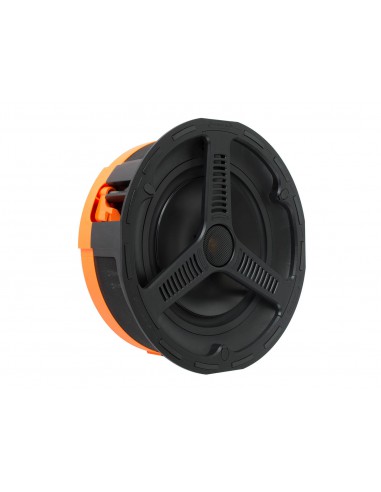

Ceiling-mounted acoustics (waterproof)
Frequency Response
50 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Nominal Impedance
8 ohms
Maximum SPL
109 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
20 — 100 W
Drivers
8" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)
Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
102.5 mm (41/32")
Cut-Out Hole Diameter
247 mm (93/4")
Mounting Depth
97.6 mm (37/8")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.8 kg (6 lb 2 oz)
Pre-Construction Bracket
Sold As
Single Unit
- Series:
- Build-in - All Weather Series
