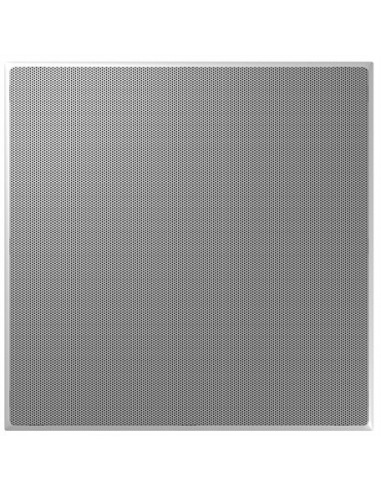

CCM8.5D
BW105
€2,499.00
€2,499.00 gb./шт.
Tax included
in-ceiling
| Model | CCM8.5 |
| Description | 2-way in ceiling loudspeaker |
| Technical features | Aluminium Tweeter ‘wing’ allows time alignment Continuously rotatable aluminium mini-baffle allows “toe-in” Flowport™ |
| Drive units | 1x 25mm (1in) Aluminium Carbon Braced Tweeter with Nautilus Tube™ 1x 180mm (7in) woven blue Kevlar cone bass/midrange driver with anti-resonance plug |
| Frequency range | 35Hz - 40kHz |
| Power handling | 120W |
| Sensitivity | 88dB |
| Impedance | 8Ω (minimum 3.3Ω) |
| Frame outer | 351mm x 351mm (13.8 in x 13.8in) |
| Cut-out | 331mm x 331mm (13 in x 13in) |
| Cut-out allowance | 8mm (0.31in) |
| Protrusion | 8mm (0.31in) |
| Back box | 701mm x 343mm x 177mm (27.6 in x 13.5 in x 6.9in) |
- Series:
- Custom installation 800-Series Diamond
