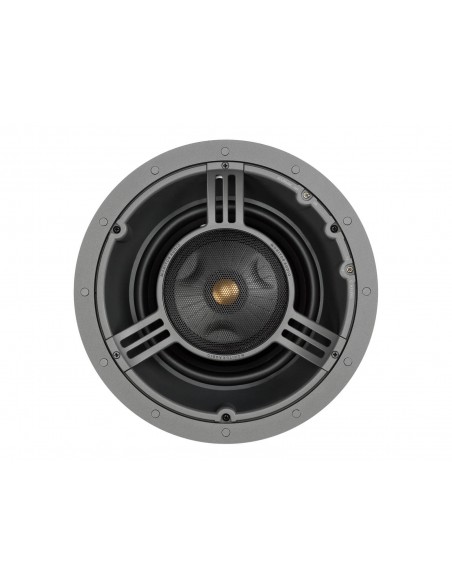

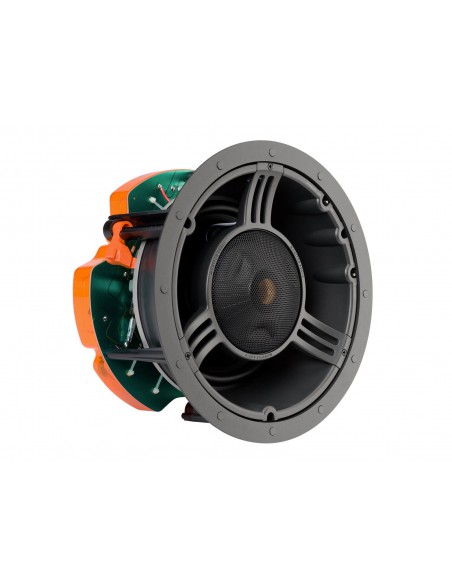

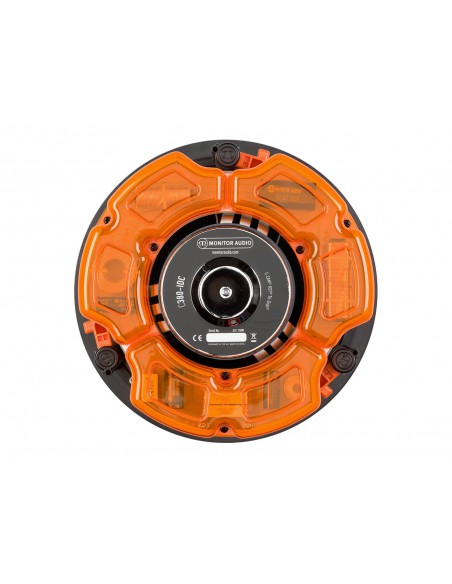

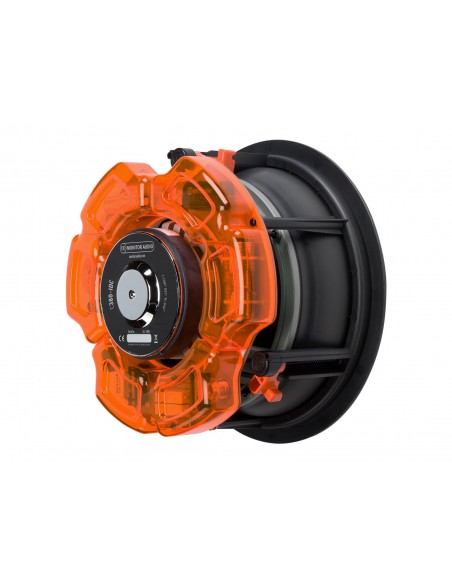

CORE C380-IDC
MA-081
€430.00
€430.00 gb./шт.
Tax included
Ceiling-mounted acoustics
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
40 – 150 W
Drive Unit Complement
8” C-CAM cone bass driver featuring RST pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
161 mm (65/16")
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
247 mm (93/4")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.64 kg (8 lb)
Pre-Construction Bracket
Back Box
Sold As
Single Unit
- Series:
- Build-in - Core Series
