MA-105
€225.00

€225.00 gb./шт.

Tax included

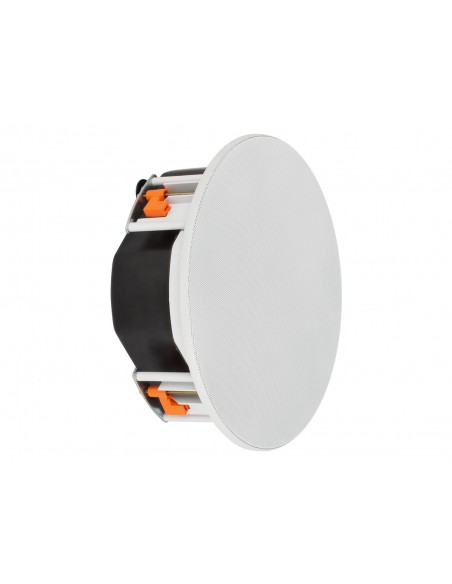

Ceiling-mounted acoustics


Frequency Response

65 Hz – 25 kHz

Nominal Impedance

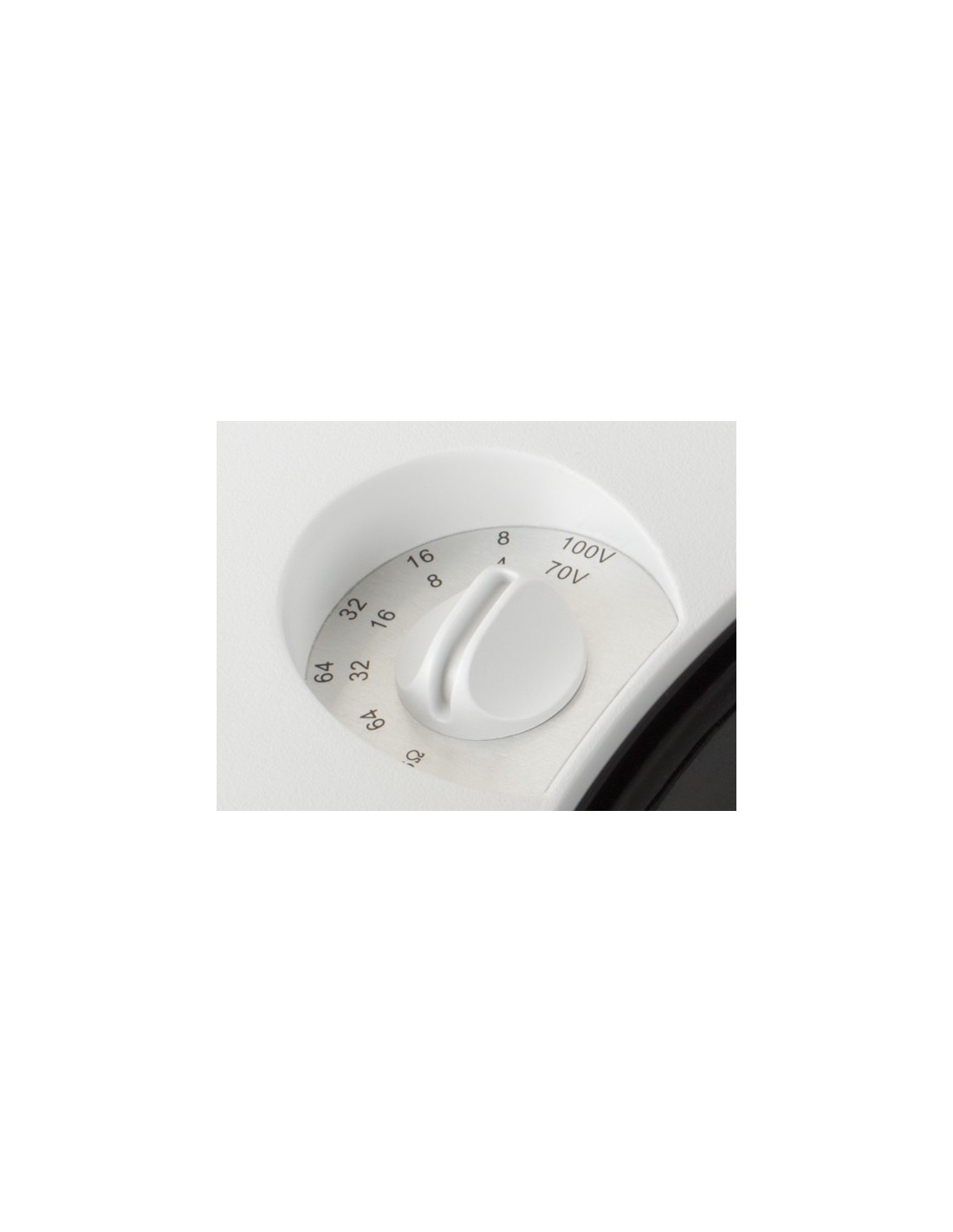

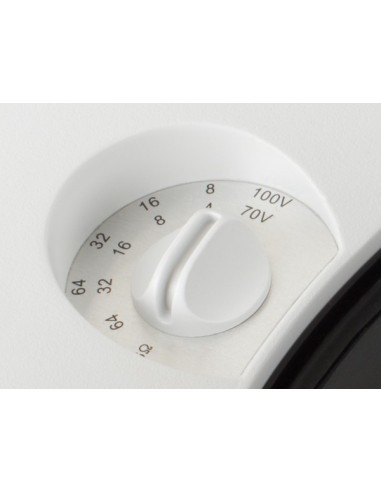

16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection

Sensitivity (1W@1M)

87 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 W

Recommended Amplifier Requirements

10 — 40 W

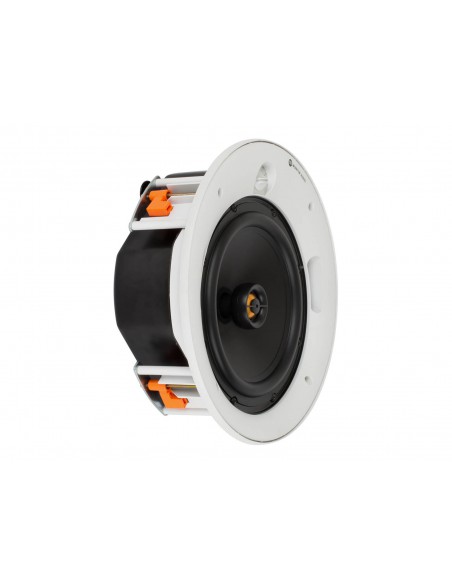

Drive Unit Complement

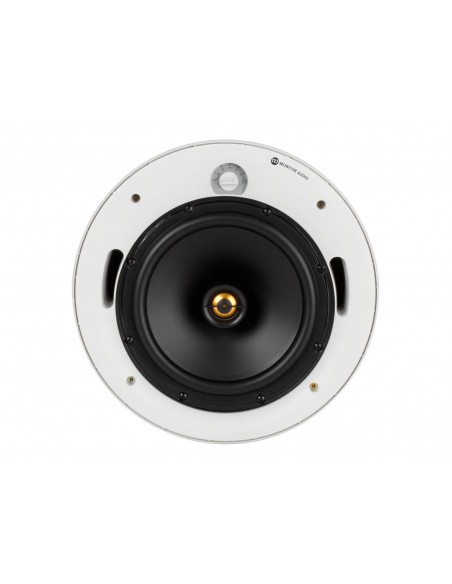

8" MMP II cone bass-mid driver

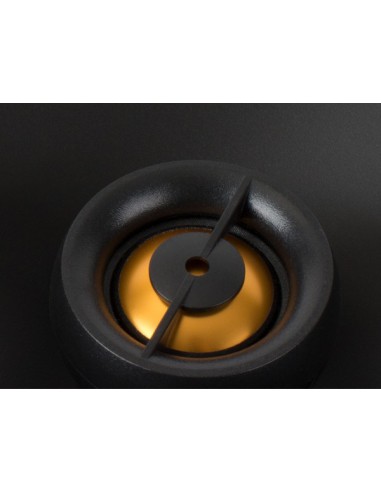

1 x 25 mm (1") fabric soft dome tweeter

Connection

Screw type plug termination

Overall Diameter (Including Grille)

294 mm (119/16")

Overall Depth (Including Grille)

114 mm (41/2")

Cut-Out Hole Diameter

266 mm (101/2")

Mounting Depth

101.4 mm (4")

Fixing Type

4 position dog leg fixings

Construction Material

ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure

Other

Fire Rating: UL1480 & UL2043

Weight

3.76 kg (8 lb 4 oz)

Pre-Construction Bracket

CB8-LV Pre-Construction Bracket

Series:
Build-in - Pro Series
