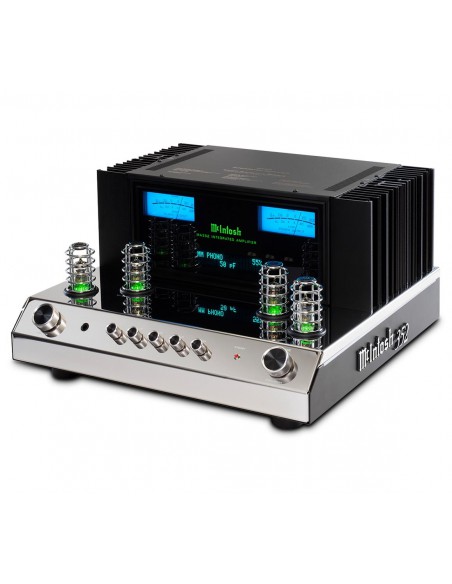

MA352

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  200 Watts into 8 Ohms
  320 Watts into 4 Ohms

• Number of Channels

  2

• Speaker Impedance

  4 or 8 Ohms

• Rated Power Band

  20Hz to 20kHz

• Total Harmonic Distortion

  0.03%

• Dynamic Headroom

  1.5dB

• Frequency Response +0,-0.5dB

  20Hz to 20kHz

• Frequency Response, +0, -3dB

  10Hz to 100kHz

• Sensitivity Phono (Moving Coil)

  N/A

• Sensitivity Phono (Moving Magnet)

  2.5mV

• Sensitivity High Level (Balanced / Unbalanced)

  0.5V/0.25V

• Sensitivity (Power Amp input)

  N/A

• Signal To Noise Ratio (Moving Coil)

  N/A

• Signal To Noise Ratio (Moving Magnet)

  82dB

• Signal To Noise Ratio (High Level)

  93dB

• Signal To Noise Ratio (Power Amp input)

  N/A

• Input Impedance (Balanced / Unbalanced)

  20K/20K

• Damping Factor

  8 Ohms: >200
  4 Ohms: >100

• Maximum Output (Balanced / Unbalanced)

  8V Unbalanced

CONNECTIVITY

• Balanced Input

  2

• Unbalanced Input

  3

• Phono Input Moving Coil

  0

• Phono Input Moving Magnet

  1 (adjustable loading)

• Upgradeable Digital Audio Module

  No

• Digital Coaxial Input

  0

• Digital Optical Input

  0

• Digital MCT (DIN) Input

  0

• Digital USB Input

  0

• Balanced Variable Output

  0

• Unbalanced Fixed Output

  0

• Unbalanced Variable Output

  1

• Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD®)

• Subwoofer Output

  2

• AM/FM Tuner option

  No

• Home Theater PassThru

  Yes

• Unbalanced Analog Connector Type

  Standard

• Speaker Binding Post Type

  Standard

• Service Port

  1

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type

  N/A

• Digital Coaxial Input Sample Rate

  N/A

• Digital Optical Input Sample Rate

  N/A

• Digital MCT (DIN) Input Sample Rate

  N/A

• Digital USB Input Sample Rate

  N/A

CONTROL

• Tone Controls

  5-Band

• Tone Bypass and Input Assign

  Yes

• RS232 Control Input

  Yes

• Power Control Output

  1

• Rear Panel Data Port

  2

• Rear Panel IR Sensor Input

  Yes

• Input Level Match

  Yes

GENERAL SPECIFICATIONS

• Vacuum Tube or Solid State

  Preamplifier: Vacuum Tube
  Power Amplifier: Solid State

• Output Type

  Direct Coupled

• Output Meters

  Yes

• Dual Layer Chassis

  Yes

• Chassis Finish

  Polished stainless steel

• McIntosh Monogrammed Heatsinks™

  Yes

• Power Requirement

  120V 50/60Hz, 6.0A

• Standby Power Requirement

  <0.5 Watts

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17-1/2" (44.5cm) x 9-7/8" (25.1cm) x 20-1/2" (52.1cm)

• Weight

  66 lbs (29.9 kg)

• Shipping Weight

  75 lbs (34.0 kg)
