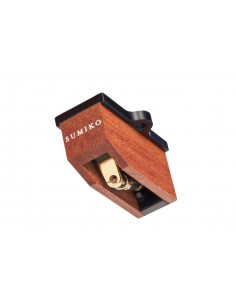

Palo Santos Presentation

TECHNICAL SPECIFICATIONS

Cartridge Type:
Moving Coil

Suspension:
synthetic rubber

Frequency Response:
10Hz - 40khz (+/- 1.5dB)
Output Voltage/Channel:
0.5mV (3.54cm/s @ 1kHz)

Channel Separation:
>30dB @ 1kHz

Channel Balance:
<0.5dB @ 1kHz

Optimum Tracking Force:
2.0g

Tracking Force Range:
1.8g - 2.2g

Dynamic Compliance:
8x10-6 cm/dyn

Internal Impedance:
12Ω

Load Impedance:
100Ω - 1kΩ

Capacitance Range:
100pF - 300pF

Cantilever:
long-grain boron

Stylus:
75 x 4 micron ultra low-mass Line-Contact

Output Terminals:
unique gold-plated tapered brass pins

Cartridge Weight:
8.3g

Mounting System:
standard 0.5” hole spacing (M2.5 threaded)

Supplied Hardware:
2x M2.5 (6mm) stainless steel mounting screws
2x M2.5 (8mm) stainless steel mounting screws
4x M2.5 stainless steel washers,
1x 2.0mm allen wrench
