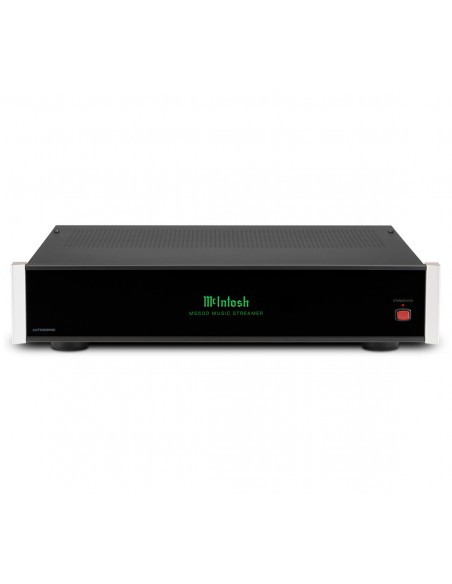

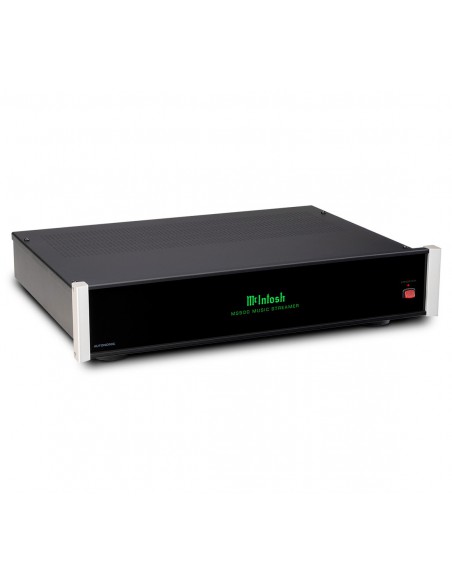

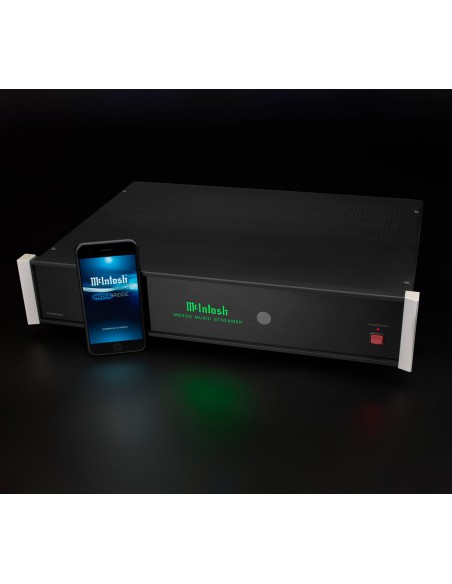

MS500

ELECTRONIC SPECIFICATIONS

• Total Harmonic Distortion

  0.005%

• Frequency Response

  2Hz to 22,000Hz

• Maximum Volts Out (Balanced / Unbalanced)

  4/2 V RMS

• Signal To Noise Ratio

  102dB

• Output Impedance

  600 ohms Unbalanced and Balanced

• Dynamic Range

  96dB

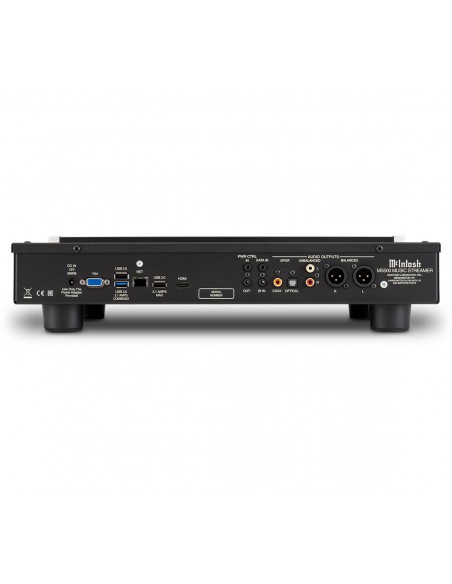

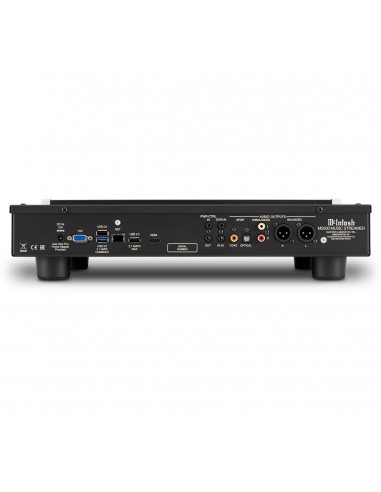

CONNECTIVITY

• Unbalanced Input

  0

• Outputs Unbalanced

  1

• Outputs Balanced

  1

• Digital Coaxial Input

  0

• Digital Coaxial Output

  1

• Digital Optical Input

  0

• Digital Optical Output

  1

• Digital USB Input

  3 (2 USB 2.0 / 1 USB 3.0)

• Digital USB Audio Output

  3 (only 1 can be used at a time)

• Network Connection

  1 (10/100/1000)

• DVI Output

  0

• HDMI Output

  1 (for GUI only)

• VGA Output

  1 (for GUI only)

• eSata Input

  0

DIGITAL AUDIO SPECIFICATIONS

• Digital Input Format

  N/A

• Digital Input Sample Rate

  N/A

• Digital Output Format

  SPDIF (PCM)

• Digital Output Sample Rate

  Up to 24-Bit/192kHz

CONTROL

• Power Control Input

  1

• Power Control Output

  1

• Rear Panel Data Input

  1

• Rear Panel IR Sensor Input

  1

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)

• Weight

  13.5 lbs (6.1kg)

• Shipping Weight

  28 lbs (12.7kg)
