Node

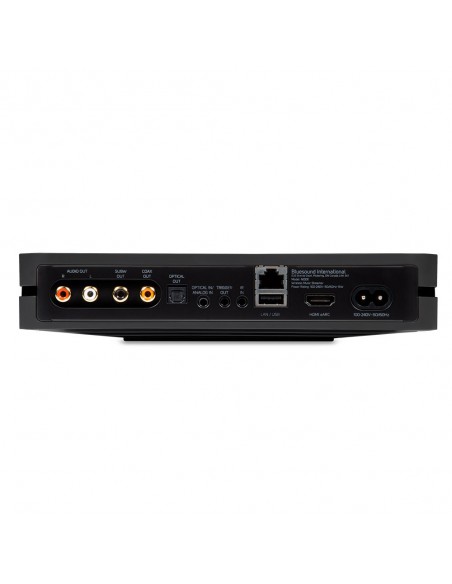

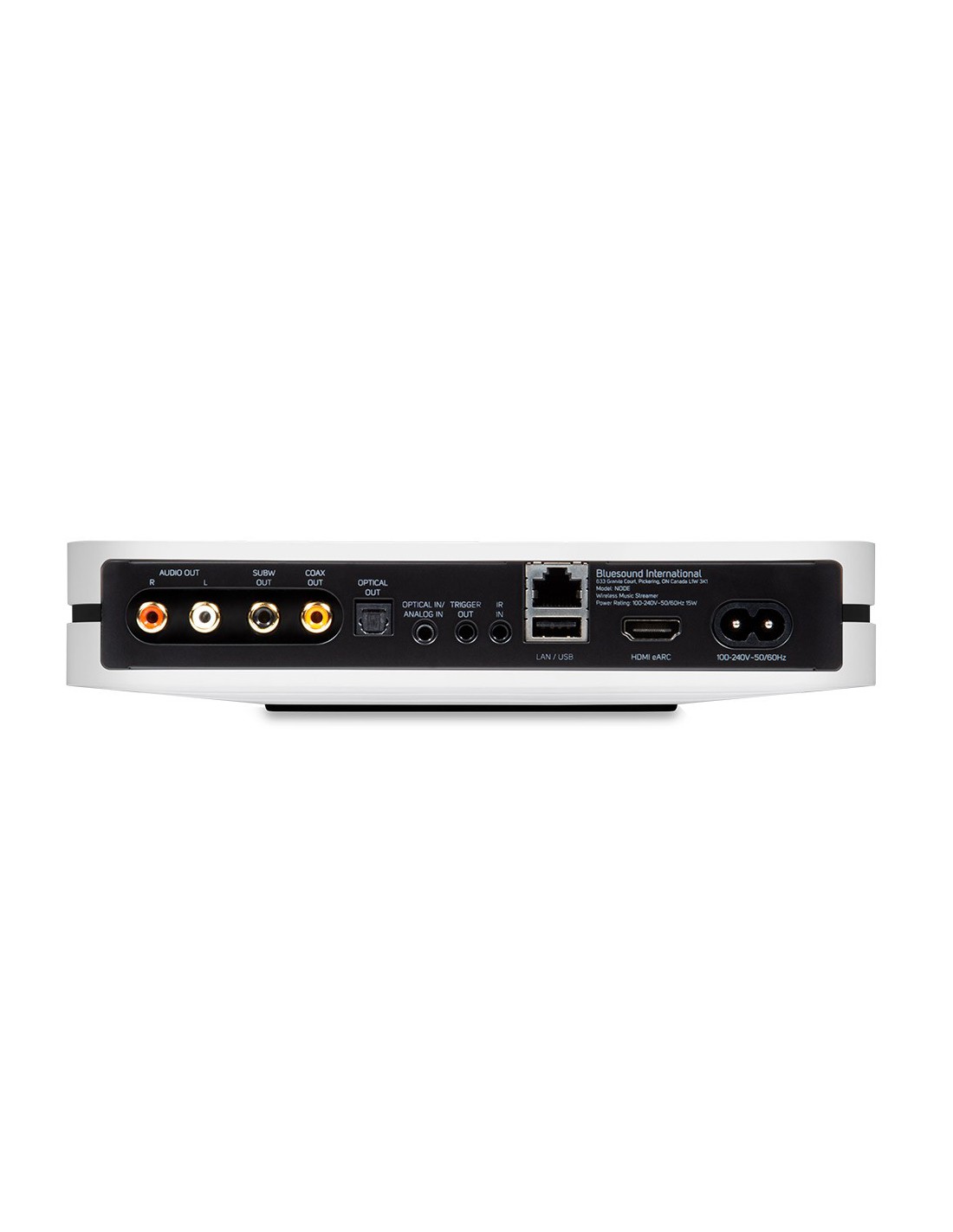

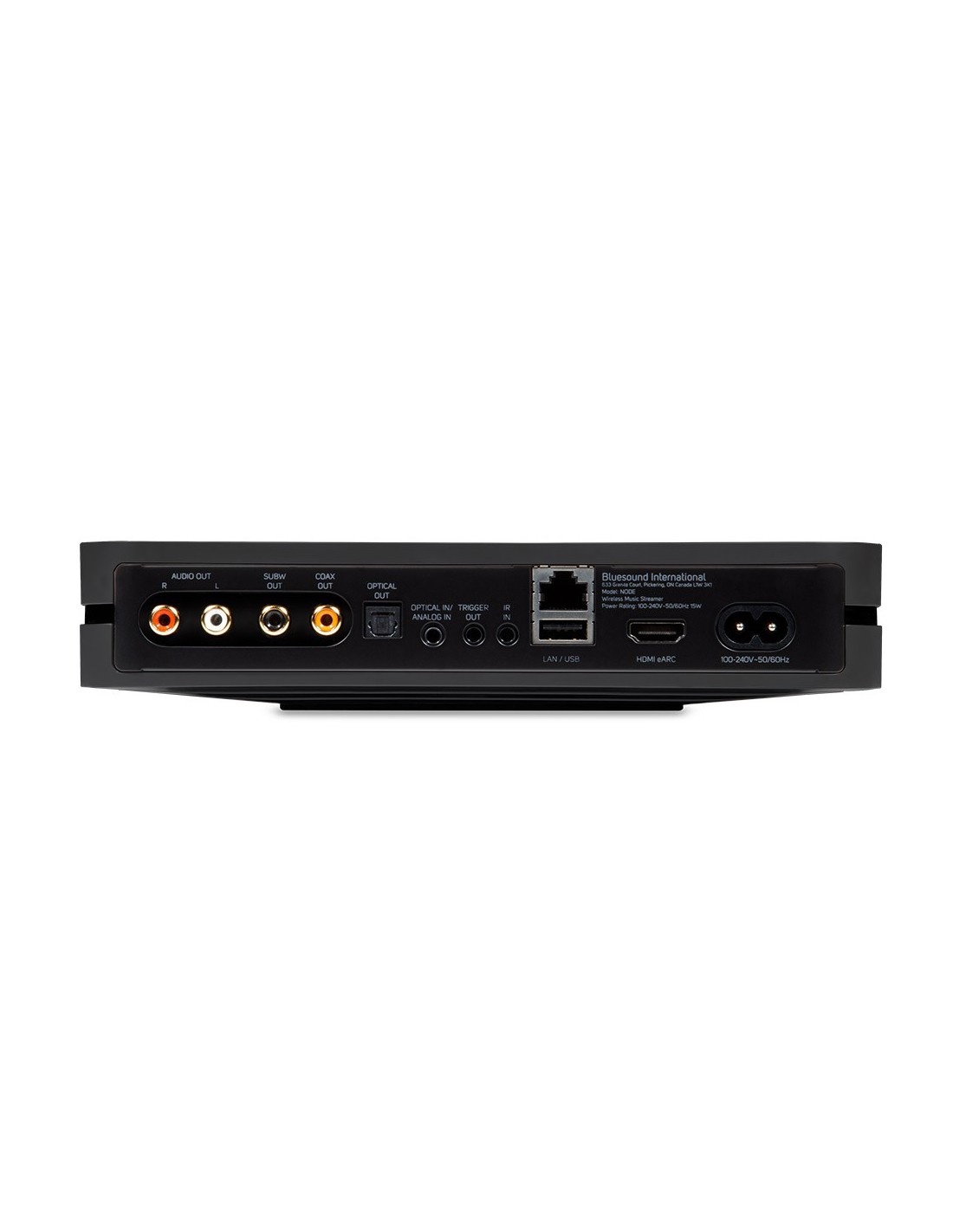

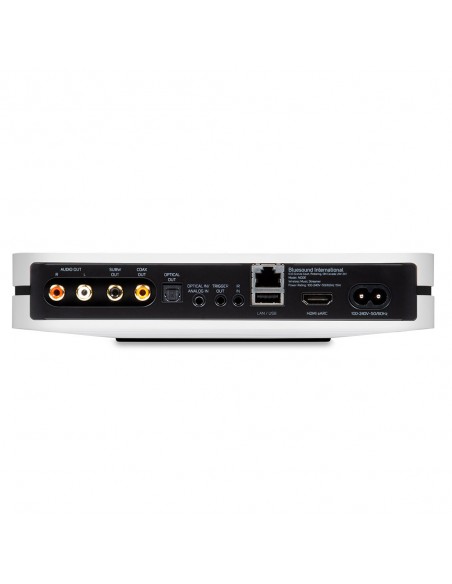

CONNECTIONS

Network

Wi-Fi 5 (802.11ac, 2.4/5GHz)
Ethernet RJ45, GigE 1000 Mbps

Audio Input

Mini TOSLINK/3.5mm Stereo combo
HDMI eARC

Audio Output

Analog Stereo RCA (Fixed or Variable)
Coaxial RCA
TOSLINK digital optical
USB Audio 2.0*

Bluetooth

Bluetooth 5.0 aptX HD
Two-Way (transmit & receive)

Headphones

3.5mm Stereo Out
Wireless Bluetooth Out

Subwoofer

RCA Out
Network Pairing to PULSE SUB+

USB

Type-A Port for external drive connection (Fat32 or NTFS formatted)

Trigger

12V Trigger Out

IR Remote

IR Sensor Built In - front panel with IR Remote Learning
IR Input 3.5mm Jack

Power

Universal bi-pin AC cord input (100-240AC)

*Note

*Available for free with future software update

AUDIO

Supported Audio File Formats

MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported Hi-Res Audio File Formats

FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Processor

ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Native Sampling Rates

up to 192 kHz

Bit Depths

16-24

Performance

SNR -113dBA
THD+N, 0.002%

DAC

32-Bit, 384kHz
Differential Output design

SOFTWARE & INTEGRATIONS

Operating System

BluOS

App Controller Operating Systems

iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11

Network File Sharing

SMB up to 200,000 track index

Album Art Supported

JPG, PNG

Internet Radio

Click here

Music Services

Click here

Voice Control

Amazon Alexa Skills; Actions on Google

3rd-Party

AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready

Control Systems

Control4, Crestron, URC, RTI, ELAN, Lutron

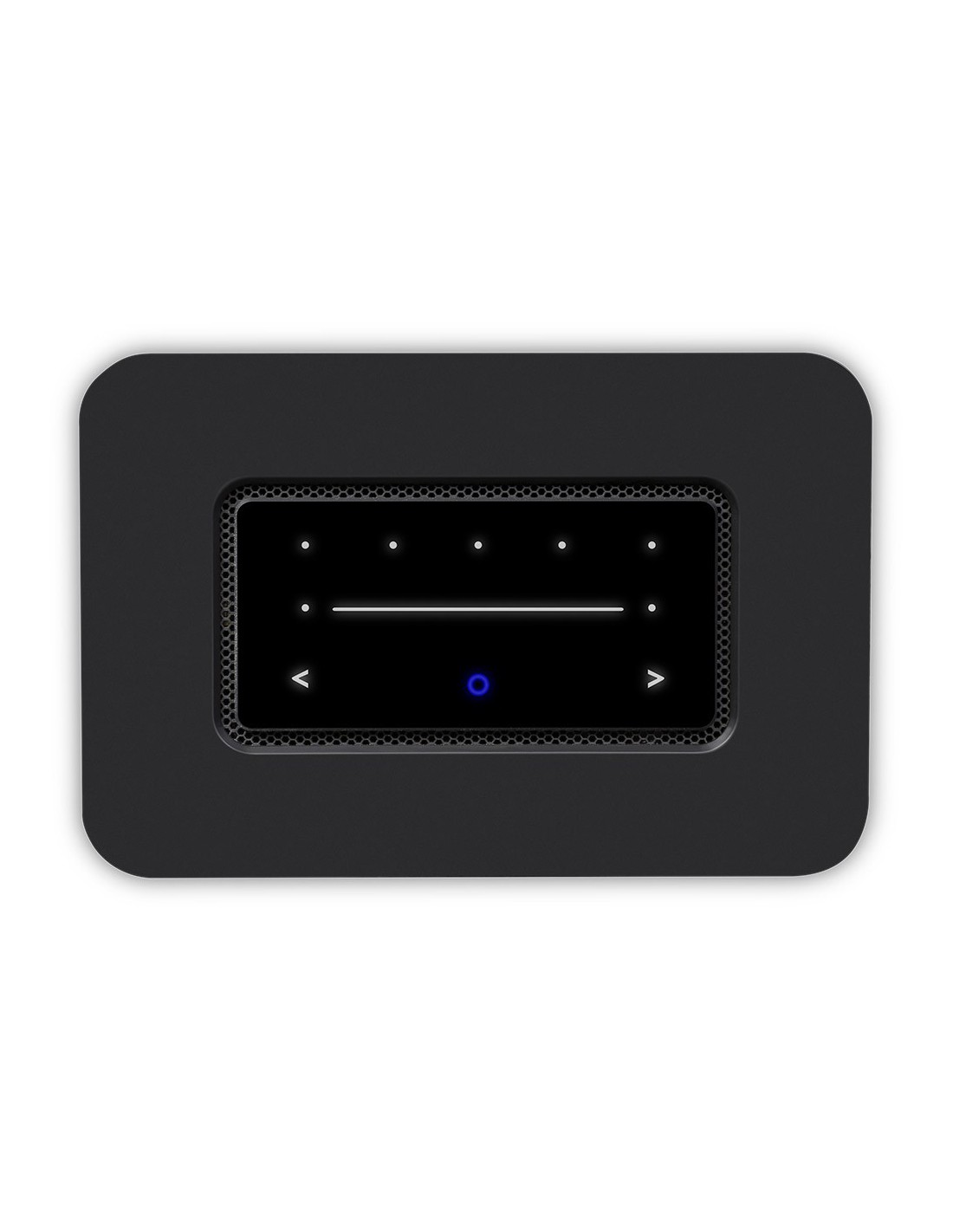

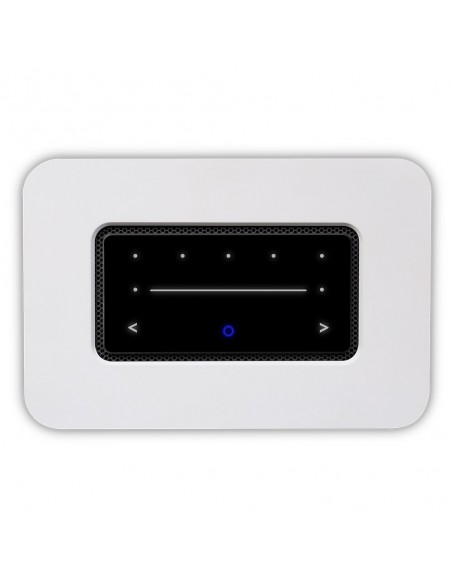

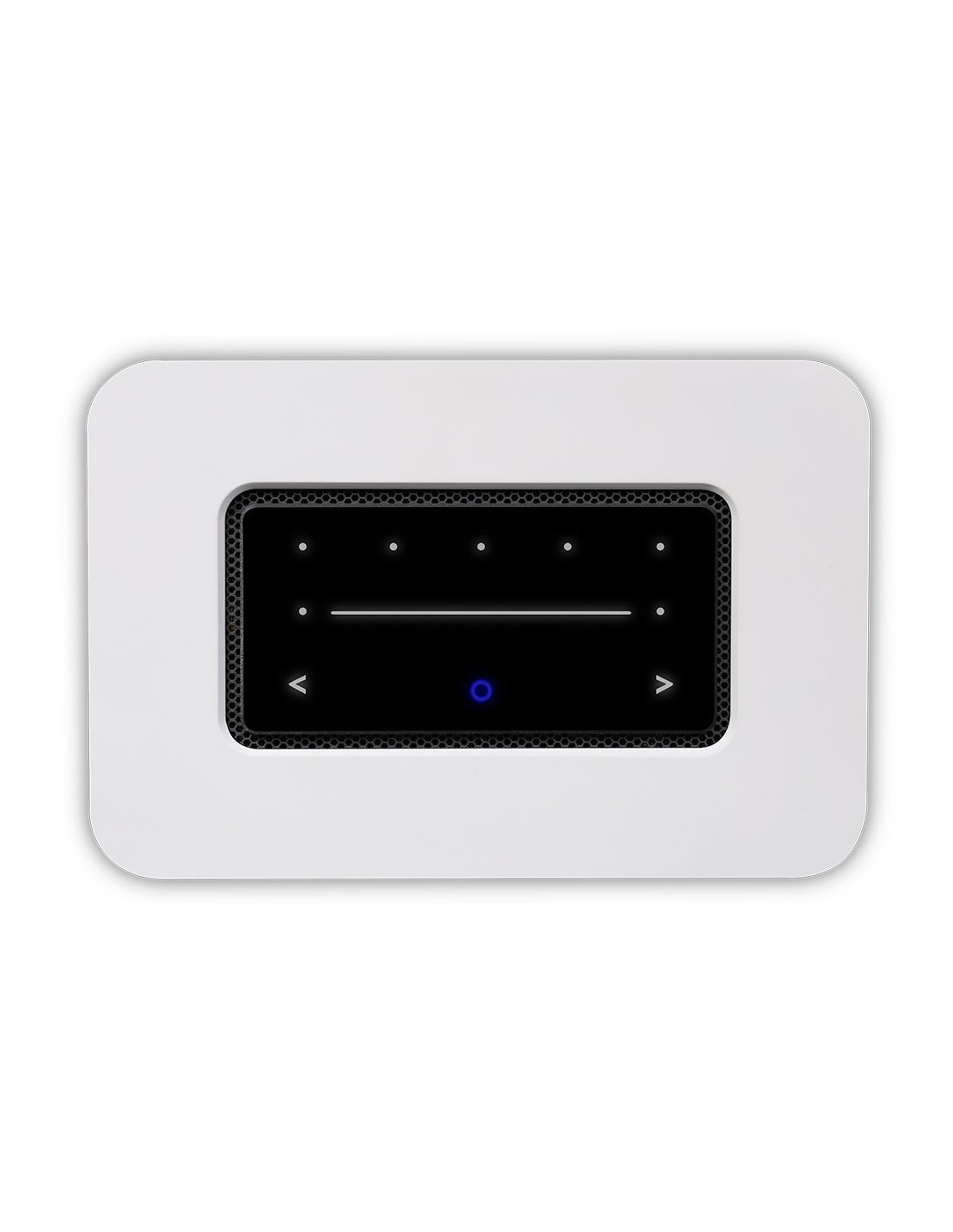

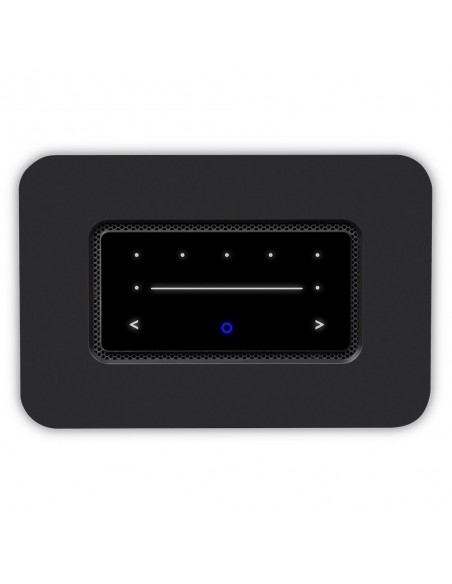

USER INTERFACE & CONTROLS

Status Indicator

RGB LED x 2

Play/Pause Button

Touch LED

Volume Control Buttons

Touch Slider LED

Previous/Next Track Buttons

Touch LED

Preset Buttons

Touch LED x 5

Proximity Sensor

Yes

GENERAL

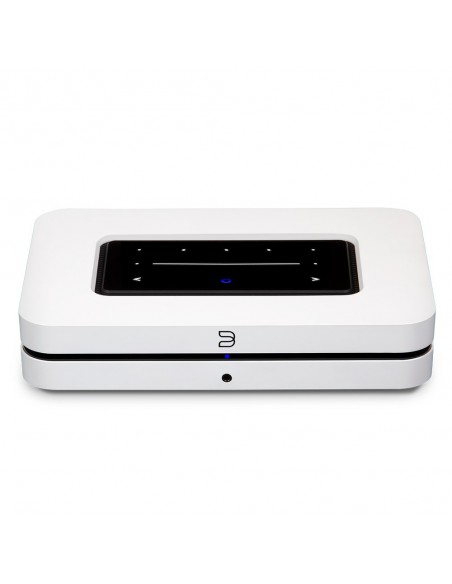

Finish

Black/White; Matte Satin Paint

Included Accessories

120V AC Power Cord
230V AC Power Cord
Ethernet Cable
Stereo RCA to RCA Cable
TOSLINK Optical to 3.5mm Mini Adaptor
Safety/Warranty Guide
Quick Setup Guide

Power Consumption

Storage Environment

-10°C to 50°C, 20% to 80% relative humidity

Operating Environment

0°C to 40°C

Product Weight

1.09kg/2.4lbs

Product Dimensions

220 x 46 x 146 mm
8.7 x 1.8 x 5.7 in

Shipping Weight

2.28kg/5.03lbs

Shipping Dimensions

300 x 300 x 74 mm
11.8 x 11.8 x 2.75 in
