Network players
SACD30N
MA-00126
€3,249.00
Tax included

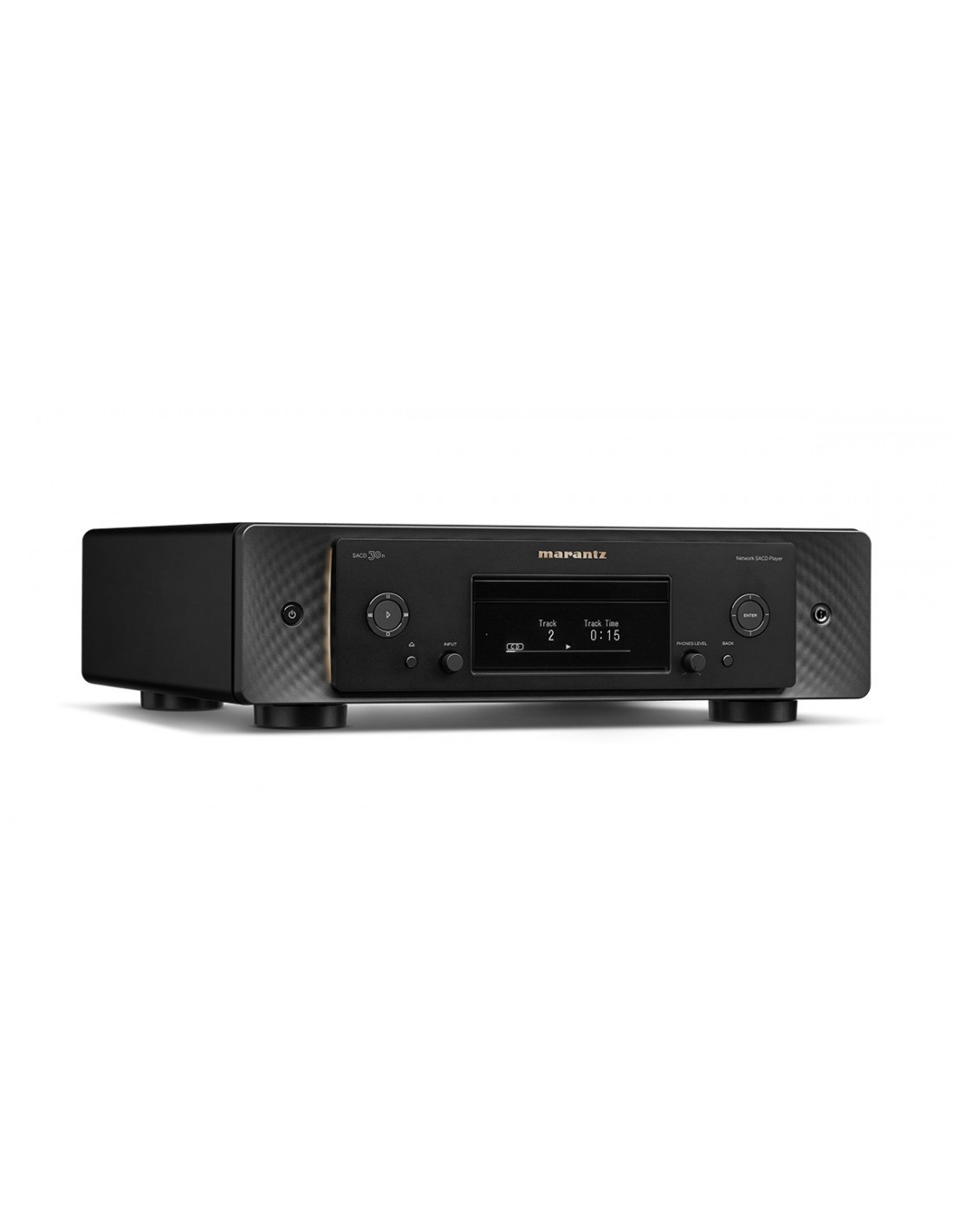

Network SACD / CD player with HEOS support
Technical details
Functions
| Airplay 2 | o |
| Amazon Prime Music* / Pandora* | o / o |
| Asynchronous mode rear USB-B | o |
| Bit-perfect transmission | o |
| CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC | o / o / o / o / o / - |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | -/o/o/o/- |
| Copper clad chassis | - |
| Custom Components | o |
| DAC operation mode: USB-B / Coax / Optical | o / o / o |
| Data Disc Compatibility: DSD / WAV / ALAC | o / o / o |
| Digital output off / Audio EX Mode | o/- |
| Additional metal board to reinforce the chassis | o(1.5mm) |
| HDAM version | HDAM+HDAM SA3 |
| Headphone output: regular / buffered / current feedback | - / - / o (HDAM SA2) |
| HEOS Multiroom and Streaming | o |
| High quality audio components | o |
| Internet radio | tunein |
| jitter reducer | o |
| network audio streaming | o |
| Power transformer: Toroidal / W-shaped | o/- |
| Roon Tested | o |
| Signal isolator for DAC Mode operation | o |
| Spotify Connect* / Tidal* / Deezer* / others* | o / o / o / o |
| Symmetrical PCB topology | o |
| USB input for memory stick | o |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 | o / o / o |
| Voice Control - Google Assist / Apple Siri | o / o |
| Voice Control - Microphone built-in | - |
| Voice Control - Works with Amazon Alexa | o |
GENERAL
| Auto power off | o |
| Available colors: gold / silver / black / silver gold | -/-/o/o |
| Carton Maximum Dimensions (W x D x H) in mm | 534x522x255 |
| Carton Weight (inc. product) in kg | 16.2 |
| Detachable power cord | o |
| Maximum Dimensions (W x H x D) in mm | 443x424x130 |
| Metal front panel | o |
| Electricity consumption, W | 48 |
| Remote control | RC002PMND |
| Consumption in standby mode, W | 0.4 |
| Weight, kg | 13.5 |

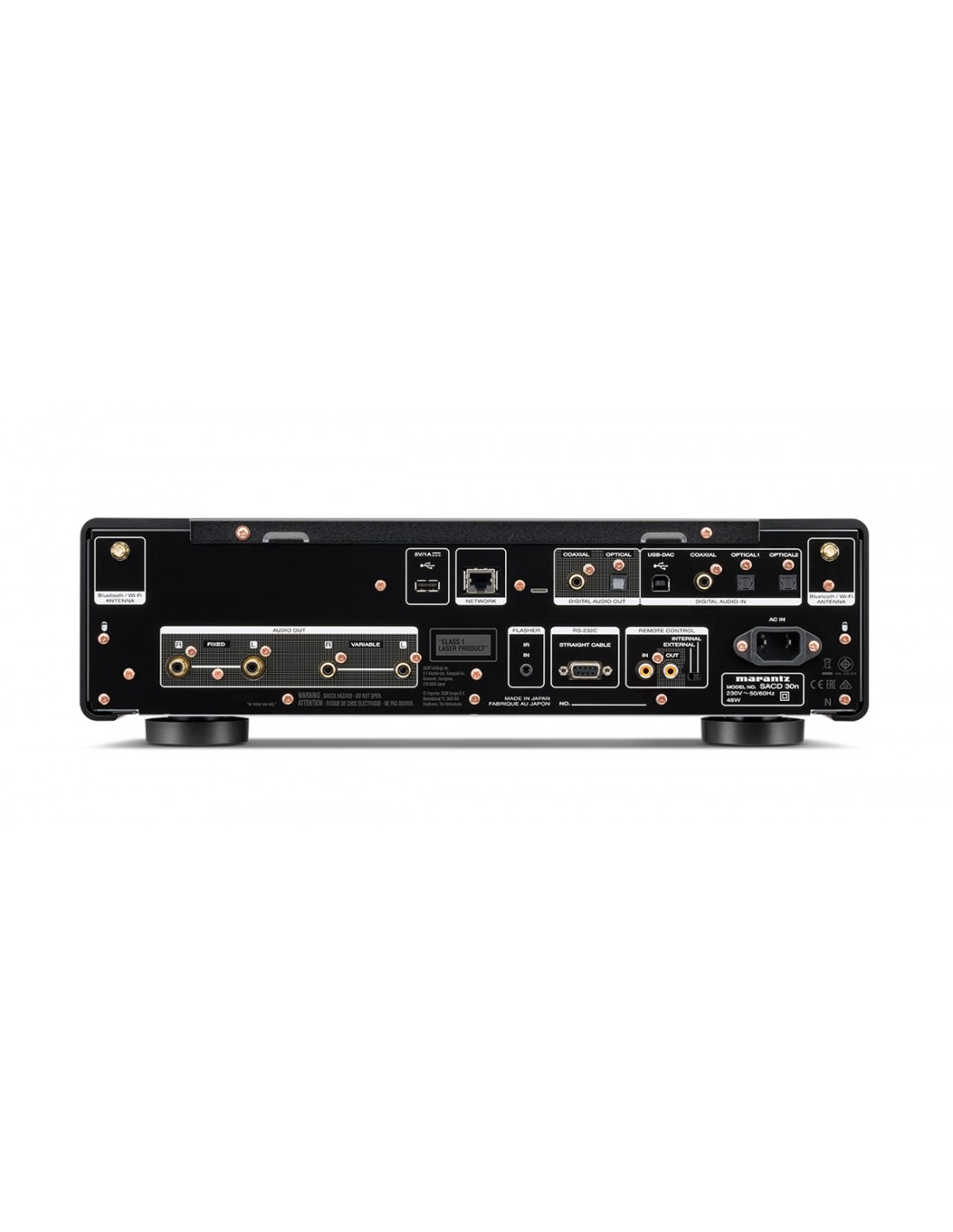

Inputs/outputs
| Analog output (RCA) | one |
| balanced output | - |
| D bus | o |
| Digital coaxial I/O | 2 / 1 |
| Digital Optical I/O | eleven |
| Ethernet port | o |
| flasher input | o |
| Gold plated RCA connectors | o |
| Headphone output | o |
| Headphone volume control | o |
| IP control | o |
| RS232 | o |
| Digital sync input | 192 kHz / 24-bit |
| USB Audio (front) | o (rear) |
| USB input type B for PC (rear) | up to DSD11.2 |
| Variable Out (Cinch) | one |
Net
| App control AMP/CD via Network Player | o |
| Bluetooth on/off mode | o |
| DLNA Certified | up to DSD5.6 |
| Playing recordings without pauses | o (FLAC, WAV, DSD) |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 | o / o / o / o |
| Lossy MP3 / WMA / AAC compression formats | o / o / o |
| Remote APP: iDevice/Android | o / o |
| WiFi on/off mode | o |
| WiFi / Wired LAN | 2.4GHz, 5GHz/o |
Other
| Display: Dimmer / Off | o / o |
| Marantz Musical Mastering | o |
| Marantz Musical Mastering Conversion | o |
| Marantz Musical Mastering Stream | o |
| Selectable filter: CD / SA-CD / DAC-Mode | o/ - / o(PCM Only) |
| Separate rectifiers for analog and digital circuits | o |
Playback
| Program playback (CD / SA-CD) | 25/- |
| Random Play - Random Play | o |
| Repeat - Repeat | o |
SPECIFICATIONS
| Channel separation | - |
| Channel Separation (SA) | - |
| D/A conversion | MMM |
| DAC chip | MMM |
| digital filter | MMM |
| Dynamic Range | 98 dB |
| Dynamic Range (SA) | 109dB |
| Frequency range | 2Hz-20kHz |
| Frequency Range (Cust.) | 2Hz-20kHz |
| Headphone Amplifier | HDAM SA3 |
| Low Pass Filter Cascade | HDAM |
| Mechanism | SACDM-3L |
| Noise shaper | MMM |
| output buffer | HDAM SA3 |
| Signal to noise ratio | 104dB |
| Signal to noise ratio (SA) | 112dB |
| Distortion (THD) | 0.000015 |
| Distortion, THD(SA) | 0.0008% |
