Power Ampliefiers

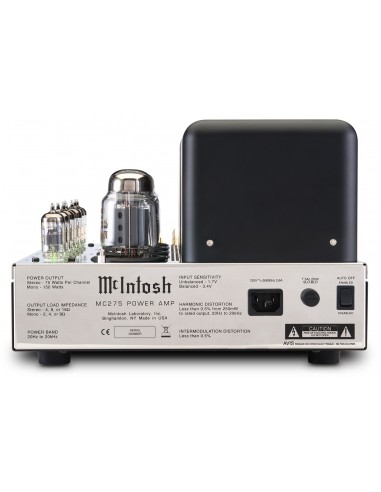

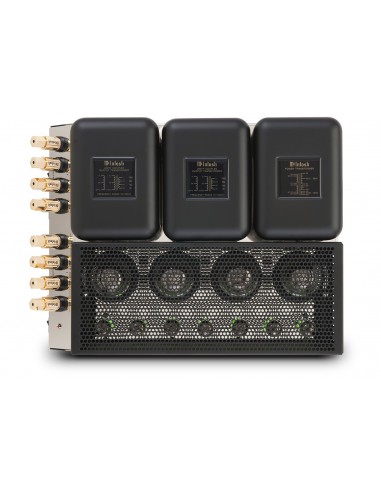

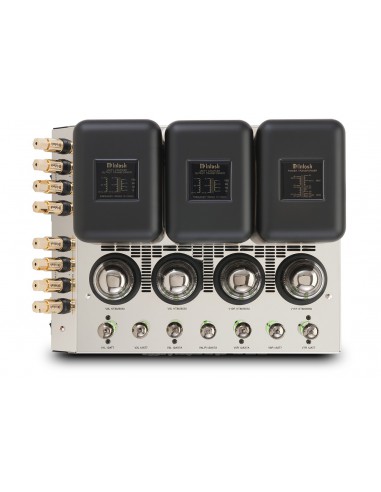

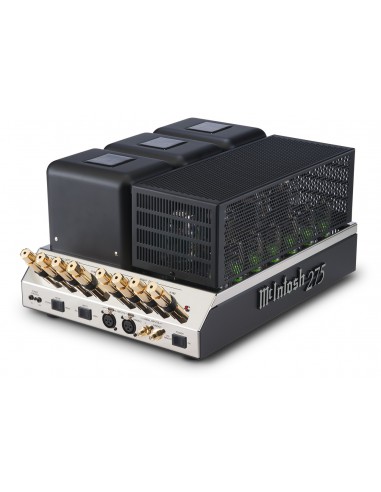

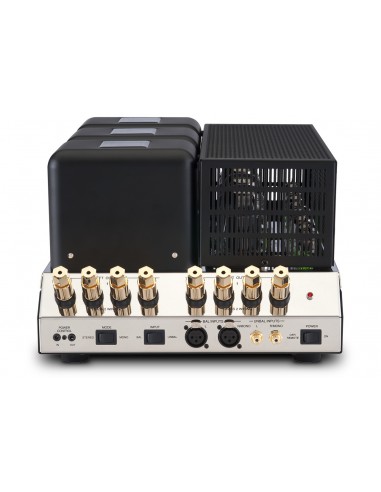

MC275 Version VI
MCI-MC275-IV
€8,850.00
€8,850.00 gb. / шт. / pc.
Tax included
- 75 Watts x 2 channel
- Vacuum Tube Design
ELECTRONIC SPECIFICATIONSPOWER OUTPUT PER CHANNEL75W @ 4, 8 or 16 Ohms NUMBER OF CHANNELS2 TOTAL HARMONIC DISTORTION0.5% S/N BELOW RATED OUTPUT105dB DYNAMIC HEADROOM1.2dB DAMPING FACTOR22 RATED POWER BAND20Hz to 20kHz FREQUENCY RESPONSE +0,-0.25DB20Hz to 20kHz FREQUENCY RESPONSE -3DB10Hz to 100kHz CONTROLREMOTE POWER CONTROLYes, input and output MULTI CHANNEL DB25 CABLEN/A GENERAL SPECIFICATIONSCIRCUIT CONFIGURATIONUnity Coupled CIRCUIT DESIGNVacuum Tube MONO BRIDGENo MONO PARALLELYes, 150W @ 2, 4 or 8 Ohms AUTOFORMEROutput Transformer METERSNo METER LIGHT SWITCHSmall signal tubes LEDs controlled by McIntosh preamp BALANCED INPUTYes FRONT PANELN/A ILLUMINATIONSmall Signal Tubes, LED CHASSIS STYLEPolished Stainless Steel GOLD PLATED BINDING POSTSYes, New Style McIntosh WEIGHTS & DIMENSIONSDIMENSIONS (W X H X D)21-1/2" (54.6cm) (including cables) x 8-1/2" (21.6cm) (including feet) x 12" (30.5cm) WEIGHT67 lbs (30.5 kg) SHIPPING WEIGHT75 lbs (34.1 kg) |
- Dimensions:
- 54.6cm (including cables) x 21.6cm (including feet) x 30.5cm
- Weight:
- 30.5 kg
- Amplifier Type:
- Amplifiers
- CIRCUIT DESIGN:
- Tube
- Number Of Channels:
- 2
- Impedance:
- 2, 4 or 8 Ohms
- Power Output Per Chanell (Watt):
- 75 W
- Total Harmonic Distortion:
- 0.5%
- Signal-To-Noise Ratio:
- 105dB
No reviews
