AV8805

FEATURES AV8805
MULTICHANNEL SURROUND

• DTS HD Master / DTS:X / DTS Neural:X • / • / •
• Dolby TrueHD / Dolby Atmos / Dolby Surround • / • / •
• Auro-3D / Auromatic • / •
• Multichannel Stereo •
• Compressed audio enhancer: MDAX2 •
• Audyssey MultEQ XT32 with LFC/Sub EQ HT
• Audyssey Dynamic EQ / Dynamic Volume • / •
• Audyssey MultEQ Editor App support •

NETWORK

• Network Audio Streaming •
• HEOS Multiroom integrated •
• Lossy formats MP3 / WMA / AAC • / • / •
• Lossless formats FLAC / ALAC / WAV • / • / •
• DSD Streaming • (2.8 MHz / 5.6 MHz)
• FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 • / • / •
• Gapless playback • (FLAC, WAV, ALAC, DSD)
• AirPlay audio streaming •
• Internet Radio (TuneIn) •
• Spotify Connect / Deezer / TIDAL / Napster /
• Amazon Music / Soundcloud** • / • / • / • / • / •
• Compatible with Remote APP for Smart Phones Android/iOS
• Ethernet / Wi-Fi • / • (dual antenna / dual band)
• USB Audio / Made for iPod / Made for iPhone • / AirPlay / AirPlay
• Bluetooth •

HDMI

• 4K 60Hz 4:4:4 resolution / HDCP 2.2 / HDR / BT.2020 • / • / • / •
• eARC (Enhanced Audio Return Channel) • (update)
• Dolby Vision compatible / Hybrid Log Gamma (HLG) • / •
• HDMI pass through on stand-by •
• 3D video pass through •
• Video conversion CVBS / HDMI; Comp / HDMI
• Videoprocessing and -scaling 1080p, 4K 60/50Hz

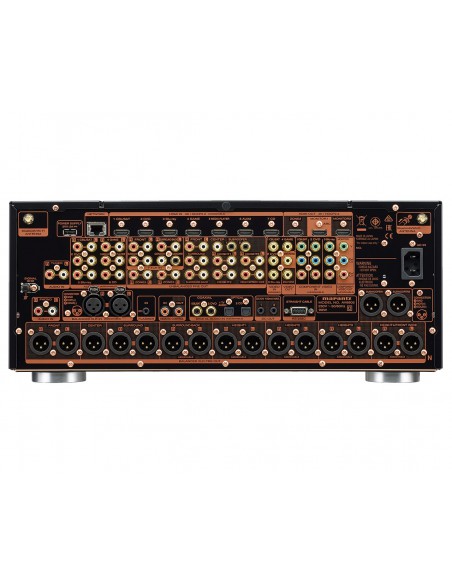

INPUTS/OUTPUTS
VIDEO

• Composite In / Out 4+1 / 2 (main + zone)
• Component In / Out 3 / 1
• HDMI In / Out 7+1 / 3 (2 main + 1 zone)

AUDIO

• Analog In / Out 7 + 1x Phono + 1x XLR / -
• Digital Optical In 2
• Digital Coaxial In 2
• Multichannel Pre-out • (15.2ch with 13.2 processing)
• Zone audio Pre-out 2
• Subwoofer Out 2
• 7.1 Multichannel input •

OTHERS

• Copper plated chassis •
• Toroidal transformer •
• High grade audio components •
• Current Feedback Topology •
• Hyper Dynamic Amplifier Modules (HDAM) •
• Auto Speaker Setup by Microphone •

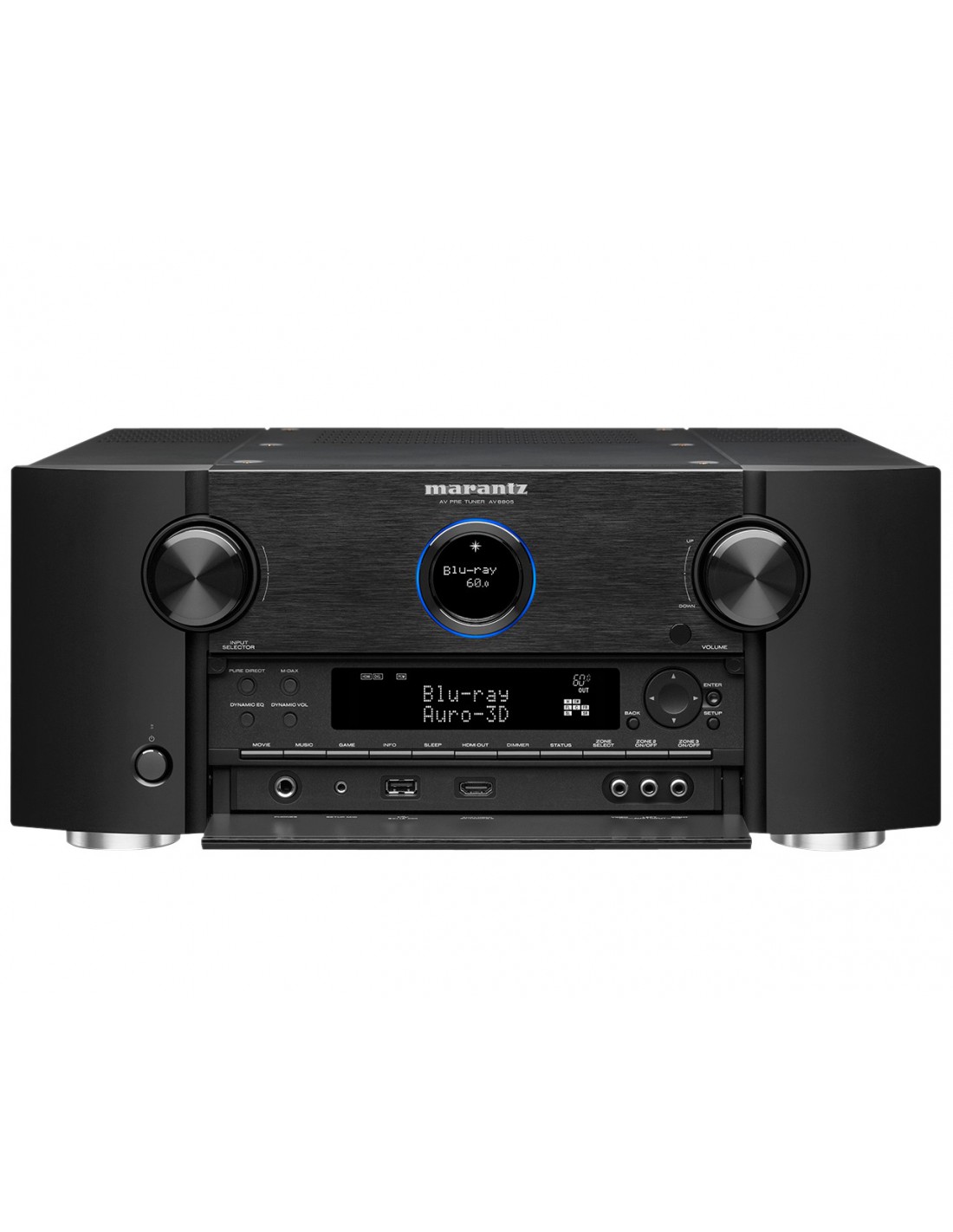

• FL Display •
• Graphic User Interface - GUI Advanced
• ISF Certification •
• GUI Languages 9
• Setup Assistant •
• Smart Select •
• Firmware Update by Network / USB • / •
• Variable Cross Over •
• Optimized Bass Redirection •
• Bass Sync •
• Auto Power off •
• Sleep Timer •

GENERAL

• Available colors: Black •

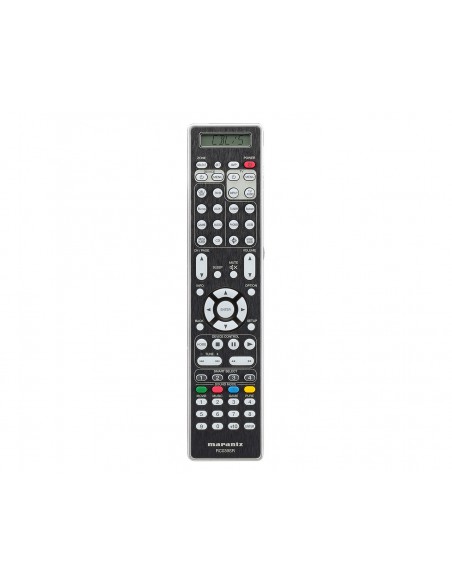

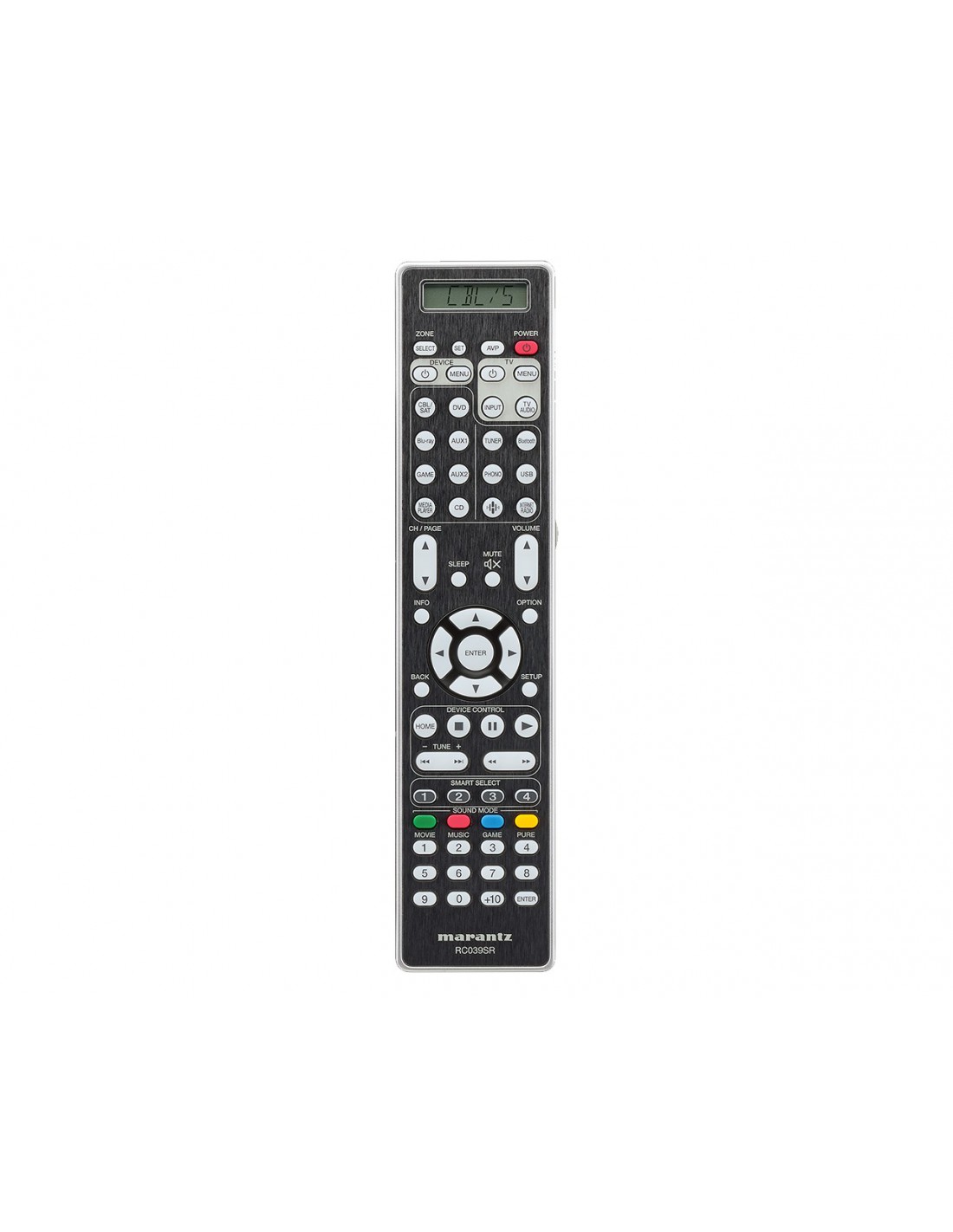

• System Remote Control RC039SR
• Power Consumption in W 90
• Standby Consumption in W 0.2 (with CEC 0.5)
• Maximum Dimensions (W x D x H) in cm 440 x 410 x 185
• Weight in kg 13.7
