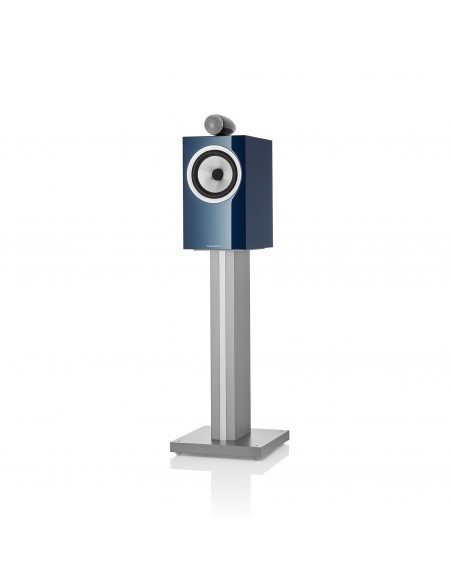

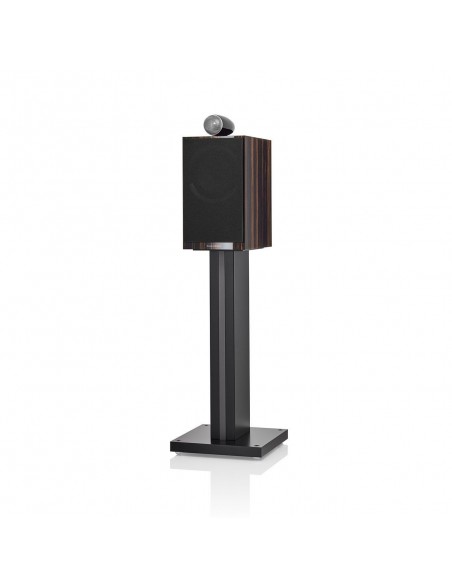

705 Signature
BW-705SIG
€1,699.00
€1,699.00 gb./шт.
Tax included
Standmount speaker
Technical specifications
Model
705 Signature
Description
2-way vented-box system
Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass/ midrange
Flowport™
Drive units
1x ø25mm (1 in) Carbon Dome
high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range
6dB at 45Hz and 33kHz
Frequency response
50Hz - 28kHz ±3dB
Sensitivity
88dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
Normal impedance
8Ω (minimum 3.7Ω)
Recommended amplifier power
30W - 120W into 8Ω on
unclipped programme
Dimensions
Height: 340mm (13.4 in) cabinet only 407mm (16 in) including tweeter
and plinth
Width: 200mm (7.8 in)
Depth: 285mm (11.2 in) cabinet only 301mm (11.9 in) inc. grille and terminals including plinth
Net weight
9.3kg (20.5 lb)
Cabinet finishes

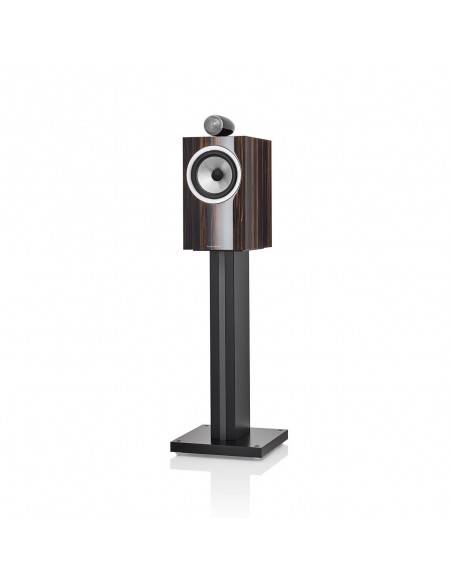

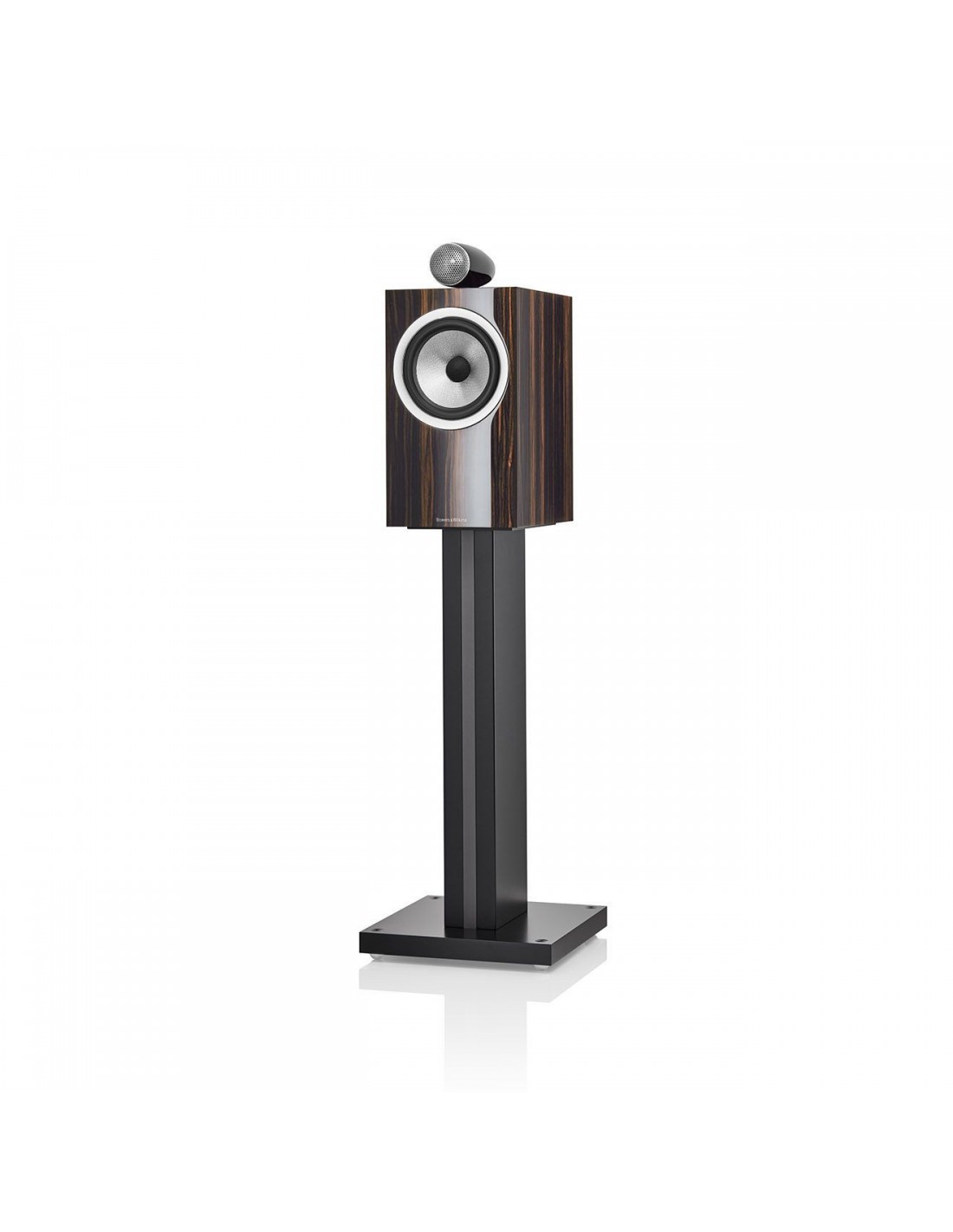

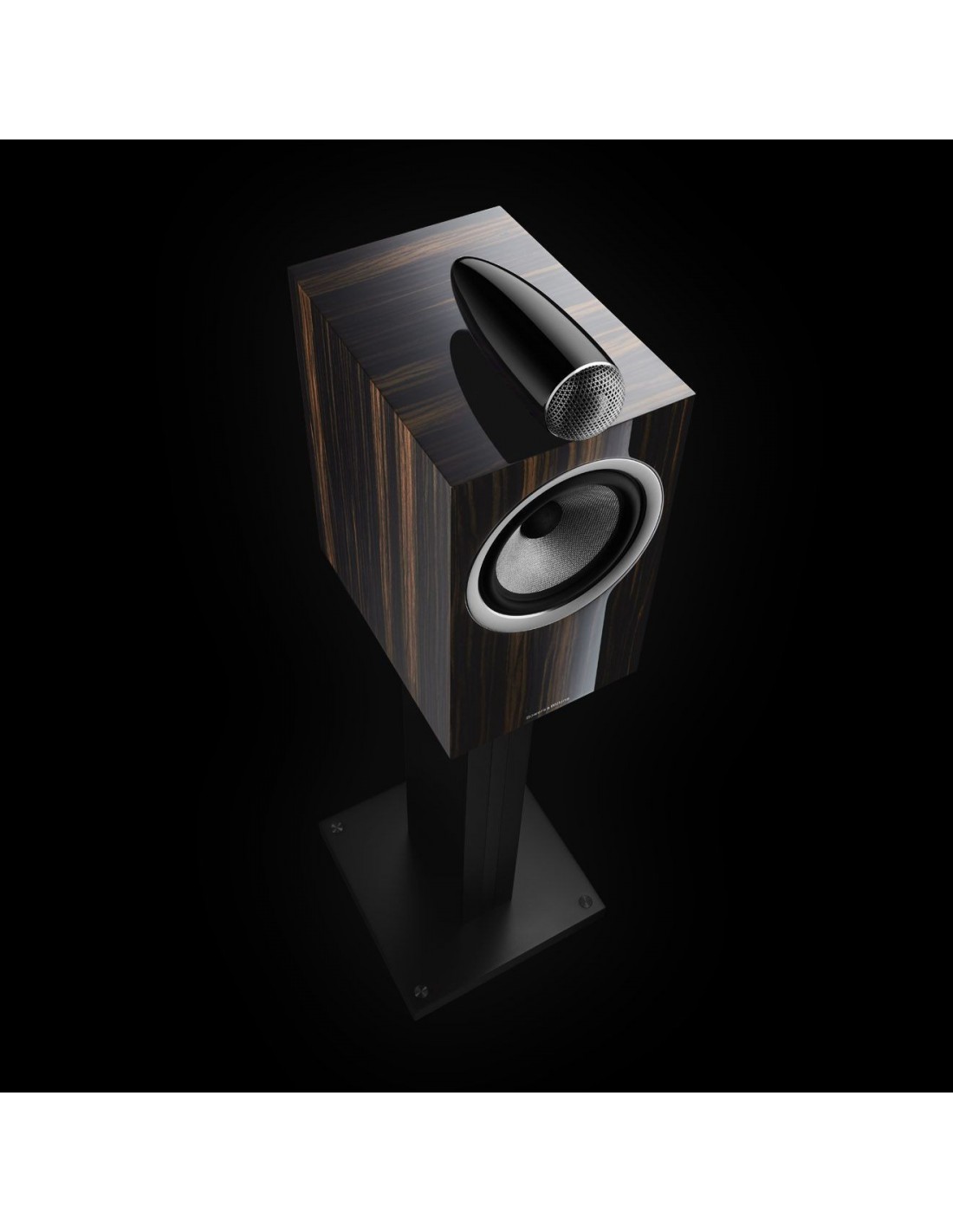

Datuk Gloss

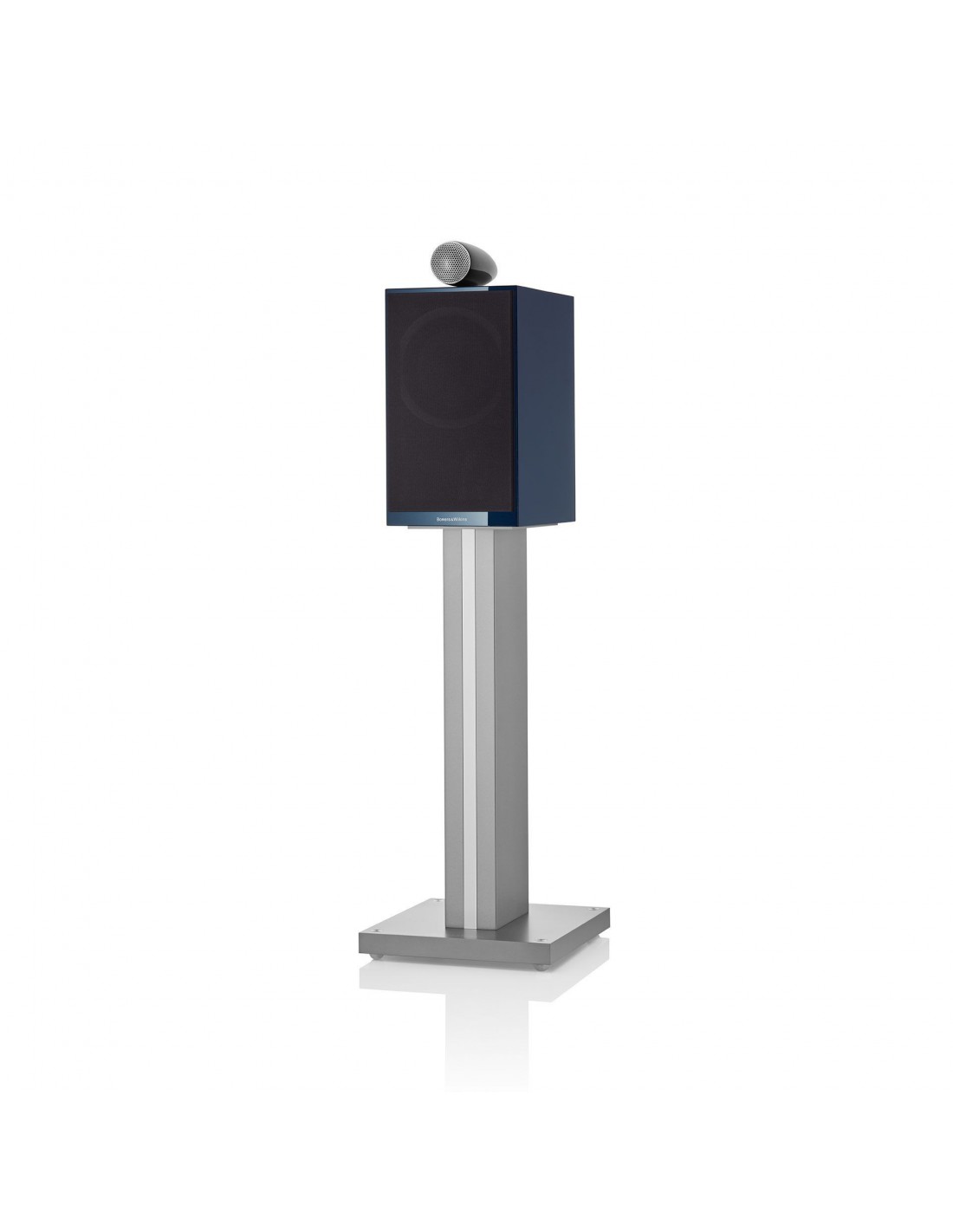

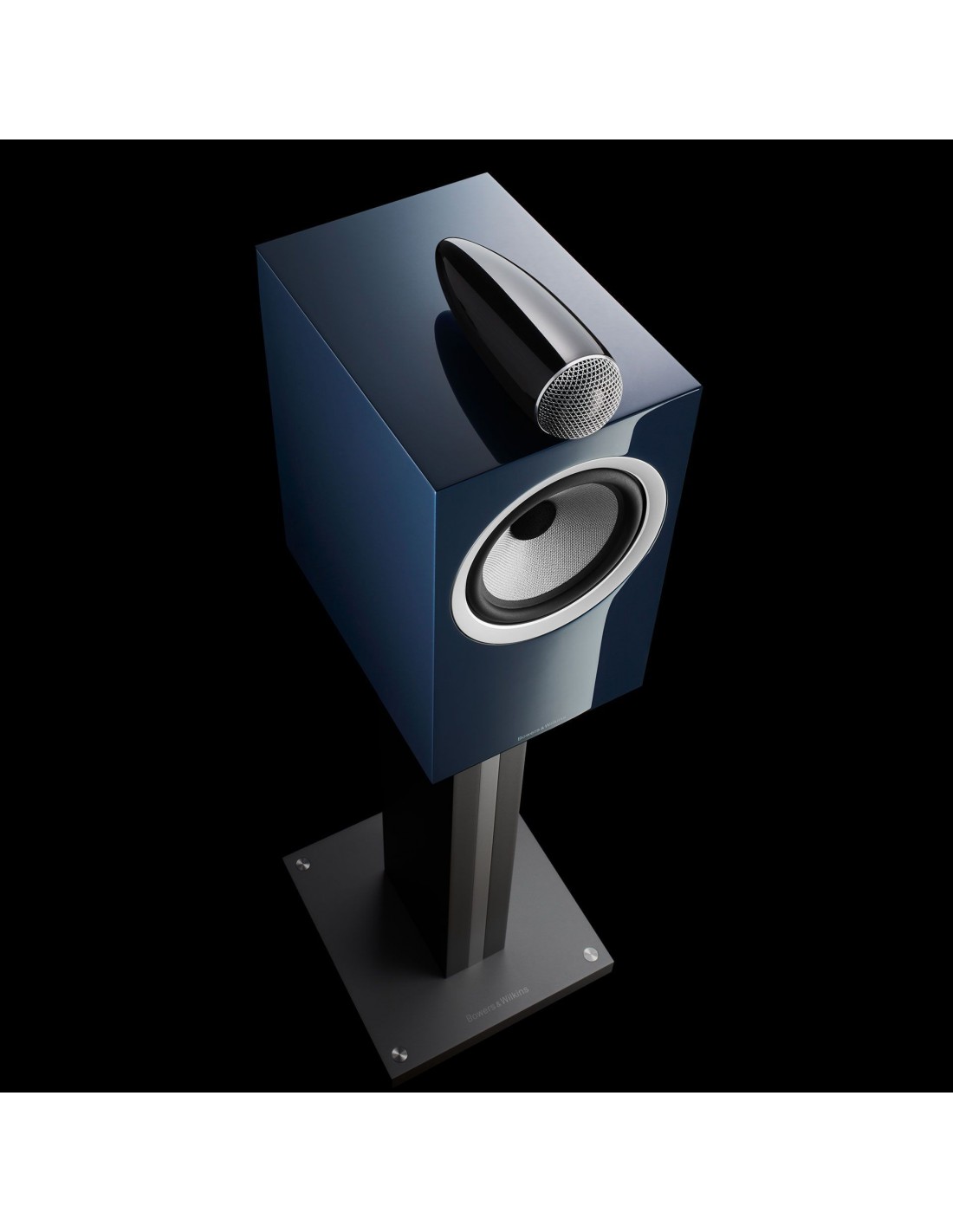

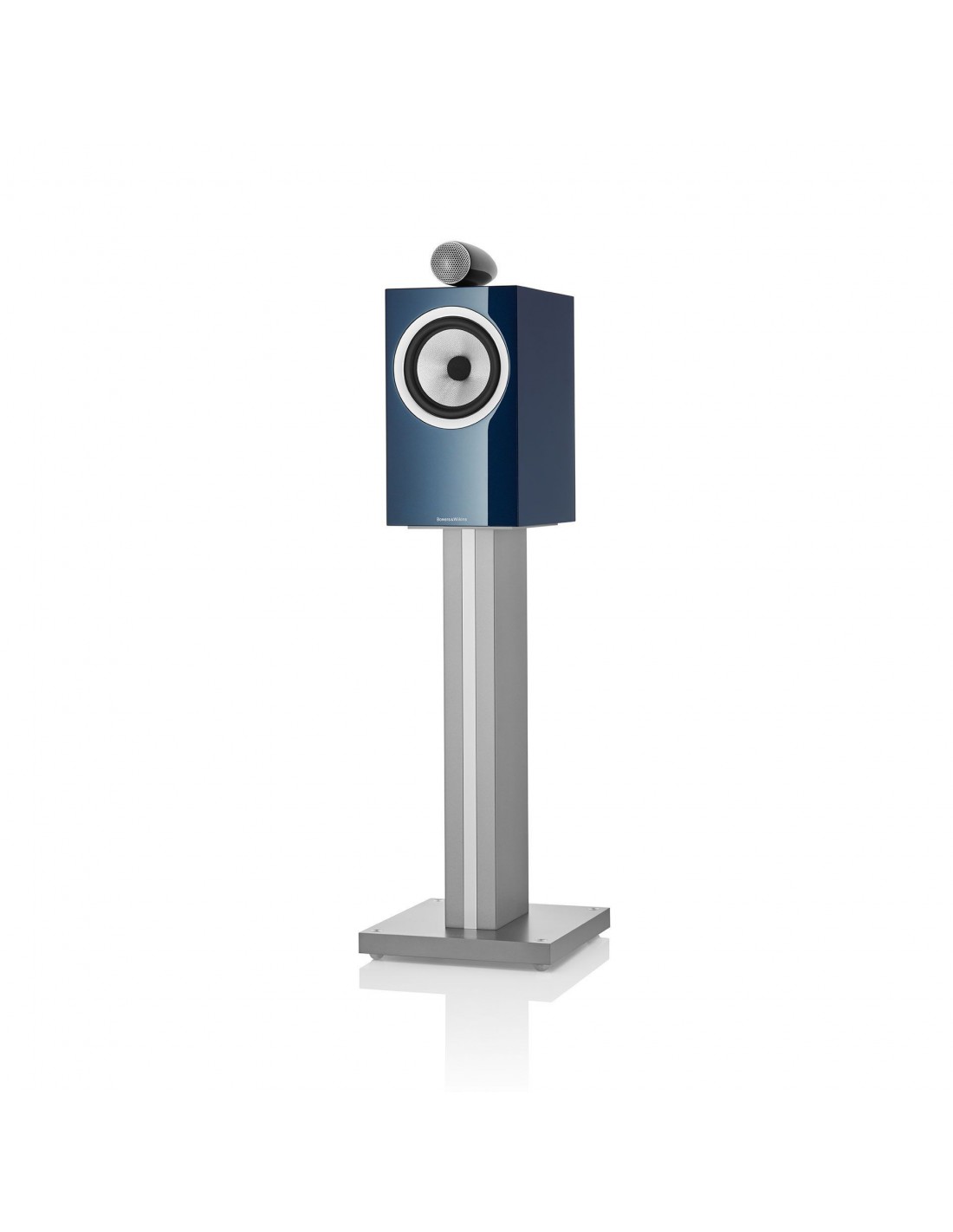

Midnight Blue Metallic
Grille finishes

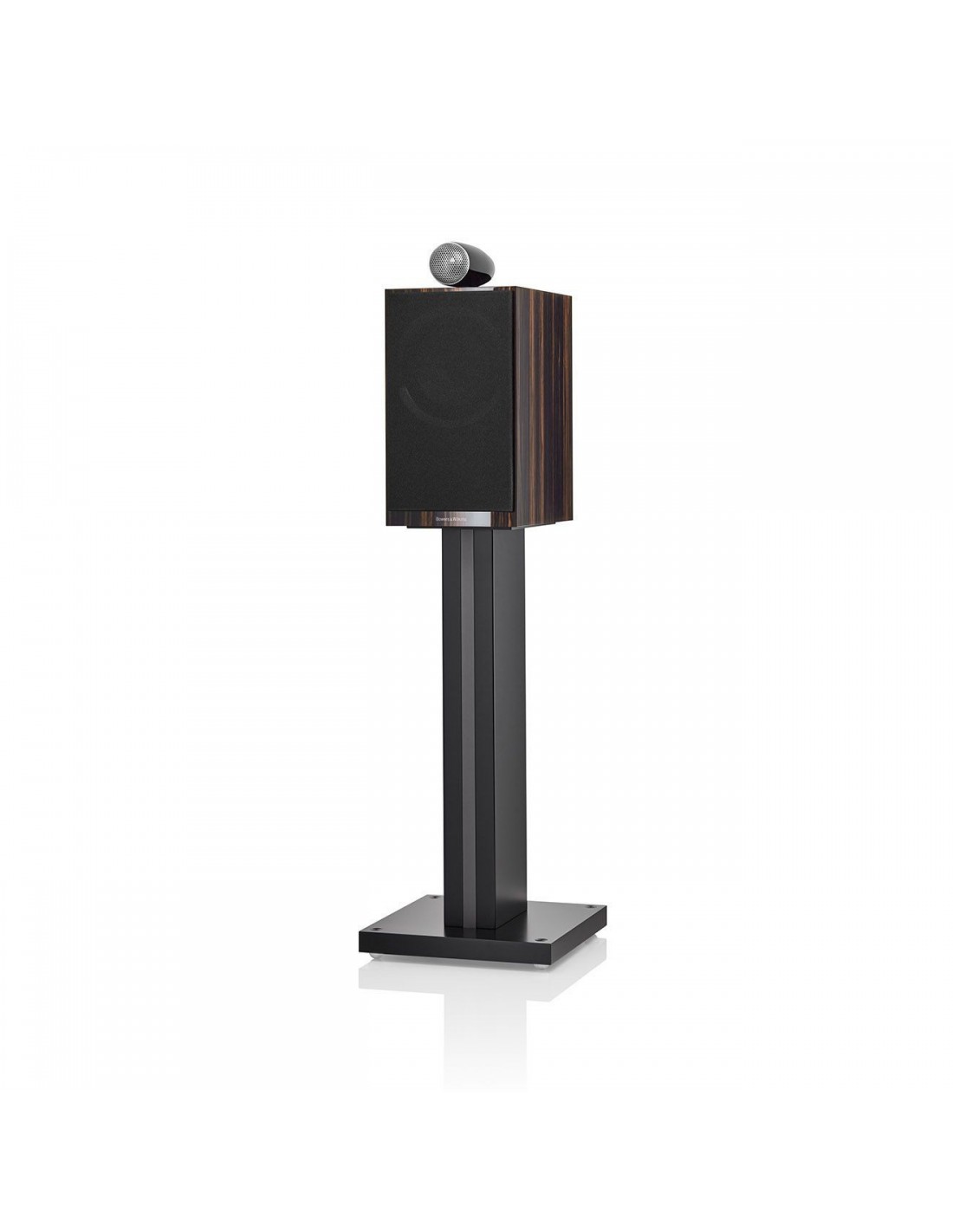

Black
- Series:
- 700 Series
- Sensitivity:
- 88 dB/2,83 V/ 1m
- Frequency:
- 50Hz - 28kHz ±3dB
- Power:
- 120 W
- Number of Ways:
- 2
- NOMINAL IMPEDANCE:
- 8 Om
- Type:
- pasīvs
