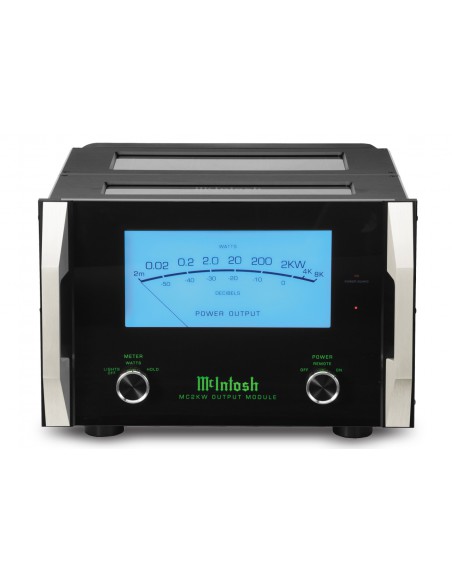

MC2KW

Ref.: MCI-MC2KW

60 500,00 €

60 500,00 € gb. / шт. / pc.

AR PVN

1-Channel Amplifier
2,000 Watt Monoblock
3 terminal sets for tri-wiring

MC2KW

ELECTRONIC SPECIFICATIONS

POWER OUTPUT PER CHANNEL

2000W @ 2, 4 or 8 Ohms

NUMBER OF CHANNELS

TOTAL HARMONIC DISTORTION

0.005%

S/N BELOW RATED OUTPUT

123dB Unbalanced; 127dB Balanced

DYNAMIC HEADROOM

2dB

DAMPING FACTOR

100

RATED POWER BAND

20Hz to 20kHz

FREQUENCY RESPONSE +0,-0.25DB

20Hz to 20kHz

FREQUENCY RESPONSE -3DB

10Hz to 100kHz

CONTROL

REMOTE POWER CONTROL

Yes

MULTI CHANNEL DB25 CABLE

N/A

GENERAL SPECIFICATIONS

CIRCUIT CONFIGURATION

Quad Balanced

CIRCUIT DESIGN

Transistor

MONO BRIDGE

N/A

MONO PARALLEL

N/A

AUTOFORMER

Yes

METERS

Yes

METER LIGHT SWITCH

Yes

BALANCED INPUT

Yes-2

FRONT PANEL

1/2" Glass with handles

ILLUMINATION

LED Fiber Optic

CHASSIS STYLE

Open Stainless Steel (each module)

GOLD PLATED BINDING POSTS

Yes, 200 amp, 3 sets for each tap

WEIGHTS & DIMENSIONS

DIMENSIONS (W X H X D)

Each Module: 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 26-5/8" (62.54cm) (including the front panel, handles, knobs and interconnect cables)

WEIGHT

Output Module (1 included): 123 lbs (55.8 kg);
Power Module (2 included): 127 lbs (57.6 kg) ea

SHIPPING WEIGHT

Output Module (1 included): 148 lbs (67.1 kg);
Power Module (2 included): 152 lbs (68.9 kg) ea

Izmēri:: Each Module: 45.09cm x 31.27cm (including feet) x 62.54cm (including the front panel, handles, knobs and interconnect cables)
Pastiprinātāja tips:: Izbeigšana
Būves shēma:: Tranzistors
Kanālu skaitlis:: 1
Pretestība:: 2, 4 or 8 Ohms
Jauda katram kanālam (Watt):: 2000 W
