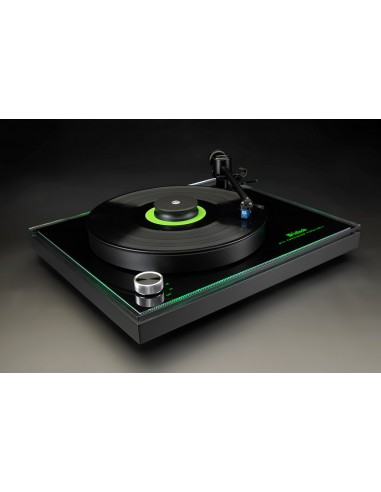

MT2

CARTRIDGE SPECIFICATIONS

• Cartridge Type

  Moving Coil, High Output

• Output Level

  2.5 mV at 5 cm/s

• Load Impedance

  1000 Ohms recommended (Preamp MC Input)

• Frequency Response

  20Hz to 50kHz

• Channel Separation

  35dB at 1kHz

• Compliance

  15 x 10-6 cm/dyne

• Recommended Tracking Force

  2.0 g

• Channel Difference

  Less than 0.5 dB at 1kHz

• Total Mass

  6.3 g

• Stylus

  Elliptical Diamond

• Cantilever Material

  Aluminum

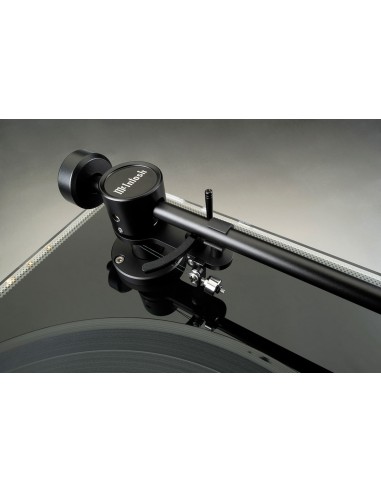

TONEARM SPECIFICATIONS

• Bearing

  Sapphire and Ceramic

• Arm Tube

  Dural-Aluminum

• Counterweight

  Eccentric

• Adjustments

  Vertical Tracking Angle, Antiskate, Azimuth

TURNTABLE SPECIFICATIONS

• Playback Speeds

  33 1/3 and 45

• Motor Type

  DC Motor with Stainless Steel Brushes

• Speed Control

  Servo System

• Platter

  Dynamically balanced polyoxymethylene (POM)

• Platter Bearing

  Polished and tempered steel shaft in sintered bronze bushings

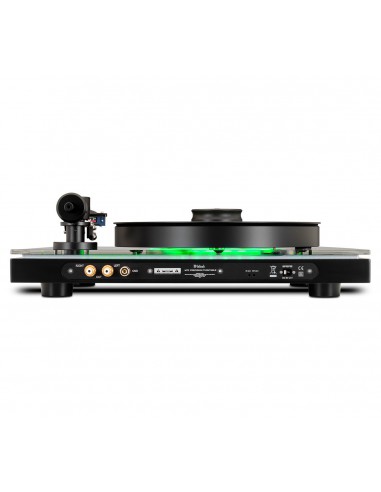

CONNECTIVITY

• Stereo Outputs Unbalanced

  1

CONTROL

• Power Control Input

  0

• Power Control Output

  0

• Platter Light

  N/A

• Speed Control Fine Adjustment

  Yes

GENERAL SPECIFICATIONS

• Dust Cover Included

  Yes

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17-13/16" (45.2cm) x 5" (12.7cm) (6" (15.2cm) with dust cover) x 17" (43.2cm)
  Note: Tone Arm Height will vary depending on the type of Cartridge installed.

• Weight

  29 lbs (13.2 kg)

• Shipping Weight

  39 lbs (17.6 kg)
