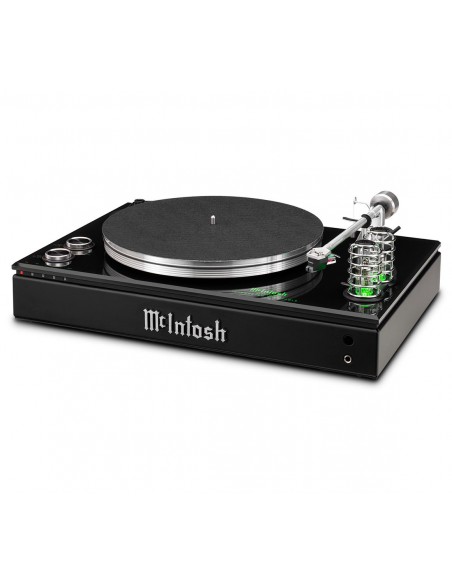

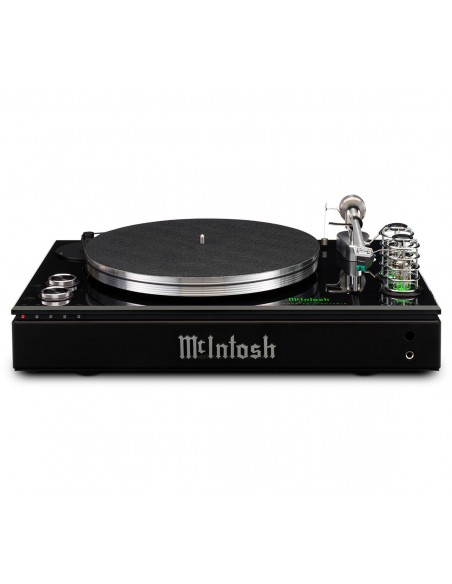

MTI100

CARTRIDGE SPECIFICATIONS

• Cartridge Type - Moving Magnet
• Output Level - 4mV at 1kHz
• Load Impedance - 47k Ohms
• Frequency Response - 12Hz to 30kHz
• Channel Separation - 30dB at 1kHz
• Compliance - 12 x 10-6 cm/dyne
• Recommended Tracking Force - 2.0 g
• Channel Difference - Less than 1dB at 1kHz
• Total Mass - 6.5 g
• Stylus - Elliptical
• Cantilever Material - Aluminum

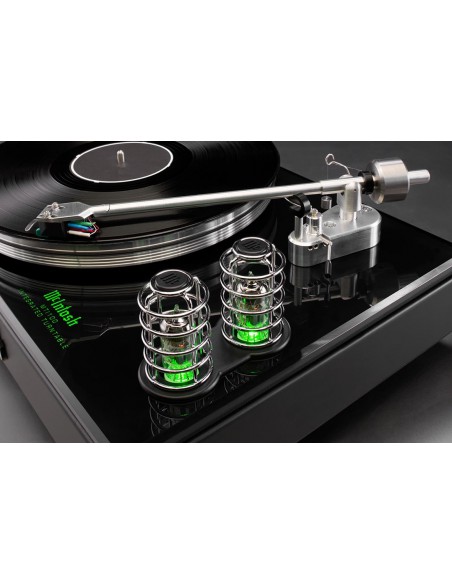

TONEARM SPECIFICATIONS

• Bearing - Lateral type bearing
• Arm Tube - Damped machined aluminum
• Counterweight - Concentric
• Adjustments - None

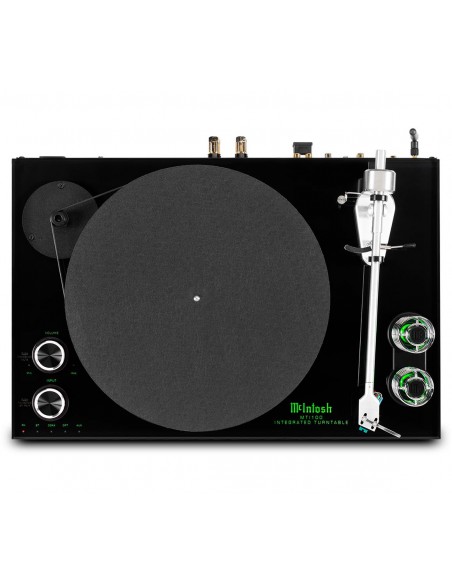

TURNTABLE SPECIFICATIONS

• Playback Speeds - 33-1/3 and 45 rpm
• Motor Type - Permanent magnet AC synchronous
• Speed Control - Manual speed change via a 2 speed pulley
• Platter - Aluminum
• Platter Bearing - Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings

CONNECTIVITY

• Stereo Outputs Unbalanced - 1 (bridged to AMP IN)
• Stereo Inputs Unbalanced -1
• Digital Coaxial Input - 1
• Digital Optical Input - 1
• Subwoofer Output - 1
• Wireless Input - High Definition Bluetooth 4.2

CONTROL

• Power Control Input - 0
• Power Control Output - 1
• Platter Light - N/A
• Speed Control Fine Adjustment - No

ELECTRONIC SPECIFICATIONS

• Power Output per Channel - 50 Watts into 8 Ohms, 80 Watts into 4 Ohms
• Number of Channels - 2
• Speaker Impedance - 4 or 8 Ohms
• Rated Power Band - 20Hz to 20kHz
• Total Harmonic Distortion - 0.5% (Amplifier), 0.2% (Preamplifier)
• Dynamic Headroom - 1.0dB (8 Ohms), 1.3dB (4 Ohms)
• Signal To Noise Ratio (Moving Magnet) - 75dB
• Signal To Noise Ratio (High Level) - 90dB
• Damping Factor - 8 Ohms: >200, 4 Ohms: >100
• Maximum Output (Balanced / Unbalanced) - 9V Unbalanced

GENERAL SPECIFICATIONS

• Dust Cover Included - No

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D) - (17.15cm) x 14” (35.6cm)
• Weight - (15.2 kg)
• Shipping Weight - (18.4 kg)
