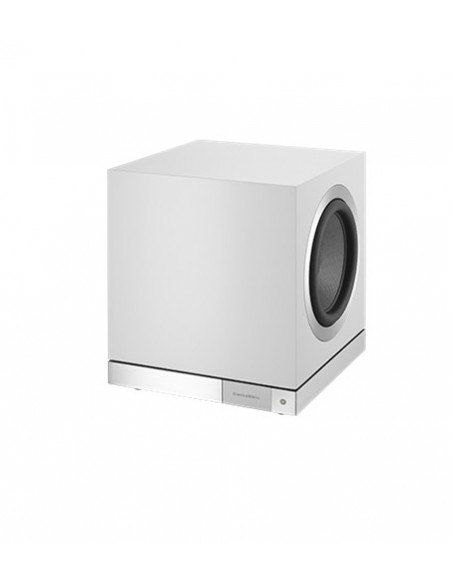

DB2D

Model
DB2D

Description
DB Series subwoofer

Technical features
1000w Class D Hypex amplifier
2 x 250mm (10in) Aerofoil™ cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control

Drive units
2 x 250mm (10in) Aerofoil™ cone drive units in a balanced configuration

Frequency range (-6dB)
8.5Hz - 500Hz

Frequency response -3dB (centered on level at 100Hz)
10Hz - 350Hz

Max power output
1000W

Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 - 9-pin D connector

Dimensions
Height: 430mm (16.9in)
Width: 377mm (14.8in)
Depth: 360mm (14.2in)

Net weight
36kg

Cabinet finishes
Gloss Black
Satin White
Rosenut

Grille finishes
Black
Grey
