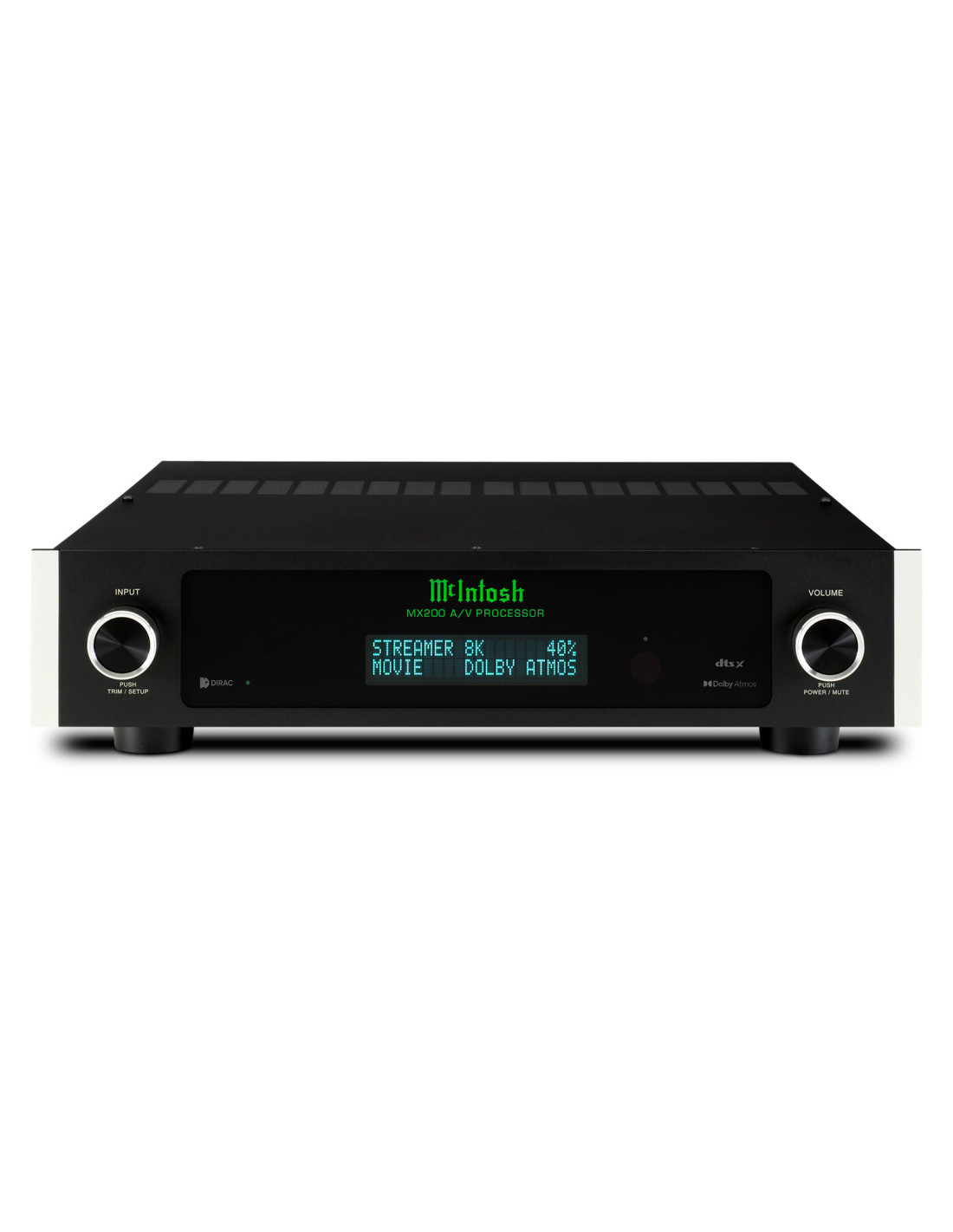

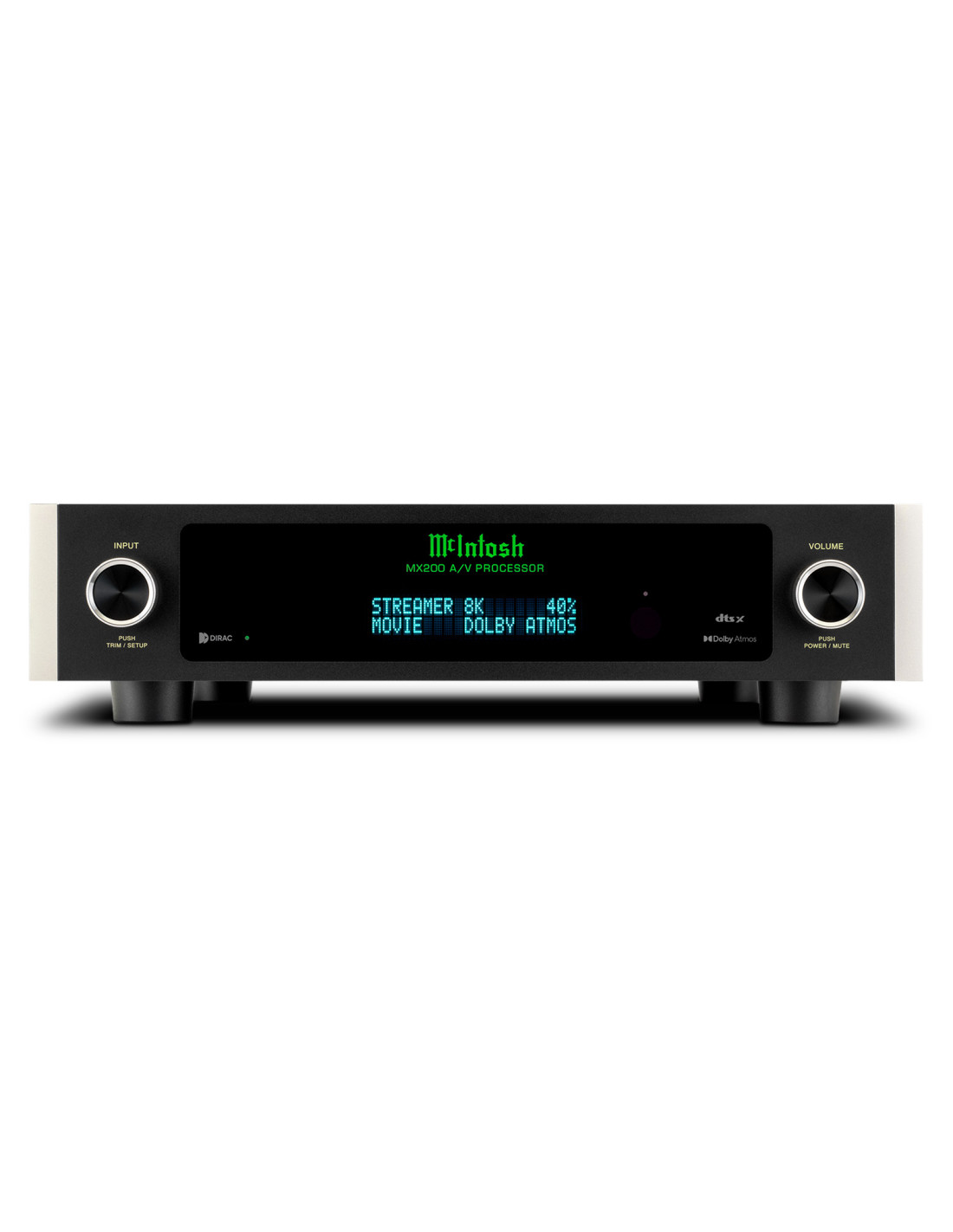

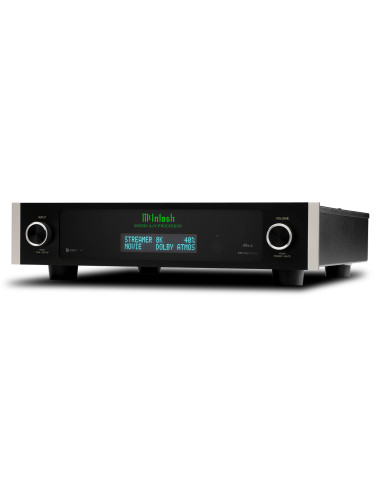

McIntosh MX200

• 4 входа HDMI и 1 выход HDMI: 8K/60 Гц и 4K/120 Гц; HDCP 2.3; 40 Гбит/с; Rec. 2020; 4:4:4 Color
• 11.2 каналов с 2 дискретными выходами для сабвуфера
• Dolby Atmos; DTS:X; eARC/ARC
• Dirac Live Room Correction
• Dolby Vision; HDR10+; HLG
• Монтаж в стойку 2U
• Подключается с сертификацией Control4; Работает с сертификацией Crestron Home
• Идеально подходит для индивидуальных установок

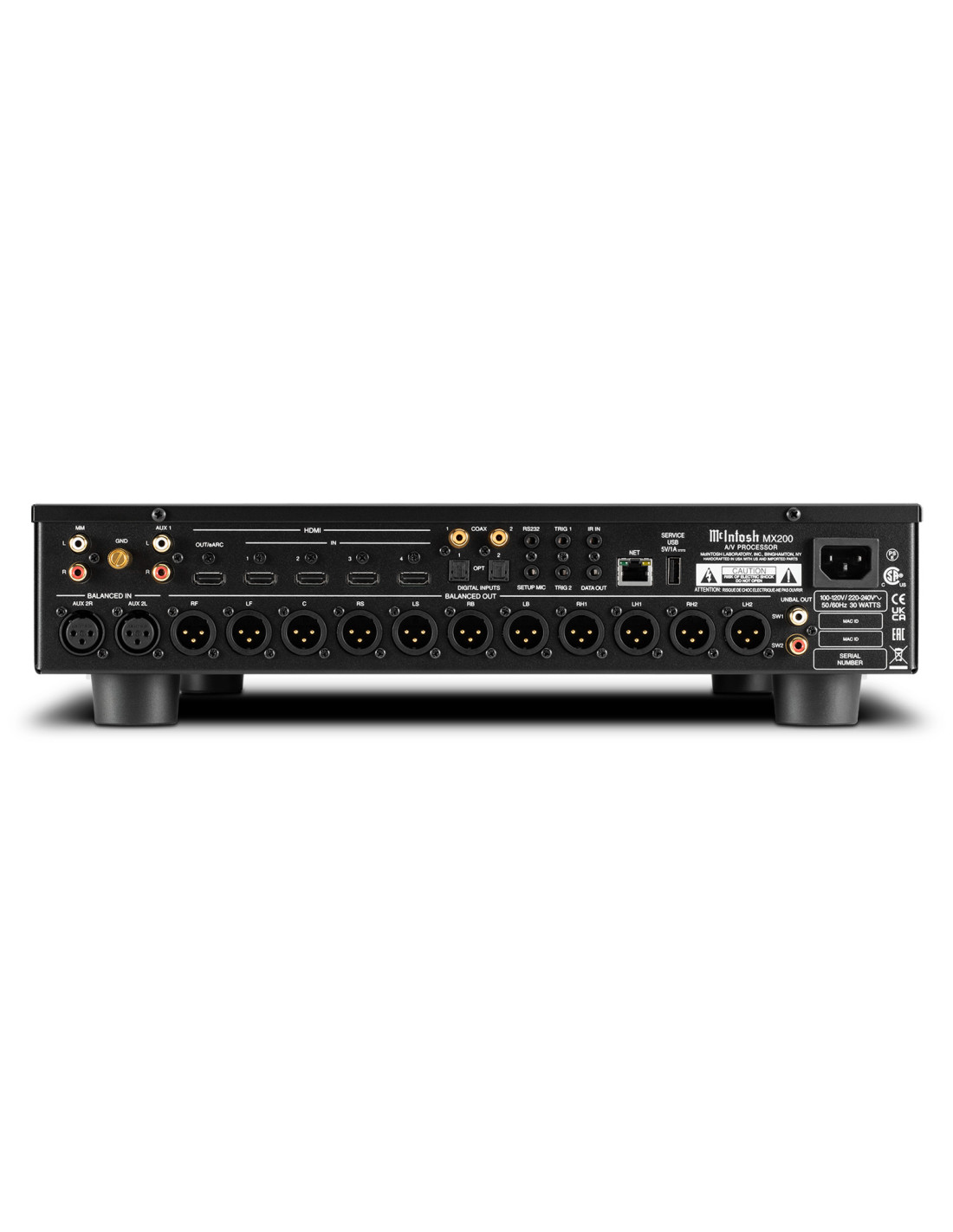

Connectivity

• Multi-Channel Outputs Balanced

  11

• Multi-Channel Inputs Unbalanced

  0

• Multi-Channel Outputs Unbalanced

  0

• Stereo Inputs Balanced

  1

• Stereo Inputs Unbalanced

  2 (1 Moving Magnet phono, 1 AUX)

• Stereo Outputs Unbalanced

  2 (subwoofers)

• Digital Coaxial Input

  2

• Digital Coaxial Output

  0

• Digital Optical Input

  2

• AES/EBU Balanced Input

  0

• HDMI Input

  4

• HDMI Output

  1

• USB

  1 Type A

• Component Input

  0

• Component Output

  0

• Composite Input

  0

• Composite Output

  0

• Subwoofer 2 Output

  Yes (discrete signal from subwoofer 1)

• Network Connection

  1

• Max # of audio channels in Zone A

  13

• Additional Zone Outputs

  0

• Advanced Connections

  Ethernet Web interface and firmware update, IP-based control

HDMI Features

• Resolution and Refresh Rates

  8K/60Hz and 4K/120Hz

• HDCP

  2.3

• 4:4:4 Color

  Yes

• Rec. 2020 (BT.2020)

  Yes

• 3D video pass-through

  Yes

• Dynamic Lip-sync

  No

• ARC

  Yes

• eARC

  Yes

• Video Scaling

  No

• High Dynamic Range (HDR)

  Dolby Vision, HDR10+ and HLG

• Quick Media Switching (QMS)

  No

• Auto Low Latency Mode (ALLM)

  No

• Quick Frame Transport (QFT)

  No

• Variable Refresh Rate (VRR)

  No

Processing

• Total Harmonic Distortion (DSP Bypass)

  0.05%

• Dolby Processing

  Dolby Atmos, Dolby Surround Upmixer

• DTS Processing

  DTS-X, Neural:X Surround Upmixer

• Auro Processing

  No

• Pure Stereo DSP Bypass Mode

  No

• MPEG-H Audio

  No

• 360 Reality Audio

  No

• IMAX Enhanced

  No

• Room Correction

  Dirac Live Room Correction Full Bandwidth

Control

• Third Party Control

  RS232, Web IP, IR Input, Connects with Control4, Works with Crestron Home

• Tone Controls

  Bass and Treble

• OSD Overlay on HDMI Output

  Volume Only

• Input-Output Format Indicators

  0

• Control of McIntosh Sources

  Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks

General Specifications

• Channel Formats

  11.2 (7.2.4), 7.1, 5.1, Stereo

• Microphone and stand included

  Yes

• Network Features

  Ethernet Setup

• Unique Crossover Frequency, Each Speaker

  Yes

• BTU Rating

  75 BTU/h

• Special Features

  Rear panel USB for firmware updating

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-3/8” (11.1cm) x 18-11/32” (46.6cm)

• Unit Weight

  17 lbs (7.7 kg)

• Shipping Weight

  39.5 lbs (18 kg)
