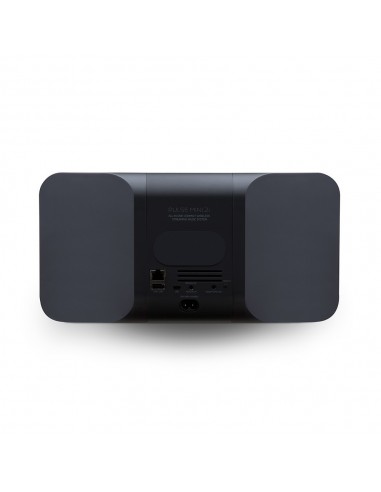

Pulse Mini 2i

AUDIO

Supported File Formats

MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats - FLAC, MQA, WAV, AIFF

Native Sampling Rates

32 - 192 kHz

Bit Depths

16 - 24

Performance

Frequency Response: 50Hz - 20kHz ±1.5dB, -10dB @ 40Hz

Distortion

THD+N - 0.030%

Power Output

100 watts of total system power

Speakers

2 x 4” (102mm) Woofers
2 x 3/4” (19mm) Tweeters

Supported Operating Systems

Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10, Apple Macintosh 7-10

Free Internet Radio

TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive, Radio.com

Supported Cloud Services

Spotify, Amazon Music HD, TIDAL, Deezer , Qobuz, HighResAudio (VAULT Required), Napster, KKBox, Bugs, Taihe Music ZONE, SoundMachine, IDAGIO, OraStream

Voice Control Integrations

Amazon Alexa & Google Assistant Skills

Integration Partners

Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron, roon, Airplay 2

Album Art

JPG

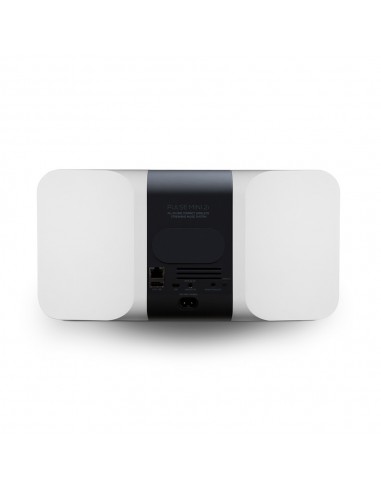

CONNECTIVITY

Network

Gigabit Ethernet RJ45
Wi-Fi 5 (802.11ac, dual-band)

USB

1 x Type-A port for connection to USB memory sticks (Fat32 or NTFS formatted) and supported peripherals
1 x Type-B (mini) for product servicing

Audio Input

Combo - Toslink/3.5mm

Audio Output

Headphone output - 3.5 Stereo

Power

Universal bi-pin AC Cord input (100 - 240AC)

Bluetooth Quality

Bluetooth 5.0 aptX HD wireless built-in

Bluetooth Connectivity

Two-Way (transmit & receive)

USER INTERFACE

Mobile

Free Android and iOS App Available Online at Google Play and Apple App Store

Pushbuttons

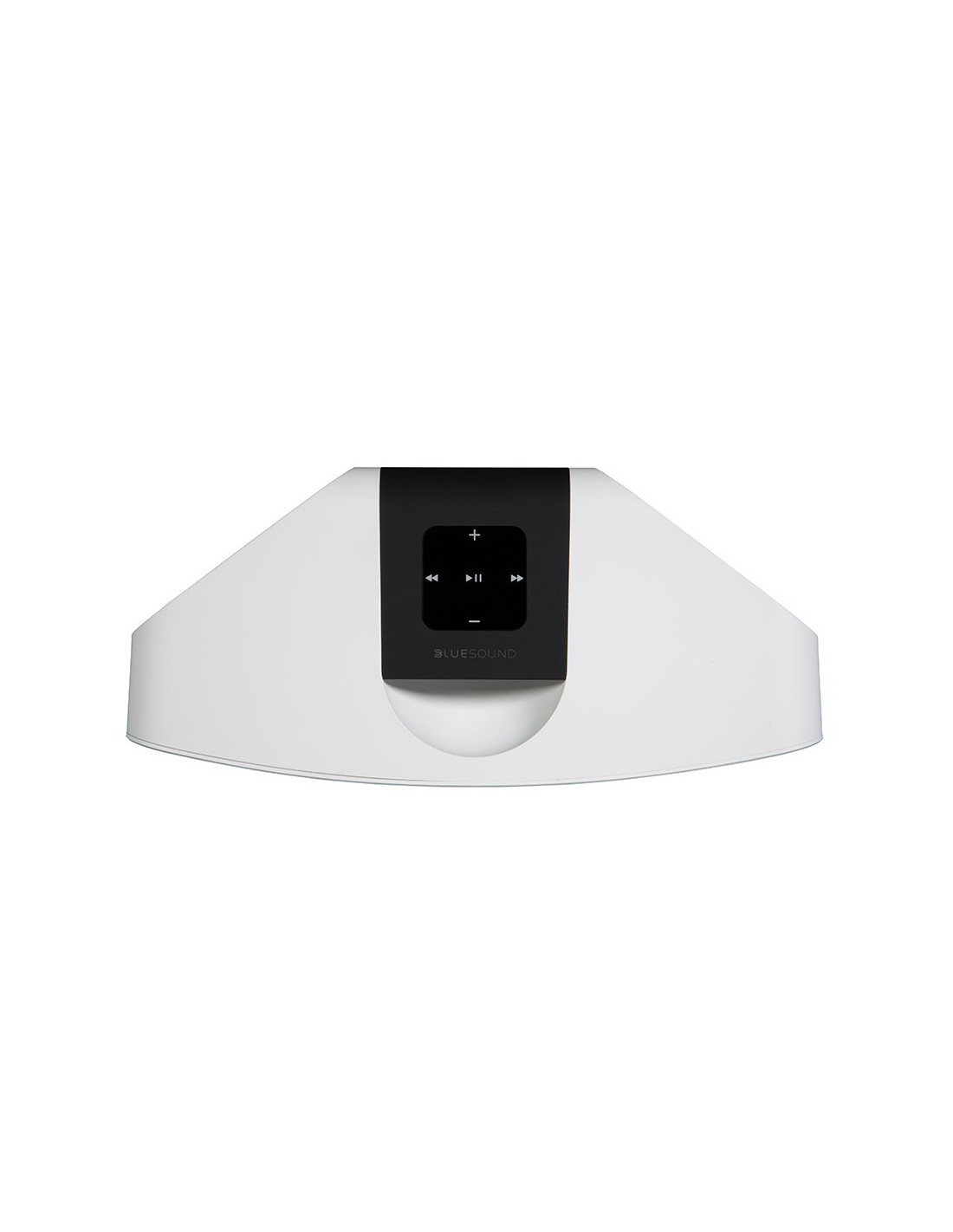

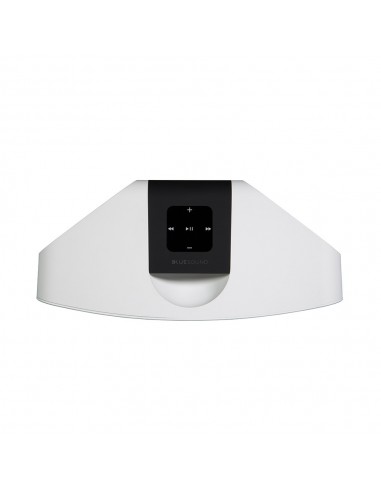

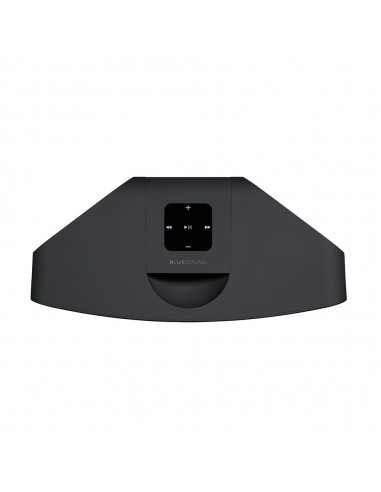

Simple top-panel touch controls.

Control

IR Sensor built in - Front panel

GENERAL

Processor

ARM® CORTEX™ A9, 1 GHz

Unit Weight

3.6 kg / 7.9 lbs

Gross Dimensions

335 x 172 x 155 mm
13.2 x 6.8 x 6.1 in

Power Consumption (Idle)

14 Watts

Accessories

2x AC power cords (Europe & North America)
Toslink Optical to 3.5mm Mini Adaptor
Ethernet Cable

Storage Environment

-10° C to 50° C, 20% to 80% relative humidity

Operating Environment

0° C to 40° C

Finish

Available in White or Black Matte
