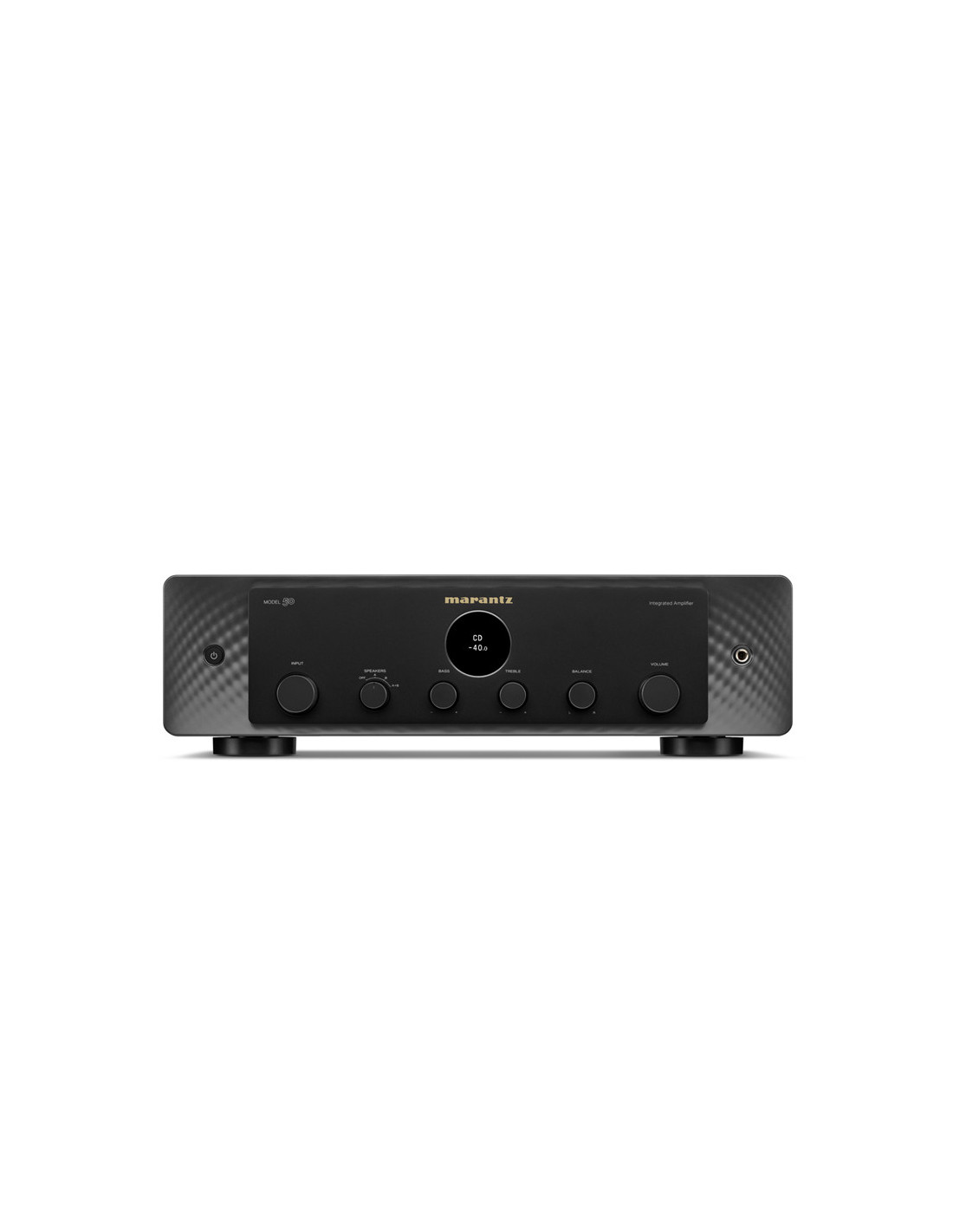

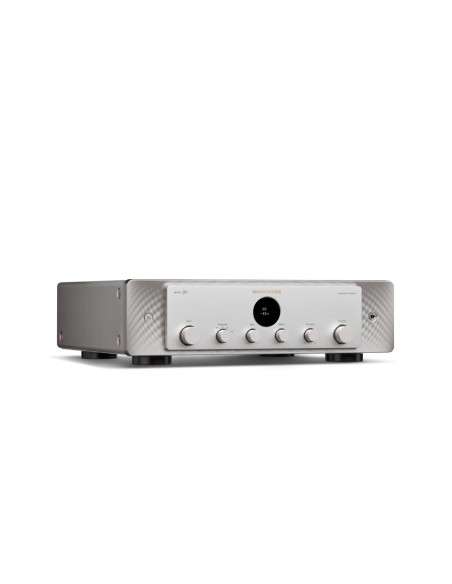

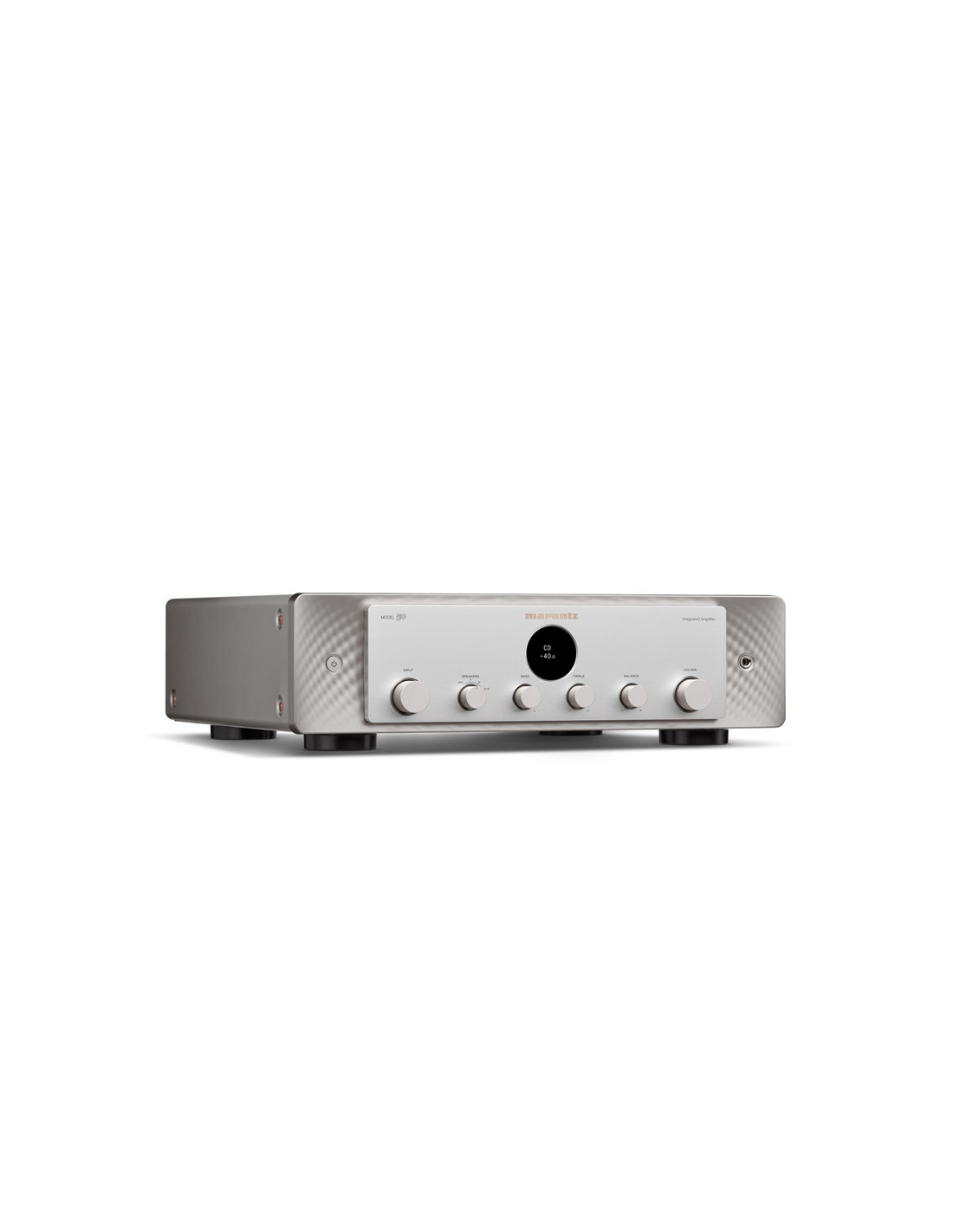

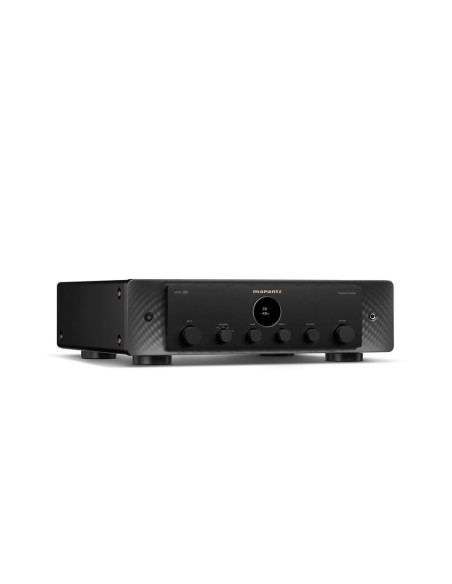

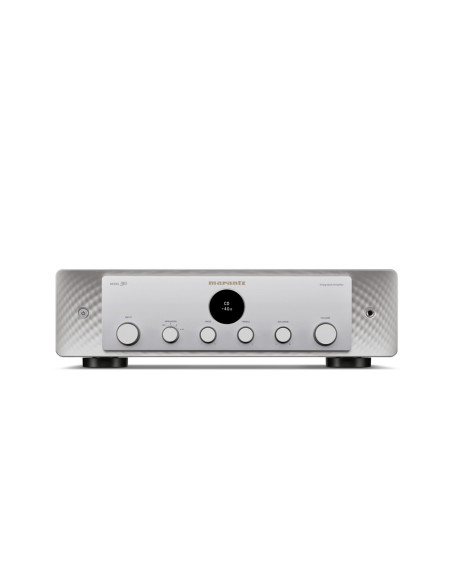

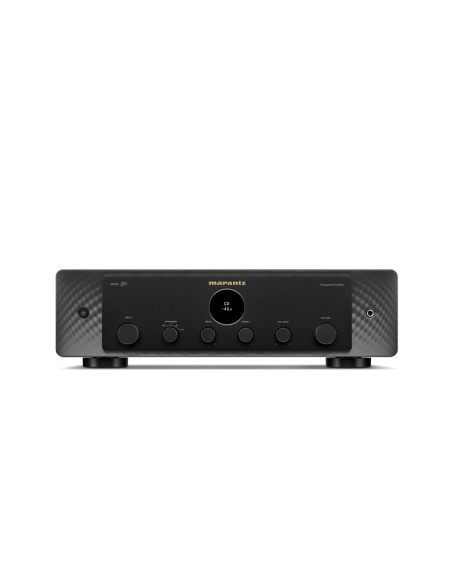

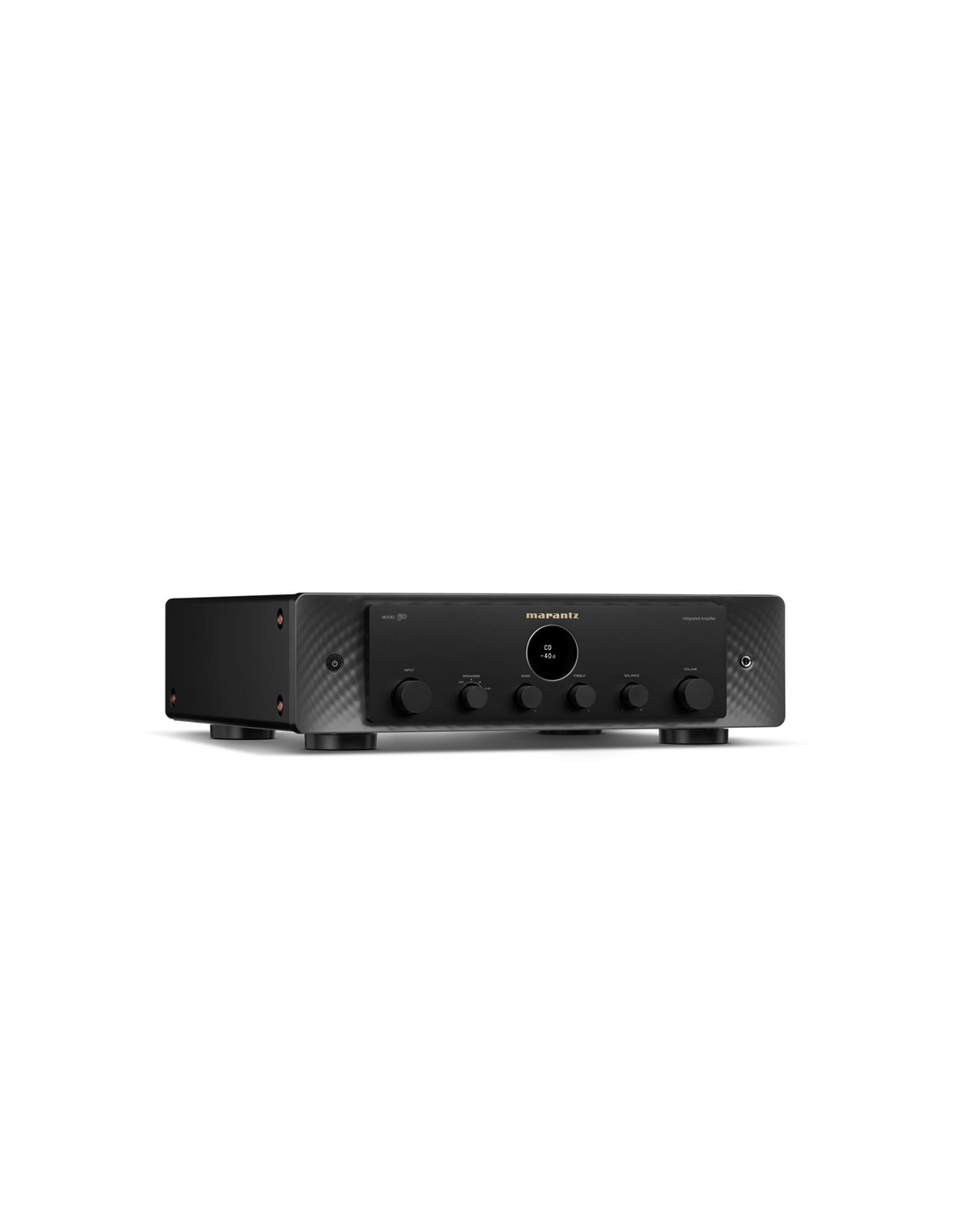

Model 50

Technical Specifications

Features

Channels 2

Current Feedback Topology Yes

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / Yes / -

Digital in: USB-B / optical / coaxial / USB-A - / - / - / -

HDAM version SA3, SA2

Power Transformer: Toroidal / El Yes / -

High Grade Audio Components Yes

Customised Components Yes

Symmetric PCB Layout Yes

Aluminium extrusion heat sink Yes

Balance / Bass / Treble / Loudness Yes / Yes / Yes / -

Others

Linear Drive Power Supply Yes

Liniear volume control Yes

Schottky diodes Yes

Input buffer amp (all inputs / CD only) - / -

Solid Heat Sinks Yes

System block shielding: Copper / metal / none none

Bottom Plate triple

Low noise OLED display Yes

Source Direct Yes

Power Amp direct Yes

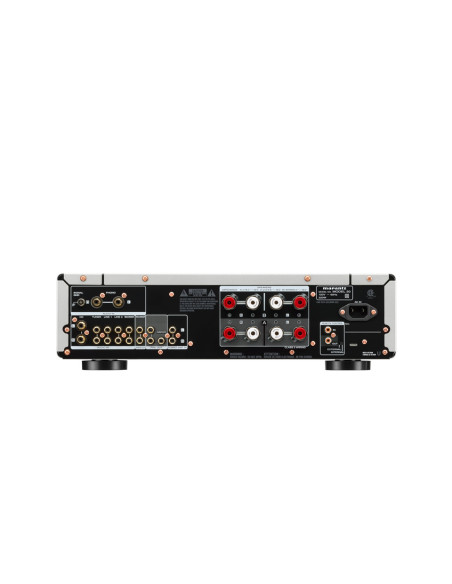

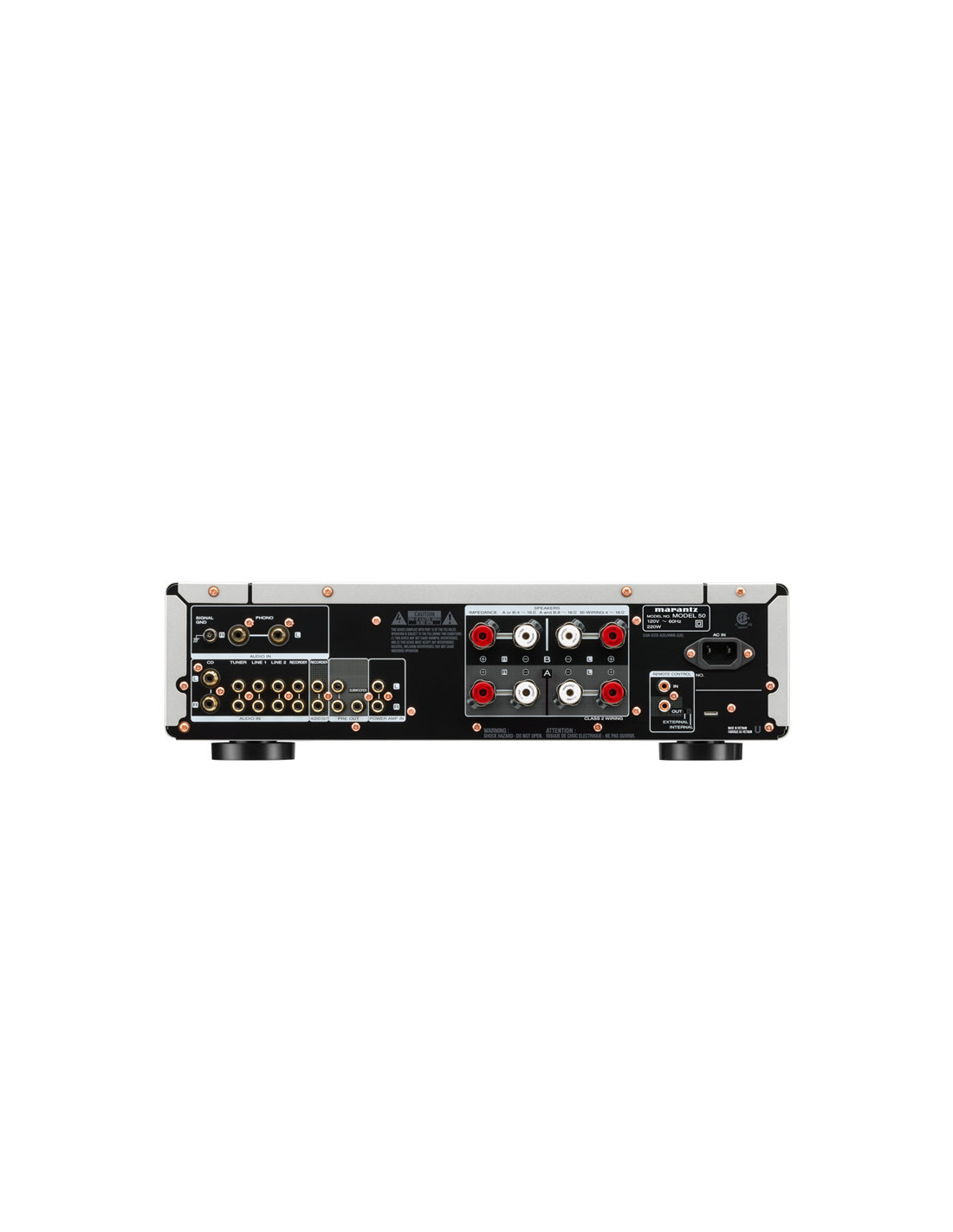

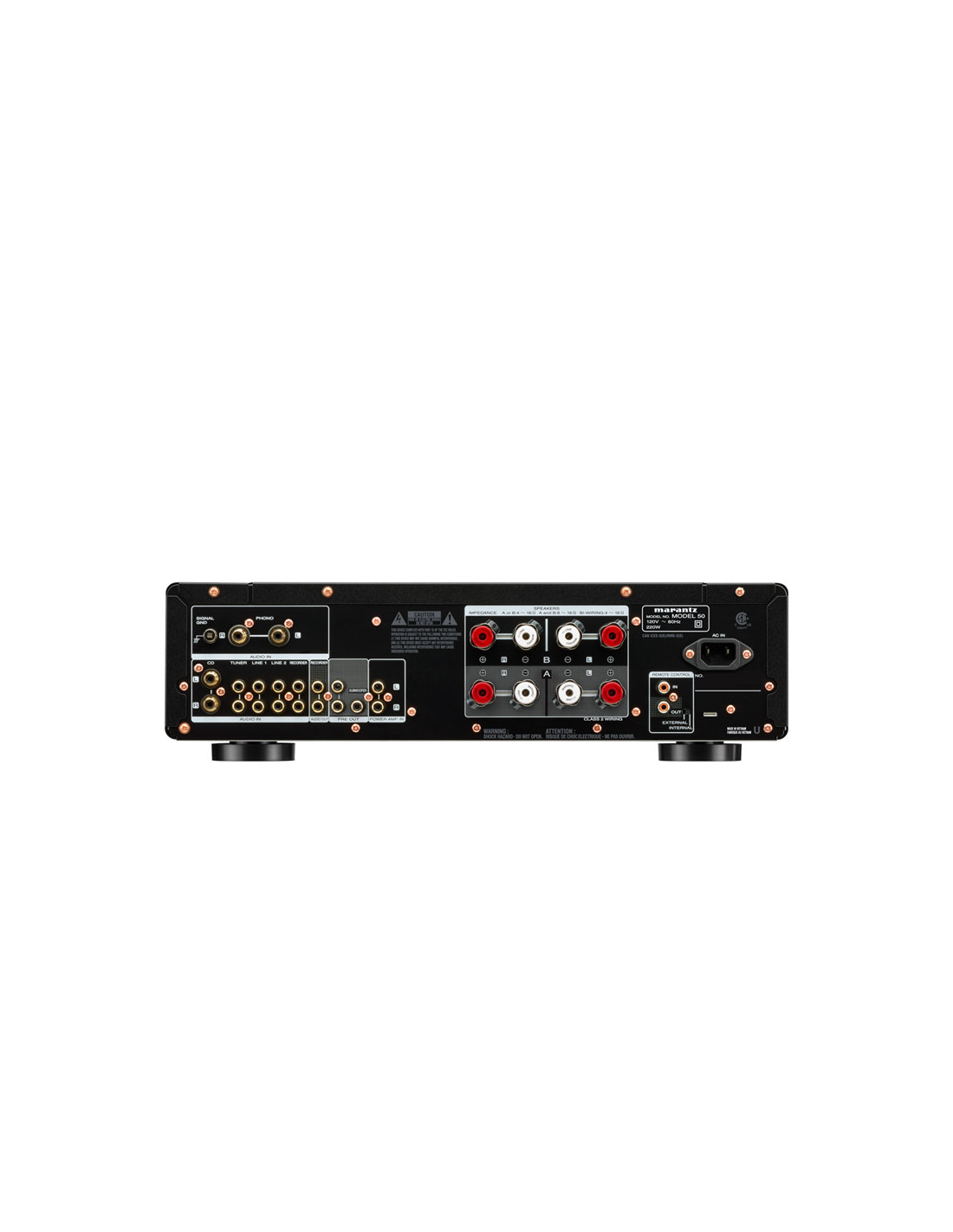

Inputs/Outputs

Audio Inputs 6

Digital in: USB-B / optical / coaxial / USB-A - / - / - / -

Phono Input: MM / MC Yes / -

Audio Outputs 1

Balanced In / Out - / -

Pre-out / Main-in Yes + subwoofer / -

Power Amp Direct IN Yes

Gold Plated Cinch Yes

Speaker A / B Yes

Speaker Terminals Marantz SPKT-1+

Number of terminals 4

D-Bus Yes

Headphone Out Yes

Specifications

Power Output (8 / 4 Ohm RMS) 70 W / 100 W

Frequency Response 5 Hz–100 kHz

Total Harmonic Distortion 0.02 %

Damping Factor 100

Input Sensitivity: MM 1.4 mV / 47 kΩ

Signal to Noise Ratio: MM/MC 87 dB / -

Input Sensitivity: High level 185 mV / 16 kΩ

Signal to Noise Ratio: High level 116 dB (2 V input)

Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ

Signal to Noise Ratio: Power Amp Direct IN 125 dB

Treble Control ± 10 dB at 15 kHz

Bass Control ± 10 dB at 50 Hz

General

Available Colors: Gold / Silver / Black / Silver-Gold - / - / Yes / Yes

Metal Front Panel Yes

Power Consumption in W 220

Standby Consumption in W 0.3

Auto Power off Yes

Detachable Power Cable Yes

Remote Control RC003PMND

System Remote Function Yes

Maximum Dimensions (W x D x H) in mm 442 x 431 x 130

Weight in kg 14.2

Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255

Carton Weight (inc. product) in kg 17.5
