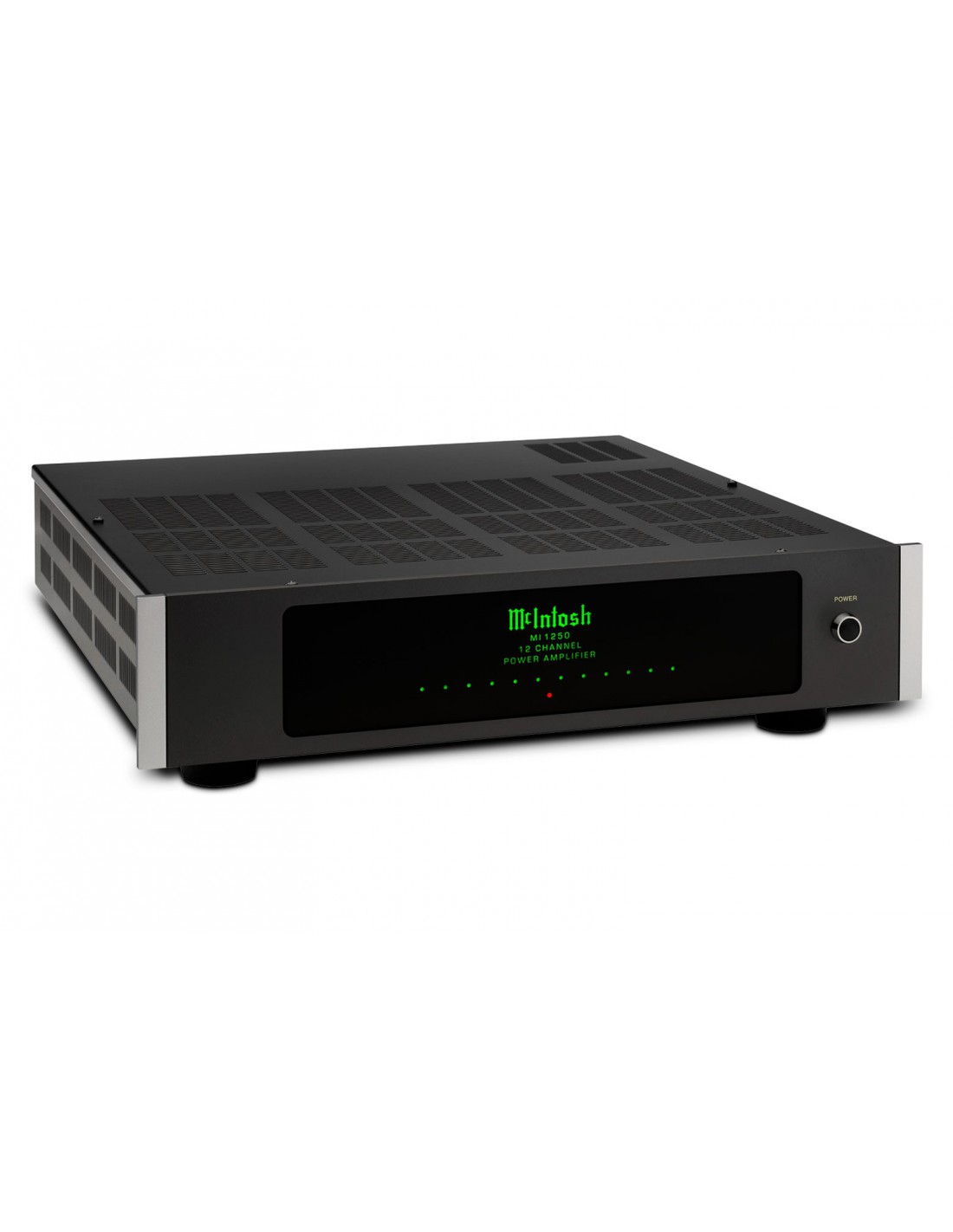

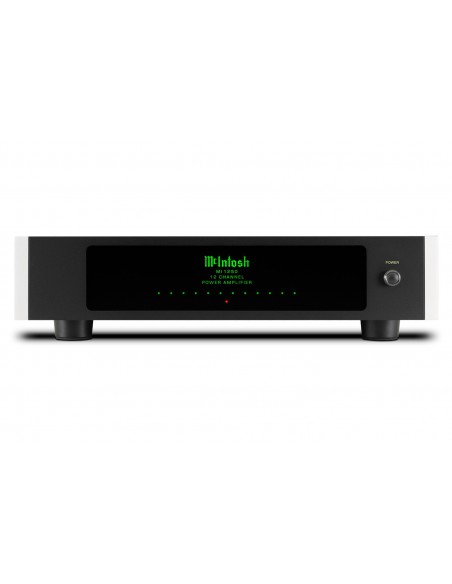

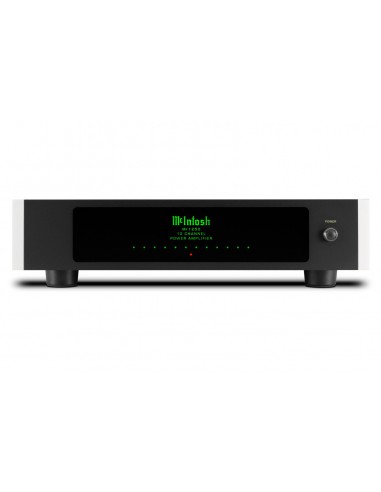

MI1250

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  50 Watts into 8 Ohms
  90 Watts into 4 Ohms

• Number of Channels

  12

• Total Harmonic Distortion

  0.05%

• S/N below rated output

  95dB

• Dynamic Headroom

  8 Ohms: 2.1dB
  4 Ohms: 3.3dB

• Damping Factor

  8 Ohms: >65
  4 Ohms: >32

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

CONNECTIVITY

• Speaker Binding Post Type

  2-pole Phoenix style push-in speaker terminals

GENERAL SPECIFICATIONS

• Circuit Configuration

  Closed loop digital switching

• Circuit Design

  Digital

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Output Type

  Direct Coupled

• Meters

  No

• Meter Light Switch

  No

• Balanced Input

  0

• Front Panel

  Glass with removable rack mounting ears

• Illumination

  Direct LED

• Chassis Style

  Black painted steel

• BTU Rating

  900 BTU/h

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)

• Unit Weight

  22 lbs (10 kg)

• Shipping Weight

  38.4 lbs (17.4 kg)
