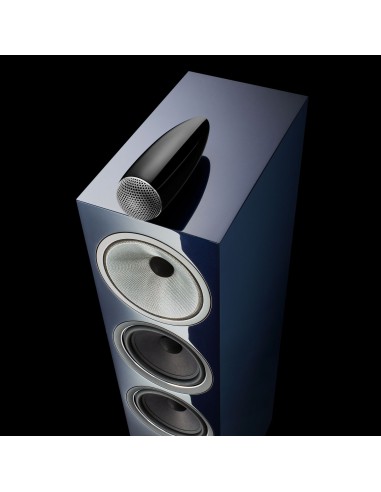

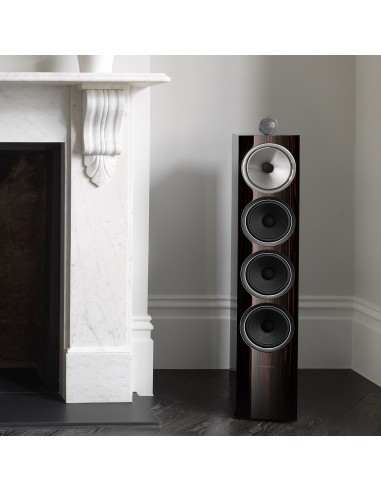

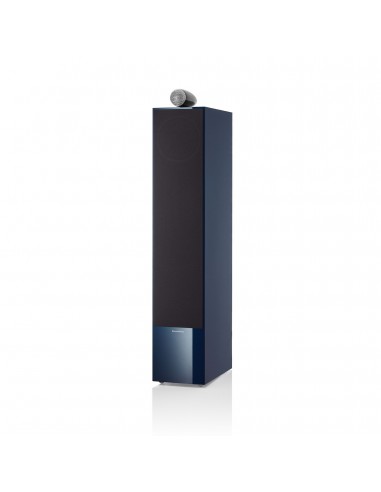

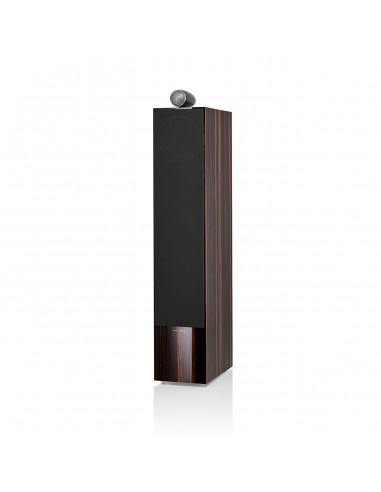

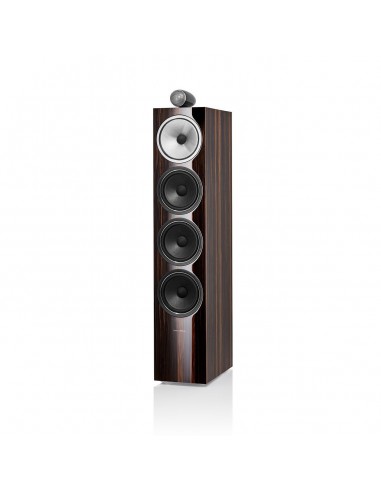

702 Signature
BW-702SIG
2 999,00 €
2 999,00 € gb./шт.
С НДС
Напольная акустика
Technical specifications
Model
702 Signature
Description
3-way vented-box system
Features

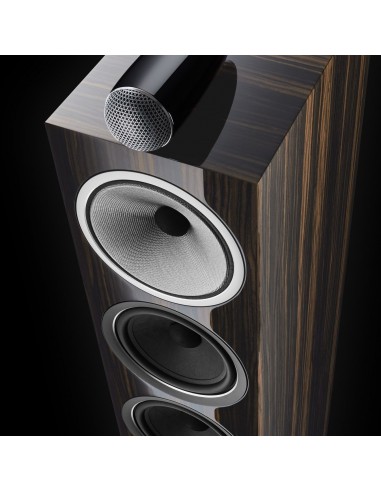

Decoupled Carbon Dome tweeter

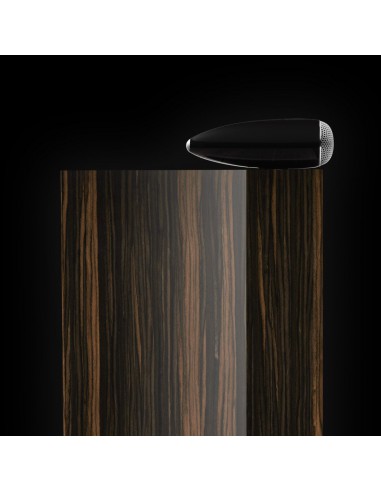

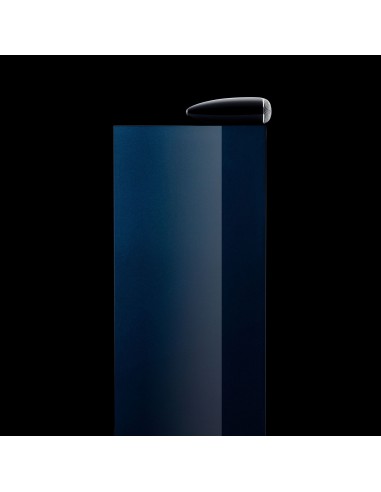

Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
Drive units
1x ø25mm (1 in) Carbon Dome
high-frequency
1x ø150mm (6 in) Continuum cone
FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
6dB at 28Hz and 33kHz
Frequency response
46Hz - 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Normal impedance
8Ω (minimum 3.1Ω)
Reccomended amplifier power
30W - 300W into 8Ω on
unclipped programme
Dimensions
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter
and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth
Net weight
29.5kg (65 lb)
Cabinet finishes
Datuk Gloss
Midnight Blue Metallic
Black
- Серия:
- 700 Series
- Чувствительность:
- 90 dB/2,83 V/ 1m
- Диапазон воспроизводимых частот:
- 46Hz - 28kHz ±3dB
- Мощность:
- 300 W
- Количество полос:
- 3
- Сопротивление:
- 8 Om
- Тип:
- пассивная
