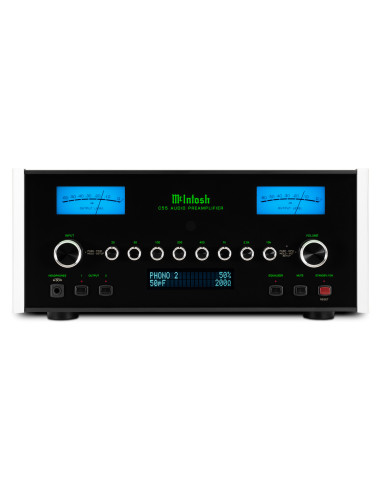

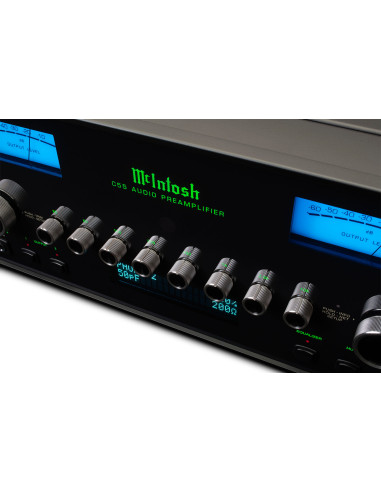

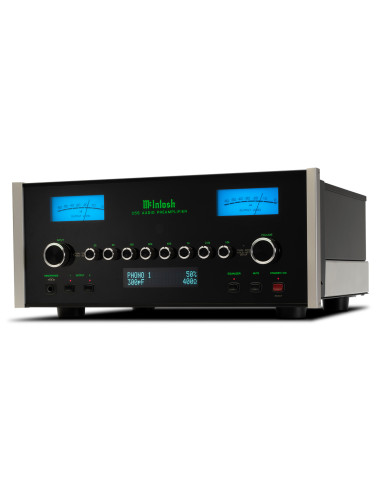

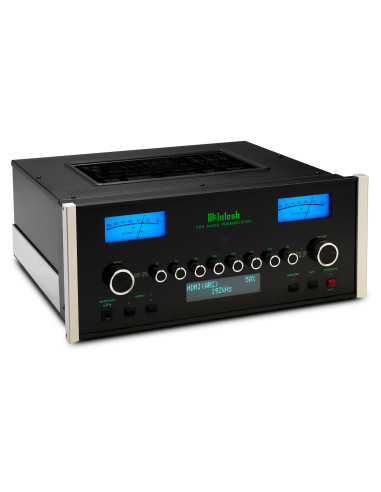

McIntosh C55

• 16 inputs: 7 analog, 2 phono, 7 digital
• Dedicated Subwoofer output
• Controllable by McIntosh Connect app
• Includes Processor Loop and 8-band analog equalizer
• Supports 24-bit/192kHz and DSD512 files
• Roon Tested

Electronic Specifications

- Number of Channels: 2

- Total Harmonic Distortion: 0.005%

- Frequency Response: +0, -0.5dB from 20Hz to 20kHz, +0, -3dB from 15Hz to 100kHz

- Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS

- Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV

- Sensitivity Phono (Moving Coil): 0.45mV

- Sensitivity Phono (Moving Magnet): 4.5mV

- Signal To Noise Ratio (High Level): 100dB

- Signal To Noise Ratio (Moving Coil): 80dB

- Signal To Noise Ratio (Moving Magnet): 82dB

- Voltage Gain (High Level): 15dB

- Voltage Gain (Moving Coil): Selectable 40dB, 46dB, 52dB, 58dB, or 64dB

- Voltage Gain (Moving Magnet): Selectable 40dB, 46dB, 52dB, 58dB, or 64dB

- Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm

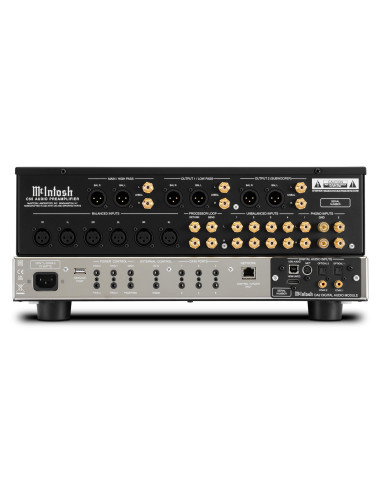

Connectivity

- Balanced Input: 3

- Unbalanced Input: 4

- Phono Input Moving Coil: Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

- Phono Input Moving Magnet: Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

- Upgradeable Digital Audio Module: Yes: DA2

- Digital Coaxial Input: 2

- Digital Optical Input: 2

- Digital MCT Input: 1

- Digital USB Input: 1

- HDMI (ARC) Input: 1

- Digital AES/EBU Input: 0

- Balanced Fixed Output: 0

- Balanced Variable Output: 3

- Unbalanced Fixed Output: 0

- Unbalanced Variable Output: 3

- Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)

- Input Level Match: Yes, +/- 6dB

- Home Theater PassThru: Yes

- Unbalanced Analog Connector Type: Premium gold-plated solid brass

- Service Port: 1

- Network Connection: 1

Control

- Tone Controls: 8-band (each band adjustable ± 12dB )

- Tone Bypass and Input Assign: Yes

- RS232 Control Input: Yes

- Power Control Output: 1 Main, 4 Trigger

- Rear Panel Data Port: 6

- Rear Panel IR Sensor Input: Yes

General Specifications

- Multi-Chassis or Single: Single, two-layer

- Output Meters: Yes

- Vacuum Tube or Solid State: Solid State

- Power Consumption (On): 75 Watts

Weights & Dimensions

- Unit Dimensions (W x H x D): 17.5" (44.45cm) x 7.625" (19.4cm) x 16.5" (41.9cm)

- Unit Weight: 28 lbs (12.5 kg)

- Shipping Weight: 43.5 lbs (19.7 kg)
