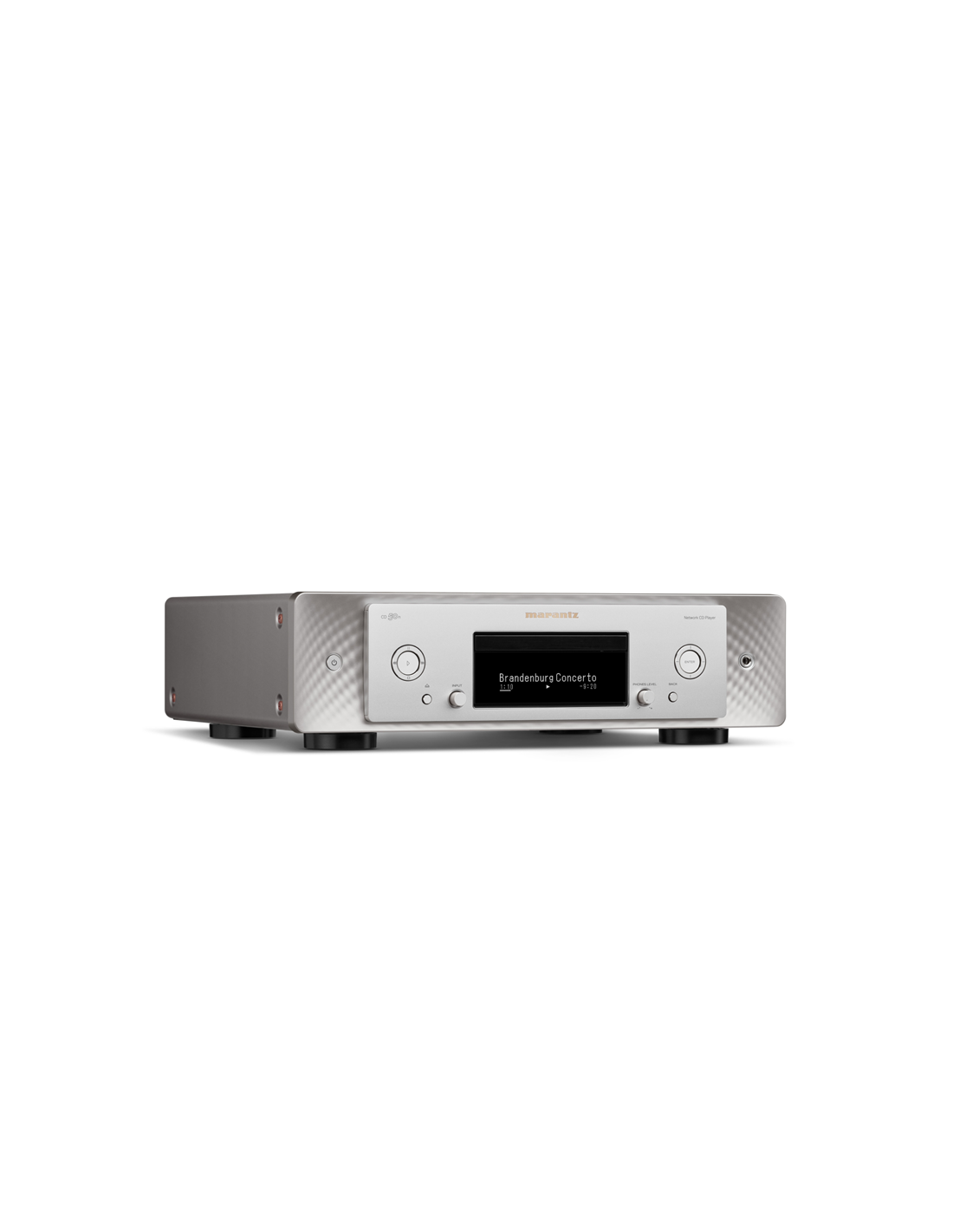

CD50n

Features

Network Audio Streaming Yes

Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes

Amazon Prime Music* / Pandora* Yes / Yes

AirPlay 2 Yes

Roon Tested Yes

Internet radio TuneIn

HEOS Multiroom and Streaming Yes

Voice Control - Works with Amazon Alexa Yes

Voice Control - Microphone built-in -

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC Yes / Yes / - / Yes / Yes / -

CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - / - / Yes / Yes / -

Data Disc Compatibility: DSD / WAV / ALAC - / - / -

USB input for memory stick Yes

DAC Master Clock Design Yes

DAC operation mode: USB-B / Coax / Optical Yes / Yes / Yes

Asynchronous mode rear USB-B Yes

Bit-perfect transmission Yes

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 Yes / Yes / Yes

Signal isolator for DAC Mode operation Yes

HDAM version HDAM + HDAM SA2

Power Transformer: Toroidal / El Yes / -

High Grade Audio Components Yes

Customised Components Yes

Symmetric circuit layout Yes

Extra metal plate for chassis strengthing Yes (double layer, 1mm x 2)

Digital out off / Audio EX Mode Yes / -

Headphone: Standard / Buffer / Current feedback - / - / Yes (HDAM SA2)

Network

Wi-Fi / Wired LAN 2.4 GHz, 5 GHz / Yes

Wi-Fi on / off mode Yes

Bluetooth on / off mode Yes

DSD Audio Streaming up to DSD11.2MHz

Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 Yes / Yes / Yes / Yes

Gapless Playback Yes (FLAC, WAV, DSD)

Remote APP: iDevice / Android Yes / Yes

App control AMP/CD via Network Player Yes

Others

Selectable filter: CD / SA-CD / DAC-Mode Yes / - / Yes (PCM Only)

Separated rectifier circuit for analogue and digital circuitry Yes

Display: Dimmer / Off Yes / Yes

Display 3 line OLED

Playback

Program Play (CD / SA-CD) 25 / -

Repeat Yes

Random Play Yes

Inputs/Outputs

Analogue Out (RCA) 1

Variable Out (RCA) 1

Balanced Out -

HDMI: ARC input for TV Yes

Digital Optical In / Out 1 / 1

Digital Coaxial In / Out 1 / 1

Max Sample Rate: S/PDIF Input 192 kHz / 24-bit

Gold Plated Cinch Yes

USB Audio rear

USB type B input for PC (rear) Yes

Sample Rate USB type B In up to DSD11.2 and PCM 384 kHz

D-Bus Yes

Remote Control Bus in / out -

Headphone Out Yes

Headphone Volume Control Yes

Bluetooth / Bluetooth HP transmission Yes / Yes (Update)

Ethernet port Yes

IP control Yes

Flasher Input Yes

RS232 Yes

Specifications

Digital Filter Filter 1,2 selectable

Noise Shaper None

Low Pass Filter stage HDAM

Output Buffer HDAM SA2

Headphone amp HDAM SA2

Frequency Response USB DSD 2Hz - 50kHz (-3dB)

USB PCM 2Hz - 50kHz (-3dB)

CD 2Hz - 20kHz (±1dB)

Dynamic Range USB DSD 106dB

USB PCM 112dB (24bit)

CD 100dB (16bit)

Signal to Noise Ratio USB DSD 112dB

USB PCM 112dB

CD 112dB

Total Harmonic Distortion USB DSD 0.0010%

USB PCM 0.0010% (24bit)

CD 0.0016% (16bit)

Channel separation USB DSD 110dB

USB PCM 110dB

CD 110dB

General

Available colors: Black / Silver-Gold Yes / Yes

Metal Front Panel Yes

Remote Control RC003PMND

Power Consumption in W 35

Standby Consumption in W 0.3

Auto Power off Yes

Detachable Power Cable Yes

Maximum Dimensions (W x D x H) in mm 442 x 424 x 130

Weight in kg 10.3

Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255

Carton Weight (inc. product) in kg 13.5
