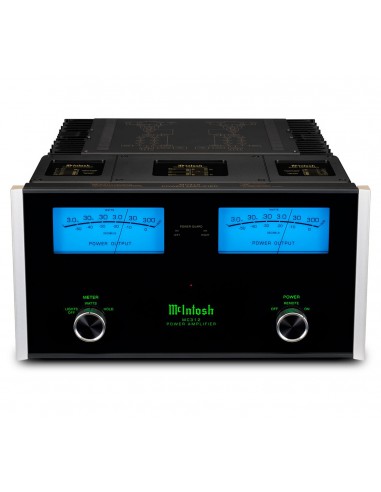

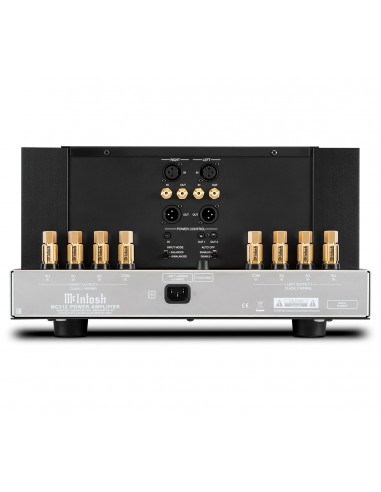

McIntosh MC312

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  300 Watts @ 2, 4 or 8 Ohms

• Number of Channels

  2

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  120dB

• Dynamic Headroom

  2.3dB

• Damping Factor

  >40 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20,000Hz
  +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

CONNECTIVITY

• Speaker Binding Post Type

  Patented Solid Cinch™ Speaker Binding Posts

GENERAL SPECIFICATIONS

• Circuit Configuration

  Push-Pull Complementary

• Circuit Design

  Solid State

• Mono Bridge

  No

• Mono Parallel

  No

• Output Type

  Autoformer™

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  2

• Front Panel

  Glass

• Illumination

  Direct LED

• Chassis Style

  Polished stainless steel & black painted steel

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including feet) x 22" (55.88cm) (including front panel, handles and cables)

• Weight

  105 lbs (47.63 kg)

• Shipping Weight

  138 lbs (62.59 kg)
