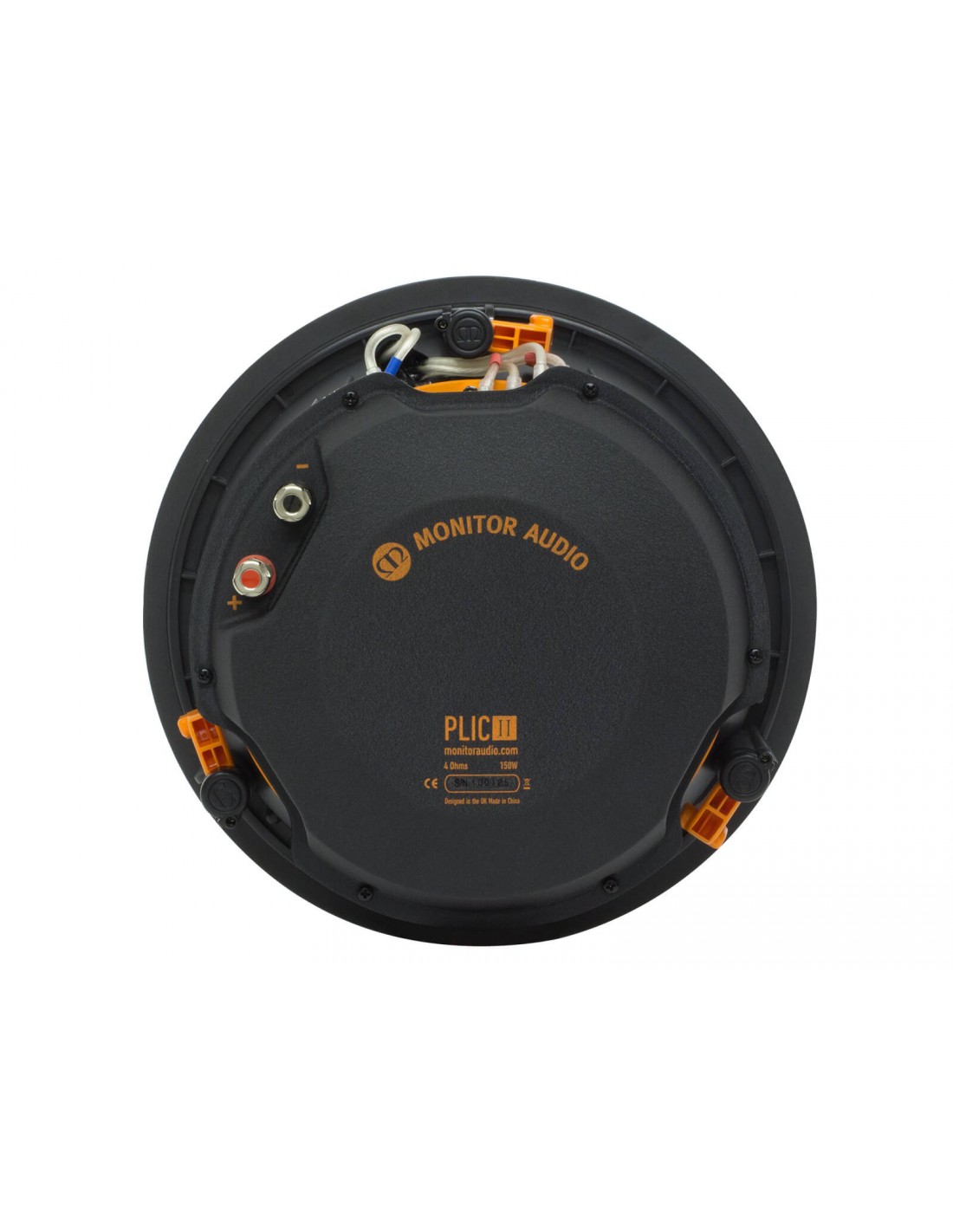

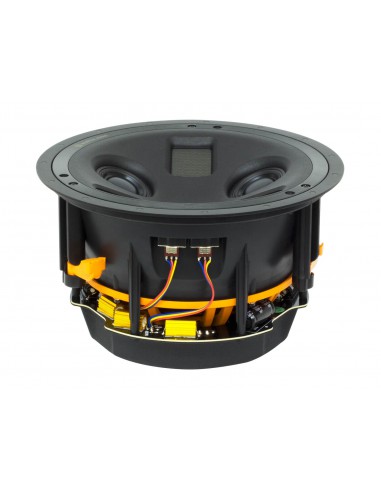

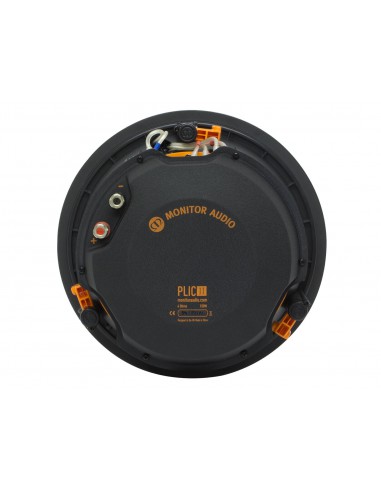

Platinum PLIC II
MA-117
Встраиваемая в потолок акустика
System Format
3 Way – 4 Driver
Frequency Response (-6 dB)
45 Hz – 60 kHz
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Nominal Impedance
4 ohms (3.1 ohms minimum @ 1.1 KHz)
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
50 – 150 W
Recommended Enclosure
PLIC-BOX II or a bespoke sealed enclosure of 24 litres
Mid / H.F Crossover Frequency
5.3 KHz 3rd order (18 dB / Octave)
Bass / Midrange Crossover Frequency (Hz)
380 Hz 4th Order (24 dB / Octave)
Drive Unit Complement
1 x 8" long-throw RDT II bass driver
2 x 2" C-CAM mid-range drivers
1 x MPD high frequency transducer
Adjustment Controls
HF level switch (+1 dB / 0 dB / -1 dB)
MF level switch (+1 dB / 0 dB / -1 dB)
Connection
High-end ‘Push’ type terminals
Fixing Type
3 position Tri-Grip dog fixings
Overall Diameter - Grille On/Off
309 mm (123/16")
296.25 mm (1111/16")
Overall Depth – Grille On/Off
191.5 mm (71/2")
188 mm (73/8")
Construction Material
Main chassis - Mineral Filled ABS (RoHS2 compliant)
Baffle – Die cast Aluminium

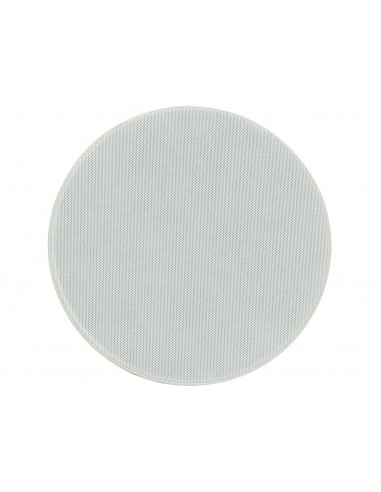

Grille Type
Low profile trimless grille with magnetic fixings – Paintable (square grille available as a cost option)
Optional Square Grille - Outer Dimensions
309 x 309 mm (123/16")
Cut-Out Hole Diameter
273 mm (103/4")
Mounting Depth
185 mm (75/16")
Weight (each)
5.22 kg (11 lb 8 oz)
Pre-Construction Bracket

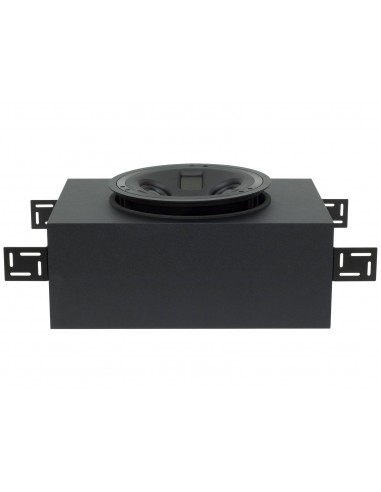

Back Box
Sold As
Single Unit
- Серия:
- Platinum II Series
