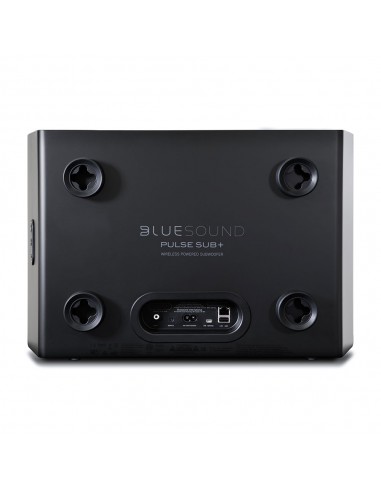

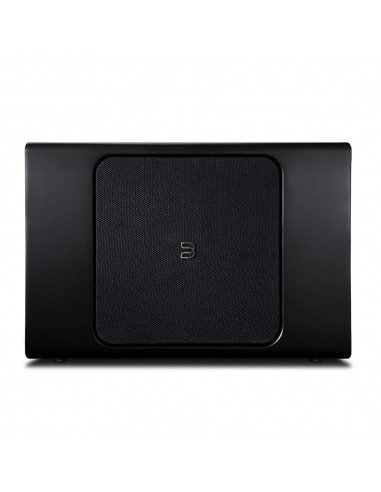

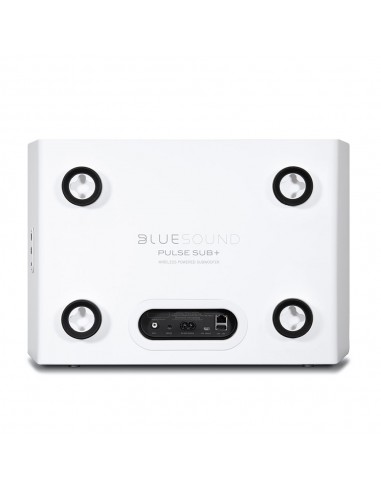

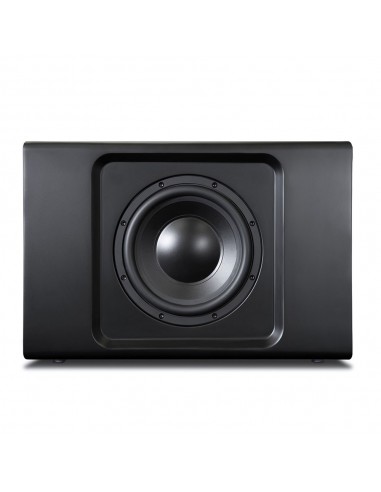

Pulse Sub+

GENERAL

Status Indicator

Dimmable LED

Processor

ARM® Cortex™ -A9, 1GHz

Power

Universal bi-pin AC cord input, (100 – 240AC, 50/60Hz)

Wireless

WiFi 802.11ac, dual-band

Ethernet/LAN

Ethernet RJ45

Analog

Mono Low/Line Level Input

USB

Type A (upgrade only); Type B (mini) for service

Finish

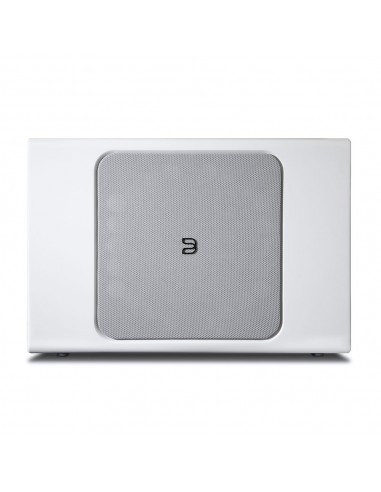

Available in White or Black Matte

Included Accessories

120V AC Power Cord
230V AC Power Cord
Magnetic Rubber Feet x 2
Wall Mount Bracket
Safety/Warranty Guide
Quick Setup Guide

AMPLIFIER

Continuous

150W

Dynamic Peak

200W

Type

Smart DSP Amplifier, Class D

Power Consumption

0.5W Network Standby

FREQUENCY RESPONSE

On Axis @ 0°±2dB

22Hz - 150Hz

LF Cutoff -10dB

20Hz

ACOUSTIC DESIGN

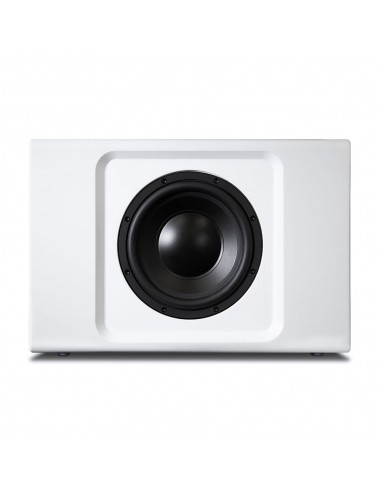

Woofer (Nominal)

203mm / 8” Polypropylene cone, Rubber Surround

Crossover

50Hz - 150Hz, LFE setting

USER INTERFACE

Mobile Operating System

BluOS - Free Android and iOS App Available Online at Google Play and Apple App Store

Advanced Audio Controls

Volume +/-
Variable Crossover Frequency
Variable Phase

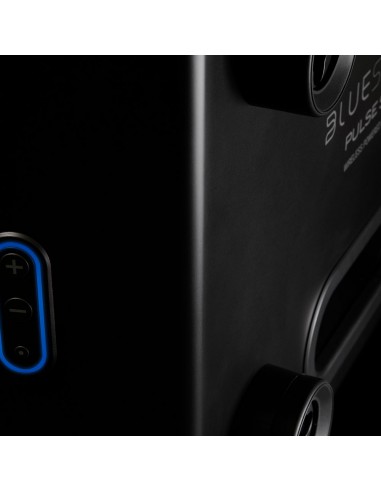

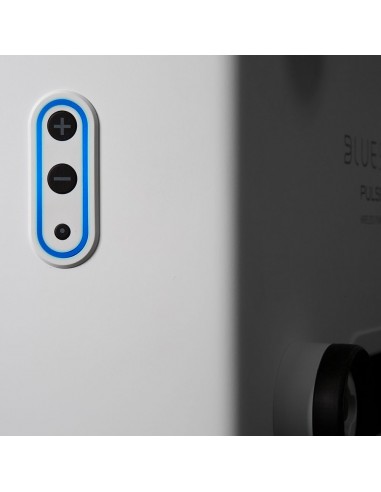

Physical Push Buttons

Volume +/-
Function Button

DIMENSIONS

Dimensions

457 x 300 x 146mm (W x H x D metric)

Weight

8.28kg/18.25lbs
(not including feet or wall bracket)
