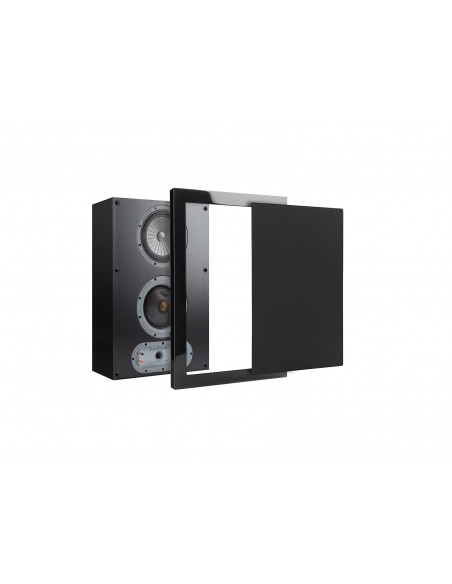

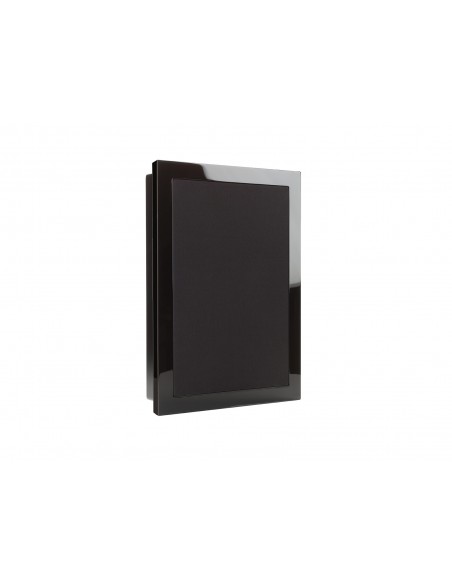

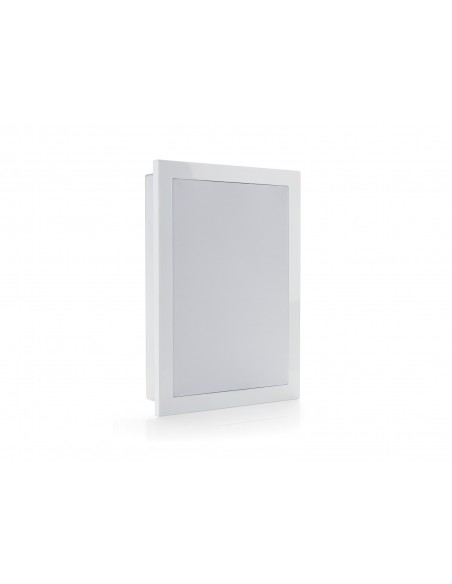

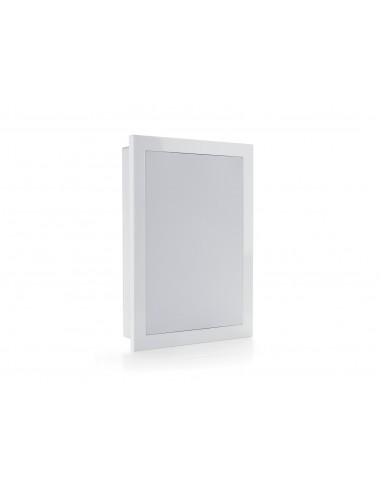

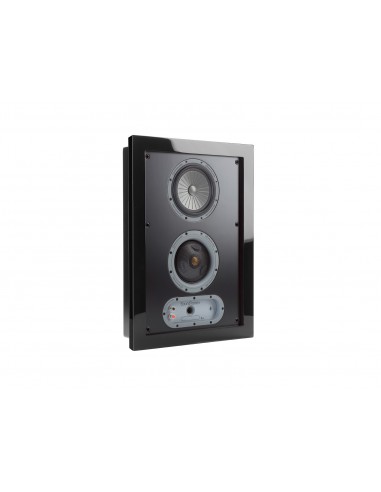

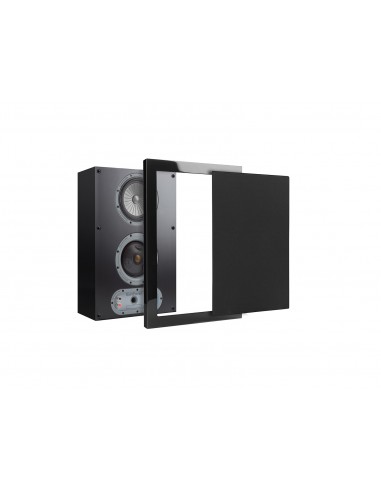

SoundFrame 1 In-Wall
MA-046
600,00 €
AR PVN

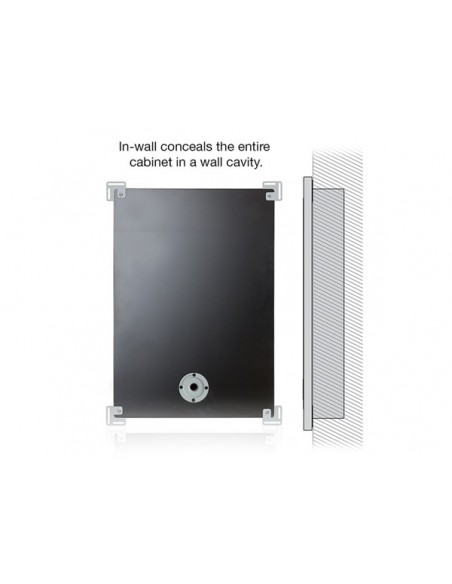

Iebūvējama sienā akustika
Frequency Response
55 Hz — 35 kHz
Sensitivity (1W@1M)
86 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
100 W
Maximum SPL
106 dBA
Recommended Amplifier Requirements
25 — 100 W
Bass Alignment
Sealed Box
Crossover Frequency
550 Hz & 3.3 kHz
System Configuration
3-Way

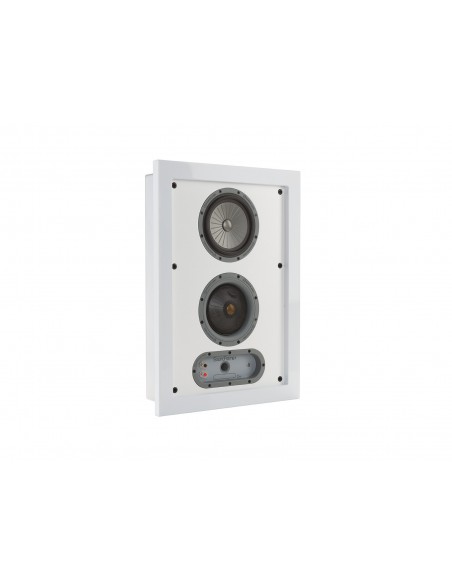

Drive Unit Complement
1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
Dimensions (Including Frame (H x W x D))
552 x 402 x 87.5 mm (213/4 x 1513/16 x 37/16")
Cut-Out Dimensions
501 x 351 x 75 mm (1911/16 x 133/4 x 215/16")
Weight (packaged)
7.53 kg (16.6 lbs)
Sold As
Single Unit
- Serija:
- SoundFrame Series
